Inheritance diagram for libXWCTest::modalGainOptTest::processPsdProcessorHarness:

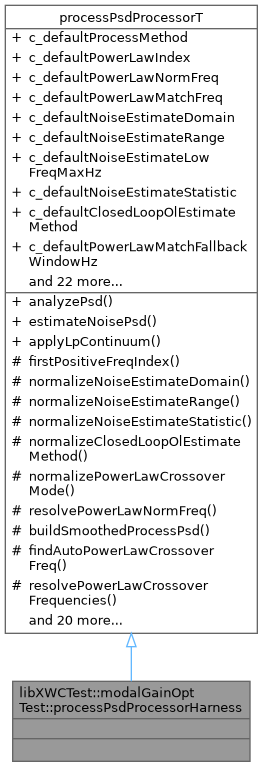

Collaboration diagram for libXWCTest::modalGainOptTest::processPsdProcessorHarness:

Static Public Member Functions
static mx::error_t	analyzePsd (processResults &result, const std::vector< realT > &measuredPsd, const std::vector< realT > &freq, size_t modeIndex, const processModelConfig &config, realT lpContinuumFreq=static_cast< realT >(0), realT lpContinuumWidthHz=c_defaultLpContinuumWidthHz, const std::vector< realT > etfPsd=nullptr, const std::vector< realT > ntfPsd=nullptr)
	Build the noise PSD, disturbance PSD, and LP continuum PSD for one mode.

static mx::error_t	estimateNoisePsd (std::vector< realT > &noisePsd, realT &noiseFloor, const std::vector< realT > &measuredPsd, const std::vector< realT > &freq, size_t modeIndex, std::string noiseEstimateRange=c_defaultNoiseEstimateRange, std::string noiseEstimateStatistic=c_defaultNoiseEstimateStatistic, realT noiseEstimateLowFreqMaxHz=c_defaultNoiseEstimateLowFreqMaxHz)
	Estimate the flat noise PSD using the configured modalGainOpt statistic.

static mx::error_t	applyLpContinuum (std::vector< realT > &lpProcessPsd, const std::vector< realT > &processPsd, const std::vector< realT > &freq, realT cutoffFreq, realT continuumWidthHz)
	Replace all LP content above a cutoff with a smoothed continuum.

Static Public Attributes
static constexpr const char *	c_defaultProcessMethod = "legacy"
	The default process-method name.

static constexpr realT	c_defaultPowerLawIndex = static_cast<realT>( 8.0 / 3.0 )
	The default `1/f^a` exponent.

static constexpr realT	c_defaultPowerLawNormFreq = static_cast<realT>( 0 )
	The default auto-selected power-law normalization frequency.

static constexpr realT	c_defaultPowerLawMatchFreq = static_cast<realT>( 0 )
	The default disabled explicit power-law match frequency.

static constexpr const char *	c_defaultNoiseEstimateDomain = "open-loop"
	The default domain used for noise-floor estimation.

static constexpr const char *	c_defaultNoiseEstimateRange = "high-freq"
	The default end of the PSD used for noise-floor estimation.

static constexpr realT	c_defaultNoiseEstimateLowFreqMaxHz = static_cast<realT>( 0 )
	The default disabled maximum frequency for low-frequency noise estimation.

static constexpr const char *	c_defaultNoiseEstimateStatistic = "percentile"
	The default statistic used to estimate the flat noise floor.

static constexpr const char *	c_defaultClosedLoopOlEstimateMethod = "etf-only"
	The default closed-loop to open-loop PSD reconstruction method.

static constexpr realT	c_defaultPowerLawMatchFallbackWindowHz = static_cast<realT>( 5 )
	The default half-width of the local match-frequency fallback window.

static constexpr const char *	c_defaultPowerLawCrossoverMode = "manual"
	The default crossover-selection mode for the power-law handoff.

static constexpr realT	c_defaultPowerLawAutoSmoothWidthHz = static_cast<realT>( 50 )
	The default median-smoothing width used by the automatic crossover finder.

static constexpr realT	c_defaultPowerLawAutoMaxFreqFraction = static_cast<realT>( 0.4 )

static constexpr bool	c_defaultFitPowerLawIndex = false
	The default choice to keep the power-law exponent fixed.

static constexpr bool	c_defaultPowerLawFitIncludesMatchPoint = true
	The default choice to include the match point in the exponent fit.

static constexpr realT	c_defaultPowerLawFitMinFreqHz = static_cast<realT>( 100 )
	The default low edge of the power-law exponent fit range.

static constexpr realT	c_defaultPowerLawFitMaxFreqHz = static_cast<realT>( 1000 )
	The default high edge of the power-law exponent fit range.

static constexpr realT	c_defaultPowerLawFitBinWidthHz = static_cast<realT>( 100 )
	The default width of each exponent-fit median bin.

static constexpr int	c_defaultPowerLawBlendBins = 5

static constexpr realT	c_defaultPeakDetectWidthHz = static_cast<realT>( 50 )
	The default wide smoothing width used by peak detection.

static constexpr realT	c_defaultPeakDetectFactor = static_cast<realT>( 5 )
	The default strong-peak detection factor.

static constexpr realT	c_defaultPeakDetectBroadFactor = static_cast<realT>( 3 )
	The default broad-peak detection factor.

static constexpr realT	c_defaultPeakDetectMinWidthLog = static_cast<realT>( 0.02 )
	The default minimum accepted broad-peak width in dex.

static constexpr realT	c_defaultPeakMoffatBeta = static_cast<realT>( 6 )
	The default lower bound on the Moffat beta parameter.

static constexpr int	c_defaultPeakDetectPasses = 2
	The default number of subtract-and-redetect peak passes.

static constexpr realT	c_defaultDropoutGapFactor = static_cast<realT>( 0.2 )
	The default dropout-detection threshold factor.

static constexpr realT	c_defaultDropoutTinyFactor = static_cast<realT>( 1e-6 )

static constexpr size_t	c_defaultDropoutMaxBins = 4
	The default maximum repaired dropout-run length in bins.

static constexpr realT	c_defaultClSignificanceThreshold = static_cast<realT>( 1.1 )
	The default raw-CL significance threshold multiplier.

static constexpr realT	c_defaultClMinSignificantFraction = static_cast<realT>( 0.05 )

static constexpr realT	c_defaultLpContinuumWidthHz = static_cast<realT>( 25 )
	The default LP-continuum smoothing width.

static constexpr realT	c_defaultPowerLawOnlyAboveFreq = static_cast<realT>( 0 )

Static Protected Member Functions
static size_t	firstPositiveFreqIndex (const std::vector< realT > &freq)
	Return the index of the first strictly-positive frequency bin.

static std::string	normalizeNoiseEstimateDomain (std::string domain)
	Normalize a noise-estimation-domain name to lowercase hyphenated form.

static std::string	normalizeNoiseEstimateRange (std::string range)
	Normalize a noise-estimation-range name to lowercase hyphenated form.

static std::string	normalizeNoiseEstimateStatistic (std::string statistic)
	Normalize a noise-estimation-statistic name to lowercase hyphenated form.

static std::string	normalizeClosedLoopOlEstimateMethod (std::string method)

static std::string	normalizePowerLawCrossoverMode (std::string mode)
	Normalize a power-law crossover mode name to lowercase hyphenated form.

static realT	resolvePowerLawNormFreq (const std::vector< realT > &freq, realT requestedNormFreq)

static mx::error_t	buildSmoothedProcessPsd (std::vector< realT > &smoothedProcessPsd, const std::vector< realT > &rawProcessPsd, const std::vector< realT > &freq, realT smoothWidthHz)

static mx::error_t	findAutoPowerLawCrossoverFreq (realT &crossoverFreq, const std::vector< realT > &smoothedProcessPsd, const std::vector< realT > &noisePsd, const std::vector< realT > &freq, realT maxFreqFraction)

static mx::error_t	resolvePowerLawCrossoverFrequencies (realT &powerLawMatchFreq, realT &powerLawOnlyAboveFreq, const std::vector< realT > &rawProcessPsd, const std::vector< realT > &smoothedProcessPsd, const std::vector< realT > &noisePsd, const std::vector< realT > &freq, std::string powerLawCrossoverMode, realT powerLawAutoMaxFreqFraction)

static realT	powerLawContinuum (realT extrapolation, const std::vector< realT > &freq, size_t index, realT powerLawIndex, realT powerLawNormFreq)
	Evaluate the extrapolated power-law continuum at one frequency bin.

static realT	interpolatePsdAtFreq (const std::vector< realT > &psd, const std::vector< realT > &freq, realT targetFreq)
	Linearly interpolate a sampled PSD onto an arbitrary frequency.

static mx::error_t	matchPowerLawAtFreq (realT &extrapolation, const std::vector< realT > &anchorProcessPsd, const std::vector< realT > &freq, realT powerLawIndex, realT powerLawNormFreq, realT powerLawMatchFreq, realT powerLawMatchFallbackWindowHz)

static realT	moffatAlphaFromFwhm (realT fwhm, realT beta)
	Invert the Moffat FWHM relation to recover the alpha parameter.

static realT	moffatValueFromFwhm (realT radius, realT peakHeight, realT fwhm, realT beta)
	Evaluate a zero-background Moffat profile from its height, FWHM, and beta.

static realT	fitMoffatBetaToBoundary (realT peakHeight, realT fwhm, realT radius, realT target, realT betaFloor)

static realT	interpolateCrossing (realT x0, realT y0, realT x1, realT y1, realT target)

static mx::error_t	fitPowerLawIndexFromBinnedMedians (realT &powerLawIndex, size_t &nBinsUsed, const std::vector< realT > &rawProcessPsd, const std::vector< realT > &freq, realT fitMinFreqHz, realT fitMaxFreqHz, realT fitBinWidthHz, realT includeMatchFreqHz=static_cast< realT >(0))

static mx::error_t	estimatePowerLawContinuum (std::vector< realT > &continuumPsd, realT &extrapolation, size_t &anchorIndex, const std::vector< realT > &rawProcessPsd, const std::vector< realT > &anchorProcessPsd, const std::vector< realT > &noisePsd, const std::vector< realT > &freq, realT powerLawIndex, realT powerLawNormFreq, realT powerLawMatchFreq, realT powerLawMatchFallbackWindowHz, bool fitPowerLawIndex=false, realT powerLawFitMinFreqHz=c_defaultPowerLawFitMinFreqHz, realT powerLawFitMaxFreqHz=c_defaultPowerLawFitMaxFreqHz, realT powerLawFitBinWidthHz=c_defaultPowerLawFitBinWidthHz, bool powerLawFitIncludesMatchPoint=c_defaultPowerLawFitIncludesMatchPoint, realT usedPowerLawIndex=nullptr, size_t fitBinsUsed=nullptr)

static mx::error_t	buildPowerLawContinuum (std::vector< realT > &continuumPsd, realT extrapolation, const std::vector< realT > &freq, realT powerLawIndex, realT powerLawNormFreq)
	Populate a sampled power-law continuum from a resolved normalization.

static mx::error_t	blendContinuumAtAnchor (std::vector< realT > &processPsd, const std::vector< realT > &rawProcessPsd, const std::vector< realT > &continuumPsd, size_t anchorIndex, int blendBins)

static mx::error_t	identifyMoffatPeaks (std::vector< identifiedPeak1D > &peaks, const std::vector< realT > &rawProcessPsd, const std::vector< realT > &continuumPsd, const std::vector< realT > &freq, realT peakDetectWidthHz, realT peakDetectFactor, realT peakDetectBroadFactor, realT peakDetectMinWidthLog)

static mx::error_t	addClippedMoffatPeakExcess (std::vector< realT > &peakModel, const identifiedPeak1D &peak, const std::vector< realT > &sourcePsd, const std::vector< realT > &continuumPsd, const std::vector< realT > &freq, realT peakMoffatBeta)
	Add one clipped Moffat peak excess to a PSD model.

static mx::error_t	identifyMoffatPeaksMultiPass (std::vector< identifiedPeak1D > &peaks, const std::vector< realT > &rawProcessPsd, const std::vector< realT > &continuumPsd, const std::vector< realT > &freq, realT peakDetectWidthHz, realT peakDetectFactor, realT peakDetectBroadFactor, realT peakDetectMinWidthLog, int peakDetectPasses, realT peakMoffatBeta)

static mx::error_t	buildMoffatProcessFromContinuum (std::vector< realT > &processPsd, std::vector< identifiedPeak1D > &peaks, std::vector< unsigned char > &repairMask, const std::vector< realT > &rawProcessPsd, const std::vector< realT > &noisePsd, const std::vector< realT > &continuumPsd, const std::vector< realT > &freq, size_t anchorIndex, const processModelConfig &config)
	Build the full Moffat-peak disturbance model from a fixed continuum.

static mx::error_t	buildPowerLawOnlyProcessFromContinuum (std::vector< realT > &processPsd, std::vector< unsigned char > &repairMask, const std::vector< realT > &rawProcessPsd, const std::vector< realT > &noisePsd, const std::vector< realT > &continuumPsd, const std::vector< realT > &freq, size_t anchorIndex, const processModelConfig &config)
	Build the power-law-only disturbance model from a fixed continuum.

static mx::error_t	estimateProcessPsdPowerLawOnly (std::vector< realT > &processPsd, realT &extrapolation, size_t &anchorIndex, std::vector< unsigned char > &repairMask, const std::vector< realT > &measuredPsd, const std::vector< realT > &anchorProcessPsd, const std::vector< realT > &noisePsd, const std::vector< realT > &freq, const processModelConfig &config, realT usedPowerLawIndex=nullptr, size_t fitBinsUsed=nullptr)
	Build a disturbance PSD from only the extrapolated `1/f^a` continuum.

static mx::error_t	estimateProcessPsdMoffatPeaks (std::vector< realT > &processPsd, realT &extrapolation, std::vector< identifiedPeak1D > &peaks, std::vector< unsigned char > &repairMask, const std::vector< realT > &measuredPsd, const std::vector< realT > &anchorProcessPsd, const std::vector< realT > &noisePsd, const std::vector< realT > &freq, const processModelConfig &config)

static mx::error_t	estimateProcessPsd (std::vector< realT > &processPsd, realT &extrapolation, const std::vector< realT > &measuredPsd, const std::vector< realT > &noisePsd, const std::vector< realT > &freq, realT powerLawNormFreq, realT powerLawMatchFreq, realT powerLawMatchFallbackWindowHz)

static mx::error_t	fillProcessPsdDropouts (std::vector< realT > &processPsd, const std::vector< realT > &freq, const std::vector< unsigned char > &repairMask, realT gapFactor, realT tinyFactor, size_t maxGapBins, realT powerLawIndex)
	Fill isolated or short dropout runs in a disturbance PSD.

Detailed Description

Definition at line 29 of file modalGainOpt_test.cpp.

Member Function Documentation

◆ addClippedMoffatPeakExcess()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::addClippedMoffatPeakExcess	(	std::vector< realT > &	peakModel,
		const identifiedPeak1D &	peak,
		const std::vector< realT > &	sourcePsd,
		const std::vector< realT > &	continuumPsd,
		const std::vector< realT > &	freq,
		realT	peakMoffatBeta
	)

staticprotectedinherited

Add one clipped Moffat peak excess to a PSD model.

Parameters

	peakModel	[in.out] the accumulated peak model
[in]	peak	the detected peak
[in]	sourcePsd	the source PSD used to bound the peak
[in]	continuumPsd	the continuum PSD
[in]	freq	the one-sided frequency grid
[in]	peakMoffatBeta	the minimum Moffat beta

Definition at line 2417 of file modalPsdProcessor.hpp.

References MagAOX::app::modalPsdProcessor< realT >::identifiedPeak1D::m_centerFreq, MagAOX::app::modalPsdProcessor< realT >::identifiedPeak1D::m_end, MagAOX::app::modalPsdProcessor< realT >::identifiedPeak1D::m_fwhm, MagAOX::app::modalPsdProcessor< realT >::identifiedPeak1D::m_peakHeight, MagAOX::app::modalPsdProcessor< realT >::identifiedPeak1D::m_peakIndex, and MagAOX::app::modalPsdProcessor< realT >::identifiedPeak1D::m_start.

◆ analyzePsd()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::analyzePsd	(	processResults &	result,
		const std::vector< realT > &	measuredPsd,
		const std::vector< realT > &	freq,
		size_t	modeIndex,
		const processModelConfig &	config,
		realT	lpContinuumFreq = `static_cast<realT>( 0 )`,
		realT	lpContinuumWidthHz = `c_defaultLpContinuumWidthHz`,
		const std::vector< realT > *	etfPsd = `nullptr`,
		const std::vector< realT > *	ntfPsd = `nullptr`
	)

staticinherited

Build the noise PSD, disturbance PSD, and LP continuum PSD for one mode.

Parameters

[out]	result	the populated process-model results
[in]	measuredPsd	the measured one-sided PSD
[in]	freq	the one-sided frequency grid
[in]	modeIndex	the zero-based mode index
[in]	config	the disturbance-PSD configuration
[in]	lpContinuumFreq	the LP continuum cutoff
[in]	lpContinuumWidthHz	LP smoothing width
[in]	etfPsd	optional CL ETF^2 correction
[in]	ntfPsd	optional CL NTF^2 correction

Definition at line 739 of file modalPsdProcessor.hpp.

Referenced by MagAOX::app::modalGainOpt::goptThreadExec(), libXWCTest::modalGainOptTest::TEST_CASE(), libXWCTest::modalGainOptTest::TEST_CASE(), libXWCTest::modalGainOptTest::TEST_CASE(), libXWCTest::modalGainOptTest::TEST_CASE(), libXWCTest::modalGainOptTest::TEST_CASE(), libXWCTest::modalGainOptTest::TEST_CASE(), libXWCTest::modalGainOptTest::TEST_CASE(), and libXWCTest::modalGainOptTest::TEST_CASE().

◆ applyLpContinuum()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::applyLpContinuum	(	std::vector< realT > &	lpProcessPsd,
		const std::vector< realT > &	processPsd,
		const std::vector< realT > &	freq,
		realT	cutoffFreq,
		realT	continuumWidthHz
	)

staticinherited

Replace all LP content above a cutoff with a smoothed continuum.

Parameters

[out]	lpProcessPsd	the LP disturbance PSD
[in]	processPsd	the nominal disturbance PSD
[in]	freq	the one-sided frequency grid
[in]	cutoffFreq	the continuum cutoff frequency
[in]	continuumWidthHz	the smoothing width

Definition at line 3327 of file modalPsdProcessor.hpp.

◆ blendContinuumAtAnchor()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::blendContinuumAtAnchor	(	std::vector< realT > &	processPsd,
		const std::vector< realT > &	rawProcessPsd,
		const std::vector< realT > &	continuumPsd,
		size_t	anchorIndex,
		int	blendBins
	)

staticprotectedinherited

Blend from a continuum model to the measured disturbance PSD at the anchor point.

Parameters

[out]	processPsd	the blended disturbance PSD
[in]	rawProcessPsd	measured disturbance PSD
[in]	continuumPsd	extrapolated continuum PSD
[in]	anchorIndex	the last bin where the continuum anchors
[in]	blendBins	the number of handoff bins

Definition at line 2175 of file modalPsdProcessor.hpp.

◆ buildMoffatProcessFromContinuum()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::buildMoffatProcessFromContinuum	(	std::vector< realT > &	processPsd,
		std::vector< identifiedPeak1D > &	peaks,
		std::vector< unsigned char > &	repairMask,
		const std::vector< realT > &	rawProcessPsd,
		const std::vector< realT > &	noisePsd,
		const std::vector< realT > &	continuumPsd,
		const std::vector< realT > &	freq,
		size_t	anchorIndex,
		const processModelConfig &	config
	)

staticprotectedinherited

Build the full Moffat-peak disturbance model from a fixed continuum.

Parameters

[out]	processPsd	the disturbance PSD
[out]	peaks	detected peaks
[out]	repairMask	repair-eligible bins
[in]	rawProcessPsd	raw disturbance PSD
[in]	noisePsd	the flat noise PSD
[in]	continuumPsd	the continuum PSD
[in]	freq	the one-sided frequency grid
[in]	anchorIndex	the continuum handoff bin
[in]	config	the process configuration

Definition at line 2595 of file modalPsdProcessor.hpp.

◆ buildPowerLawContinuum()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::buildPowerLawContinuum	(	std::vector< realT > &	continuumPsd,
		realT	extrapolation,
		const std::vector< realT > &	freq,
		realT	powerLawIndex,
		realT	powerLawNormFreq
	)

staticprotectedinherited

Populate a sampled power-law continuum from a resolved normalization.

Parameters

[out]	continuumPsd	the sampled continuum PSD
[in]	extrapolation	the continuum normalization
[in]	freq	the one-sided frequency grid
[in]	powerLawIndex	the power-law exponent
[in]	powerLawNormFreq	the normalization frequency

Definition at line 2156 of file modalPsdProcessor.hpp.

◆ buildPowerLawOnlyProcessFromContinuum()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::buildPowerLawOnlyProcessFromContinuum	(	std::vector< realT > &	processPsd,
		std::vector< unsigned char > &	repairMask,
		const std::vector< realT > &	rawProcessPsd,
		const std::vector< realT > &	noisePsd,
		const std::vector< realT > &	continuumPsd,
		const std::vector< realT > &	freq,
		size_t	anchorIndex,
		const processModelConfig &	config
	)

staticprotectedinherited

Build the power-law-only disturbance model from a fixed continuum.

Parameters

[out]	processPsd	the disturbance PSD
[out]	repairMask	repair-eligible bins
[in]	rawProcessPsd	raw disturbance PSD
[in]	noisePsd	the flat noise PSD
[in]	continuumPsd	the continuum PSD
[in]	freq	the one-sided frequency grid
[in]	anchorIndex	the continuum handoff bin
[in]	config	the process configuration

Definition at line 2721 of file modalPsdProcessor.hpp.

References MagAOX::app::modalPsdProcessor< realT >::processModelConfig::m_powerLawBlendBins, MagAOX::app::modalPsdProcessor< realT >::processModelConfig::m_powerLawCrossoverMode, MagAOX::app::modalPsdProcessor< realT >::processModelConfig::m_powerLawMatchFreq, and MagAOX::app::modalPsdProcessor< realT >::processModelConfig::m_powerLawOnlyAboveFreq.

◆ buildSmoothedProcessPsd()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::buildSmoothedProcessPsd	(	std::vector< realT > &	smoothedProcessPsd,
		const std::vector< realT > &	rawProcessPsd,
		const std::vector< realT > &	freq,
		realT	smoothWidthHz
	)

staticprotectedinherited

Median-smooth a disturbance PSD in log space while preserving the original sampling.

Parameters

[out]	smoothedProcessPsd	the smoothed disturbance PSD
[in]	rawProcessPsd	the raw disturbance PSD
[in]	freq	the one-sided frequency grid
[in]	smoothWidthHz	the median-smoothing width in Hz

Definition at line 1461 of file modalPsdProcessor.hpp.

◆ estimateNoisePsd()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::estimateNoisePsd	(	std::vector< realT > &	noisePsd,
		realT &	noiseFloor,
		const std::vector< realT > &	measuredPsd,
		const std::vector< realT > &	freq,
		size_t	modeIndex,
		std::string	noiseEstimateRange = `c_defaultNoiseEstimateRange`,
		std::string	noiseEstimateStatistic = `c_defaultNoiseEstimateStatistic`,
		realT	noiseEstimateLowFreqMaxHz = `c_defaultNoiseEstimateLowFreqMaxHz`
	)

staticinherited

Estimate the flat noise PSD using the configured modalGainOpt statistic.

Parameters

[out]	noisePsd	the flat noise PSD estimate
[out]	noiseFloor	the fitted noise floor
[in]	measuredPsd	the measured one-sided PSD
[in]	freq	the one-sided frequency grid
[in]	modeIndex	the zero-based mode index
[in]	noiseEstimateRange	which PSD end to use
[in]	noiseEstimateStatistic	how to summarize the selected bins
[in]	noiseEstimateLowFreqMaxHz	optional low-frequency upper limit

Definition at line 1259 of file modalPsdProcessor.hpp.

Referenced by MagAOX::app::modalGainOpt::goptThreadExec(), libXWCTest::modalGainOptTest::TEST_CASE(), libXWCTest::modalGainOptTest::TEST_CASE(), and libXWCTest::modalGainOptTest::TEST_CASE().

◆ estimatePowerLawContinuum()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::estimatePowerLawContinuum	(	std::vector< realT > &	continuumPsd,
		realT &	extrapolation,
		size_t &	anchorIndex,
		const std::vector< realT > &	rawProcessPsd,
		const std::vector< realT > &	anchorProcessPsd,
		const std::vector< realT > &	noisePsd,
		const std::vector< realT > &	freq,
		realT	powerLawIndex,
		realT	powerLawNormFreq,
		realT	powerLawMatchFreq,
		realT	powerLawMatchFallbackWindowHz,
		bool	fitPowerLawIndex = `false`,
		realT	powerLawFitMinFreqHz = `c_defaultPowerLawFitMinFreqHz`,
		realT	powerLawFitMaxFreqHz = `c_defaultPowerLawFitMaxFreqHz`,
		realT	powerLawFitBinWidthHz = `c_defaultPowerLawFitBinWidthHz`,
		bool	powerLawFitIncludesMatchPoint = `c_defaultPowerLawFitIncludesMatchPoint`,
		realT *	usedPowerLawIndex = `nullptr`,
		size_t *	fitBinsUsed = `nullptr`
	)

staticprotectedinherited

Estimate the 1/f^a continuum used by the power-law and Moffat extrapolators.

Parameters

[out]	continuumPsd	the continuum PSD
[out]	extrapolation	the continuum normalization
[out]	anchorIndex	the last bin used to anchor the fit
[in]	rawProcessPsd	raw disturbance PSD
[in]	anchorProcessPsd	smoothed disturbance PSD used for anchoring
[in]	noisePsd	the flat noise PSD
[in]	freq	the one-sided frequency grid
[in]	powerLawIndex	the power-law exponent
[in]	powerLawNormFreq	the normalization frequency
[in]	powerLawMatchFreq	the optional match frequency
[in]	powerLawMatchFallbackWindowHz	the match fallback half-width
[in]	fitPowerLawIndex	whether to fit the exponent
[in]	powerLawFitMinFreqHz	fit low edge
[in]	powerLawFitMaxFreqHz	fit high edge
[in]	powerLawFitBinWidthHz	fit bin width
[in]	powerLawFitIncludesMatchPoint	include match point
[out]	usedPowerLawIndex	the exponent actually used
[out]	fitBinsUsed	the number of populated fit bins

Definition at line 2030 of file modalPsdProcessor.hpp.

Referenced by libXWCTest::modalGainOptTest::TEST_CASE().

◆ estimateProcessPsd()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::estimateProcessPsd	(	std::vector< realT > &	processPsd,
		realT &	extrapolation,
		const std::vector< realT > &	measuredPsd,
		const std::vector< realT > &	noisePsd,
		const std::vector< realT > &	freq,
		realT	powerLawNormFreq,
		realT	powerLawMatchFreq,
		realT	powerLawMatchFallbackWindowHz
	)

staticprotectedinherited

Build the disturbance PSD used for optimization from the measured PSD and the flat noise estimate.

Parameters

[out]	processPsd	the disturbance PSD
[out]	extrapolation	the low-frequency extrapolation anchor
[in]	measuredPsd	the measured one-sided PSD
[in]	noisePsd	the flat noise PSD estimate
[in]	freq	the one-sided frequency grid
[in]	powerLawNormFreq	the power-law normalization frequency
[in]	powerLawMatchFreq	the optional power-law match frequency
[in]	powerLawMatchFallbackWindowHz	the local match fallback half-width

Definition at line 2946 of file modalPsdProcessor.hpp.

◆ estimateProcessPsdMoffatPeaks()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::estimateProcessPsdMoffatPeaks	(	std::vector< realT > &	processPsd,
		realT &	extrapolation,
		std::vector< identifiedPeak1D > &	peaks,
		std::vector< unsigned char > &	repairMask,
		const std::vector< realT > &	measuredPsd,
		const std::vector< realT > &	anchorProcessPsd,
		const std::vector< realT > &	noisePsd,
		const std::vector< realT > &	freq,
		const processModelConfig &	config
	)

staticprotectedinherited

Build a disturbance PSD by combining a 1/f^a continuum with detected Moffat peaks.

Parameters

[out]	processPsd	the disturbance PSD
[out]	extrapolation	the power-law continuum anchor
[out]	peaks	the detected peaks
[out]	repairMask	bins eligible for repair
[in]	measuredPsd	the measured one-sided PSD
[in]	anchorProcessPsd	the smoothed disturbance PSD used for anchoring
[in]	noisePsd	the flat noise PSD
[in]	freq	the one-sided frequency grid
[in]	config	the extrapolation configuration

Definition at line 2877 of file modalPsdProcessor.hpp.

◆ estimateProcessPsdPowerLawOnly()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::estimateProcessPsdPowerLawOnly	(	std::vector< realT > &	processPsd,
		realT &	extrapolation,
		size_t &	anchorIndex,
		std::vector< unsigned char > &	repairMask,
		const std::vector< realT > &	measuredPsd,
		const std::vector< realT > &	anchorProcessPsd,
		const std::vector< realT > &	noisePsd,
		const std::vector< realT > &	freq,
		const processModelConfig &	config,
		realT *	usedPowerLawIndex = `nullptr`,
		size_t *	fitBinsUsed = `nullptr`
	)

staticprotectedinherited

Build a disturbance PSD from only the extrapolated 1/f^a continuum.

Parameters

[out]	processPsd	the disturbance PSD
[out]	extrapolation	the power-law continuum anchor
[out]	anchorIndex	the last frequency bin used to anchor the fit
[out]	repairMask	bins eligible for repair
[in]	measuredPsd	the measured one-sided PSD
[in]	anchorProcessPsd	the smoothed disturbance PSD used for anchoring
[in]	noisePsd	the flat noise PSD
[in]	freq	the one-sided frequency grid
[in]	config	the disturbance-PSD configuration
[out]	usedPowerLawIndex	the exponent actually used
[out]	fitBinsUsed	the number of populated fit bins

Definition at line 2787 of file modalPsdProcessor.hpp.

Referenced by libXWCTest::modalGainOptTest::TEST_CASE().

◆ fillProcessPsdDropouts()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::fillProcessPsdDropouts	(	std::vector< realT > &	processPsd,
		const std::vector< realT > &	freq,
		const std::vector< unsigned char > &	repairMask,
		realT	gapFactor,
		realT	tinyFactor,
		size_t	maxGapBins,
		realT	powerLawIndex
	)

staticprotectedinherited

Fill isolated or short dropout runs in a disturbance PSD.

Parameters

	processPsd	[in.out] the disturbance PSD
[in]	freq	the one-sided frequency grid
[in]	repairMask	repair-eligible bins
[in]	gapFactor	the threshold used to identify dropout bins
[in]	tinyFactor	the factor below the local good-bin scale required for a true dropout
[in]	maxGapBins	the maximum repaired gap length
[in]	powerLawIndex	the power-law exponent used to continue a trailing gap

Definition at line 3059 of file modalPsdProcessor.hpp.

Referenced by libXWCTest::modalGainOptTest::TEST_CASE(), libXWCTest::modalGainOptTest::TEST_CASE(), and libXWCTest::modalGainOptTest::TEST_CASE().

◆ findAutoPowerLawCrossoverFreq()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::findAutoPowerLawCrossoverFreq	(	realT &	crossoverFreq,
		const std::vector< realT > &	smoothedProcessPsd,
		const std::vector< realT > &	noisePsd,
		const std::vector< realT > &	freq,
		realT	maxFreqFraction
	)

staticprotectedinherited

Determine the automatic power-law crossover from a median-smoothed disturbance PSD.

Parameters

[out]	crossoverFreq	the resolved crossover frequency
[in]	smoothedProcessPsd	the smoothed disturbance PSD
[in]	noisePsd	the flat noise PSD
[in]	freq	the one-sided frequency grid
[in]	maxFreqFraction	the maximum searched frequency as a fraction of the sampled maximum

Definition at line 1530 of file modalPsdProcessor.hpp.

Referenced by libXWCTest::modalGainOptTest::TEST_CASE(), libXWCTest::modalGainOptTest::TEST_CASE(), and libXWCTest::modalGainOptTest::TEST_CASE().

◆ firstPositiveFreqIndex()

template<typename realT >

size_t MagAOX::app::modalPsdProcessor< realT >::firstPositiveFreqIndex ( const std::vector< realT > & freq )

staticprotectedinherited

Return the index of the first strictly-positive frequency bin.

Parameters

[in] freq the one-sided frequency grid

Definition at line 1447 of file modalPsdProcessor.hpp.

◆ fitMoffatBetaToBoundary()

template<typename realT >

realT MagAOX::app::modalPsdProcessor< realT >::fitMoffatBetaToBoundary	(	realT	peakHeight,
		realT	fwhm,
		realT	radius,
		realT	target,
		realT	betaFloor
	)

staticprotectedinherited

Find the smallest beta that drives a Moffat wing down to a target level at a target radius.

Parameters

[in]	peakHeight	the peak height above the continuum
[in]	fwhm	the full-width at half maximum
[in]	radius	the target boundary radius
[in]	target	the desired level at that boundary
[in]	betaFloor	the minimum allowed beta

Definition at line 1828 of file modalPsdProcessor.hpp.

References MagAOX::app::target.

◆ fitPowerLawIndexFromBinnedMedians()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::fitPowerLawIndexFromBinnedMedians	(	realT &	powerLawIndex,
		size_t &	nBinsUsed,
		const std::vector< realT > &	rawProcessPsd,
		const std::vector< realT > &	freq,
		realT	fitMinFreqHz,
		realT	fitMaxFreqHz,
		realT	fitBinWidthHz,
		realT	includeMatchFreqHz = `static_cast<realT>( 0 )`
	)

staticprotectedinherited

Fit the power-law exponent from binned median log PSD values over a selected frequency range.

Parameters

[out]	powerLawIndex	the fitted exponent
[out]	nBinsUsed	the number of populated bins
[in]	rawProcessPsd	disturbance PSD
[in]	freq	the one-sided frequency grid
[in]	fitMinFreqHz	the low edge of the fit range
[in]	fitMaxFreqHz	the high edge of the fit range
[in]	fitBinWidthHz	the width of the median bins
[in]	includeMatchFreqHz	optional explicit match point

Definition at line 1892 of file modalPsdProcessor.hpp.

◆ identifyMoffatPeaks()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::identifyMoffatPeaks	(	std::vector< identifiedPeak1D > &	peaks,
		const std::vector< realT > &	rawProcessPsd,
		const std::vector< realT > &	continuumPsd,
		const std::vector< realT > &	freq,
		realT	peakDetectWidthHz,
		realT	peakDetectFactor,
		realT	peakDetectBroadFactor,
		realT	peakDetectMinWidthLog
	)

staticprotectedinherited

Identify peaks using strong-threshold or broad-but-wide discriminants above a smoothed PSD.

Parameters

[out]	peaks	the detected peaks
[in]	rawProcessPsd	the raw disturbance PSD
[in]	continuumPsd	the continuum PSD model
[in]	freq	the one-sided frequency grid
[in]	peakDetectWidthHz	the wide smoothing width
[in]	peakDetectFactor	the factor above smooth for strong peaks
[in]	peakDetectBroadFactor	the lower factor for broad candidates
[in]	peakDetectMinWidthLog	the minimum accepted broad-peak width

Definition at line 2226 of file modalPsdProcessor.hpp.

References MagAOX::app::modalPsdProcessor< realT >::identifiedPeak1D::m_centerFreq, MagAOX::app::modalPsdProcessor< realT >::identifiedPeak1D::m_end, MagAOX::app::modalPsdProcessor< realT >::identifiedPeak1D::m_fwhm, MagAOX::app::modalPsdProcessor< realT >::identifiedPeak1D::m_peakHeight, MagAOX::app::modalPsdProcessor< realT >::identifiedPeak1D::m_peakIndex, and MagAOX::app::modalPsdProcessor< realT >::identifiedPeak1D::m_start.

◆ identifyMoffatPeaksMultiPass()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::identifyMoffatPeaksMultiPass	(	std::vector< identifiedPeak1D > &	peaks,
		const std::vector< realT > &	rawProcessPsd,
		const std::vector< realT > &	continuumPsd,
		const std::vector< realT > &	freq,
		realT	peakDetectWidthHz,
		realT	peakDetectFactor,
		realT	peakDetectBroadFactor,
		realT	peakDetectMinWidthLog,
		int	peakDetectPasses,
		realT	peakMoffatBeta
	)

staticprotectedinherited

Identify peaks iteratively, subtracting each pass's modeled peaks from the residual.

Parameters

[out]	peaks	the detected peaks
[in]	rawProcessPsd	the raw disturbance PSD
[in]	continuumPsd	the continuum PSD model
[in]	freq	the one-sided frequency grid
[in]	peakDetectWidthHz	the wide smoothing width
[in]	peakDetectFactor	the factor above smooth
[in]	peakDetectBroadFactor	the broad-peak factor
[in]	peakDetectMinWidthLog	the minimum log-width
[in]	peakDetectPasses	the number of iterative passes
[in]	peakMoffatBeta	the minimum Moffat beta

Definition at line 2500 of file modalPsdProcessor.hpp.

References a(), and b().

◆ interpolateCrossing()

template<typename realT >

realT MagAOX::app::modalPsdProcessor< realT >::interpolateCrossing	(	realT	x0,
		realT	y0,
		realT	x1,
		realT	y1,
		realT	target
	)

staticprotectedinherited

Linearly interpolate the x-position where a profile crosses a target level.

Parameters

[in]	x0	the first x-coordinate
[in]	y0	the first y-coordinate
[in]	x1	the second x-coordinate
[in]	y1	the second y-coordinate
[in]	target	the y-level to interpolate

Definition at line 1871 of file modalPsdProcessor.hpp.

References MagAOX::app::target.

◆ interpolatePsdAtFreq()

template<typename realT >

realT MagAOX::app::modalPsdProcessor< realT >::interpolatePsdAtFreq	(	const std::vector< realT > &	psd,
		const std::vector< realT > &	freq,
		realT	targetFreq
	)

staticprotectedinherited

Linearly interpolate a sampled PSD onto an arbitrary frequency.

Parameters

[in]	psd	the sampled PSD values
[in]	freq	the sampled frequencies
[in]	targetFreq	the desired interpolation frequency

Definition at line 1697 of file modalPsdProcessor.hpp.

◆ matchPowerLawAtFreq()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::matchPowerLawAtFreq	(	realT &	extrapolation,
		const std::vector< realT > &	anchorProcessPsd,
		const std::vector< realT > &	freq,
		realT	powerLawIndex,
		realT	powerLawNormFreq,
		realT	powerLawMatchFreq,
		realT	powerLawMatchFallbackWindowHz
	)

staticprotectedinherited

Force the power-law normalization so the model matches the disturbance PSD at a chosen frequency.

Parameters

	extrapolation	[in.out] the continuum normalization
[in]	anchorProcessPsd	the PSD used for continuum anchoring
[in]	freq	the one-sided frequency grid
[in]	powerLawIndex	the power-law exponent
[in]	powerLawNormFreq	the continuum normalization frequency
[in]	powerLawMatchFreq	the desired match frequency
[in]	powerLawMatchFallbackWindowHz	the local fallback half-width

Definition at line 1734 of file modalPsdProcessor.hpp.

◆ moffatAlphaFromFwhm()

template<typename realT >

realT MagAOX::app::modalPsdProcessor< realT >::moffatAlphaFromFwhm	(	realT	fwhm,
		realT	beta
	)

staticprotectedinherited

Invert the Moffat FWHM relation to recover the alpha parameter.

Parameters

[in]	fwhm	the desired full-width at half-maximum
[in]	beta	the Moffat beta parameter

Definition at line 1809 of file modalPsdProcessor.hpp.

◆ moffatValueFromFwhm()

template<typename realT >

realT MagAOX::app::modalPsdProcessor< realT >::moffatValueFromFwhm	(	realT	radius,
		realT	peakHeight,
		realT	fwhm,
		realT	beta
	)

staticprotectedinherited

Evaluate a zero-background Moffat profile from its height, FWHM, and beta.

Parameters

[in]	radius	the distance from the peak center
[in]	peakHeight	the peak height above the continuum
[in]	fwhm	the full-width at half maximum
[in]	beta	the Moffat beta parameter

Definition at line 1816 of file modalPsdProcessor.hpp.

◆ normalizeClosedLoopOlEstimateMethod()

template<typename realT >

std::string MagAOX::app::modalPsdProcessor< realT >::normalizeClosedLoopOlEstimateMethod ( std::string method )

staticprotectedinherited

Normalize a CL-to-OL PSD reconstruction method name to lowercase hyphenated form.

Parameters

[in] method the requested CL-to-OL method

Definition at line 1404 of file modalPsdProcessor.hpp.

◆ normalizeNoiseEstimateDomain()

template<typename realT >

std::string MagAOX::app::modalPsdProcessor< realT >::normalizeNoiseEstimateDomain ( std::string domain )

staticprotectedinherited

Normalize a noise-estimation-domain name to lowercase hyphenated form.

Parameters

[in] domain the requested domain name

Definition at line 1347 of file modalPsdProcessor.hpp.

◆ normalizeNoiseEstimateRange()

template<typename realT >

std::string MagAOX::app::modalPsdProcessor< realT >::normalizeNoiseEstimateRange ( std::string range )

staticprotectedinherited

Normalize a noise-estimation-range name to lowercase hyphenated form.

Parameters

[in] range the requested PSD-end selector

Definition at line 1366 of file modalPsdProcessor.hpp.

◆ normalizeNoiseEstimateStatistic()

template<typename realT >

std::string MagAOX::app::modalPsdProcessor< realT >::normalizeNoiseEstimateStatistic ( std::string statistic )

staticprotectedinherited

Normalize a noise-estimation-statistic name to lowercase hyphenated form.

Parameters

[in] statistic the requested noise-fit statistic

Definition at line 1385 of file modalPsdProcessor.hpp.

◆ normalizePowerLawCrossoverMode()

template<typename realT >

std::string MagAOX::app::modalPsdProcessor< realT >::normalizePowerLawCrossoverMode ( std::string mode )

staticprotectedinherited

Normalize a power-law crossover mode name to lowercase hyphenated form.

Parameters

[in] mode the requested crossover mode

Definition at line 1423 of file modalPsdProcessor.hpp.

◆ powerLawContinuum()

template<typename realT >

realT MagAOX::app::modalPsdProcessor< realT >::powerLawContinuum	(	realT	extrapolation,
		const std::vector< realT > &	freq,
		size_t	index,
		realT	powerLawIndex,
		realT	powerLawNormFreq
	)

staticprotectedinherited

Evaluate the extrapolated power-law continuum at one frequency bin.

Parameters

[in]	extrapolation	the continuum normalization
[in]	freq	the one-sided frequency grid
[in]	index	the bin index to evaluate
[in]	powerLawIndex	the power-law exponent
[in]	powerLawNormFreq	the continuum normalization frequency

Definition at line 1687 of file modalPsdProcessor.hpp.

◆ resolvePowerLawCrossoverFrequencies()

template<typename realT >

mx::error_t MagAOX::app::modalPsdProcessor< realT >::resolvePowerLawCrossoverFrequencies	(	realT &	powerLawMatchFreq,
		realT &	powerLawOnlyAboveFreq,
		const std::vector< realT > &	rawProcessPsd,
		const std::vector< realT > &	smoothedProcessPsd,
		const std::vector< realT > &	noisePsd,
		const std::vector< realT > &	freq,
		std::string	powerLawCrossoverMode,
		realT	powerLawAutoMaxFreqFraction
	)

staticprotectedinherited

Resolve effective power-law match and cutoff frequencies for manual or automatic crossover modes.

Parameters

	powerLawMatchFreq	[in.out] match frequency
	powerLawOnlyAboveFreq	[in.out] cutoff frequency
[in]	rawProcessPsd	raw OL disturbance PSD
[in]	smoothedProcessPsd	smoothed OL disturbance PSD
[in]	noisePsd	OL noise PSD
[in]	freq	frequency grid
[in]	powerLawCrossoverMode	mode
[in]	powerLawAutoMaxFreqFraction	the maximum searched frequency as a fraction of the sampled maximum

Definition at line 1629 of file modalPsdProcessor.hpp.

Referenced by libXWCTest::modalGainOptTest::TEST_CASE().

◆ resolvePowerLawNormFreq()

template<typename realT >

realT MagAOX::app::modalPsdProcessor< realT >::resolvePowerLawNormFreq	(	const std::vector< realT > &	freq,
		realT	requestedNormFreq
	)

staticprotectedinherited

Resolve the power-law normalization frequency, defaulting to the first positive bin.

Parameters

[in]	freq	the one-sided frequency grid
[in]	requestedNormFreq	the requested normalization frequency

Definition at line 1670 of file modalPsdProcessor.hpp.

Member Data Documentation

◆ c_defaultClMinSignificantFraction

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultClMinSignificantFraction = static_cast<realT>( 0.05 )

staticconstexprinherited

The default minimum fraction of significant raw-CL bins required to keep processing a mode.

Definition at line 125 of file modalPsdProcessor.hpp.

◆ c_defaultClosedLoopOlEstimateMethod

template<typename realT >

constexpr const char* MagAOX::app::modalPsdProcessor< realT >::c_defaultClosedLoopOlEstimateMethod = "etf-only"

staticconstexprinherited

The default closed-loop to open-loop PSD reconstruction method.

Definition at line 58 of file modalPsdProcessor.hpp.

◆ c_defaultClSignificanceThreshold

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultClSignificanceThreshold = static_cast<realT>( 1.1 )

staticconstexprinherited

The default raw-CL significance threshold multiplier.

Definition at line 121 of file modalPsdProcessor.hpp.

◆ c_defaultDropoutGapFactor

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultDropoutGapFactor = static_cast<realT>( 0.2 )

staticconstexprinherited

The default dropout-detection threshold factor.

Definition at line 111 of file modalPsdProcessor.hpp.

◆ c_defaultDropoutMaxBins

template<typename realT >

constexpr size_t MagAOX::app::modalPsdProcessor< realT >::c_defaultDropoutMaxBins = 4

staticconstexprinherited

The default maximum repaired dropout-run length in bins.

Definition at line 118 of file modalPsdProcessor.hpp.

◆ c_defaultDropoutTinyFactor

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultDropoutTinyFactor = static_cast<realT>( 1e-6 )

staticconstexprinherited

The default factor below the local good-bin scale that a candidate run must reach to be considered a true dropout.

Definition at line 115 of file modalPsdProcessor.hpp.

◆ c_defaultFitPowerLawIndex

template<typename realT >

constexpr bool MagAOX::app::modalPsdProcessor< realT >::c_defaultFitPowerLawIndex = false

staticconstexprinherited

The default choice to keep the power-law exponent fixed.

Definition at line 74 of file modalPsdProcessor.hpp.

◆ c_defaultLpContinuumWidthHz

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultLpContinuumWidthHz = static_cast<realT>( 25 )

staticconstexprinherited

The default LP-continuum smoothing width.

Definition at line 128 of file modalPsdProcessor.hpp.

Referenced by MagAOX::app::modalGainOpt::goptThreadExec().

◆ c_defaultNoiseEstimateDomain

template<typename realT >

constexpr const char* MagAOX::app::modalPsdProcessor< realT >::c_defaultNoiseEstimateDomain = "open-loop"

staticconstexprinherited

The default domain used for noise-floor estimation.

Definition at line 46 of file modalPsdProcessor.hpp.

◆ c_defaultNoiseEstimateLowFreqMaxHz

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultNoiseEstimateLowFreqMaxHz = static_cast<realT>( 0 )

staticconstexprinherited

The default disabled maximum frequency for low-frequency noise estimation.

Definition at line 52 of file modalPsdProcessor.hpp.

◆ c_defaultNoiseEstimateRange

template<typename realT >

constexpr const char* MagAOX::app::modalPsdProcessor< realT >::c_defaultNoiseEstimateRange = "high-freq"

staticconstexprinherited

The default end of the PSD used for noise-floor estimation.

Definition at line 49 of file modalPsdProcessor.hpp.

◆ c_defaultNoiseEstimateStatistic

template<typename realT >

constexpr const char* MagAOX::app::modalPsdProcessor< realT >::c_defaultNoiseEstimateStatistic = "percentile"

staticconstexprinherited

The default statistic used to estimate the flat noise floor.

Definition at line 55 of file modalPsdProcessor.hpp.

◆ c_defaultPeakDetectBroadFactor

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultPeakDetectBroadFactor = static_cast<realT>( 3 )

staticconstexprinherited

The default broad-peak detection factor.

Definition at line 99 of file modalPsdProcessor.hpp.

◆ c_defaultPeakDetectFactor

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultPeakDetectFactor = static_cast<realT>( 5 )

staticconstexprinherited

The default strong-peak detection factor.

Definition at line 96 of file modalPsdProcessor.hpp.

◆ c_defaultPeakDetectMinWidthLog

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultPeakDetectMinWidthLog = static_cast<realT>( 0.02 )

staticconstexprinherited

The default minimum accepted broad-peak width in dex.

Definition at line 102 of file modalPsdProcessor.hpp.

◆ c_defaultPeakDetectPasses

template<typename realT >

constexpr int MagAOX::app::modalPsdProcessor< realT >::c_defaultPeakDetectPasses = 2

staticconstexprinherited

The default number of subtract-and-redetect peak passes.

Definition at line 108 of file modalPsdProcessor.hpp.

◆ c_defaultPeakDetectWidthHz

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultPeakDetectWidthHz = static_cast<realT>( 50 )

staticconstexprinherited

The default wide smoothing width used by peak detection.

Definition at line 93 of file modalPsdProcessor.hpp.

◆ c_defaultPeakMoffatBeta

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultPeakMoffatBeta = static_cast<realT>( 6 )

staticconstexprinherited

The default lower bound on the Moffat beta parameter.

Definition at line 105 of file modalPsdProcessor.hpp.

◆ c_defaultPowerLawAutoMaxFreqFraction

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultPowerLawAutoMaxFreqFraction = static_cast<realT>( 0.4 )

staticconstexprinherited

The default fraction of the maximum sampled frequency searched by the automatic crossover finder. Set to 0 to disable the cap.

Definition at line 71 of file modalPsdProcessor.hpp.

◆ c_defaultPowerLawAutoSmoothWidthHz

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultPowerLawAutoSmoothWidthHz = static_cast<realT>( 50 )

staticconstexprinherited

The default median-smoothing width used by the automatic crossover finder.

Definition at line 67 of file modalPsdProcessor.hpp.

◆ c_defaultPowerLawBlendBins

template<typename realT >

constexpr int MagAOX::app::modalPsdProcessor< realT >::c_defaultPowerLawBlendBins = 5

staticconstexprinherited

The default number of bins used to blend between the raw PSD and the extrapolated continuum.

Definition at line 90 of file modalPsdProcessor.hpp.

◆ c_defaultPowerLawCrossoverMode

template<typename realT >

constexpr const char* MagAOX::app::modalPsdProcessor< realT >::c_defaultPowerLawCrossoverMode = "manual"

staticconstexprinherited

The default crossover-selection mode for the power-law handoff.

Definition at line 64 of file modalPsdProcessor.hpp.

◆ c_defaultPowerLawFitBinWidthHz

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultPowerLawFitBinWidthHz = static_cast<realT>( 100 )

staticconstexprinherited

The default width of each exponent-fit median bin.

Definition at line 86 of file modalPsdProcessor.hpp.

◆ c_defaultPowerLawFitIncludesMatchPoint

template<typename realT >

constexpr bool MagAOX::app::modalPsdProcessor< realT >::c_defaultPowerLawFitIncludesMatchPoint = true

staticconstexprinherited

The default choice to include the match point in the exponent fit.

Definition at line 77 of file modalPsdProcessor.hpp.

◆ c_defaultPowerLawFitMaxFreqHz

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultPowerLawFitMaxFreqHz = static_cast<realT>( 1000 )

staticconstexprinherited

The default high edge of the power-law exponent fit range.

Definition at line 83 of file modalPsdProcessor.hpp.

◆ c_defaultPowerLawFitMinFreqHz

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultPowerLawFitMinFreqHz = static_cast<realT>( 100 )

staticconstexprinherited

The default low edge of the power-law exponent fit range.

Definition at line 80 of file modalPsdProcessor.hpp.

◆ c_defaultPowerLawIndex

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultPowerLawIndex = static_cast<realT>( 8.0 / 3.0 )

staticconstexprinherited

The default 1/f^a exponent.

Definition at line 37 of file modalPsdProcessor.hpp.

◆ c_defaultPowerLawMatchFallbackWindowHz

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultPowerLawMatchFallbackWindowHz = static_cast<realT>( 5 )

staticconstexprinherited

The default half-width of the local match-frequency fallback window.

Definition at line 61 of file modalPsdProcessor.hpp.

◆ c_defaultPowerLawMatchFreq

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultPowerLawMatchFreq = static_cast<realT>( 0 )

staticconstexprinherited

The default disabled explicit power-law match frequency.

Definition at line 43 of file modalPsdProcessor.hpp.

◆ c_defaultPowerLawNormFreq

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultPowerLawNormFreq = static_cast<realT>( 0 )

staticconstexprinherited

The default auto-selected power-law normalization frequency.

Definition at line 40 of file modalPsdProcessor.hpp.

◆ c_defaultPowerLawOnlyAboveFreq

template<typename realT >

constexpr realT MagAOX::app::modalPsdProcessor< realT >::c_defaultPowerLawOnlyAboveFreq = static_cast<realT>( 0 )

staticconstexprinherited

The default disabled cutoff above which the extrapolation is pure power law only.

Definition at line 132 of file modalPsdProcessor.hpp.

◆ c_defaultProcessMethod

template<typename realT >

constexpr const char* MagAOX::app::modalPsdProcessor< realT >::c_defaultProcessMethod = "legacy"

staticconstexprinherited

The default process-method name.

Definition at line 34 of file modalPsdProcessor.hpp.

The documentation for this class was generated from the following file:

apps/modalGainOpt/tests/modalGainOpt_test.cpp

Static Public Member Functions

Static Public Attributes

Static Protected Member Functions

Detailed Description

Member Function Documentation

◆ addClippedMoffatPeakExcess()

◆ analyzePsd()

◆ applyLpContinuum()

◆ blendContinuumAtAnchor()

◆ buildMoffatProcessFromContinuum()

◆ buildPowerLawContinuum()

◆ buildPowerLawOnlyProcessFromContinuum()

◆ buildSmoothedProcessPsd()

◆ estimateNoisePsd()

◆ estimatePowerLawContinuum()

◆ estimateProcessPsd()

◆ estimateProcessPsdMoffatPeaks()

◆ estimateProcessPsdPowerLawOnly()

◆ fillProcessPsdDropouts()

◆ findAutoPowerLawCrossoverFreq()

◆ firstPositiveFreqIndex()

◆ fitMoffatBetaToBoundary()

◆ fitPowerLawIndexFromBinnedMedians()

◆ identifyMoffatPeaks()

◆ identifyMoffatPeaksMultiPass()

◆ interpolateCrossing()

◆ interpolatePsdAtFreq()

◆ matchPowerLawAtFreq()

◆ moffatAlphaFromFwhm()

◆ moffatValueFromFwhm()

◆ normalizeClosedLoopOlEstimateMethod()

◆ normalizeNoiseEstimateDomain()

◆ normalizeNoiseEstimateRange()

◆ normalizeNoiseEstimateStatistic()

◆ normalizePowerLawCrossoverMode()

◆ powerLawContinuum()

◆ resolvePowerLawCrossoverFrequencies()

◆ resolvePowerLawNormFreq()

Member Data Documentation

◆ c_defaultClMinSignificantFraction

◆ c_defaultClosedLoopOlEstimateMethod

◆ c_defaultClSignificanceThreshold

◆ c_defaultDropoutGapFactor

◆ c_defaultDropoutMaxBins

◆ c_defaultDropoutTinyFactor

◆ c_defaultFitPowerLawIndex

◆ c_defaultLpContinuumWidthHz

◆ c_defaultNoiseEstimateDomain

◆ c_defaultNoiseEstimateLowFreqMaxHz

◆ c_defaultNoiseEstimateRange

◆ c_defaultNoiseEstimateStatistic

◆ c_defaultPeakDetectBroadFactor

◆ c_defaultPeakDetectFactor

◆ c_defaultPeakDetectMinWidthLog

◆ c_defaultPeakDetectPasses

◆ c_defaultPeakDetectWidthHz

◆ c_defaultPeakMoffatBeta

◆ c_defaultPowerLawAutoMaxFreqFraction

◆ c_defaultPowerLawAutoSmoothWidthHz

◆ c_defaultPowerLawBlendBins

◆ c_defaultPowerLawCrossoverMode

◆ c_defaultPowerLawFitBinWidthHz

◆ c_defaultPowerLawFitIncludesMatchPoint

◆ c_defaultPowerLawFitMaxFreqHz

◆ c_defaultPowerLawFitMinFreqHz

◆ c_defaultPowerLawIndex

◆ c_defaultPowerLawMatchFallbackWindowHz

◆ c_defaultPowerLawMatchFreq

◆ c_defaultPowerLawNormFreq

◆ c_defaultPowerLawOnlyAboveFreq

◆ c_defaultProcessMethod
