indiCompRuleConfig.hpp File Reference

Configuration of rules for the MagAO-X stateRuleEngine. More...

#include <map>
#include "indiCompRules.hpp"

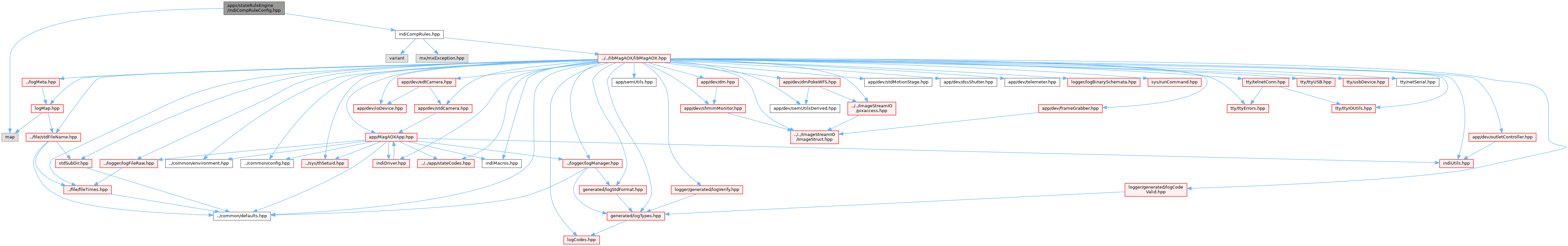

Include dependency graph for indiCompRuleConfig.hpp:

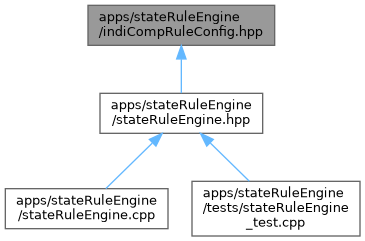

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	indiRuleMaps
	Structure to provide management of the rule and property maps. More...
struct	ruleRuleKeys

Functions
void	extractRuleProp (pcf::IndiProperty **prop, std::string &element, indiRuleMaps &maps, const std::string &section, const std::string &propkey, const std::string &elkey, const pcf::IndiProperty::Type &type, mx::app::appConfigurator &config)
	Extract a property from a rule configuration.
void	loadRuleConfig (indiRuleMaps &maps, std::map< std::string, ruleRuleKeys > &rrkMap, mx::app::appConfigurator &config)
	Load the rule and properties maps for a rule engine from a configuration file.
void	finalizeRuleValRules (indiRuleMaps &maps, std::map< std::string, ruleRuleKeys > &rrkMap)
	Finalize ruleVal rules.

Detailed Description

Configuration of rules for the MagAO-X stateRuleEngine.

Definition in file indiCompRuleConfig.hpp.

---

Class Documentation

ruleRuleKeys

struct ruleRuleKeys

Definition at line 47 of file indiCompRuleConfig.hpp.

Collaboration diagram for ruleRuleKeys:

Class Members
string	rule1
string	rule2

Function Documentation

extractRuleProp()

void extractRuleProp	(	pcf::IndiProperty **	prop,
		std::string &	element,
		indiRuleMaps &	maps,
		const std::string &	section,
		const std::string &	propkey,
		const std::string &	elkey,
		const pcf::IndiProperty::Type &	type,
		mx::app::appConfigurator &	config
	)

Extract a property from a rule configuration.

Reads the property and element, adding the property to the property map if necessary.

Exceptions

mx::err::invalidconfig

if the property is already in the map but of a different type

Todo:

have to split device and propertyName

Parameters

[out]	prop	pointer to the property, newly created or existing, which is in the map.
[out]	element	the element name from the configuration
[in]	maps	contains the property map to which the property is added
[in]	section	name of the section for this rule
[in]	propkey	the key for the property name
[in]	elkey	the key for the element name
[in]	type	the type of the property
[in]	config	the application configuration structure

Definition at line 58 of file indiCompRuleConfig.hpp.

References indiRuleMaps::props.

Referenced by loadRuleConfig().

finalizeRuleValRules()

void finalizeRuleValRules	(	indiRuleMaps &	maps,
		std::map< std::string, ruleRuleKeys > &	rrkMap
	)

Finalize ruleVal rules.

///

Todo:

check for insertion failure ///

add a constructor that has priority, message, and comparison, to reduce duplication

Parameters

	maps	[in/out] contains the rule and property maps with rules ot finalize
[out]	rrkMap	Holds the ruleVal rule keys aside for later post-processing

Definition at line 326 of file indiCompRuleConfig.hpp.

References ruleCompRule::rule1(), ruleCompRule::rule2(), and indiRuleMaps::rules.

Referenced by MagAOX::app::stateRuleEngine::loadConfigImpl().

loadRuleConfig()

void loadRuleConfig	(	indiRuleMaps &	maps,
		std::map< std::string, ruleRuleKeys > &	rrkMap,
		mx::app::appConfigurator &	config
	)

Load the rule and properties maps for a rule engine from a configuration file.

///

Todo:

check for insertion failure ///

add a constructor that has priority, message, and comparison, to reduce duplication

Parameters

[out]	maps	contains the rule and property maps in which to place the items found in config
[out]	rrkMap	Holds the ruleVal rule keys aside for later post-processing
[in]	config	the application configuration structure

Definition at line 98 of file indiCompRuleConfig.hpp.

References indiCompRule::comparison(), onePropRule::element(), twoPropRule::element1(), twoPropRule::element2(), extractRuleProp(), indiCompRule::message(), numValRule::name, txtValRule::name, swValRule::name, elCompNumRule::name, elCompTxtRule::name, elCompSwRule::name, ruleCompRule::name, indiCompRule::priority(), onePropRule::property(), twoPropRule::property1(), twoPropRule::property2(), ruleRuleKeys::rule1, ruleRuleKeys::rule2, indiRuleMaps::rules, string2comp(), string2priority(), numValRule::target(), swValRule::target(), txtValRule::target(), and numValRule::tol().

Referenced by MagAOX::app::stateRuleEngine::loadConfigImpl().
