The purpose of the libocam2sdk library is to provide an easy way to achieve ocam2 specific opération. The main feature is ocam2 raw image descrambling. More...

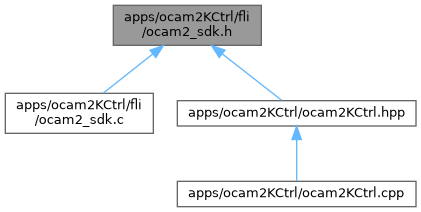

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	OCAM2_AMPLI_WIDTH 60

#define	OCAM2_AMPLI_WIDTH_RAW 66

#define	OCAM2_AMPLI_PRESCAN (OCAM2_AMPLI_WIDTH_RAW-OCAM2_AMPLI_WIDTH)

#define	OCAM2_AMPLI_HEIGHT 120

#define	OCAM2_PIXEL_MAX_VAL /16383/32767

#define	OCAM2_PIXEL_MIN_VAL /(-16384)/(-32768)

#define	OCAM2_IMAGE_WIDTH_NORMAL 240

#define	OCAM2_IMAGE_HEIGHT_NORMAL 240

#define	OCAM2_PIXELS_IMAGE_NORMAL (OCAM2_IMAGE_WIDTH_NORMAL*OCAM2_IMAGE_HEIGHT_NORMAL)

#define	OCAM2_IMAGE_WIDTH_RAW_NORMAL 1056

#define	OCAM2_IMAGE_HEIGHT_RAW_NORMAL 121

#define	OCAM2_PIXELS_RAW_NORMAL ((OCAM2_IMAGE_WIDTH_RAW_NORMAL*OCAM2_IMAGE_HEIGHT_RAW_NORMAL)/2)

#define	OCAM2_IMAGE_WIDTH_CROPPING240x120 120

#define	OCAM2_IMAGE_HEIGHT_CROPPING240x120 120

#define	OCAM2_PIXELS_IMAGE_CROPPING240x120 (OCAM2_IMAGE_WIDTH_CROPPING240x120*OCAM2_IMAGE_HEIGHT_CROPPING240x120)

#define	OCAM2_IMAGE_WIDTH_RAW_CROPPING240x120 1056

#define	OCAM2_IMAGE_HEIGHT_RAW_CROPPING240x120 61

#define	OCAM2_PIXELS_RAW_CROPPING240x120 ((OCAM2_IMAGE_WIDTH_RAW_CROPPING240x120*OCAM2_IMAGE_HEIGHT_RAW_CROPPING240x120)/2)

#define	OCAM2_IMAGE_WIDTH_CROPPING240x128 128

#define	OCAM2_IMAGE_HEIGHT_CROPPING240x128 128

#define	OCAM2_PIXELS_IMAGE_CROPPING240x128 (OCAM2_IMAGE_WIDTH_CROPPING240x128*OCAM2_IMAGE_HEIGHT_CROPPING240x128)

#define	OCAM2_IMAGE_WIDTH_RAW_CROPPING240x128 1056

#define	OCAM2_IMAGE_HEIGHT_RAW_CROPPING240x128 65

#define	OCAM2_PIXELS_RAW_CROPPING240x128 ((OCAM2_IMAGE_WIDTH_RAW_CROPPING240x128*OCAM2_IMAGE_HEIGHT_RAW_CROPPING240x128)/2)

#define	OCAM2_IMAGE_WIDTH_BINNING2x2 120

#define	OCAM2_IMAGE_HEIGHT_BINNING2x2 120

#define	OCAM2_PIXELS_IMAGE_BINNING2x2 (OCAM2_IMAGE_WIDTH_BINNING2x2*OCAM2_IMAGE_HEIGHT_BINNING2x2)

#define	OCAM2_IMAGE_WIDTH_RAW_BINNING2x2 1056

#define	OCAM2_IMAGE_HEIGHT_RAW_BINNING2x2 62

#define	OCAM2_PIXELS_RAW_BINNING2x2 ((OCAM2_IMAGE_WIDTH_RAW_BINNING2x2*OCAM2_IMAGE_HEIGHT_RAW_BINNING2x2)/2)

#define	OCAM2_NB_IDENTICAL_PIXELS_BINNING2x2 2

#define	OCAM2_BINNING2x2_OFFSET (OCAM2_PIXELS_IMAGE_NORMAL - (OCAM2_PIXELS_IMAGE_BINNING2x2/2*OCAM2_NB_IDENTICAL_PIXELS_BINNING2x2))

#define	OCAM2_IMAGE_WIDTH_BINNING3x3 80

#define	OCAM2_IMAGE_HEIGHT_BINNING3x3 80

#define	OCAM2_PIXELS_IMAGE_BINNING3x3 (OCAM2_IMAGE_WIDTH_BINNING3x3*OCAM2_IMAGE_HEIGHT_BINNING3x3)

#define	OCAM2_IMAGE_WIDTH_RAW_BINNING3x3 1056

#define	OCAM2_IMAGE_HEIGHT_RAW_BINNING3x3 41

#define	OCAM2_PIXELS_RAW_BINNING3x3 ((OCAM2_IMAGE_WIDTH_RAW_BINNING3x3*OCAM2_IMAGE_HEIGHT_RAW_BINNING3x3)/2)

#define	OCAM2_NB_IDENTICAL_PIXELS_BINNING3x3 3

#define	OCAM2_BINNING3x3_OFFSET (OCAM2_PIXELS_IMAGE_NORMAL - (OCAM2_PIXELS_IMAGE_BINNING3x3/2*OCAM2_NB_IDENTICAL_PIXELS_BINNING3x3))

#define	OCAM2_IMAGE_WIDTH_BINNING4x4 60

#define	OCAM2_IMAGE_HEIGHT_BINNING4x4 60

#define	OCAM2_PIXELS_IMAGE_BINNING4x4 (OCAM2_IMAGE_WIDTH_BINNING4x4*OCAM2_IMAGE_HEIGHT_BINNING4x4)

#define	OCAM2_IMAGE_WIDTH_RAW_BINNING4x4 1056

#define	OCAM2_IMAGE_HEIGHT_RAW_BINNING4x4 31

#define	OCAM2_PIXELS_RAW_BINNING4x4 ((OCAM2_IMAGE_WIDTH_RAW_BINNING4x4*OCAM2_IMAGE_HEIGHT_RAW_BINNING4x4)/2)

#define	OCAM2_NB_IDENTICAL_PIXELS_BINNING4x4 4

#define	OCAM2_BINNING4x4_OFFSET (OCAM2_PIXELS_IMAGE_NORMAL - (OCAM2_PIXELS_IMAGE_BINNING4x4/2*OCAM2_NB_IDENTICAL_PIXELS_BINNING4x4))

#define	OCAM2_IMAGE_WIDTH_2_TRACK 240

#define	OCAM2_IMAGE_HEIGHT_2_TRACK 2

#define	OCAM2_PIXELS_IMAGE_2_TRACK (OCAM2_IMAGE_WIDTH_2_TRACK*OCAM2_IMAGE_HEIGHT_2_TRACK)

#define	OCAM2_IMAGE_WIDTH_RAW_2_TRACK 1056

#define	OCAM2_IMAGE_HEIGHT_RAW_2_TRACK 2

#define	OCAM2_PIXELS_RAW_2_TRACK ((OCAM2_IMAGE_WIDTH_RAW_2_TRACK*OCAM2_IMAGE_HEIGHT_RAW_2_TRACK)/2)

#define	OCAM2_NB_IDENTICAL_PIXELS_2_TRACK 1

#define	OCAM2_2_TRACK_OFFSET (OCAM2_PIXELS_IMAGE_NORMAL - (OCAM2_PIXELS_IMAGE_2_TRACK/2*OCAM2_NB_IDENTICAL_PIXELS_2_TRACK))

#define	OCAM2_IMAGE_WIDTH_4_TRACK 240

#define	OCAM2_IMAGE_HEIGHT_4_TRACK 4

#define	OCAM2_PIXELS_IMAGE_4_TRACK (OCAM2_IMAGE_WIDTH_4_TRACK*OCAM2_IMAGE_HEIGHT_4_TRACK)

#define	OCAM2_IMAGE_WIDTH_RAW_4_TRACK 1056

#define	OCAM2_IMAGE_HEIGHT_RAW_4_TRACK 3

#define	OCAM2_PIXELS_RAW_4_TRACK ((OCAM2_IMAGE_WIDTH_RAW_4_TRACK*OCAM2_IMAGE_HEIGHT_RAW_4_TRACK)/2)

#define	OCAM2_NB_IDENTICAL_PIXELS_4_TRACK 1

#define	OCAM2_4_TRACK_OFFSET (OCAM2_PIXELS_IMAGE_NORMAL - (OCAM2_PIXELS_IMAGE_4_TRACK/2*OCAM2_NB_IDENTICAL_PIXELS_4_TRACK))

#define	OCAM2_IMAGE_WIDTH_BINNING1x3 240

#define	OCAM2_IMAGE_HEIGHT_BINNING1x3 80

#define	OCAM2_PIXELS_IMAGE_BINNING1x3 (OCAM2_IMAGE_WIDTH_BINNING1x3*OCAM2_IMAGE_HEIGHT_BINNING1x3)

#define	OCAM2_IMAGE_WIDTH_RAW_BINNING1x3 1056

#define	OCAM2_IMAGE_HEIGHT_RAW_BINNING1x3 41

#define	OCAM2_PIXELS_RAW_BINNING1x3 ((OCAM2_IMAGE_WIDTH_RAW_BINNING1x3*OCAM2_IMAGE_HEIGHT_RAW_BINNING1x3)/2)

#define	OCAM2_NB_IDENTICAL_PIXELS_BINNING1x3 1

#define	OCAM2_BINNING1x3_OFFSET (OCAM2_PIXELS_IMAGE_NORMAL - (OCAM2_PIXELS_IMAGE_BINNING1x3/2*OCAM2_NB_IDENTICAL_PIXELS_BINNING1x3))

#define	OCAM2_IMAGE_WIDTH_BINNING1x4 240

#define	OCAM2_IMAGE_HEIGHT_BINNING1x4 60

#define	OCAM2_PIXELS_IMAGE_BINNING1x4 (OCAM2_IMAGE_WIDTH_BINNING1x4*OCAM2_IMAGE_HEIGHT_BINNING1x4)

#define	OCAM2_IMAGE_WIDTH_RAW_BINNING1x4 1056

#define	OCAM2_IMAGE_HEIGHT_RAW_BINNING1x4 31

#define	OCAM2_PIXELS_RAW_BINNING1x4 ((OCAM2_IMAGE_WIDTH_RAW_BINNING1x4*OCAM2_IMAGE_HEIGHT_RAW_BINNING1x4)/2)

#define	OCAM2_NB_IDENTICAL_PIXELS_BINNING1x4 1

#define	OCAM2_BINNING1x4_OFFSET (OCAM2_PIXELS_IMAGE_NORMAL - (OCAM2_PIXELS_IMAGE_BINNING1x4/2*OCAM2_NB_IDENTICAL_PIXELS_BINNING1x4))

#define	OCAM2_IMAGE_WIDTH_BINNING OCAM2_IMAGE_WIDTH_BINNING2x2

#define	OCAM2_IMAGE_HEIGHT_BINNING OCAM2_IMAGE_HEIGHT_BINNING2x2

#define	OCAM2_PIXELS_IMAGE_BINNING OCAM2_PIXELS_IMAGE_BINNING2x2

#define	OCAM2_IMAGE_WIDTH_RAW_BINNING OCAM2_IMAGE_WIDTH_RAW_BINNING2x2

#define	OCAM2_IMAGE_HEIGHT_RAW_BINNING OCAM2_IMAGE_HEIGHT_RAW_BINNING2x2

#define	OCAM2_PIXELS_RAW_BINNING OCAM2_PIXELS_RAW_BINNING2x2

#define	OCAM2_BINNING_OFFSET OCAM2_BINNING2x2_OFFSET

#define	OCAM2_IMAGE_NB_OFFSET 8

#define	OCAM2_IMAGE_NB_SZ 4

#define	OCAM2_SDK_MAX_CAMERA 10

Typedefs
typedef enum workMode	ocam2_mode
	typedef of ocam2 camera mode More...

typedef int	ocam2_id
	Library camera identifier. More...

typedef void(*	ocam2_serialOut_func_t) (void p, const char buffer, int number)
	Callback used to send characters to the serial port. More...

Enumerations
enum	workMode { OCAM2_UNKNOWN =0 , OCAM2_NORMAL = 1 , OCAM2_CROPPING240x120 = 2 , OCAM2_BINNING2x2 = 3 , OCAM2_BINNING3x3 = 4 , OCAM2_BINNING4x4 = 5 , OCAM2_BINNING = OCAM2_BINNING2x2 , OCAM2_CROPPING240x128 = 6 , OCAM2_2_TRACK = 7 , OCAM2_4_TRACK = 8 , OCAM2_BINNING1x3 = 9 , OCAM2_BINNING1x4 = 10 , OCAM2_NB_WORK_MODE = 10 }
	Enum of ocam2 camera work mode. More...

enum	ocam2_rc { OCAM2_ERROR =-1 , OCAM2_OK =0 }
	Enum of ocam2 library return code. More...

enum	ocam2_camFirmVer { OCAM2_FIRM_V1 =1 , OCAM2_FIRM_V2 =2 }
	Camera firmware release For firmware build date before 18/03/2015, use OCAM2_FIRM_V1 else OCAM2_FIRM_V2 You can know the camera firmware build using the command: "firmware read". More...

Functions
const char *	ocam2_sdkVersion ()
	Return sdk version. More...

const char *	ocam2_sdkBuild ()
	Return sdk build. More...

ocam2_rc	ocam2_init (ocam2_mode mode, const char descrbFile, ocam2_id id)
	Create a camera instance with the provided mode. More...

void	ocam2_descramble (ocam2_id id, unsigned int number, short image, const short *imageRaw)
	Create a camera instance with the provided mode. More...

ocam2_rc	ocam2_exit (ocam2_id id)
	Clear a camera instance. More...

ocam2_mode	ocam2_getMode (ocam2_id id)
	Return the camera mode. More...

const char *	ocam2_modeStr (ocam2_mode mode)
	Return a description text for camera mode. More...

ocam2_rc	ocam2_sendBias (ocam2_id id, const char biasFile, int offset, ocam2_serialOut_func_t cb, void p, ocam2_camFirmVer camVer)
	Send bias image to the camera link serial port. More...

ocam2_rc	ocam2_sendFlat (ocam2_id id, const char flatFile, int offset, ocam2_serialOut_func_t cb, void p, ocam2_camFirmVer camVer)
	Send flat image to the camera link serial port. More...

Detailed Description

The purpose of the libocam2sdk library is to provide an easy way to achieve ocam2 specific opération. The main feature is ocam2 raw image descrambling.

– FIRSTLIGHT –

Author: FIRSTLIGHT

Note: You will find in this header ocam2 camera characteristic constants and functions protoypes.

Definition in file ocam2_sdk.h.

Macro Definition Documentation

◆ OCAM2_2_TRACK_OFFSET

#define OCAM2_2_TRACK_OFFSET (OCAM2_PIXELS_IMAGE_NORMAL - (OCAM2_PIXELS_IMAGE_2_TRACK/2*OCAM2_NB_IDENTICAL_PIXELS_2_TRACK))

Offset for second chunk

Definition at line 136 of file ocam2_sdk.h.

◆ OCAM2_4_TRACK_OFFSET

#define OCAM2_4_TRACK_OFFSET (OCAM2_PIXELS_IMAGE_NORMAL - (OCAM2_PIXELS_IMAGE_4_TRACK/2*OCAM2_NB_IDENTICAL_PIXELS_4_TRACK))

Offset for second chunk

Definition at line 153 of file ocam2_sdk.h.

◆ OCAM2_AMPLI_HEIGHT

#define OCAM2_AMPLI_HEIGHT 120

Amplifier height

Definition at line 24 of file ocam2_sdk.h.

◆ OCAM2_AMPLI_PRESCAN

#define OCAM2_AMPLI_PRESCAN (OCAM2_AMPLI_WIDTH_RAW-OCAM2_AMPLI_WIDTH)

Amplifier prescan pixels number

Definition at line 21 of file ocam2_sdk.h.

◆ OCAM2_AMPLI_WIDTH

#define OCAM2_AMPLI_WIDTH 60

Amplifier width

Definition at line 17 of file ocam2_sdk.h.

◆ OCAM2_AMPLI_WIDTH_RAW

#define OCAM2_AMPLI_WIDTH_RAW 66

Amplifier width raw

Definition at line 19 of file ocam2_sdk.h.

◆ OCAM2_BINNING1x3_OFFSET

#define OCAM2_BINNING1x3_OFFSET (OCAM2_PIXELS_IMAGE_NORMAL - (OCAM2_PIXELS_IMAGE_BINNING1x3/2*OCAM2_NB_IDENTICAL_PIXELS_BINNING1x3))

Offset for second chunk

Definition at line 171 of file ocam2_sdk.h.

◆ OCAM2_BINNING1x4_OFFSET

#define OCAM2_BINNING1x4_OFFSET (OCAM2_PIXELS_IMAGE_NORMAL - (OCAM2_PIXELS_IMAGE_BINNING1x4/2*OCAM2_NB_IDENTICAL_PIXELS_BINNING1x4))

Offset for second chunk

Definition at line 188 of file ocam2_sdk.h.

◆ OCAM2_BINNING2x2_OFFSET

#define OCAM2_BINNING2x2_OFFSET (OCAM2_PIXELS_IMAGE_NORMAL - (OCAM2_PIXELS_IMAGE_BINNING2x2/2*OCAM2_NB_IDENTICAL_PIXELS_BINNING2x2))

Offset for second chunk

Definition at line 85 of file ocam2_sdk.h.

◆ OCAM2_BINNING3x3_OFFSET

#define OCAM2_BINNING3x3_OFFSET (OCAM2_PIXELS_IMAGE_NORMAL - (OCAM2_PIXELS_IMAGE_BINNING3x3/2*OCAM2_NB_IDENTICAL_PIXELS_BINNING3x3))

Offset for second chunk

Definition at line 102 of file ocam2_sdk.h.

◆ OCAM2_BINNING4x4_OFFSET

#define OCAM2_BINNING4x4_OFFSET (OCAM2_PIXELS_IMAGE_NORMAL - (OCAM2_PIXELS_IMAGE_BINNING4x4/2*OCAM2_NB_IDENTICAL_PIXELS_BINNING4x4))

Offset for second chunk

Definition at line 119 of file ocam2_sdk.h.

◆ OCAM2_BINNING_OFFSET

#define OCAM2_BINNING_OFFSET OCAM2_BINNING2x2_OFFSET

Keep for compatibility

Definition at line 204 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_2_TRACK

#define OCAM2_IMAGE_HEIGHT_2_TRACK 2

16bit witdth

Definition at line 124 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_4_TRACK

#define OCAM2_IMAGE_HEIGHT_4_TRACK 4

16bit witdth

Definition at line 141 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_BINNING

#define OCAM2_IMAGE_HEIGHT_BINNING OCAM2_IMAGE_HEIGHT_BINNING2x2

Keep for compatibility

Definition at line 194 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_BINNING1x3

#define OCAM2_IMAGE_HEIGHT_BINNING1x3 80

16bit witdth

Definition at line 159 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_BINNING1x4

#define OCAM2_IMAGE_HEIGHT_BINNING1x4 60

16bit witdth

Definition at line 176 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_BINNING2x2

#define OCAM2_IMAGE_HEIGHT_BINNING2x2 120

16bit witdth

Definition at line 73 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_BINNING3x3

#define OCAM2_IMAGE_HEIGHT_BINNING3x3 80

16bit witdth

Definition at line 90 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_BINNING4x4

#define OCAM2_IMAGE_HEIGHT_BINNING4x4 60

16bit witdth

Definition at line 107 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_CROPPING240x120

#define OCAM2_IMAGE_HEIGHT_CROPPING240x120 120

16bit witdth

Definition at line 47 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_CROPPING240x128

#define OCAM2_IMAGE_HEIGHT_CROPPING240x128 128

16bit witdth

Definition at line 60 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_NORMAL

#define OCAM2_IMAGE_HEIGHT_NORMAL 240

16bit witdth

Definition at line 34 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_RAW_2_TRACK

#define OCAM2_IMAGE_HEIGHT_RAW_2_TRACK 2

8bit witdth

Definition at line 130 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_RAW_4_TRACK

#define OCAM2_IMAGE_HEIGHT_RAW_4_TRACK 3

8bit witdth

Definition at line 147 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_RAW_BINNING

#define OCAM2_IMAGE_HEIGHT_RAW_BINNING OCAM2_IMAGE_HEIGHT_RAW_BINNING2x2

Keep for compatibility

Definition at line 200 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_RAW_BINNING1x3

#define OCAM2_IMAGE_HEIGHT_RAW_BINNING1x3 41

8bit witdth

Definition at line 165 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_RAW_BINNING1x4

#define OCAM2_IMAGE_HEIGHT_RAW_BINNING1x4 31

8bit witdth

Definition at line 182 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_RAW_BINNING2x2

#define OCAM2_IMAGE_HEIGHT_RAW_BINNING2x2 62

8bit witdth

Definition at line 79 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_RAW_BINNING3x3

#define OCAM2_IMAGE_HEIGHT_RAW_BINNING3x3 41

8bit witdth

Definition at line 96 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_RAW_BINNING4x4

#define OCAM2_IMAGE_HEIGHT_RAW_BINNING4x4 31

8bit witdth

Definition at line 113 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_RAW_CROPPING240x120

#define OCAM2_IMAGE_HEIGHT_RAW_CROPPING240x120 61

8bit witdth

Definition at line 53 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_RAW_CROPPING240x128

#define OCAM2_IMAGE_HEIGHT_RAW_CROPPING240x128 65

8bit witdth

Definition at line 66 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_HEIGHT_RAW_NORMAL

#define OCAM2_IMAGE_HEIGHT_RAW_NORMAL 121

8bit witdth

Definition at line 40 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_NB_OFFSET

#define OCAM2_IMAGE_NB_OFFSET 8

Offset of image number in raw image(bytes)

Definition at line 208 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_NB_SZ

#define OCAM2_IMAGE_NB_SZ 4

Image number field width(bytes)

Definition at line 211 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_2_TRACK

#define OCAM2_IMAGE_WIDTH_2_TRACK 240

16bit witdth

Definition at line 122 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_4_TRACK

#define OCAM2_IMAGE_WIDTH_4_TRACK 240

16bit witdth

Definition at line 139 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_BINNING

#define OCAM2_IMAGE_WIDTH_BINNING OCAM2_IMAGE_WIDTH_BINNING2x2

Keep for compatibility

Definition at line 192 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_BINNING1x3

#define OCAM2_IMAGE_WIDTH_BINNING1x3 240

16bit witdth

Definition at line 157 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_BINNING1x4

#define OCAM2_IMAGE_WIDTH_BINNING1x4 240

16bit witdth

Definition at line 174 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_BINNING2x2

#define OCAM2_IMAGE_WIDTH_BINNING2x2 120

16bit witdth

Definition at line 71 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_BINNING3x3

#define OCAM2_IMAGE_WIDTH_BINNING3x3 80

16bit witdth

Definition at line 88 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_BINNING4x4

#define OCAM2_IMAGE_WIDTH_BINNING4x4 60

16bit witdth

Definition at line 105 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_CROPPING240x120

#define OCAM2_IMAGE_WIDTH_CROPPING240x120 120

16bit witdth

Definition at line 45 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_CROPPING240x128

#define OCAM2_IMAGE_WIDTH_CROPPING240x128 128

16bit witdth

Definition at line 58 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_NORMAL

#define OCAM2_IMAGE_WIDTH_NORMAL 240

16bit witdth

Definition at line 32 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_RAW_2_TRACK

#define OCAM2_IMAGE_WIDTH_RAW_2_TRACK 1056

8bit witdth

Definition at line 128 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_RAW_4_TRACK

#define OCAM2_IMAGE_WIDTH_RAW_4_TRACK 1056

8bit witdth

Definition at line 145 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_RAW_BINNING

#define OCAM2_IMAGE_WIDTH_RAW_BINNING OCAM2_IMAGE_WIDTH_RAW_BINNING2x2

Keep for compatibility

Definition at line 198 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_RAW_BINNING1x3

#define OCAM2_IMAGE_WIDTH_RAW_BINNING1x3 1056

8bit witdth

Definition at line 163 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_RAW_BINNING1x4

#define OCAM2_IMAGE_WIDTH_RAW_BINNING1x4 1056

8bit witdth

Definition at line 180 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_RAW_BINNING2x2

#define OCAM2_IMAGE_WIDTH_RAW_BINNING2x2 1056

8bit witdth

Definition at line 77 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_RAW_BINNING3x3

#define OCAM2_IMAGE_WIDTH_RAW_BINNING3x3 1056

8bit witdth

Definition at line 94 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_RAW_BINNING4x4

#define OCAM2_IMAGE_WIDTH_RAW_BINNING4x4 1056

8bit witdth

Definition at line 111 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_RAW_CROPPING240x120

#define OCAM2_IMAGE_WIDTH_RAW_CROPPING240x120 1056

8bit witdth

Definition at line 51 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_RAW_CROPPING240x128

#define OCAM2_IMAGE_WIDTH_RAW_CROPPING240x128 1056

8bit witdth

Definition at line 64 of file ocam2_sdk.h.

◆ OCAM2_IMAGE_WIDTH_RAW_NORMAL

#define OCAM2_IMAGE_WIDTH_RAW_NORMAL 1056

8bit witdth

Definition at line 38 of file ocam2_sdk.h.
