Log entry recording the C-RED 2 detailed temperature channels. More...

#include <cred2_temps.hpp>

Inheritance diagram for MagAOX::logger::cred2_temps:

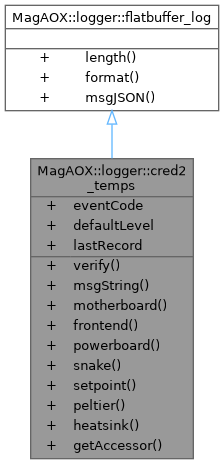

Collaboration diagram for MagAOX::logger::cred2_temps:

Classes
struct	messageT
	The type of the input message. More...

Static Public Member Functions
static bool	verify (flatlogs::bufferPtrT &logBuff, flatlogs::msgLenT len)

static std::string	msgString (void *msgBuffer, flatlogs::msgLenT len)
	Get the message formatted for human consumption.

static float	motherboard (void *msgBuffer)

static float	frontend (void *msgBuffer)

static float	powerboard (void *msgBuffer)

static float	snake (void *msgBuffer)

static float	setpoint (void *msgBuffer)

static float	peltier (void *msgBuffer)

static float	heatsink (void *msgBuffer)

static logMetaDetail	getAccessor (const std::string &member)
	Get the logMetaDetail for a member by name.

static flatlogs::msgLenT	length (const fbMessage &msg)
	Get the length of the message.

static int	format (void *msgBuffer, const fbMessage &msg)
	Format the buffer given the input message.

static std::string	msgJSON (void msgBuffer, flatlogs::msgLenT len, const uint8_t binarySchema, const unsigned int binarySchemaLength)

Static Public Attributes
static const flatlogs::eventCodeT	eventCode = eventCodes::CRED2_TEMPS
	The event code.

static const flatlogs::logPrioT	defaultLevel = flatlogs::logPrio::LOG_TELEM
	The default level.

static timespec	lastRecord = { 0, 0 }
	The timestamp of the last time this log was recorded. Used by telemetry.

Detailed Description

Log entry recording the C-RED 2 detailed temperature channels.

Definition at line 24 of file cred2_temps.hpp.

Member Function Documentation

◆ format()

static int MagAOX::logger::flatbuffer_log::format	(	void *	msgBuffer,
		const fbMessage &	msg
	)

inlinestaticinherited

Format the buffer given the input message.

Todo:: this is an unneccesary memcpy from the FlatBufferBuilder, we need to figure out how to not do this.

Parameters

[out]	msgBuffer	the buffer, must be pre-allocated to size length(msg)
[in]	msg	the message which contains a flatbuffer builder, from which the data are memcpy-ed.

Definition at line 54 of file flatbuffer_log.hpp.

◆ frontend()

static float MagAOX::logger::cred2_temps::frontend ( void * msgBuffer )

inlinestatic

Parameters

[in] msgBuffer buffer containing the flatbuffer serialized message

Definition at line 101 of file cred2_temps.hpp.

References MagAOX::logger::GetCred2_temps_fb().

Referenced by MagAOX::logger::cred2_temps::messageT::messageT(), and getAccessor().

◆ getAccessor()

static logMetaDetail MagAOX::logger::cred2_temps::getAccessor ( const std::string & member )

inlinestatic

Get the logMetaDetail for a member by name.

Returns: a logMetaDetail filled in with the appropriate details; an empty logMetaDetail if member not recognized

Parameters

[in] member the name of the member

Definition at line 142 of file cred2_temps.hpp.

References MagAOX::logger::logMeta::Continuous, MagAOX::logger::logMeta::Float, frontend(), heatsink(), motherboard(), peltier(), powerboard(), setpoint(), and snake().

Referenced by MagAOX::logger::logMemberAccessor().

◆ heatsink()

static float MagAOX::logger::cred2_temps::heatsink ( void * msgBuffer )

inlinestatic

Parameters

[in] msgBuffer buffer containing the flatbuffer serialized message

Definition at line 131 of file cred2_temps.hpp.

References MagAOX::logger::GetCred2_temps_fb().

Referenced by MagAOX::logger::cred2_temps::messageT::messageT(), and getAccessor().

◆ length()

static flatlogs::msgLenT MagAOX::logger::flatbuffer_log::length ( const fbMessage & msg )

inlinestaticinherited

Get the length of the message.

Parameters

[in] msg the fbMessage type holding a FlatBufferBuilder

Definition at line 46 of file flatbuffer_log.hpp.

◆ motherboard()

static float MagAOX::logger::cred2_temps::motherboard ( void * msgBuffer )

inlinestatic

Parameters

[in] msgBuffer buffer containing the flatbuffer serialized message

Definition at line 95 of file cred2_temps.hpp.

References MagAOX::logger::GetCred2_temps_fb().

Referenced by MagAOX::logger::cred2_temps::messageT::messageT(), and getAccessor().

◆ msgJSON()

static std::string MagAOX::logger::flatbuffer_log::msgJSON	(	void *	msgBuffer,
		flatlogs::msgLenT	len,
		const uint8_t *	binarySchema,
		const unsigned int	binarySchemaLength
	)

inlinestaticinherited

Parameters

[in]	msgBuffer	Buffer containing the flatbuffer serialized message.
[in]	len	[unused] length of msgBuffer.
[in]	binarySchema	flatbuffers binary schema for this log type
[in]	binarySchemaLength	flatbuffers binary schema length

Definition at line 65 of file flatbuffer_log.hpp.

◆ msgString()

static std::string MagAOX::logger::cred2_temps::msgString	(	void *	msgBuffer,
		flatlogs::msgLenT	len
	)

inlinestatic

Get the message formatted for human consumption.

Parameters

[in]	msgBuffer	buffer containing the flatbuffer serialized message
[in]	len	[unused] length of msgBuffer

Definition at line 63 of file cred2_temps.hpp.

References MagAOX::logger::GetCred2_temps_fb().

◆ peltier()

static float MagAOX::logger::cred2_temps::peltier ( void * msgBuffer )

inlinestatic

Parameters

[in] msgBuffer buffer containing the flatbuffer serialized message

Definition at line 125 of file cred2_temps.hpp.

References MagAOX::logger::GetCred2_temps_fb().

Referenced by MagAOX::logger::cred2_temps::messageT::messageT(), and getAccessor().

◆ powerboard()

static float MagAOX::logger::cred2_temps::powerboard ( void * msgBuffer )

inlinestatic

Parameters

[in] msgBuffer buffer containing the flatbuffer serialized message

Definition at line 107 of file cred2_temps.hpp.

References MagAOX::logger::GetCred2_temps_fb().

Referenced by MagAOX::logger::cred2_temps::messageT::messageT(), and getAccessor().

◆ setpoint()

static float MagAOX::logger::cred2_temps::setpoint ( void * msgBuffer )

inlinestatic

Parameters

[in] msgBuffer buffer containing the flatbuffer serialized message

Definition at line 119 of file cred2_temps.hpp.

References MagAOX::logger::GetCred2_temps_fb().

Referenced by MagAOX::logger::cred2_temps::messageT::messageT(), and getAccessor().

◆ snake()

static float MagAOX::logger::cred2_temps::snake ( void * msgBuffer )

inlinestatic

Parameters

[in] msgBuffer buffer containing the flatbuffer serialized message

Definition at line 113 of file cred2_temps.hpp.

References MagAOX::logger::GetCred2_temps_fb().

Referenced by MagAOX::logger::cred2_temps::messageT::messageT(), and getAccessor().

◆ verify()

static bool MagAOX::logger::cred2_temps::verify	(	flatlogs::bufferPtrT &	logBuff,
		flatlogs::msgLenT	len
	)

inlinestatic

Parameters

[in]	logBuff	buffer containing the flatbuffer serialized message
[in]	len	length of msgBuffer

Definition at line 53 of file cred2_temps.hpp.

References flatlogs::logHeader::messageBuffer(), and MagAOX::logger::VerifyCred2_temps_fbBuffer().

Referenced by MagAOX::logger::logVerify().

Member Data Documentation

◆ defaultLevel

const flatlogs::logPrioT MagAOX::logger::cred2_temps::defaultLevel = flatlogs::logPrio::LOG_TELEM

static

The default level.

Definition at line 30 of file cred2_temps.hpp.

◆ eventCode

const flatlogs::eventCodeT MagAOX::logger::cred2_temps::eventCode = eventCodes::CRED2_TEMPS

static

The event code.

Definition at line 27 of file cred2_temps.hpp.

◆ lastRecord

timespec MagAOX::logger::cred2_temps::lastRecord = { 0, 0 }

static

The timestamp of the last time this log was recorded. Used by telemetry.

Definition at line 32 of file cred2_temps.hpp.

Referenced by libXWCTest::cred2CtrlTest::TEST_CASE().

The documentation for this struct was generated from the following files:

libMagAOX/logger/types/cred2_temps.hpp
libMagAOX/logger/types/telem.cpp
