MagAOX::logger::saving_stop Struct Reference

Saving started log. More...

#include <saving_stop.hpp>

Inheritance diagram for MagAOX::logger::saving_stop:

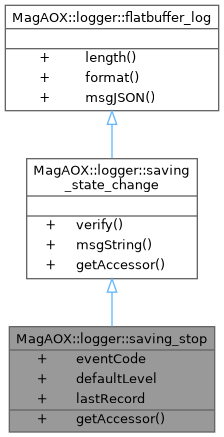

Collaboration diagram for MagAOX::logger::saving_stop:

Static Public Member Functions
static bool	verify (flatlogs::bufferPtrT &logBuff, flatlogs::msgLenT len)
static std::string	msgString (void *msgBuffer, flatlogs::msgLenT len)
	Format the message for text output, including translation of state codes to text form. More...
static flatlogs::msgLenT	length (const fbMessage &msg)
	Get the length of the message. More...
static int	format (void *msgBuffer, const fbMessage &msg)
	Format the buffer given the input message. More...
static std::string	msgJSON (void *msgBuffer, flatlogs::msgLenT len, const uint8_t *binarySchema, const unsigned int binarySchemaLength)

Static Public Attributes
static const flatlogs::eventCodeT	eventCode = eventCodes::SAVING_STOP
	The event code. More...
static const flatlogs::logPrioT	defaultLevel = flatlogs::logPrio::LOG_NOTICE
	The default level. More...
static timespec	lastRecord
	The time of the last time this log was recorded. Used by the telemetry system. More...

Detailed Description

Saving started log.

Definition at line 23 of file saving_stop.hpp.

Member Function Documentation

format()

static int MagAOX::logger::flatbuffer_log::format ( void *  msgBuffer, const fbMessage &  msg  )

inlinestaticinherited

Format the buffer given the input message.

Todo:

this is an unneccesary memcpy from the FlatBufferBuilder, we need to figure out how to not do this.

Parameters

[out]	msgBuffer	the buffer, must be pre-allocated to size length(msg)
[in]	msg	the message which contains a flatbuffer builder, from which the data are memcpy-ed.

Definition at line 53 of file flatbuffer_log.hpp.

length()

static flatlogs::msgLenT MagAOX::logger::flatbuffer_log::length ( const fbMessage &  msg )

inlinestaticinherited

Get the length of the message.

Parameters

[in]

msg

the fbMessage type holding a FlatBufferBuilder

Definition at line 45 of file flatbuffer_log.hpp.

msgJSON()

static std::string MagAOX::logger::flatbuffer_log::msgJSON ( void *  msgBuffer, flatlogs::msgLenT  len, const uint8_t *  binarySchema, const unsigned int  binarySchemaLength  )

inlinestaticinherited

Parameters

[in]	msgBuffer	Buffer containing the flatbuffer serialized message.
[in]	len	[unused] length of msgBuffer.
[in]	binarySchema	flatbuffers binary schema for this log type
[in]	binarySchemaLength	flatbuffers binary schema length

Definition at line 64 of file flatbuffer_log.hpp.

msgString()

static std::string MagAOX::logger::saving_state_change::msgString ( void *  msgBuffer, flatlogs::msgLenT  len  )

inlinestaticinherited

Format the message for text output, including translation of state codes to text form.

Returns

the message formatted as "State changed from UNINITIALIZED to INITIALIZED"

Parameters

[in]	msgBuffer	Buffer containing the flatbuffer serialized message.
[in]	len	[unused] length of msgBuffer.

Definition at line 55 of file saving_state_change.hpp.

verify()

static bool MagAOX::logger::saving_state_change::verify ( flatlogs::bufferPtrT &  logBuff, flatlogs::msgLenT  len  )

inlinestaticinherited

Parameters

[in]	logBuff	Buffer containing the flatbuffer serialized message.
[in]	len	length of msgBuffer.

Definition at line 43 of file saving_state_change.hpp.

Member Data Documentation

defaultLevel

const flatlogs::logPrioT MagAOX::logger::saving_stop::defaultLevel = flatlogs::logPrio::LOG_NOTICE

static

The default level.

Definition at line 29 of file saving_stop.hpp.

eventCode

const flatlogs::eventCodeT MagAOX::logger::saving_stop::eventCode = eventCodes::SAVING_STOP

static

The event code.

Definition at line 26 of file saving_stop.hpp.

lastRecord

timespec MagAOX::logger::saving_stop::lastRecord

static

The time of the last time this log was recorded. Used by the telemetry system.

Definition at line 31 of file saving_stop.hpp.

---

The documentation for this struct was generated from the following file:

• libMagAOX/logger/types/saving_stop.hpp
