MagAOX::logger::software_alert Struct Reference

Software ALERT log entry. More...

#include <software_log.hpp>

Inheritance diagram for MagAOX::logger::software_alert:

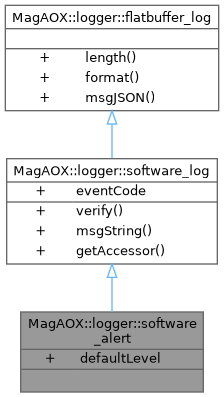

Collaboration diagram for MagAOX::logger::software_alert:

Static Public Member Functions
static bool	verify (flatlogs::bufferPtrT &logBuff, flatlogs::msgLenT len)
static std::string	msgString (void *msgBuffer, flatlogs::msgLenT len)
	Get the message formatted for human consumption.
static logMetaDetail	getAccessor (const std::string &member)
	Get an empty logMetaDetail because meta data doesn't make sense for this log.
static flatlogs::msgLenT	length (const fbMessage &msg)
	Get the length of the message.
static int	format (void *msgBuffer, const fbMessage &msg)
	Format the buffer given the input message.
static std::string	msgJSON (void *msgBuffer, flatlogs::msgLenT len, const uint8_t *binarySchema, const unsigned int binarySchemaLength)

Static Public Attributes
static const flatlogs::logPrioT	defaultLevel = flatlogs::logPrio::LOG_ALERT
	The default level.
static const flatlogs::eventCodeT	eventCode = eventCodes::SOFTWARE_LOG
	The event code.

Detailed Description

Software ALERT log entry.

This should only be used for a system-wide emergency requiring operator or automatic action. Not for a process specific problem.

Definition at line 332 of file software_log.hpp.

Member Function Documentation

format()

static int MagAOX::logger::flatbuffer_log::format ( void *  msgBuffer, const fbMessage &  msg  )

inlinestaticinherited

Format the buffer given the input message.

Todo:

this is an unneccesary memcpy from the FlatBufferBuilder, we need to figure out how to not do this.

Parameters

[out]	msgBuffer	the buffer, must be pre-allocated to size length(msg)
[in]	msg	the message which contains a flatbuffer builder, from which the data are memcpy-ed.

Definition at line 54 of file flatbuffer_log.hpp.

getAccessor()

static logMetaDetail MagAOX::logger::software_log::getAccessor ( const std::string &  member )

inlinestaticinherited

Get an empty logMetaDetail because meta data doesn't make sense for this log.

Returns

an empty logMetaDetail

Parameters

[in]

member

the name of the member

Definition at line 305 of file software_log.hpp.

Referenced by MagAOX::logger::logMemberAccessor(), and libXWCTest::loggerTest::logTypeAccessorTest::TEST_CASE().

length()

static flatlogs::msgLenT MagAOX::logger::flatbuffer_log::length ( const fbMessage &  msg )

inlinestaticinherited

Get the length of the message.

Parameters

[in]

msg

the fbMessage type holding a FlatBufferBuilder

Definition at line 46 of file flatbuffer_log.hpp.

msgJSON()

static std::string MagAOX::logger::flatbuffer_log::msgJSON ( void *  msgBuffer, flatlogs::msgLenT  len, const uint8_t *  binarySchema, const unsigned int  binarySchemaLength  )

inlinestaticinherited

Parameters

[in]	msgBuffer	Buffer containing the flatbuffer serialized message.
[in]	len	[unused] length of msgBuffer.
[in]	binarySchema	flatbuffers binary schema for this log type
[in]	binarySchemaLength	flatbuffers binary schema length

Definition at line 65 of file flatbuffer_log.hpp.

msgString()

static std::string MagAOX::logger::software_log::msgString ( void *  msgBuffer, flatlogs::msgLenT  len  )

inlinestaticinherited

Get the message formatted for human consumption.

Parameters

[in]	msgBuffer	Buffer containing the flatbuffer serialized message.
[in]	len	[unused] length of msgBuffer.

Definition at line 260 of file software_log.hpp.

References MagAOX::logger::GetSoftware_log_fb().

verify()

static bool MagAOX::logger::software_log::verify ( flatlogs::bufferPtrT &  logBuff, flatlogs::msgLenT  len  )

inlinestaticinherited

Parameters

[in]	logBuff	Buffer containing the flatbuffer serialized message.
[in]	len	length of msgBuffer.

Definition at line 250 of file software_log.hpp.

References flatlogs::logHeader::messageBuffer(), and MagAOX::logger::VerifySoftware_log_fbBuffer().

Referenced by MagAOX::logger::logVerify().

Member Data Documentation

defaultLevel

const flatlogs::logPrioT MagAOX::logger::software_alert::defaultLevel = flatlogs::logPrio::LOG_ALERT

static

The default level.

Definition at line 335 of file software_log.hpp.

eventCode

const flatlogs::eventCodeT MagAOX::logger::software_log::eventCode = eventCodes::SOFTWARE_LOG

staticinherited

The event code.

Definition at line 35 of file software_log.hpp.

---

The documentation for this struct was generated from the following file:

• libMagAOX/logger/types/software_log.hpp
