MagAOX::logger::software_notice Struct Reference

Software NOTICE log entry. More...

#include <software_log.hpp>

Inheritance diagram for MagAOX::logger::software_notice:

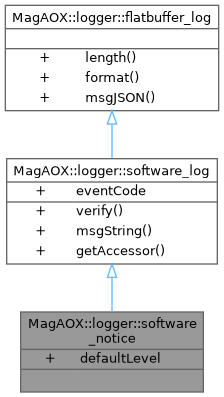

Collaboration diagram for MagAOX::logger::software_notice:

Static Public Member Functions
static bool	verify (flatlogs::bufferPtrT &logBuff, flatlogs::msgLenT len)
static std::string	msgString (void *msgBuffer, flatlogs::msgLenT len)
	Get the message formatted for human consumption. More...
static flatlogs::msgLenT	length (const fbMessage &msg)
	Get the length of the message. More...
static int	format (void *msgBuffer, const fbMessage &msg)
	Format the buffer given the input message. More...
static std::string	msgJSON (void *msgBuffer, flatlogs::msgLenT len, const uint8_t *binarySchema, const unsigned int binarySchemaLength)

Static Public Attributes
static const flatlogs::logPrioT	defaultLevel = flatlogs::logPrio::LOG_NOTICE
	The default level. More...
static const flatlogs::eventCodeT	eventCode = eventCodes::SOFTWARE_LOG
	The event code. More...

Detailed Description

Software NOTICE log entry.

Used to record a normal but signficant event or condition.

Definition at line 256 of file software_log.hpp.

Member Function Documentation

format()

static int MagAOX::logger::flatbuffer_log::format ( void *  msgBuffer, const fbMessage &  msg  )

inlinestaticinherited

Format the buffer given the input message.

Todo:

this is an unneccesary memcpy from the FlatBufferBuilder, we need to figure out how to not do this.

Parameters

[out]	msgBuffer	the buffer, must be pre-allocated to size length(msg)
[in]	msg	the message which contains a flatbuffer builder, from which the data are memcpy-ed.

Definition at line 53 of file flatbuffer_log.hpp.

length()

static flatlogs::msgLenT MagAOX::logger::flatbuffer_log::length ( const fbMessage &  msg )

inlinestaticinherited

Get the length of the message.

Parameters

[in]

msg

the fbMessage type holding a FlatBufferBuilder

Definition at line 45 of file flatbuffer_log.hpp.

msgJSON()

static std::string MagAOX::logger::flatbuffer_log::msgJSON ( void *  msgBuffer, flatlogs::msgLenT  len, const uint8_t *  binarySchema, const unsigned int  binarySchemaLength  )

inlinestaticinherited

Parameters

[in]	msgBuffer	Buffer containing the flatbuffer serialized message.
[in]	len	[unused] length of msgBuffer.
[in]	binarySchema	flatbuffers binary schema for this log type
[in]	binarySchemaLength	flatbuffers binary schema length

Definition at line 64 of file flatbuffer_log.hpp.

msgString()

static std::string MagAOX::logger::software_log::msgString ( void *  msgBuffer, flatlogs::msgLenT  len  )

inlinestaticinherited

Get the message formatted for human consumption.

Parameters

[in]	msgBuffer	Buffer containing the flatbuffer serialized message.
[in]	len	[unused] length of msgBuffer.

Definition at line 145 of file software_log.hpp.

verify()

static bool MagAOX::logger::software_log::verify ( flatlogs::bufferPtrT &  logBuff, flatlogs::msgLenT  len  )

inlinestaticinherited

Parameters

[in]	logBuff	Buffer containing the flatbuffer serialized message.
[in]	len	length of msgBuffer.

Definition at line 136 of file software_log.hpp.

Member Data Documentation

defaultLevel

const flatlogs::logPrioT MagAOX::logger::software_notice::defaultLevel = flatlogs::logPrio::LOG_NOTICE

static

The default level.

Definition at line 259 of file software_log.hpp.

eventCode

const flatlogs::eventCodeT MagAOX::logger::software_log::eventCode = eventCodes::SOFTWARE_LOG

staticinherited

The event code.

Definition at line 32 of file software_log.hpp.

---

The documentation for this struct was generated from the following file:

• libMagAOX/logger/types/software_log.hpp
