A fixed-width timespec structure. More...

#include <timespecX.hpp>

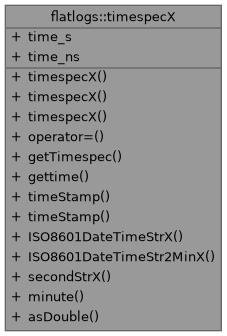

Collaboration diagram for flatlogs::timespecX:

Public Member Functions
	timespecX ()
	Default c'tor. More...

	timespecX (secT s, nanosecT ns)
	Construct with time values. More...

	timespecX (const timespec &ts)
	Construct from timespec. More...

timespecX &	operator= (const timespec &ts)
	Convert a native timespec to a timespecX. More...

timespec	getTimespec ()
	Get a native timespec from this custom one. More...

template<clockid_t clk_id = CLOCK_REALTIME>
void	gettime ()
	Fill the the timespecX with the current time. More...

int	timeStamp (std::string &tstamp)
	Get the filename timestamp for this timespecX. More...

std::string	timeStamp ()
	Get the filname timestamp for this timespecX. More...

std::string	ISO8601DateTimeStrX ()
	Get a date-time string in ISO 8601 format for timespecX. More...

std::string	ISO8601DateTimeStr2MinX ()

std::string	secondStrX ()
	Get a date-time string with just the second for timespecX. More...

int	minute ()
	Get the minute from a timespecX. More...

double	asDouble ()
	Get the time as a double from a timespecX. More...

Public Attributes
secT	time_s {0}
	Time since the Unix epoch. More...

nanosecT	time_ns {0}
	Nanoseconds. More...

Detailed Description

A fixed-width timespec structure.

To ensure that binary encoding of time is stable regardless of environment, we use a custom timespec composed of fixed-width types.

Note: This is NOT binary compatible with plain timespec. Use the provided conversions.

Definition at line 34 of file timespecX.hpp.

Constructor & Destructor Documentation

◆ timespecX() [1/3]

flatlogs::timespecX::timespecX ( )

inline

Default c'tor.

Definition at line 40 of file timespecX.hpp.

◆ timespecX() [2/3]

flatlogs::timespecX::timespecX	(	secT	s,
		nanosecT	ns
	)

inline

Construct with time values.

Definition at line 45 of file timespecX.hpp.

◆ timespecX() [3/3]

flatlogs::timespecX::timespecX ( const timespec & ts )

inline

Construct from timespec.

Definition at line 50 of file timespecX.hpp.

Member Function Documentation

◆ asDouble()

double flatlogs::timespecX::asDouble ( )

inline

Get the time as a double from a timespecX.

Returns: the time as a double.

Definition at line 231 of file timespecX.hpp.

Referenced by MagAOX::logger::getLogContVal().

◆ gettime()

template<clockid_t clk_id = CLOCK_REALTIME>

void flatlogs::timespecX::gettime ( )

inline

Fill the the timespecX with the current time.

This is based on the usual clock_gettime. clockid_t is a template parameter since we probaby always want CLOCK_REALTIME, but if we don't for some reason it will be passed in the same order as in clock_gettime.

Template Parameters

clk_id specifies the type.

Definition at line 94 of file timespecX.hpp.

Referenced by flatlogs::clock_gettimeX(), and MagAOX::logger::logManager< _parentT, _logFileT >::createLog().

◆ getTimespec()

timespec flatlogs::timespecX::getTimespec ( )

inline

Get a native timespec from this custom one.

Definition at line 76 of file timespecX.hpp.

◆ ISO8601DateTimeStr2MinX()

std::string flatlogs::timespecX::ISO8601DateTimeStr2MinX ( )

inline

Definition at line 170 of file timespecX.hpp.

◆ ISO8601DateTimeStrX()

std::string flatlogs::timespecX::ISO8601DateTimeStrX ( )

inline

Get a date-time string in ISO 8601 format for timespecX.

Returns a string in the ISO 8601 format:

YYYY-MM-DDTHH:MM:SS.SSSSSSSSS

Return values

std::string containing the formated date/time

Definition at line 153 of file timespecX.hpp.

Referenced by logdump::gettimes(), flatlogs::jsonFormat(), and flatlogs::stdFormat().

◆ minute()

int flatlogs::timespecX::minute ( )

inline

Get the minute from a timespecX.

Returns: the minute part.

Definition at line 216 of file timespecX.hpp.

◆ operator=()

timespecX& flatlogs::timespecX::operator= ( const timespec & ts )

inline

Convert a native timespec to a timespecX.

Returns: this reference, if values are 0 and 0 then the input was too big or negative.

Todo:: make this use minval and maxval

Parameters

[in] ts the native timespec from which to get values

Definition at line 59 of file timespecX.hpp.

Referenced by timespecX().

◆ secondStrX()

std::string flatlogs::timespecX::secondStrX ( )

inline

Get a date-time string with just the second for timespecX.

Returns a string in the format:

SS.SSS

which is useful for real-time streams of log entries.

Return values

std::string containing the formated date/time

Definition at line 193 of file timespecX.hpp.

Referenced by flatlogs::stdShortFormat().

◆ timeStamp() [1/2]

std::string flatlogs::timespecX::timeStamp ( )

inline

Get the filname timestamp for this timespecX.

Returns a string with the timestamp encoded as

YYYYMMDDHHMMSSNNNNNNNNN

Definition at line 136 of file timespecX.hpp.

◆ timeStamp() [2/2]

int flatlogs::timespecX::timeStamp ( std::string & tstamp )

inline

Get the filename timestamp for this timespecX.

Fills in a string with the timestamp encoded as

YYYYMMDDHHMMSSNNNNNNNNN

Parameters

[out] tstamp the string to hold the formatted time

Definition at line 108 of file timespecX.hpp.

Referenced by MagAOX::logger::logFileRaw::createFile().

Member Data Documentation

◆ time_ns

nanosecT flatlogs::timespecX::time_ns {0}

Nanoseconds.

Definition at line 37 of file timespecX.hpp.

Referenced by asDouble(), logdump::gettimes(), getTimespec(), ISO8601DateTimeStrX(), MagAOX::logger::logInMemory::loadFile(), MagAOX::app::MagAOXApp< _useINDI >::logMessage(), flatlogs::meanTimespecX(), flatlogs::operator<(), operator=(), flatlogs::operator==(), flatlogs::operator>(), MagAOX::logger::logFileName::parseName(), MagAOX::app::xindiserver::processISLog(), secondStrX(), flatlogs::timespecFromX(), and timeStamp().

◆ time_s

secT flatlogs::timespecX::time_s {0}

The documentation for this struct was generated from the following file:

flatlogs/include/flatlogs/timespecX.hpp
