#include <mcp3208Ctrl.hpp>

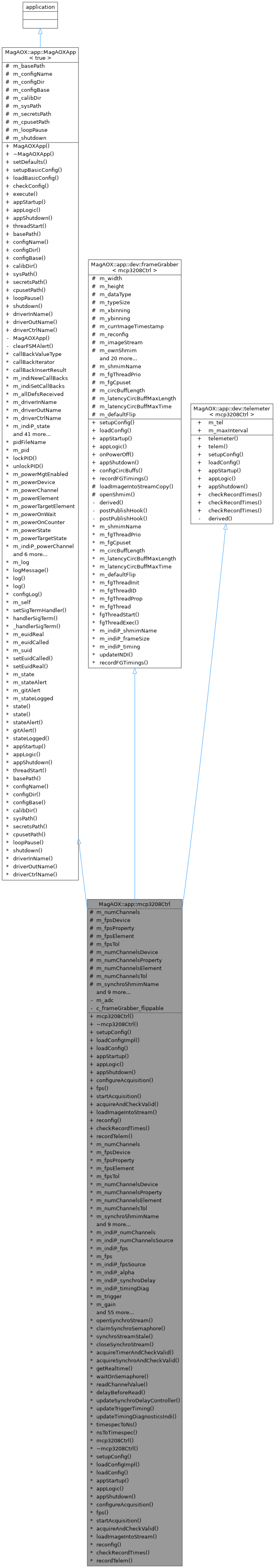

Inheritance diagram for MagAOX::app::mcp3208Ctrl:

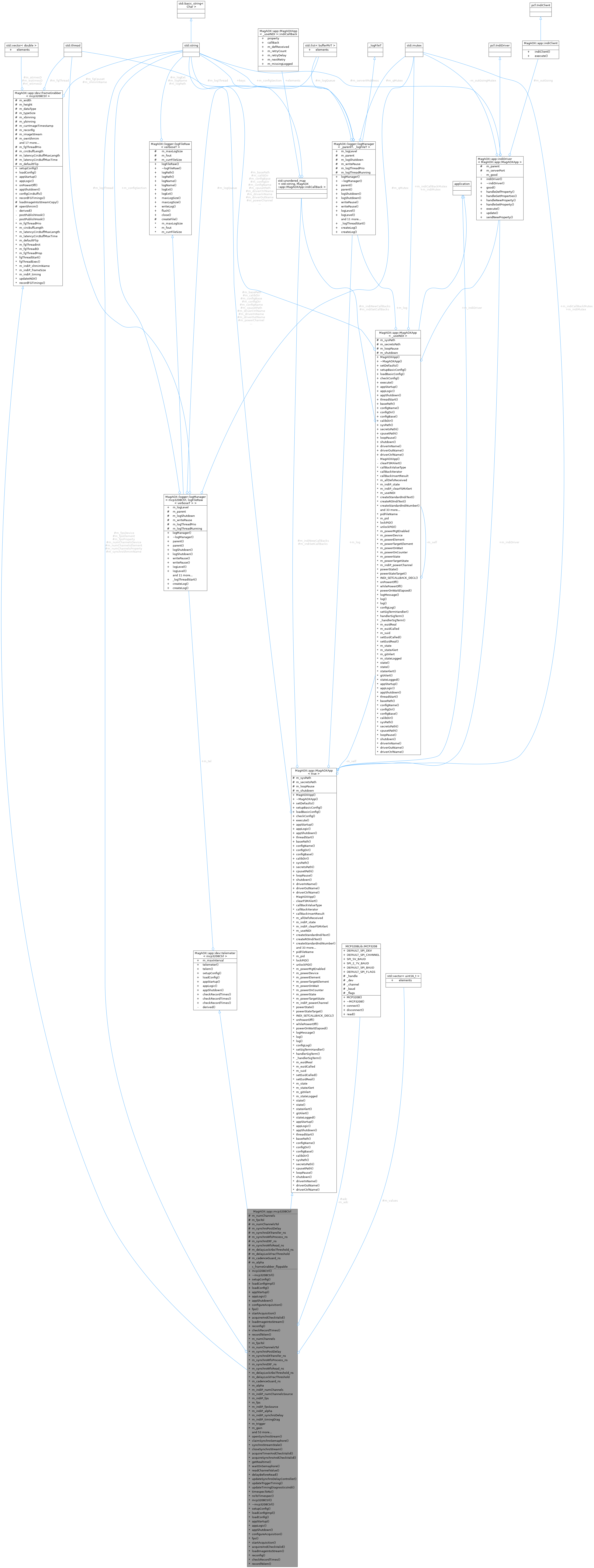

Collaboration diagram for MagAOX::app::mcp3208Ctrl:

Public Types
typedef XWC_DEFAULT_VERBOSITY	verboseT

typedef logger::logManager< MagAOXApp< _useINDI >, logFileRaw< verboseT > >	logManagerT
	The log manager type.

enum	fgFlip

typedef int32_t	cbIndexT

typedef XWC_DEFAULT_VERBOSITY	verboseT

typedef logger::logManager< mcp3208Ctrl, logFileRaw< verboseT > >	logManagerT
	The log manager type.

Public Member Functions
virtual void	setDefaults (int argc, char **argv)
	Set the paths for config files.

virtual void	setupBasicConfig ()
	The basic MagAO-X configuration setup method. Should not normally be overridden.

virtual void	loadBasicConfig ()
	The basic MagAO-X configuration processing method. Should not normally be overridden.

virtual void	checkConfig ()
	Check for unused and unrecognized config options and settings.

virtual int	execute ()
	The execute method implementing the standard main loop. Should not normally be overridden.

int	setupConfig (mx::app::appConfigurator &config)
	Setup the configuration system.

int	loadConfig (mx::app::appConfigurator &config)
	load the configuration system results

int	onPowerOff ()
	On power off, sets m_reconfig to true.

int	configCircBuffs ()

int	telem (const typename telT::messageT &msg)
	Make a telemetry recording.

int	setupConfig (appConfigurator &config)
	Setup an application configurator for the device section.

int	loadConfig (appConfigurator &config)
	Load the device section from an application configurator.

int	checkRecordTimes (const telT &tel, telTs... tels)
	Check the time of the last record for each telemetry type and make an entry if needed.

int	checkRecordTimes (timespec &ts, const telT &tel, telTs... tels)
	Worker function to actually perform the record time checking logic.

int	checkRecordTimes (timespec &ts)
	Empty function called at the end of the template list.

Application Lifecycle
	mcp3208Ctrl ()
	Construct the application with the current repository version metadata.

	~mcp3208Ctrl () noexcept
	Destroy the application.

virtual void	setupConfig ()
	Register configuration entries for the application and helper devices.

int	loadConfigImpl (mx::app::appConfigurator &_config)
	Load configuration values into the application state.

virtual void	loadConfig ()
	Load the configured application state.

virtual int	appStartup ()
	Start the application and initialize its INDI and hardware state.

virtual int	appLogic ()
	Execute one iteration of the application FSM.

virtual int	appShutdown ()
	Shutdown the application and release synchronization resources.

Framegrabber Interface
int	configureAcquisition ()
	Configure the output image geometry and acquisition mode.

float	fps ()
	Report the current acquisition rate metadata to the framegrabber.

int	startAcquisition ()
	Prepare the selected acquisition mode to begin producing samples.

int	acquireAndCheckValid ()
	Acquire one sample and indicate whether it should be published.

int	loadImageIntoStream (void *dest)
	Copy the current MCP3208 values into the output image buffer.

int	reconfig ()
	Reset synchronization resources before the next acquisition configuration.

Telemeter Interface
int	checkRecordTimes ()
	Check whether framegrabber timing telemetry should be recorded this cycle.

int	recordTelem (const telem_fgtimings *telem)
	Record framegrabber timing telemetry.

Threads
int	threadStart (std::thread &thrd, bool &thrdInit, pid_t &tpid, pcf::IndiProperty &thProp, int thrdPrio, const std::string &cpuset, const std::string &thrdName, thisPtr *thrdThis, Function &&thrdStart)
	Start a thread, using this class's privileges to set priority, etc.

Member Accessors
std::string	basePath ()
	Get the.

std::string	configName ()
	Get the config name.

std::string	configDir ()
	Get the config directory.

std::string	configBase ()
	Get the config base file.

std::string	calibDir ()
	Get the calibration directory.

std::string	sysPath ()
	Get the system path.

std::string	secretsPath ()
	Get the secrets path.

std::string	cpusetPath ()
	Get the cpuset path.

unsigned long	loopPause ()
	Get the loop pause time.

int	shutdown ()
	Get the value of the shutdown flag.

std::string	driverInName ()
	Get the INDI input FIFO file name.

std::string	driverOutName ()
	Get the INDI output FIFO file name.

std::string	driverCtrlName ()
	Get the INDI control FIFO file name.

Telemeter Interface
int	recordFGTimings (bool force=false)

Public Attributes
logManagerT	m_tel

double	m_maxInterval
	The maximum interval, in seconds, between telemetry records. Default is 10.0 seconds.

Protected Member Functions
void *	loadImageIntoStreamCopy (void dest, void src, size_t width, size_t height, size_t szof)

int	openShmim ()

Protected Attributes
std::string	m_basePath
	The base path of the MagAO-X system.

std::string	m_configName
	The name of the configuration file (minus .conf).

std::string	m_configDir
	The path to configuration files for MagAOX.

std::string	m_configBase
	The name of a base config class for this app (minus .conf).

std::string	m_calibDir
	The path to calibration files for MagAOX.

std::string	m_sysPath
	The path to the system directory, for PID file, etc.

std::string	m_secretsPath
	Path to the secrets directory, where passwords, etc, are stored.

std::string	m_cpusetPath
	Path to the cpusets mount.

unsigned long	m_loopPause

int	m_shutdown
	Flag to signal it's time to shutdown. When not 0, the main loop exits.

uint32_t	m_width
	The width of the image, once deinterlaced etc.

uint32_t	m_height
	The height of the image, once deinterlaced etc.

uint8_t	m_dataType
	The ImageStreamIO type code.

size_t	m_typeSize
	The size of the type, in bytes. Result of sizeof.

int	m_xbinning
	The x-binning according to the framegrabber.

int	m_ybinning
	The y-binning according to the framegrabber.

timespec	m_currImageTimestamp
	The timestamp of the current image.

bool	m_reconfig
	Flag to set if a camera reconfiguration requires a framegrabber reset.

IMAGE *	m_imageStream
	The ImageStreamIO shared memory buffer.

bool	m_ownShmim
	Flag controlling if the shmim is owned. If true it will be destroyed as needed.

ino_t	m_inode
	The inode of the image stream file.

float	m_cbFPS
	The FPS used to configure the circular buffers.

mx::sigproc::circularBufferIndex< timespec, cbIndexT >	m_atimes

mx::sigproc::circularBufferIndex< timespec, cbIndexT >	m_wtimes

std::vector< double >	m_atimesD

std::vector< double >	m_wtimesD

std::vector< double >	m_watimesD

timespec	m_dummy_ts

uint64_t	m_dummy_cnt

char	m_dummy_c

double	m_mna

double	m_vara

double	m_mina

double	m_maxa

double	m_mnw

double	m_varw

double	m_minw

double	m_maxw

double	m_mnwa

double	m_varwa

Configurable Parameters - Data
int	m_numChannels { 2 }
	The number of MCP3208 channels read into each output frame.

std::string	m_fpsDevice
	Device name providing external fps metadata for framegrabber sizing.

std::string	m_fpsProperty { "fps" }
	Property name providing external fps metadata.

std::string	m_fpsElement { "current" }
	Property element containing the fps value.

float	m_fpsTol { 0 }
	The tolerance used when monitoring fps metadata changes.

std::string	m_numChannelsDevice
	Device name for getting numChannels to set circular buffer length.

std::string	m_numChannelsProperty { "numChannels" }
	Property name for getting numChannels to set circular buffer length.

std::string	m_numChannelsElement { "current" }
	Element name for getting numChannels to set circular buffer length.

float	m_numChannelsTol { 0 }
	The tolerance for detecting a change in numChannels.

std::string	m_synchroShmimName
	The synchronization ImageStreamIO stream name; empty selects timer mode.

int	m_synchroPostDelay { 0 }
	Signed microsecond phase offset added to synchronized delay-model predictions.

double	m_synchroDtTransfer_ns { 3e3 }
	Transfer-latency term in the synchronized delay model.

double	m_synchroWfsProcess_ns { 51.5e3 }
	WFS processing-latency term in the synchronized delay model.

double	m_synchroDtF_ns { 10e3 }
	Filter/transport-latency term in the synchronized delay model.

double	m_synchroWfsRead_ns { 276.1e3 }
	WFS read-latency term in the synchronized delay model.

double	m_delayLockAbsThreshold_ns { 50e3 }
	Absolute phase-error threshold for declaring delay lock.

double	m_delayLockFracThreshold { 0.1 }
	Fractional period phase-error threshold for declaring delay lock.

double	m_cadenceGuard_ns { 20e3 }
	Reserved per-frame margin protecting synchronized cadence from overruns.

float	m_alpha { 0.01f }
	Global exponential moving-average coefficient applied to timing smoothers.

Configurable Parameters
std::string	m_shmimName

int	m_fgThreadPrio
	Priority of the framegrabber thread, should normally be > 00.

std::string	m_fgCpuset
	The cpuset to assign the framegrabber thread to. Not used if empty, the default.

uint32_t	m_circBuffLength
	Length of the circular buffer, in frames.

cbIndexT	m_latencyCircBuffMaxLength
	Maximum length of the latency measurement circular buffers.

float	m_latencyCircBuffMaxTime
	Maximum time of the latency meaurement circular buffers.

int	m_defaultFlip

Private Types
typedef dev::frameGrabber< mcp3208Ctrl >	frameGrabberT

typedef dev::telemeter< mcp3208Ctrl >	telemeterT

Private Member Functions
int	clearFSMAlert ()
	Clear the FSM alert state.

mcp3208Ctrl &	derived ()

Static Private Member Functions
static auto	postPublishHook (hookT &hookOwner, IMAGE *imageStream, int callPriorityTag) -> decltype(hookOwner.frameGrabberPostPublish(imageStream))
	Call an optional derived-class hook after the main stream publication completes.

static int	postPublishHook (mcp3208Ctrl &hookOwner, IMAGE *imageStream, long callPriorityTag)
	Return success when the derived class does not expose a post-publication hook.

Private Attributes
MCP3208Lib::MCP3208	m_adc
	The active MCP3208 device interface used for hardware access.

Static Private Attributes
static constexpr bool	c_frameGrabber_flippable = false

Friends
class	mcp3208Ctrl_test

class	dev::frameGrabber< mcp3208Ctrl >

class	dev::telemeter< mcp3208Ctrl >

Privilege Management
uid_t	m_euidReal
	The real user id of the proces (i.e. the lower privileged id of the user)

uid_t	m_euidCalled

uid_t	m_suid
	The save-set user id of the process.

int	setEuidCalled ()
	Set the effective user ID to the called value, i.e. the highest possible.

int	setEuidReal ()
	Set the effective user ID to the real value, i.e. the file owner.

Application State
stateCodes::stateCodeT	m_state

bool	m_stateAlert

bool	m_gitAlert

int	m_stateLogged

stateCodes::stateCodeT	state ()
	Get the current state code.

void	state (const stateCodes::stateCodeT &s, bool stateAlert=false)
	Set the current state code.

bool	stateAlert ()
	Get the value of the state alert flag.

bool	gitAlert ()
	Get the value of the git alert flag.

int	stateLogged ()
	Updates and returns the value of m_stateLogged. Will be 0 on first call after a state change, >0 afterwards.

Signal Handling
libMagAOX/logger/types/software_log.hpp
static MagAOXApp *	m_self

int	setSigTermHandler ()
	Sets the handler for SIGTERM, SIGQUIT, and SIGINT.

void	handlerSigTerm (int signum, siginfo_t siginf, void ucont)
	Handles SIGTERM, SIGQUIT, and SIGINT. Sets m_shutdown to 1 and logs the signal.

static void	_handlerSigTerm (int signum, siginfo_t siginf, void ucont)
	The handler called when SIGTERM, SIGQUIT, or SIGINT is received. Just a wrapper for handlerSigTerm.

Runtime State - Data
pcf::IndiProperty	m_indiP_numChannels

pcf::IndiProperty	m_indiP_numChannelsSource

pcf::IndiProperty	m_indiP_fps
	INDI property exposing the local fps target.

float	m_fps { 2000 }
	The target acquisition rate in frames per second.

pcf::IndiProperty	m_indiP_fpsSource
	INDI property subscription used to follow an external fps source.

pcf::IndiProperty	m_indiP_alpha
	INDI property exposing the global EMA alpha used by timing smoothers.

pcf::IndiProperty	m_indiP_synchroDelay
	INDI property exposing the synchronized-mode signed phase offset in microseconds.

pcf::IndiProperty	m_indiP_timingDiag
	INDI property exposing runtime timing diagnostics for acquisition health checks.

float	m_trigger { 1e9f / m_fps }
	The timer-mode read interval in nanoseconds.

float	m_gain { .1 }
	The simple integrator gain used for timer and synchro delay control.

float	nano_sec_target { 1e9f / m_fps }
	The timer-mode target interval in nanoseconds.

float	m_synchroDelay { 0 }
	The commanded pre-read delay in synchronized mode, in nanoseconds.

float	m_synchroDelayTarget { 0 }
	The synchronized-mode effective delay target in nanoseconds after applying signed offset and wrap.

MCP3208Lib::MCP3208	adc
	Secondary MCP3208 handle retained with the legacy class state.

std::chrono::time_point< std::chrono::high_resolution_clock >	m_time_start
	The timer-mode reference point for the next internal acquisition cycle.

std::vector< uint16_t >	m_values
	The most recently read MCP3208 channel values published to the output stream.

IMAGE	m_synchroStream {}
	The opened synchronization stream used for semaphore-triggered reads.

bool	m_synchroStreamOpen { false }
	Tracks whether the synchronization stream is currently open.

ino_t	m_synchroStreamInode { 0 }
	Cached inode used to detect synchronization stream recreation.

int	m_synchroSemaphoreNumber { 5 }
	The claimed semaphore slot for synchronization waits.

sem_t *	m_synchroSemaphore { nullptr }
	Cached pointer to the claimed synchronization semaphore.

timespec	m_atime {}
	The most recent semaphore-arrival timestamp on the local realtime clock.

timespec	m_lastAtime {}
	The previous semaphore-arrival timestamp used for period estimation.

double	m_avgSemaphorePeriod_ns { 0.0 }
	Exponential moving-average estimate of semaphore period in nanoseconds.

double	m_wfsPeriodMeasured_ns { 0.0 }
	Measured semaphore period used as the synchronized delay-model WFS period.

timespec	m_lastProducerAtime {}
	Previous producer atime from the synchronization stream metadata.

uint64_t	m_lastProducerCnt0 { 0 }
	Previous producer frame counter from the synchronization stream metadata.

double	m_producerPeriodInst_ns { 0.0 }
	Instantaneous producer period estimate from metadata timestamps.

double	m_avgProducerPeriod_ns { 0.0 }
	Exponential moving-average producer period estimate from metadata.

bool	m_firstProducerSample { true }
	Tracks first-sample initialization for producer-period estimation.

uint64_t	m_localFrameSeq { 0 }
	Monotonic local acquisition sequence incremented on each published frame.

uint64_t	m_syncFramesReceived { 0 }
	Count of synchronized frames received from semaphore wakes.

uint64_t	m_syncFramesWritten { 0 }
	Count of synchronized frames published to the output stream.

uint64_t	m_syncFramesDropped { 0 }
	Count of missing producer frame IDs inferred from positive counter gaps.

uint64_t	m_syncFrameIdGapCount { 0 }
	Number of producer-frame gap events where ID delta exceeded one.

uint64_t	m_syncProducerFrameId { 0 }
	Latest producer frame ID (`cnt0`) observed on the synchronization stream.

uint64_t	m_syncProducerFrameDelta { 0 }
	Latest producer-frame ID delta between consecutive synchronized wakes.

uint64_t	m_lastSyncProducerFrameId { 0 }
	Previous producer frame ID used to detect synchronized frame-ID gaps.

bool	m_syncProducerFrameValid { false }
	Tracks whether producer frame-ID gap tracking has a valid prior sample.

bool	m_firstSemaphore { true }
	Tracks first-arrival initialization for semaphore period estimation.

double	m_avgReadLatency_ns { 0.0 }
	Exponential moving-average estimate of semaphore-to-read latency in nanoseconds.

bool	m_firstReadLatency { true }
	Tracks first-arrival initialization for semaphore-to-read latency estimation.

double	m_wfs_fps { 0.0 }
	WFS frame rate estimate used for timing prediction; initialized from configured fps before callbacks.

double	m_delayModel_ns { 0.0 }
	Current modulo-wrapped delay predicted by the synchronized phase model.

double	m_delayApplied_ns { 0.0 }
	Delay applied to the most recent synchronized ADC read.

double	m_delayBudget_ns { 0.0 }
	Maximum delay allowed this cycle after cadence budgeting.

double	m_nonDelayService_ns { 0.0 }
	Measured wake-to-return service time minus applied delay for the latest cycle.

double	m_avgNonDelayService_ns { 0.0 }
	Exponential moving-average of non-delay synchronized service time.

bool	m_firstNonDelayService { true }
	Tracks first-sample initialization for non-delay service-time averaging.

double	m_delayPhaseError_ns { 0.0 }
	Wrapped phase error between applied and modeled synchronized delay.

double	m_delayLock { 0.0 }
	Delay-lock state exported to diagnostics as 1.0 (locked) or 0.0 (unlocked).

double	m_delayCapped { 0.0 }
	Delay-cap state exported as 1.0 when cadence budgeting limits the applied delay.

timespec	m_triggerTime {}
	Computed trigger timestamp aligned to the estimated WFS integration midpoint.

double	m_triggerInterval_ns { 0.0 }
	Measured interval between consecutive trigger events in nanoseconds.

double	m_channelReadoutTime_ns { 0.0 }
	Measured duration of reading all configured channels in nanoseconds.

timespec	m_lastTriggerTime {}
	Previous trigger timestamp used to compute the synchronized trigger interval.

bool	m_firstTriggerTime { true }
	Tracks first-trigger initialization for synchronized trigger-interval measurement.

bool	m_firstTimerTrigger { true }
	Tracks first-trigger initialization for timer-mode trigger-interval measurement.

int	numChannels ()
	Report the configured channel count metadata to the framegrabber.

	INDI_NEWCALLBACK_DECL (mcp3208Ctrl, m_indiP_numChannels)

	INDI_SETCALLBACK_DECL (mcp3208Ctrl, m_indiP_numChannelsSource)

	INDI_NEWCALLBACK_DECL (mcp3208Ctrl, m_indiP_fps)
	Handle updates to the local fps target property.

	INDI_SETCALLBACK_DECL (mcp3208Ctrl, m_indiP_fpsSource)
	Handle updates from the configured external fps source.

	INDI_NEWCALLBACK_DECL (mcp3208Ctrl, m_indiP_alpha)
	Handle updates to the global EMA alpha property.

	INDI_NEWCALLBACK_DECL (mcp3208Ctrl, m_indiP_synchroDelay)
	Handle updates to the synchronized-mode signed phase offset property.

PID Locking
Each MagAOXApp has a PID lock file in the system directory. The app will not startup if it detects that the PID is already locked, preventing duplicates. This is based on the configured name, not the invoked name (argv[0]).
std::string	pidFileName
	The name of the PID file.

pid_t	m_pid
	This process's PID.

int	lockPID ()

int	unlockPID ()
	Remove the PID file.

INDI Interface
For reference: "Get" and "New" refer to properties we own. "Set" refers to properties owned by others. So we respond to GetProperties by listing our own properties, and NewProperty is a request to change a property we own. Whereas SetProperty is a notification that someone else has changed a property.
std::unordered_map< std::string, indiCallBack >	m_indiNewCallBacks
	Map to hold the NewProperty indiCallBacks for this App, with fast lookup by property name.

std::unordered_map< std::string, indiCallBack >	m_indiSetCallBacks
	Map to hold the SetProperty indiCallBacks for this App, with fast lookup by property name.

bool	m_allDefsReceived
	Flag indicating that all registered Set properties have been updated since last Get.

std::string	m_driverInName
	Full path name of the INDI driver input FIFO.

std::string	m_driverOutName
	Full path name of the INDI driver output FIFO.

std::string	m_driverCtrlName
	Full path name of the INDI driver control FIFO.

pcf::IndiProperty	m_indiP_state
	indi Property to report the application state.

pcf::IndiProperty	m_indiP_clearFSMAlert
	indi Property to clear an FSM alert.

int	createINDIFIFOS ()
	Create the INDI FIFOs.

int	startINDI ()
	Start INDI Communications.

void	updateIfChanged (pcf::IndiProperty &p, const std::string &el, const T &newVal, pcf::IndiProperty::PropertyStateType ipState=pcf::IndiProperty::Ok)
	Update an INDI property element value if it has changed.

void	updateIfChanged (pcf::IndiProperty &p, const std::string &el, const char *newVal, pcf::IndiProperty::PropertyStateType ipState=pcf::IndiProperty::Ok)
	Update an INDI property element value if it has changed.

void	updateIfChanged (pcf::IndiProperty &p, const std::string &el, const std::vector< T > &newVals, pcf::IndiProperty::PropertyStateType ipState=pcf::IndiProperty::Ok)
	Update an INDI property if values have changed.

void	updateIfChanged (pcf::IndiProperty &p, const std::vector< std::string > &els, const std::vector< T > &newVals, pcf::IndiProperty::PropertyStateType newState=pcf::IndiProperty::Ok)
	Update an INDI property if values have changed.

void	updateSwitchIfChanged (pcf::IndiProperty &p, const std::string &el, const pcf::IndiElement::SwitchStateType &newVal, pcf::IndiProperty::PropertyStateType ipState=pcf::IndiProperty::Ok)
	Update an INDI switch element value if it has changed.

void	updatesIfChanged (pcf::IndiProperty &p, const std::vector< const char * > &els, const std::vector< T > &newVals, pcf::IndiProperty::PropertyStateType newState=pcf::IndiProperty::Ok)

int	indiTargetUpdate (pcf::IndiProperty &localProperty, T &localTarget, const pcf::IndiProperty &remoteProperty, bool setBusy=true)
	Get the target element value from an new property.

int	sendNewProperty (const pcf::IndiProperty &ipSend, const std::string &el, const T &newVal)
	Send a newProperty command to another device (using the INDI Client interface)

int	sendNewProperty (const pcf::IndiProperty &ipSend)
	Send a newProperty command to another device (using the INDI Client interface)

int	sendNewStandardIndiToggle (const std::string &device, const std::string &property, bool onoff)
	Send a new property commmand for a standard toggle switch.

int	newCallBack_clearFSMAlert (const pcf::IndiProperty &ipRecv)
	The callback called by the static version, to actually process the FSM Alert Clear request.

static int	st_newCallBack_clearFSMAlert (void *app, const pcf::IndiProperty &ipRecv)
	The static callback function to be registered for requesting to clear the FSM alert.

int	createStandardIndiText (pcf::IndiProperty &prop, const std::string &propName, const std::string &label="", const std::string &group="")
	Create a standard R/W INDI Text property with target and current elements.

int	createROIndiText (pcf::IndiProperty &prop, const std::string &propName, const std::string &elName, const std::string &propLabel="", const std::string &propGroup="", const std::string &elLabel="")
	Create a standard ReadOnly INDI Text property, with at least one element.

int	createStandardIndiNumber (pcf::IndiProperty &prop, const std::string &name, const T &min, const T &max, const T &step, const std::string &format, const std::string &label="", const std::string &group="")
	Create a standard R/W INDI Number property with target and current elements.

int	createROIndiNumber (pcf::IndiProperty &prop, const std::string &propName, const std::string &propLabel="", const std::string &propGroup="")
	Create a ReadOnly INDI Number property.

int	createStandardIndiToggleSw (pcf::IndiProperty &prop, const std::string &name, const std::string &label="", const std::string &group="")
	Create a standard R/W INDI switch with a single toggle element.

int	createStandardIndiRequestSw (pcf::IndiProperty &prop, const std::string &name, const std::string &label="", const std::string &group="")
	Create a standard R/W INDI switch with a single request element.

int	createStandardIndiSelectionSw (pcf::IndiProperty &prop, const std::string &name, const std::vector< std::string > &elements, const std::vector< std::string > &elementLabels, const std::string &label="", const std::string &group="")
	Create a standard R/W INDI selection (one of many) switch with vector of elements and element labels.

int	createStandardIndiSelectionSw (pcf::IndiProperty &prop, const std::string &name, const std::vector< std::string > &elements, const std::string &label="", const std::string &group="")

int	registerIndiPropertyReadOnly (pcf::IndiProperty &prop)
	Register an INDI property which is read only.

int	registerIndiPropertyReadOnly (pcf::IndiProperty &prop, const std::string &propName, const pcf::IndiProperty::Type &propType, const pcf::IndiProperty::PropertyPermType &propPerm, const pcf::IndiProperty::PropertyStateType &propState)
	Register an INDI property which is read only.

int	registerIndiPropertyNew (pcf::IndiProperty &prop, int()(void , const pcf::IndiProperty &))
	Register an INDI property which is exposed for others to request a New Property for.

int	registerIndiPropertyNew (pcf::IndiProperty &prop, const std::string &propName, const pcf::IndiProperty::Type &propType, const pcf::IndiProperty::PropertyPermType &propPerm, const pcf::IndiProperty::PropertyStateType &propState, int()(void , const pcf::IndiProperty &))
	Register an INDI property which is exposed for others to request a New Property for.

int	registerIndiPropertyNew (pcf::IndiProperty &prop, const std::string &propName, const pcf::IndiProperty::Type &propType, const pcf::IndiProperty::PropertyPermType &propPerm, const pcf::IndiProperty::PropertyStateType &propState, const pcf::IndiProperty::SwitchRuleType &propRule, int()(void , const pcf::IndiProperty &))
	Register an INDI property which is exposed for others to request a New Property for, with a switch rule.

int	registerIndiPropertySet (pcf::IndiProperty &prop, const std::string &devName, const std::string &propName, int()(void , const pcf::IndiProperty &))
	Register an INDI property which is monitored for updates from others.

void	resetIndiSetPropertyRetry (indiCallBack &callBack)
	Reset retry tracking for a monitored INDI Set-property subscription.

bool	indiSetPropertyShouldRequest (const indiCallBack &callBack, bool all, const std::chrono::steady_clock::time_point &now) const
	Determine whether an unresolved Set-property subscription should be requested now.

void	noteIndiSetPropertyRequested (indiCallBack &callBack, const std::chrono::steady_clock::time_point &now)
	Update retry tracking after sending a GetProperties request for a monitored Set-property.

void	sendGetPropertySetList (bool all=false)

void	handleDefProperty (const pcf::IndiProperty &ipRecv)
	Handler for the DEF INDI properties notification.

void	handleGetProperties (const pcf::IndiProperty &ipRecv)
	Handler for the get INDI properties request.

void	handleNewProperty (const pcf::IndiProperty &ipRecv)
	Handler for the new INDI property request.

void	handleSetProperty (const pcf::IndiProperty &ipRecv)
	Handler for the set INDI property request.

typedef std::pair< std::string, indiCallBack >	callBackValueType
	Value type of the indiCallBack map.

typedef std::unordered_map< std::string, indiCallBack >::iterator	callBackIterator
	Iterator type of the indiCallBack map.

typedef std::pair< callBackIterator, bool >	callBackInsertResult
	Return type of insert on the indiCallBack map.

static constexpr bool	m_useINDI
	Flag controlling whether INDI is used. If false, then no INDI code executes.

indiDriver< MagAOXApp > *	m_indiDriver
	The INDI driver wrapper. Constructed and initialized by execute, which starts and stops communications.

std::mutex	m_indiMutex
	Mutex for locking INDI communications.

std::mutex	m_indiCallBackMutex
	Mutex for locking INDI callback maps and per-entry callback state.

Power Management
For devices which have remote power management (e.g. from one of the PDUs) we implement a standard power state monitoring and management component for the FSM. This needs to be enabled in the derived app constructor. To stay enabled, m_powerDevice and m_powerChannel must be not empty strings after the configuration. These could be set in the derived app defaults. If power management is enabled, then while power is off, appLogic will not be called. Instead a parrallel set of virtual functions is called, onPowerOff (to allow apps to perform cleanup) and whilePowerOff (to allow apps to keep variables updated, etc). Note that these could merely call appLogic if desired.
bool	m_powerMgtEnabled

std::string	m_powerDevice
	The INDI device name of the power controller.

std::string	m_powerChannel
	The INDI property name of the channel controlling this device's power.

std::string	m_powerElement
	The INDI element name to monitor for this device's power state.

std::string	m_powerTargetElement
	The INDI element name to monitor for this device's power state.

unsigned long	m_powerOnWait
	Default time in sec to wait for device to boot after power on.

int	m_powerOnCounter

int	m_powerState
	Current power state, 1=On, 0=Off, -1=Unk.

int	m_powerTargetState
	Current target power state, 1=On, 0=Off, -1=Unk.

pcf::IndiProperty	m_indiP_powerChannel
	INDI property used to communicate power state.

virtual int	onPowerOff ()
	This method is called when the change to poweroff is detected.

virtual int	whilePowerOff ()
	This method is called while the power is off, once per FSM loop.

bool	powerOnWaitElapsed ()
	This method tests whether the power on wait time has elapsed.

int	powerState ()
	Returns the current power state.

int	powerStateTarget ()
	Returns the target power state.

	INDI_SETCALLBACK_DECL (MagAOXApp, m_indiP_powerChannel)

Framegrabber Thread
This thread actually manages the framegrabbing hardware
bool	m_fgThreadInit
	Synchronizer for thread startup, to allow priority setting to finish.

pid_t	m_fgThreadID
	The ID of the framegrabber thread.

pcf::IndiProperty	m_fgThreadProp
	The property to hold the f.g. thread details.

std::thread	m_fgThread
	A separate thread for the actual framegrabbings.

void	fgThreadExec ()
	Execute framegrabbing.

static void	fgThreadStart (frameGrabber *o)
	Thread starter, called by MagAOXApp::threadStart on thread construction. Calls fgThreadExec.

INDI
pcf::IndiProperty	m_indiP_shmimName
	Property used to report the shmim buffer name.

pcf::IndiProperty	m_indiP_frameSize
	Property used to report the current frame size.

pcf::IndiProperty	m_indiP_timing

int	updateINDI ()
	Update the INDI properties for this device controller.

Synchronization Helpers
int	openSynchroStream ()
	Open the synchronization stream when semaphore-driven acquisition is enabled.

int	claimSynchroSemaphore ()
	Claim a semaphore slot from the synchronization stream.

bool	synchroStreamStale ()
	Check whether the synchronization stream has disappeared or been recreated.

void	closeSynchroStream ()
	Release the synchronization semaphore claim and close the synchronization stream.

int	acquireTimerAndCheckValid ()
	Acquire one frame using the internal timer loop.

int	acquireSynchroAndCheckValid ()
	Acquire one frame using the synchronization semaphore.

int	getRealtime (timespec &ts)
	Read the current realtime clock value.

int	waitOnSemaphore (sem_t *sem, timespec &ts)
	Wait on the claimed synchronization semaphore until the supplied timeout.

int	readChannelValue (int channel, uint16_t &value)
	Read one MCP3208 channel value.

void	delayBeforeRead ()
	Apply the current controlled delay between semaphore wake and ADC read.

void	updateSynchroDelayController (double desiredDelay_ns)
	Update the synchronized delay command with anti-windup and physical bounds.

void	updateTriggerTiming (const timespec &atime)
	Update synchronized trigger timing from the current semaphore arrival.

void	updateTimingDiagnosticsIndi ()
	Publish acquisition timing diagnostics to the INDI read-only property.

static double	timespecToNs (const timespec &t)
	Convert a timespec timestamp to nanoseconds.

static timespec	nsToTimespec (double ns)
	Convert nanoseconds to a normalized timespec value.

Logging
static void	configLog (const std::string &name, const int &code, const std::string &value, const std::string &source)
	Callback for config system logging.

void	logMessage (bufferPtrT &b)
	Handle a log message from the logging system.

static logManagerT	m_log

static int	log (const typename logT::messageT &msg, logPrioT level=logPrio::LOG_DEFAULT)
	Make a log entry.

static int	log (logPrioT level=logPrio::LOG_DEFAULT)
	Make a log entry.

Detailed Description

MagAO-X application to read MCP3208 channels on a Raspberry Pi.

The controller can either acquire on its internal timer loop or synchronize reads to an ImageStreamIO semaphore.

Definition at line 39 of file mcp3208Ctrl.hpp.

Member Typedef Documentation

◆ callBackInsertResult

typedef std::pair<callBackIterator, bool> MagAOX::app::MagAOXApp< _useINDI >::callBackInsertResult

inherited

Return type of insert on the indiCallBack map.

Definition at line 694 of file MagAOXApp.hpp.

◆ callBackIterator

typedef std::unordered_map<std::string,indiCallBack>::iterator MagAOX::app::MagAOXApp< _useINDI >::callBackIterator

inherited

Iterator type of the indiCallBack map.

Definition at line 691 of file MagAOXApp.hpp.

◆ callBackValueType

typedef std::pair<std::string, indiCallBack> MagAOX::app::MagAOXApp< _useINDI >::callBackValueType

inherited

Value type of the indiCallBack map.

Definition at line 688 of file MagAOXApp.hpp.

◆ cbIndexT

typedef int32_t MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::cbIndexT

inherited

Definition at line 116 of file frameGrabber.hpp.

◆ frameGrabberT

typedef dev::frameGrabber<mcp3208Ctrl> MagAOX::app::mcp3208Ctrl::frameGrabberT

private

Definition at line 47 of file mcp3208Ctrl.hpp.

◆ logManagerT [1/2]

typedef logger::logManager<mcp3208Ctrl , logFileRaw<verboseT> > MagAOX::app::dev::telemeter< mcp3208Ctrl >::logManagerT

inherited

The log manager type.

Definition at line 79 of file telemeter.hpp.

◆ logManagerT [2/2]

typedef logger::logManager<MagAOXApp<_useINDI>, logFileRaw<verboseT> > MagAOX::app::MagAOXApp< _useINDI >::logManagerT

inherited

The log manager type.

Definition at line 178 of file MagAOXApp.hpp.

◆ telemeterT

typedef dev::telemeter<mcp3208Ctrl> MagAOX::app::mcp3208Ctrl::telemeterT

private

Definition at line 48 of file mcp3208Ctrl.hpp.

◆ verboseT [1/2]

typedef XWC_DEFAULT_VERBOSITY MagAOX::app::dev::telemeter< mcp3208Ctrl >::verboseT

inherited

Definition at line 76 of file telemeter.hpp.

◆ verboseT [2/2]

typedef XWC_DEFAULT_VERBOSITY MagAOX::app::MagAOXApp< _useINDI >::verboseT

inherited

Definition at line 175 of file MagAOXApp.hpp.

Member Enumeration Documentation

◆ fgFlip

enum MagAOX::app::dev::frameGrabber::fgFlip

inherited

Definition at line 108 of file frameGrabber.hpp.

Constructor & Destructor Documentation

◆ mcp3208Ctrl()

MagAOX::app::mcp3208Ctrl::mcp3208Ctrl ( )

Construct the application with the current repository version metadata.

Definition at line 442 of file mcp3208Ctrl.hpp.

◆ ~mcp3208Ctrl()

MagAOX::app::mcp3208Ctrl::~mcp3208Ctrl ( )

inlinenoexcept

Destroy the application.

Definition at line 335 of file mcp3208Ctrl.hpp.

Member Function Documentation

◆ _handlerSigTerm()

void MagAOX::app::MagAOXApp< _useINDI >::_handlerSigTerm	(	int	signum,
		siginfo_t *	siginf,
		void *	ucont
	)

staticprivateinherited

The handler called when SIGTERM, SIGQUIT, or SIGINT is received. Just a wrapper for handlerSigTerm.

Parameters

[in]	signum	specifies the signal.
[in]	siginf	ignored by MagAOXApp
[in]	ucont	ignored by MagAOXApp

Definition at line 397 of file MagAOXApp.hpp.

◆ acquireAndCheckValid()

int MagAOX::app::mcp3208Ctrl::acquireAndCheckValid ( )

Acquire one sample and indicate whether it should be published.

Returns: 0 when a new sample is ready.; 1 when no new sample should be published.; -1 on a critical error.

Definition at line 1201 of file mcp3208Ctrl.hpp.

References acquireSynchroAndCheckValid(), acquireTimerAndCheckValid(), and m_synchroShmimName.

◆ acquireSynchroAndCheckValid()

int MagAOX::app::mcp3208Ctrl::acquireSynchroAndCheckValid ( )

protected

Acquire one frame using the synchronization semaphore.

Returns: 0 when a new sample is ready.; 1 when the loop should continue without publishing.; -1 on a critical timing error.

Definition at line 1424 of file mcp3208Ctrl.hpp.

References delayBeforeRead(), getRealtime(), MagAOX::app::MagAOXApp< true >::log(), flatlogs::logPrio::LOG_NOTICE, m_alpha, m_atime, m_avgNonDelayService_ns, m_avgProducerPeriod_ns, m_avgReadLatency_ns, m_cadenceGuard_ns, m_channelReadoutTime_ns, MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_currImageTimestamp, m_delayApplied_ns, m_delayBudget_ns, m_delayCapped, m_firstNonDelayService, m_firstProducerSample, m_firstReadLatency, m_lastProducerAtime, m_lastProducerCnt0, m_lastSyncProducerFrameId, m_nonDelayService_ns, m_numChannels, m_producerPeriodInst_ns, MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_reconfig, m_syncFrameIdGapCount, m_syncFramesDropped, m_syncFramesReceived, m_synchroDelay, m_synchroDelayTarget, m_synchroSemaphore, m_synchroStream, m_syncProducerFrameDelta, m_syncProducerFrameId, m_syncProducerFrameValid, m_values, m_wfsPeriodMeasured_ns, readChannelValue(), synchroStreamStale(), timespecToNs(), updateSynchroDelayController(), updateTriggerTiming(), and waitOnSemaphore().

Referenced by acquireAndCheckValid().

◆ acquireTimerAndCheckValid()

int MagAOX::app::mcp3208Ctrl::acquireTimerAndCheckValid ( )

protected

Acquire one frame using the internal timer loop.

Returns: 0 when a new sample is ready.; 1 when the loop should continue without publishing.

Definition at line 1376 of file mcp3208Ctrl.hpp.

References MagAOX::app::MagAOXApp< true >::log(), m_channelReadoutTime_ns, m_firstTimerTrigger, m_gain, m_numChannels, MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_reconfig, MagAOX::app::MagAOXApp< true >::m_shutdown, m_time_start, m_trigger, m_triggerInterval_ns, m_values, nano_sec_target, and readChannelValue().

Referenced by acquireAndCheckValid().

◆ appLogic()

int MagAOX::app::mcp3208Ctrl::appLogic ( )

virtual

Execute one iteration of the application FSM.

Returns: 0 on no critical error; -1 on an error requiring shutdown

Implements MagAOX::app::MagAOXApp< true >.

Definition at line 1060 of file mcp3208Ctrl.hpp.

References FRAMEGRABBER_APP_LOGIC, FRAMEGRABBER_UPDATE_INDI, MagAOX::app::MagAOXApp< true >::log(), m_alpha, m_fps, m_indiP_alpha, m_indiP_fps, m_indiP_numChannels, m_indiP_synchroDelay, m_numChannels, m_synchroPostDelay, TELEMETER_APP_LOGIC, and updateTimingDiagnosticsIndi().

◆ appShutdown()

int MagAOX::app::mcp3208Ctrl::appShutdown ( )

virtual

Shutdown the application and release synchronization resources.

Returns: 0 on success.; -1 on error.

Implements MagAOX::app::MagAOXApp< true >.

Definition at line 1081 of file mcp3208Ctrl.hpp.

References closeSynchroStream(), FRAMEGRABBER_APP_SHUTDOWN, and TELEMETER_APP_SHUTDOWN.

◆ appStartup()

int MagAOX::app::mcp3208Ctrl::appStartup ( )

virtual

Start the application and initialize its INDI and hardware state.

Returns: 0 on success.; -1 on error.

Implements MagAOX::app::MagAOXApp< true >.

Definition at line 848 of file mcp3208Ctrl.hpp.

References MCP3208Lib::MCP3208::connect(), CREATE_REG_INDI_NEW_NUMBERF, CREATE_REG_INDI_RO_NUMBER, FRAMEGRABBER_APP_STARTUP, MagAOX::app::MagAOXApp< true >::log(), m_adc, m_alpha, m_fps, m_fpsDevice, m_fpsProperty, m_indiP_alpha, m_indiP_fps, m_indiP_fpsSource, m_indiP_numChannels, m_indiP_numChannelsSource, m_indiP_synchroDelay, m_indiP_timingDiag, m_numChannels, m_numChannelsDevice, m_numChannelsProperty, m_synchroPostDelay, MagAOX::app::stateCodes::OPERATING, REG_INDI_SETPROP, MagAOX::app::MagAOXApp< true >::state(), TELEMETER_APP_STARTUP, and updateTimingDiagnosticsIndi().

◆ basePath()

std::string MagAOX::app::MagAOXApp< _useINDI >::basePath ( )

inherited

Get the.

Returns: the value of m_ *

Definition at line 1244 of file MagAOXApp.hpp.

◆ calibDir()

std::string MagAOX::app::MagAOXApp< _useINDI >::calibDir ( )

inherited

Get the calibration directory.

Returns: the value of m_calibDir

Definition at line 1266 of file MagAOXApp.hpp.

◆ checkConfig()

void MagAOX::app::MagAOXApp< _useINDI >::checkConfig ( )

virtualinherited

Check for unused and unrecognized config options and settings.

Logs the unused targets as warnings. Unrecognized and unused options are logged as critical, and m_shutdown is set. Any command line argument (not an option) will also be critical and cause shutdown.

Definition at line 271 of file MagAOXApp.hpp.

◆ checkRecordTimes() [1/4]

int MagAOX::app::mcp3208Ctrl::checkRecordTimes ( )

Check whether framegrabber timing telemetry should be recorded this cycle.

Returns: 0 on success.; -1 on error.

Definition at line 1699 of file mcp3208Ctrl.hpp.

References MagAOX::app::MagAOXApp< true >::log().

◆ checkRecordTimes() [2/4]

int MagAOX::app::dev::telemeter< mcp3208Ctrl >::checkRecordTimes	(	const telT &	tel,
		telTs...	tels
	)

inherited

Check the time of the last record for each telemetry type and make an entry if needed.

This must be called from derivedT::checkRecordTimes(), with one template parameter for ach telemetry log type being recorded.

Returns: 0 on succcess; -1 on error

Parameters

[in]	tel	[unused] object of the telemetry type to record
[in]	tels	[unused] objects of the additional telemetry types to record

Definition at line 156 of file telemeter.hpp.

◆ checkRecordTimes() [3/4]

int MagAOX::app::dev::telemeter< mcp3208Ctrl >::checkRecordTimes ( timespec & ts )

inherited

Empty function called at the end of the template list.

Returns: 0 on succcess; -1 on error

Parameters

[in] ts [unused] the timestamp that records are compared to

Definition at line 177 of file telemeter.hpp.

◆ checkRecordTimes() [4/4]

int MagAOX::app::dev::telemeter< mcp3208Ctrl >::checkRecordTimes	(	timespec &	ts,
		const telT &	tel,
		telTs...	tels
	)

inherited

Worker function to actually perform the record time checking logic.

Recursively calls itself until the variadic template list is exhausted.

Returns: 0 on succcess; -1 on error

Parameters

[in]	ts	[unused] the timestamp that records are compared to
[in]	tel	[unused] objects of the telemetry type to record
[in]	tels	[unused] objects of the additional telemetry types to record

Definition at line 167 of file telemeter.hpp.

◆ claimSynchroSemaphore()

int MagAOX::app::mcp3208Ctrl::claimSynchroSemaphore ( )

protected

Claim a semaphore slot from the synchronization stream.

Returns: 0 on success.; -1 on error.

Definition at line 1263 of file mcp3208Ctrl.hpp.

References MagAOX::app::MagAOXApp< true >::log(), m_synchroSemaphore, m_synchroSemaphoreNumber, m_synchroShmimName, m_synchroStream, and m_synchroStreamOpen.

Referenced by configureAcquisition(), and startAcquisition().

◆ clearFSMAlert()

int MagAOX::app::MagAOXApp< _useINDI >::clearFSMAlert ( )

privateinherited

Clear the FSM alert state.

This can only be done from within this class, and this should only be possible via user action via INDI.

Definition at line 635 of file MagAOXApp.hpp.

◆ closeSynchroStream()

void MagAOX::app::mcp3208Ctrl::closeSynchroStream ( )

protected

Release the synchronization semaphore claim and close the synchronization stream.

Definition at line 1321 of file mcp3208Ctrl.hpp.

References MagAOX::app::MagAOXApp< true >::log(), m_atime, m_avgNonDelayService_ns, m_avgProducerPeriod_ns, m_avgReadLatency_ns, m_avgSemaphorePeriod_ns, m_channelReadoutTime_ns, m_delayApplied_ns, m_delayBudget_ns, m_delayCapped, m_delayLock, m_delayModel_ns, m_delayPhaseError_ns, m_firstNonDelayService, m_firstProducerSample, m_firstReadLatency, m_firstSemaphore, m_firstTimerTrigger, m_firstTriggerTime, m_lastAtime, m_lastProducerAtime, m_lastProducerCnt0, m_lastSyncProducerFrameId, m_lastTriggerTime, m_localFrameSeq, m_nonDelayService_ns, m_producerPeriodInst_ns, m_syncFrameIdGapCount, m_syncFramesDropped, m_syncFramesReceived, m_syncFramesWritten, m_synchroSemaphore, m_synchroSemaphoreNumber, m_synchroStream, m_synchroStreamInode, m_synchroStreamOpen, m_syncProducerFrameDelta, m_syncProducerFrameId, m_syncProducerFrameValid, m_triggerInterval_ns, m_triggerTime, and m_wfsPeriodMeasured_ns.

Referenced by appShutdown(), configureAcquisition(), and reconfig().

◆ configBase()

std::string MagAOX::app::MagAOXApp< _useINDI >::configBase ( )

inherited

Get the config base file.

Returns: the value of m_confgBase

Definition at line 1261 of file MagAOXApp.hpp.

◆ configCircBuffs()

int MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::configCircBuffs ( )

inherited

Definition at line 253 of file frameGrabber.hpp.

◆ configDir()

std::string MagAOX::app::MagAOXApp< _useINDI >::configDir ( )

inherited

Get the config directory.

Returns: the current value of m_configDir

Definition at line 1256 of file MagAOXApp.hpp.

◆ configLog()

void MagAOX::app::MagAOXApp< _useINDI >::configLog	(	const std::string &	name,
		const int &	code,
		const std::string &	value,
		const std::string &	source
	)

staticprotectedinherited

Callback for config system logging.

Called by appConfigurator each time a value is set using the config() operator. You never need to call this directly.

Parameters

[in]	name	The name of the config value
[in]	code	numeric code specifying the type
[in]	value	the value read by the config system
[in]	source	the source of the value.

Definition at line 377 of file MagAOXApp.hpp.

◆ configName()

std::string MagAOX::app::MagAOXApp< _useINDI >::configName ( )

inherited

Get the config name.

Returns: the current value of m_configName

Definition at line 1250 of file MagAOXApp.hpp.

◆ configureAcquisition()

int MagAOX::app::mcp3208Ctrl::configureAcquisition ( )

Configure the output image geometry and acquisition mode.

Returns: 0 on success; 1 when configuration should be retried

Definition at line 1091 of file mcp3208Ctrl.hpp.

References claimSynchroSemaphore(), closeSynchroStream(), MagAOX::app::MagAOXApp< true >::log(), flatlogs::logPrio::LOG_INFO, MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_dataType, MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_height, m_numChannels, m_synchroPostDelay, m_synchroShmimName, m_values, MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_width, and openSynchroStream().

◆ cpusetPath()

std::string MagAOX::app::MagAOXApp< _useINDI >::cpusetPath ( )

inherited

Get the cpuset path.

Returns: the value of m_cpusetPath

Definition at line 1281 of file MagAOXApp.hpp.

◆ createINDIFIFOS()

int MagAOX::app::MagAOXApp< _useINDI >::createINDIFIFOS ( )

protectedinherited

Create the INDI FIFOs.

Changes permissions to max available and creates the FIFOs at the configured path.

Todo:: make driver FIFO path full configurable.

Definition at line 953 of file MagAOXApp.hpp.

◆ createROIndiNumber()

int MagAOX::app::MagAOXApp< _useINDI >::createROIndiNumber	(	pcf::IndiProperty &	prop,
		const std::string &	propName,
		const std::string &	propLabel = `""`,
		const std::string &	propGroup = `""`
	)

inherited

Create a ReadOnly INDI Number property.

Returns: 0 on success; -1 on error

Parameters

[out]	prop	the property to create and setup
[in]	propName	the name of the property
[in]	propLabel	[optional] the GUI label suggestion for this property
[in]	propGroup	[optional] the group for this property

Definition at line 776 of file MagAOXApp.hpp.

◆ createROIndiText()

int MagAOX::app::MagAOXApp< _useINDI >::createROIndiText	(	pcf::IndiProperty &	prop,
		const std::string &	propName,
		const std::string &	elName,
		const std::string &	propLabel = `""`,
		const std::string &	propGroup = `""`,
		const std::string &	elLabel = `""`
	)

inherited

Create a standard ReadOnly INDI Text property, with at least one element.

Returns: 0 on success; -1 on error

Parameters

[out]	prop	the property to create and setup
[in]	propName	the name of the property
[in]	elName	the name of the element
[in]	propLabel	[optional] the GUI label suggestion for this property
[in]	propGroup	[optional] the group for this property
[in]	elLabel	[optional] the GUI label suggestion for the element

Definition at line 741 of file MagAOXApp.hpp.

◆ createStandardIndiNumber()

int MagAOX::app::MagAOXApp< _useINDI >::createStandardIndiNumber	(	pcf::IndiProperty &	prop,
		const std::string &	name,
		const T &	min,
		const T &	max,
		const T &	step,
		const std::string &	format,
		const std::string &	label = `""`,
		const std::string &	group = `""`
	)

inherited

Create a standard R/W INDI Number property with target and current elements.

Returns: 0 on success; -1 on error

Parameters

[out]	prop	the property to create and setup
[in]	name	the name of the property
[in]	min	the minimum value for the elements, applied to both target and current
[in]	max	the minimum value for the elements, applied to both target and current
[in]	step	the step size for the elements, applied to both target and current
[in]	format	the _ value for the elements, applied to both target and current. Set to "" to use the MagAO-X standard for type.
[in]	label	[optional] the GUI label suggestion for this property
[in]	group	[optional] the group for this property

Definition at line 755 of file MagAOXApp.hpp.

◆ createStandardIndiRequestSw()

int MagAOX::app::MagAOXApp< _useINDI >::createStandardIndiRequestSw	(	pcf::IndiProperty &	prop,
		const std::string &	name,
		const std::string &	label = `""`,
		const std::string &	group = `""`
	)

inherited

Create a standard R/W INDI switch with a single request element.

This switch is intended to function like a momentary switch.

Returns: 0 on success; -1 on error

Parameters

[out]	prop	the property to create and setup
[in]	name	the name of the property
[in]	label	[optional] the GUI label suggestion for this property
[in]	group	[optional] the group for this property

Definition at line 802 of file MagAOXApp.hpp.

◆ createStandardIndiSelectionSw() [1/2]

int MagAOX::app::MagAOXApp< _useINDI >::createStandardIndiSelectionSw	(	pcf::IndiProperty &	prop,
		const std::string &	name,
		const std::vector< std::string > &	elements,
		const std::string &	label = `""`,
		const std::string &	group = `""`
	)

inherited

Create a standard R/W INDI selection (one of many) switch with vector of elements using the element strings as their own labels This switch is intended to function like drop down menu.

Returns: 0 on success; -1 on error

Parameters

[out]	prop	the property to create and setup
[in]	name	the name of the property,
[in]	elements	the element names to give to the switches
[in]	label	[optional] the GUI label suggestion for this property
[in]	group	[optional] the group for this property

Definition at line 833 of file MagAOXApp.hpp.

◆ createStandardIndiSelectionSw() [2/2]

int MagAOX::app::MagAOXApp< _useINDI >::createStandardIndiSelectionSw	(	pcf::IndiProperty &	prop,
		const std::string &	name,
		const std::vector< std::string > &	elements,
		const std::vector< std::string > &	elementLabels,
		const std::string &	label = `""`,
		const std::string &	group = `""`
	)

inherited

Create a standard R/W INDI selection (one of many) switch with vector of elements and element labels.

This switch is intended to function like drop down menu.

Returns: 0 on success; -1 on error

Parameters

[out]	prop	the property to create and setup
[in]	name	the name of the property,
[in]	elements	the element names to give to the switches
[in]	elementLabels	the element labels to give to the switches
[in]	label	[optional] the GUI label suggestion for this property
[in]	group	[optional] the group for this property

Definition at line 815 of file MagAOXApp.hpp.

◆ createStandardIndiText()

int MagAOX::app::MagAOXApp< _useINDI >::createStandardIndiText	(	pcf::IndiProperty &	prop,
		const std::string &	propName,
		const std::string &	label = `""`,
		const std::string &	group = `""`
	)

inherited

Create a standard R/W INDI Text property with target and current elements.

Returns: 0 on success; -1 on error

Parameters

[out]	prop	the property to create and setup
[in]	propName	the name of the property
[in]	label	[optional] the GUI label suggestion for this property
[in]	group	[optional] the group for this property

Definition at line 728 of file MagAOXApp.hpp.

◆ createStandardIndiToggleSw()

int MagAOX::app::MagAOXApp< _useINDI >::createStandardIndiToggleSw	(	pcf::IndiProperty &	prop,
		const std::string &	name,
		const std::string &	label = `""`,
		const std::string &	group = `""`
	)

inherited

Create a standard R/W INDI switch with a single toggle element.

This switch is intended to function like an on/off toggle switch.

Returns: 0 on success; -1 on error

Parameters

[out]	prop	the property to create and setup
[in]	name	the name of the property
[in]	label	[optional] the GUI label suggestion for this property
[in]	group	[optional] the group for this property

Definition at line 789 of file MagAOXApp.hpp.

◆ delayBeforeRead()

void MagAOX::app::mcp3208Ctrl::delayBeforeRead ( )

protected

Apply the current controlled delay between semaphore wake and ADC read.

Definition at line 1660 of file mcp3208Ctrl.hpp.

References m_delayApplied_ns.

Referenced by acquireSynchroAndCheckValid().

◆ derived()

mcp3208Ctrl & MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::derived ( )

inlineprivateinherited

Definition at line 328 of file frameGrabber.hpp.

◆ driverCtrlName()

std::string MagAOX::app::MagAOXApp< _useINDI >::driverCtrlName ( )

inherited

Get the INDI control FIFO file name.

Returns: the current value of m_driverCtrlName

Definition at line 1310 of file MagAOXApp.hpp.

◆ driverInName()

std::string MagAOX::app::MagAOXApp< _useINDI >::driverInName ( )

inherited

Get the INDI input FIFO file name.

Returns: the current value of m_driverInName

Definition at line 1298 of file MagAOXApp.hpp.

◆ driverOutName()

std::string MagAOX::app::MagAOXApp< _useINDI >::driverOutName ( )

inherited

Get the INDI output FIFO file name.

Returns: the current value of m_driverOutName

Definition at line 1304 of file MagAOXApp.hpp.

◆ execute()

int MagAOX::app::MagAOXApp< _useINDI >::execute ( )

virtualinherited

The execute method implementing the standard main loop. Should not normally be overridden.

Performs final startup steps. That is:

Verifies correct effective user-id by comparison to logs directory.
PID locking lockPID()
log thread startup by logThreadStart()
signal handling installation by setSigTermHandler()
appStartup() is called
INDI communications started by startINDI()
power state is checked, pausing if unknown (if being managed)

Errors in the above steps will cause a process exit.

Then commences the main event loop. Conditions on entry to the main loop:

PID locked
Log thread running
Signal handling installed
appStartup successful
INDI communications started successfully (if being used)
power state known (if being managed)

In the event loop, the power state is checked (if being managed). If power is off, then onPowerOff is called. If power is on, or power is not managed, appLogic is called. These methods are implemented in derived classes, and are called every m_loopPause interval.

If an error is returned by either onPowerOff or appLogic, or a signal is handled, then the shutdown is managed. This includes shutting down INDI, calling appShutdown, and unlocking the PID. The log thread will shutdown.

Todo:: Need a heartbeat update here.

Definition at line 301 of file MagAOXApp.hpp.

◆ fgThreadExec()

void MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::fgThreadExec ( )

protectedinherited

Execute framegrabbing.

Todo:: this ought to wait until OPERATING, using READY as a sign of "not integrating"

Definition at line 273 of file frameGrabber.hpp.

◆ fgThreadStart()

void MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::fgThreadStart ( frameGrabber< mcp3208Ctrl > * o )

staticprotectedinherited

Thread starter, called by MagAOXApp::threadStart on thread construction. Calls fgThreadExec.

Parameters

[in] o a pointer to a frameGrabber instance (normally this)

Definition at line 270 of file frameGrabber.hpp.

◆ fps()

float MagAOX::app::mcp3208Ctrl::fps ( )

Report the current acquisition rate metadata to the framegrabber.

Returns: the current fps value.

Definition at line 1129 of file mcp3208Ctrl.hpp.

References m_fps.

◆ getRealtime()

int MagAOX::app::mcp3208Ctrl::getRealtime ( timespec & ts )

protected

Read the current realtime clock value.

Returns: 0 on success.; -1 on error.

Parameters

[out] ts the current realtime clock value

Definition at line 1644 of file mcp3208Ctrl.hpp.

References MagAOX::app::MagAOXApp< true >::log().

Referenced by acquireSynchroAndCheckValid().

◆ gitAlert()

bool MagAOX::app::MagAOXApp< _useINDI >::gitAlert ( )

inherited

Get the value of the git alert flag.

Returns: the current value of m_gitAlert

Definition at line 606 of file MagAOXApp.hpp.

◆ handleDefProperty()

void MagAOX::app::MagAOXApp< _useINDI >::handleDefProperty ( const pcf::IndiProperty & ipRecv )

inherited

Handler for the DEF INDI properties notification.

Uses the properties registered in m_indiSetCallBacks to process the notification. This is called by m_indiDriver's indiDriver::handleDefProperties.

Parameters

[in] ipRecv The property being sent.

Definition at line 969 of file MagAOXApp.hpp.

◆ handleGetProperties()

void MagAOX::app::MagAOXApp< _useINDI >::handleGetProperties ( const pcf::IndiProperty & ipRecv )

inherited

Handler for the get INDI properties request.

Uses the properties registered in m_indiCallBacks to respond to the request. This is called by m_indiDriver's indiDriver::handleGetProperties.

Parameters

[in] ipRecv The property being requested.

Definition at line 975 of file MagAOXApp.hpp.

◆ handleNewProperty()

void MagAOX::app::MagAOXApp< _useINDI >::handleNewProperty ( const pcf::IndiProperty & ipRecv )

inherited

Handler for the new INDI property request.

Uses the properties registered in m_indiCallBacks to respond to the request, looking up the callback for this property and calling it.

This is called by m_indiDriver's indiDriver::handleGetProperties.

Todo:: handle errors, are they FATAL?

Parameters

[in] ipRecv The property being changed.

Definition at line 985 of file MagAOXApp.hpp.

◆ handlerSigTerm()

void MagAOX::app::MagAOXApp< _useINDI >::handlerSigTerm	(	int	signum,
		siginfo_t *	siginf,
		void *	ucont
	)

privateinherited

Handles SIGTERM, SIGQUIT, and SIGINT. Sets m_shutdown to 1 and logs the signal.

Parameters

[in]	signum	specifies the signal.
[in]	siginf	ignored by MagAOXApp
[in]	ucont	ignored by MagAOXApp

Definition at line 403 of file MagAOXApp.hpp.

◆ handleSetProperty()

void MagAOX::app::MagAOXApp< _useINDI >::handleSetProperty ( const pcf::IndiProperty & ipRecv )

inherited

Handler for the set INDI property request.

This is called by m_indiDriver's indiDriver::handleSetProperties.

Todo:: handle errors, are they FATAL?

Todo:: log an error here because callBack should not be null

Todo:: log invalid SetProperty request.

Parameters

[in] ipRecv The property being changed.

Definition at line 994 of file MagAOXApp.hpp.

◆ INDI_NEWCALLBACK_DECL() [1/4]

MagAOX::app::mcp3208Ctrl::INDI_NEWCALLBACK_DECL	(	mcp3208Ctrl	,
		m_indiP_alpha
	)

protected

Handle updates to the global EMA alpha property.

◆ INDI_NEWCALLBACK_DECL() [2/4]

MagAOX::app::mcp3208Ctrl::INDI_NEWCALLBACK_DECL	(	mcp3208Ctrl	,
		m_indiP_fps
	)

protected

Handle updates to the local fps target property.

◆ INDI_NEWCALLBACK_DECL() [3/4]

MagAOX::app::mcp3208Ctrl::INDI_NEWCALLBACK_DECL	(	mcp3208Ctrl	,
		m_indiP_numChannels
	)

protected

◆ INDI_NEWCALLBACK_DECL() [4/4]

MagAOX::app::mcp3208Ctrl::INDI_NEWCALLBACK_DECL	(	mcp3208Ctrl	,
		m_indiP_synchroDelay
	)

protected

Handle updates to the synchronized-mode signed phase offset property.

◆ INDI_SETCALLBACK_DECL() [1/3]

MagAOX::app::MagAOXApp< _useINDI >::INDI_SETCALLBACK_DECL	(	MagAOXApp< true >	,
		m_indiP_powerChannel
	)

inherited

◆ INDI_SETCALLBACK_DECL() [2/3]

MagAOX::app::mcp3208Ctrl::INDI_SETCALLBACK_DECL	(	mcp3208Ctrl	,
		m_indiP_fpsSource
	)

protected

Handle updates from the configured external fps source.

◆ INDI_SETCALLBACK_DECL() [3/3]

MagAOX::app::mcp3208Ctrl::INDI_SETCALLBACK_DECL	(	mcp3208Ctrl	,
		m_indiP_numChannelsSource
	)

protected

◆ indiSetPropertyShouldRequest()

bool MagAOX::app::MagAOXApp< _useINDI >::indiSetPropertyShouldRequest	(	const indiCallBack &	callBack,
		bool	all,
		const std::chrono::steady_clock::time_point &	now
	)		const

inlineinherited

Determine whether an unresolved Set-property subscription should be requested now.

Parameters

[in]	callBack	the subscription retry state to evaluate
[in]	all	if true, force an immediate refresh regardless of retry timing
[in]	now	the current monotonic time for scheduling

Definition at line 937 of file MagAOXApp.hpp.

◆ indiTargetUpdate()

int MagAOX::app::MagAOXApp< _useINDI >::indiTargetUpdate	(	pcf::IndiProperty &	localProperty,
		T &	localTarget,
		const pcf::IndiProperty &	remoteProperty,
		bool	setBusy = `true`
	)

protectedinherited

Get the target element value from an new property.

Returns: 0 on success; -1 on error

Parameters

[out]	localProperty	The local property to update
[out]	localTarget	The local value to update
[in]	remoteProperty	the new property received
[in]	setBusy	[optional] set property to busy if true

Definition at line 1091 of file MagAOXApp.hpp.

◆ loadBasicConfig()

void MagAOX::app::MagAOXApp< _useINDI >::loadBasicConfig ( )

virtualinherited

The basic MagAO-X configuration processing method. Should not normally be overridden.

This method processes the standard MagAO-X key=value pairs.

Though it is virtual, it should not normally be overridden unless you need to depart from the MagAO-X standard.

Processing of app specific config goes in loadConfig() implemented by the derived class.

Definition at line 265 of file MagAOXApp.hpp.

◆ loadConfig() [1/3]

void MagAOX::app::mcp3208Ctrl::loadConfig ( )

virtual

Load the configured application state.

Definition at line 843 of file mcp3208Ctrl.hpp.

References loadConfigImpl().

◆ loadConfig() [2/3]

int MagAOX::app::dev::telemeter< mcp3208Ctrl >::loadConfig ( appConfigurator & config )

inherited

Load the device section from an application configurator.

Returns: 0 on success; -1 on error (nothing implemented yet)

Parameters

[in] config an application configuration from which to load values

Definition at line 120 of file telemeter.hpp.

◆ loadConfig() [3/3]

int MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::loadConfig ( mx::app::appConfigurator & config )

inherited

load the configuration system results

This should be called in derivedT::loadConfig as

framegrabber<derivedT>::loadConfig(config);

with appropriate error checking.

Parameters

[in] config the derived classes configurator

Definition at line 202 of file frameGrabber.hpp.

◆ loadConfigImpl()

int MagAOX::app::mcp3208Ctrl::loadConfigImpl ( mx::app::appConfigurator & _config )

Load configuration values into the application state.

This helper is separated from loadConfig() to support unit testing.

Parameters

[in] _config the populated application configurator

Definition at line 738 of file mcp3208Ctrl.hpp.

References FRAMEGRABBER_LOAD_CONFIG, MagAOX::app::MagAOXApp< true >::log(), m_alpha, m_avgNonDelayService_ns, m_avgProducerPeriod_ns, m_cadenceGuard_ns, m_channelReadoutTime_ns, m_delayApplied_ns, m_delayBudget_ns, m_delayCapped, m_delayLock, m_delayLockAbsThreshold_ns, m_delayLockFracThreshold, m_delayModel_ns, m_delayPhaseError_ns, MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_fgCpuset, m_firstNonDelayService, m_firstProducerSample, m_fps, m_fpsDevice, m_fpsElement, m_fpsProperty, m_fpsTol, m_lastProducerAtime, m_lastProducerCnt0, m_lastSyncProducerFrameId, m_localFrameSeq, m_nonDelayService_ns, m_numChannels, m_numChannelsDevice, m_numChannelsElement, m_numChannelsProperty, m_numChannelsTol, m_producerPeriodInst_ns, m_syncFrameIdGapCount, m_syncFramesDropped, m_syncFramesReceived, m_syncFramesWritten, m_synchroDelay, m_synchroDelayTarget, m_synchroDtF_ns, m_synchroDtTransfer_ns, m_synchroPostDelay, m_synchroShmimName, m_synchroWfsProcess_ns, m_synchroWfsRead_ns, m_syncProducerFrameDelta, m_syncProducerFrameId, m_syncProducerFrameValid, m_wfs_fps, m_wfsPeriodMeasured_ns, and TELEMETER_LOAD_CONFIG.

Referenced by loadConfig().

◆ loadImageIntoStream()

int MagAOX::app::mcp3208Ctrl::loadImageIntoStream ( void * dest )

Copy the current MCP3208 values into the output image buffer.

Returns: 0 on success; -1 on error

Parameters

[out] dest the destination image buffer

Definition at line 1211 of file mcp3208Ctrl.hpp.

References MagAOX::app::MagAOXApp< true >::log(), m_localFrameSeq, m_syncFramesWritten, m_synchroShmimName, and m_values.

◆ loadImageIntoStreamCopy()

void * MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::loadImageIntoStreamCopy	(	void *	dest,
		void *	src,
		size_t	width,
		size_t	height,
		size_t	szof
	)

protectedinherited

Definition at line 277 of file frameGrabber.hpp.

◆ lockPID()

int MagAOX::app::MagAOXApp< _useINDI >::lockPID ( )

protectedinherited

Attempt to lock the PID by writing it to a file. Fails if a process is already running with the same config name. First checks the PID file for an existing PID. If found, interrogates /proc to determine if that process is running and if so if the command line matches. If a matching process is currently running, then this returns an error.

Will not fail if a PID file exists but the stored PID does not correspond to a running process with the same command line name.

Reference: https://linux.die.net/man/3/getpid

Returns: 0 on success.; -1 on any error, including creating the PID file or if this app is already running.

Definition at line 515 of file MagAOXApp.hpp.

◆ log() [1/2]

int MagAOX::app::MagAOXApp< _useINDI >::log	(	const typename logT::messageT &	msg,
		logPrioT	level = `logPrio::LOG_DEFAULT`
	)

staticinherited

Make a log entry.

Wrapper for logManager::log

Template Parameters

logT	the log entry type
retval	the value returned by this method.

Parameters

[in]	msg	the message to log
[in]	level	[optional] the log level. The default is used if not specified.

Definition at line 348 of file MagAOXApp.hpp.

◆ log() [2/2]

int MagAOX::app::MagAOXApp< _useINDI >::log ( logPrioT level = logPrio::LOG_DEFAULT )

staticinherited

Make a log entry.

Wrapper for logManager::log

Template Parameters

logT	the log entry type
retval	the value returned by this method.

Parameters

[in] level [optional] the log level. The default is used if not specified.

Definition at line 361 of file MagAOXApp.hpp.

◆ logMessage()

void MagAOX::app::MagAOXApp< _useINDI >::logMessage ( bufferPtrT & b )

inherited

Handle a log message from the logging system.

This is a callback from the logManager, and is called when the log thread is processing log entries.

Decides whether to display to stderr and whether to send via INDI.

Definition at line 370 of file MagAOXApp.hpp.

◆ loopPause()

unsigned long MagAOX::app::MagAOXApp< _useINDI >::loopPause ( )

inherited

Get the loop pause time.

Returns: the value of m_loopPause

Definition at line 1286 of file MagAOXApp.hpp.

◆ newCallBack_clearFSMAlert()

int MagAOX::app::MagAOXApp< _useINDI >::newCallBack_clearFSMAlert ( const pcf::IndiProperty & ipRecv )

protectedinherited

The callback called by the static version, to actually process the FSM Alert Clear request.

Returns: 0 on success.; -1 on error.

Parameters

[in] ipRecv the INDI property sent with the new property request.

Definition at line 1148 of file MagAOXApp.hpp.

◆ noteIndiSetPropertyRequested()

void MagAOX::app::MagAOXApp< _useINDI >::noteIndiSetPropertyRequested	(	indiCallBack &	callBack,
		const std::chrono::steady_clock::time_point &	now
	)

inlineinherited

Update retry tracking after sending a GetProperties request for a monitored Set-property.

Parameters

	callBack	[in/out] the subscription retry state to update
[in]	now	the current monotonic time for scheduling

Definition at line 944 of file MagAOXApp.hpp.

◆ nsToTimespec()

timespec MagAOX::app::mcp3208Ctrl::nsToTimespec ( double ns )

inlinestaticprotected

Convert nanoseconds to a normalized timespec value.

Parameters

[in] ns the nanosecond value to convert

Definition at line 452 of file mcp3208Ctrl.hpp.

References MagAOX::app::MagAOXApp< true >::log().

Referenced by libXWCTest::mcp3208CtrlTest::TEST_CASE(), and updateTriggerTiming().

◆ numChannels()

int MagAOX::app::mcp3208Ctrl::numChannels ( )

protected

Report the configured channel count metadata to the framegrabber.

Definition at line 1124 of file mcp3208Ctrl.hpp.

References m_numChannels.

◆ onPowerOff() [1/2]

int MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::onPowerOff ( )

inherited

On power off, sets m_reconfig to true.

This should be called in derivedT::onPowerOff as

framegrabber<derivedT>::onPowerOff();

with appropriate error checking.

Returns: 0 on success; -1 on error, which is logged.

Definition at line 239 of file frameGrabber.hpp.

◆ onPowerOff() [2/2]

int MagAOX::app::MagAOXApp< _useINDI >::onPowerOff ( )

protectedvirtualinherited

This method is called when the change to poweroff is detected.

Returns: 0 on success.; -1 on any error which means the app should exit.

Reimplemented in MagAOX::app::alpaoCtrl, MagAOX::app::bmcCtrl, MagAOX::app::irisaoCtrl, MagAOX::app::zaberLowLevel, and MagAOX::app::zaberLowLevelBinary.

Definition at line 1193 of file MagAOXApp.hpp.

◆ openShmim()

int MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::openShmim ( )

protectedinherited

Definition at line 279 of file frameGrabber.hpp.

◆ openSynchroStream()

int MagAOX::app::mcp3208Ctrl::openSynchroStream ( )

protected

Open the synchronization stream when semaphore-driven acquisition is enabled.

Returns: 0 on success.; 1 when the synchronization stream is not yet ready.

Definition at line 1228 of file mcp3208Ctrl.hpp.

References MagAOX::app::MagAOXApp< true >::log(), m_synchroShmimName, m_synchroStream, m_synchroStreamInode, and m_synchroStreamOpen.

Referenced by configureAcquisition().

◆ postPublishHook() [1/2]

auto MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::postPublishHook	(	hookT &	hookOwner,
		IMAGE *	imageStream,
		int	callPriorityTag
	)		-> decltype( hookOwner.frameGrabberPostPublish( imageStream ) )

staticprivateinherited

Call an optional derived-class hook after the main stream publication completes.

Parameters

[in]	hookOwner	derived object that may expose the hook
[in]	imageStream	published image stream
[in]	callPriorityTag	overload selector preferring the hook

Definition at line 317 of file frameGrabber.hpp.

◆ postPublishHook() [2/2]

int MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::postPublishHook	(	mcp3208Ctrl &	hookOwner,
		IMAGE *	imageStream,
		long	callPriorityTag
	)

staticprivateinherited

Return success when the derived class does not expose a post-publication hook.

Parameters

[in]	hookOwner	derived object lacking the optional hook
[in]	imageStream	published image stream
[in]	callPriorityTag	fallback overload selector

Definition at line 323 of file frameGrabber.hpp.

◆ powerOnWaitElapsed()

bool MagAOX::app::MagAOXApp< _useINDI >::powerOnWaitElapsed ( )

protectedinherited

This method tests whether the power on wait time has elapsed.

You would call this once per appLogic loop while in state POWERON. While false, you would return 0. Once it becomes true, take post-power-on actions and go on with life.

Returns: true if the time since POWERON is greater than the power-on wait, or if power management is not enabled; false otherwise

Definition at line 1209 of file MagAOXApp.hpp.

◆ powerState()

int MagAOX::app::MagAOXApp< _useINDI >::powerState ( )

inherited

Returns the current power state.

If power management is not enabled, this always returns 1=On.

Returns: -1 if power state is unknown; 0 if power is off; 1 if power is on or m_powerMgtEnabled==false

Definition at line 1219 of file MagAOXApp.hpp.

◆ powerStateTarget()

int MagAOX::app::MagAOXApp< _useINDI >::powerStateTarget ( )

inherited

Returns the target power state.

If power management is not enabled, this always returns 1=On.

Returns: -1 if target power state is unknown; 0 if target power state is off; 1 if target power is on or m_powerMgtEnabled==false

Definition at line 1228 of file MagAOXApp.hpp.

◆ readChannelValue()

int MagAOX::app::mcp3208Ctrl::readChannelValue	(	int	channel,
		uint16_t &	value
	)

protected

Read one MCP3208 channel value.

Returns: 0 on success.; -1 on error.

Parameters

[in]	channel	the MCP3208 channel index to read
[out]	value	the sampled channel value

Definition at line 1654 of file mcp3208Ctrl.hpp.

References m_adc, and MCP3208Lib::MCP3208::read().

Referenced by acquireSynchroAndCheckValid(), and acquireTimerAndCheckValid().

◆ reconfig()

int MagAOX::app::mcp3208Ctrl::reconfig ( )

Reset synchronization resources before the next acquisition configuration.

Returns: 0 on success; -1 on error

Definition at line 1222 of file mcp3208Ctrl.hpp.

References closeSynchroStream().

◆ recordFGTimings()

int MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::recordFGTimings ( bool force = false )

inherited

Definition at line 310 of file frameGrabber.hpp.

◆ recordTelem()

int MagAOX::app::mcp3208Ctrl::recordTelem ( const telem_fgtimings * telem )

Record framegrabber timing telemetry.

Returns: 0 on success.; -1 on error.

Parameters

[in] telem the telemeter tag requested by the interface

Definition at line 1704 of file mcp3208Ctrl.hpp.

References MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::recordFGTimings().

◆ registerIndiPropertyNew() [1/3]

int MagAOX::app::MagAOXApp< _useINDI >::registerIndiPropertyNew	(	pcf::IndiProperty &	prop,
		const std::string &	propName,
		const pcf::IndiProperty::Type &	propType,
		const pcf::IndiProperty::PropertyPermType &	propPerm,
		const pcf::IndiProperty::PropertyStateType &	propState,
		const pcf::IndiProperty::SwitchRuleType &	propRule,
		int()(void , const pcf::IndiProperty &)
	)

inherited

Register an INDI property which is exposed for others to request a New Property for, with a switch rule.

This verison sets up the INDI property according to the arguments.

Returns: 0 on success.; -1 on error.

Parameters

[out]	prop	the property to register
[in]	propName	the name of the property
[in]	propType	the type of the property
[in]	propPerm	the permissions of the property
[in]	propState	the state of the property
[in]	propRule	the switch rule type

◆ registerIndiPropertyNew() [2/3]

int MagAOX::app::MagAOXApp< _useINDI >::registerIndiPropertyNew	(	pcf::IndiProperty &	prop,
		const std::string &	propName,
		const pcf::IndiProperty::Type &	propType,
		const pcf::IndiProperty::PropertyPermType &	propPerm,
		const pcf::IndiProperty::PropertyStateType &	propState,
		int()(void , const pcf::IndiProperty &)
	)

inherited

Register an INDI property which is exposed for others to request a New Property for.

This verison sets up the INDI property according to the arguments.

Returns: 0 on success.; -1 on error.

Parameters

[out]	prop	the property to register
[in]	propName	the name of the property
[in]	propType	the type of the property
[in]	propPerm	the permissions of the property
[in]	propState	the state of the property

◆ registerIndiPropertyNew() [3/3]

int MagAOX::app::MagAOXApp< _useINDI >::registerIndiPropertyNew	(	pcf::IndiProperty &	prop,
		int()(void , const pcf::IndiProperty &)
	)

inherited

Register an INDI property which is exposed for others to request a New Property for.

In this version the supplied IndiProperty must be fully set up before passing in.

Returns: 0 on success.; -1 on error.

Parameters

[in] prop the property to register, must be fully set up

◆ registerIndiPropertyReadOnly() [1/2]

int MagAOX::app::MagAOXApp< _useINDI >::registerIndiPropertyReadOnly ( pcf::IndiProperty & prop )

inherited

Register an INDI property which is read only.

This version requires the property be fully set up.

Returns: 0 on success.; -1 on error.

Parameters

[in] prop the property to register, must be completely setup

Definition at line 849 of file MagAOXApp.hpp.

◆ registerIndiPropertyReadOnly() [2/2]

int MagAOX::app::MagAOXApp< _useINDI >::registerIndiPropertyReadOnly	(	pcf::IndiProperty &	prop,
		const std::string &	propName,
		const pcf::IndiProperty::Type &	propType,
		const pcf::IndiProperty::PropertyPermType &	propPerm,
		const pcf::IndiProperty::PropertyStateType &	propState
	)

inherited

Register an INDI property which is read only.

This verison sets up the INDI property according to the arguments.

Returns: 0 on success.; -1 on error.

Parameters

[out]	prop	the property to register, will be configured
[in]	propName	the name of the property
[in]	propType	the type of the property
[in]	propPerm	the permissions of the property
[in]	propState	the state of the property

Definition at line 859 of file MagAOXApp.hpp.

◆ registerIndiPropertySet()

int MagAOX::app::MagAOXApp< _useINDI >::registerIndiPropertySet	(	pcf::IndiProperty &	prop,
		const std::string &	devName,
		const std::string &	propName,
		int()(void , const pcf::IndiProperty &)
	)

inherited

Register an INDI property which is monitored for updates from others.

Returns: 0 on success.; -1 on error.

Parameters

[out]	prop	the property to register
[in]	devName	the device which owns this property
[in]	propName	the name of the property

Definition at line 926 of file MagAOXApp.hpp.

◆ resetIndiSetPropertyRetry()

void MagAOX::app::MagAOXApp< _useINDI >::resetIndiSetPropertyRetry ( indiCallBack & callBack )

inlineinherited

Reset retry tracking for a monitored INDI Set-property subscription.

Parameters

callBack [in/out] the subscription retry state to reset

Definition at line 934 of file MagAOXApp.hpp.

◆ secretsPath()

std::string MagAOX::app::MagAOXApp< _useINDI >::secretsPath ( )

inherited

Get the secrets path.

Returns: the value of m_secretsPath

Definition at line 1276 of file MagAOXApp.hpp.

◆ sendGetPropertySetList()

void MagAOX::app::MagAOXApp< _useINDI >::sendGetPropertySetList ( bool all = false )

inherited

Definition at line 963 of file MagAOXApp.hpp.

◆ sendNewProperty() [1/2]

int MagAOX::app::MagAOXApp< _useINDI >::sendNewProperty ( const pcf::IndiProperty & ipSend )

protectedinherited

Send a newProperty command to another device (using the INDI Client interface)

Returns: 0 on success.; -1 on an error, which will be logged

Parameters

[in] ipSend The property to send a "new" INDI command for

Definition at line 1114 of file MagAOXApp.hpp.

◆ sendNewProperty() [2/2]

int MagAOX::app::MagAOXApp< _useINDI >::sendNewProperty	(	const pcf::IndiProperty &	ipSend,
		const std::string &	el,
		const T &	newVal
	)

protectedinherited

Send a newProperty command to another device (using the INDI Client interface)

Copies the input IndiProperty, then updates the element with the new value.

Returns: 0 on success.; -1 on an errory.

Parameters

[in]	ipSend	The property to send a "new" INDI command for
[in]	el	The element of the property to change
[in]	newVal	The value to request for the element.

Definition at line 1104 of file MagAOXApp.hpp.

◆ sendNewStandardIndiToggle()

int MagAOX::app::MagAOXApp< _useINDI >::sendNewStandardIndiToggle	(	const std::string &	device,
		const std::string &	property,
		bool	onoff
	)

protectedinherited

Send a new property commmand for a standard toggle switch.

Returns: 0 on success; -1 on an error, which will be logged.

Parameters

[in]	device	The device name
[in]	property	The property name
[in]	onoff	Switch state to send: true = on, false = off

Definition at line 1121 of file MagAOXApp.hpp.

◆ setDefaults()

void MagAOX::app::MagAOXApp< _useINDI >::setDefaults	(	int	argc,
		char **	argv
	)

virtualinherited

Set the paths for config files.

Replaces the mx::application defaults with the MagAO-X config system.

This function parses the CL for "-n" or "--name".

Do not override this unless you intend to depart from the MagAO-X standard.

Parameters

[in]	argc	standard command line result specifying number of arguments in argv
[in]	argv	standard command line result containing the arguments.

Definition at line 243 of file MagAOXApp.hpp.

◆ setEuidCalled()

int MagAOX::app::MagAOXApp< _useINDI >::setEuidCalled ( )

privateinherited

Set the effective user ID to the called value, i.e. the highest possible.

If setuid is set on the file, this will be super-user privileges.

Reference: http://pubs.opengroup.org/onlinepubs/009695399/functions/seteuid.html

Returns: 0 on success; -1 on error from setuid().

Definition at line 474 of file MagAOXApp.hpp.

◆ setEuidReal()

int MagAOX::app::MagAOXApp< _useINDI >::setEuidReal ( )

privateinherited

Set the effective user ID to the real value, i.e. the file owner.

Reference: http://pubs.opengroup.org/onlinepubs/009695399/functions/seteuid.html

Returns: 0 on success; -1 on error from setuid().

Definition at line 483 of file MagAOXApp.hpp.

◆ setSigTermHandler()

int MagAOX::app::MagAOXApp< _useINDI >::setSigTermHandler ( )

privateinherited

Sets the handler for SIGTERM, SIGQUIT, and SIGINT.

Definition at line 394 of file MagAOXApp.hpp.

◆ setupBasicConfig()

void MagAOX::app::MagAOXApp< _useINDI >::setupBasicConfig ( )

virtualinherited

The basic MagAO-X configuration setup method. Should not normally be overridden.

This method sets up the config system with the standard MagAO-X key=value pairs.

Though it is virtual, it should not normally be overridden unless you need to depart from the MagAO-X standard.

Setting up app specific config goes in setupConfig() implemented in the derived class.

Definition at line 255 of file MagAOXApp.hpp.

◆ setupConfig() [1/3]

void MagAOX::app::mcp3208Ctrl::setupConfig ( )

virtual

Register configuration entries for the application and helper devices.

Definition at line 542 of file mcp3208Ctrl.hpp.

References FRAMEGRABBER_SETUP_CONFIG, and TELEMETER_SETUP_CONFIG.

◆ setupConfig() [2/3]

int MagAOX::app::dev::telemeter< mcp3208Ctrl >::setupConfig ( appConfigurator & config )

inherited

Setup an application configurator for the device section.

Returns: 0 on success.; -1 on error (nothing implemented yet)

Parameters

[in] config an application configuration to setup

Definition at line 112 of file telemeter.hpp.

◆ setupConfig() [3/3]

int MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::setupConfig ( mx::app::appConfigurator & config )

inherited

Setup the configuration system.

This should be called in derivedT::setupConfig as

framegrabber<derivedT>::setupConfig(config);

with appropriate error checking.

Parameters

[out] config the derived classes configurator

Definition at line 192 of file frameGrabber.hpp.

◆ shutdown()

int MagAOX::app::MagAOXApp< _useINDI >::shutdown ( )

inherited

Get the value of the shutdown flag.

Returns: the current value of m_shutdown

Definition at line 1292 of file MagAOXApp.hpp.

◆ st_newCallBack_clearFSMAlert()

int MagAOX::app::MagAOXApp< _useINDI >::st_newCallBack_clearFSMAlert	(	void *	app,
		const pcf::IndiProperty &	ipRecv
	)

staticprotectedinherited

The static callback function to be registered for requesting to clear the FSM alert.

Returns: 0 on success.; -1 on error.

Parameters

[in]	app	a pointer to this, will be static_cast-ed to MagAOXApp.
[in]	ipRecv	the INDI property sent with the new property request.

Definition at line 1137 of file MagAOXApp.hpp.

◆ startAcquisition()

int MagAOX::app::mcp3208Ctrl::startAcquisition ( )

Prepare the selected acquisition mode to begin producing samples.

Returns: 0 on success; -1 on error

Definition at line 1134 of file mcp3208Ctrl.hpp.

References claimSynchroSemaphore(), MagAOX::app::MagAOXApp< true >::log(), m_atime, m_avgNonDelayService_ns, m_avgProducerPeriod_ns, m_avgReadLatency_ns, m_avgSemaphorePeriod_ns, m_channelReadoutTime_ns, m_delayApplied_ns, m_delayBudget_ns, m_delayCapped, m_delayLock, m_delayModel_ns, m_delayPhaseError_ns, m_firstNonDelayService, m_firstProducerSample, m_firstReadLatency, m_firstSemaphore, m_firstTimerTrigger, m_firstTriggerTime, m_lastAtime, m_lastProducerAtime, m_lastProducerCnt0, m_lastSyncProducerFrameId, m_lastTriggerTime, m_localFrameSeq, m_nonDelayService_ns, m_producerPeriodInst_ns, m_syncFrameIdGapCount, m_syncFramesDropped, m_syncFramesReceived, m_syncFramesWritten, m_synchroDelay, m_synchroDelayTarget, m_synchroSemaphore, m_synchroSemaphoreNumber, m_synchroShmimName, m_synchroStream, m_synchroStreamOpen, m_syncProducerFrameDelta, m_syncProducerFrameId, m_syncProducerFrameValid, m_time_start, m_triggerInterval_ns, m_triggerTime, and m_wfsPeriodMeasured_ns.

◆ startINDI()

int MagAOX::app::MagAOXApp< _useINDI >::startINDI ( )

protectedinherited

Start INDI Communications.

Returns: 0 on success; -1 on error. This is fatal.

Definition at line 960 of file MagAOXApp.hpp.

◆ state() [1/2]

stateCodes::stateCodeT MagAOX::app::MagAOXApp< _useINDI >::state ( )

inherited

Get the current state code.

Returns: m_state

Definition at line 584 of file MagAOXApp.hpp.

◆ state() [2/2]

void MagAOX::app::MagAOXApp< _useINDI >::state	(	const stateCodes::stateCodeT &	s,
		bool	stateAlert = `false`
	)

inherited

Set the current state code.

Todo:: move this to a function in stateCodes

Parameters

[in]	s	The new application state
[in]	stateAlert	[optional] flag to set the alert state of the FSM property.

Definition at line 592 of file MagAOXApp.hpp.

◆ stateAlert()

bool MagAOX::app::MagAOXApp< _useINDI >::stateAlert ( )

inherited

Get the value of the state alert flag.

Returns: the current value of m_stateAlert

Definition at line 600 of file MagAOXApp.hpp.

◆ stateLogged()

int MagAOX::app::MagAOXApp< _useINDI >::stateLogged ( )

inherited

Updates and returns the value of m_stateLogged. Will be 0 on first call after a state change, >0 afterwards.

This method exists to facilitate logging the reason for a state change once, but not logging it on subsequent event loops. Returns the current value upon entry, but updates before returning so that the next call returns the incremented value. Example usage:

if( connection_failed ) //some condition set this to true
{
   state( stateCodes::NOTCONNECTED );
   if(!stateLogged()) log<text_log>("Not connected");
}

In this example, the log entry is made the first time the state changes. If there are no changes to a different state in the mean time, then when the event loop gets here again and decides it is not connected, the log entry will not be made.

Returns: current value of m_stateLogged, that is the value before it is incremented.

Definition at line 625 of file MagAOXApp.hpp.

◆ synchroStreamStale()

bool MagAOX::app::mcp3208Ctrl::synchroStreamStale ( )

protected

Check whether the synchronization stream has disappeared or been recreated.

Returns: true when the current synchronization stream handle is stale.; false when the synchronization stream still matches the cached inode.

Definition at line 1292 of file mcp3208Ctrl.hpp.

References MagAOX::app::MagAOXApp< true >::log(), m_synchroShmimName, m_synchroStream, m_synchroStreamInode, and m_synchroStreamOpen.

Referenced by acquireSynchroAndCheckValid().

◆ sysPath()

std::string MagAOX::app::MagAOXApp< _useINDI >::sysPath ( )

inherited

Get the system path.

Returns: the value of m_sysPath

Definition at line 1271 of file MagAOXApp.hpp.

◆ telem()

int MagAOX::app::dev::telemeter< mcp3208Ctrl >::telem ( const typename telT::messageT & msg )

inherited

Make a telemetry recording.

Wrapper for logManager::log, which updates telT::lastRecord.

Template Parameters

logT	the log entry type
retval	the value returned by this method.

Parameters

[in] msg the data to log

Definition at line 95 of file telemeter.hpp.

◆ threadStart()

int MagAOX::app::MagAOXApp< _useINDI >::threadStart	(	std::thread &	thrd,
		bool &	thrdInit,
		pid_t &	tpid,
		pcf::IndiProperty &	thProp,
		int	thrdPrio,
		const std::string &	cpuset,
		const std::string &	thrdName,
		thisPtr *	thrdThis,
		Function &&	thrdStart
	)

inherited

Start a thread, using this class's privileges to set priority, etc.

The thread initialization synchronizer bool is set to true at the beginning of this function, then is set to false once all initialization is complete. The thread exec function should wait until this is false before doing anything except setting the pid. This is to avoid privilege escalation bugs.

The interface of the thread start function is:

static void impl::myThreadStart( impl * o )
{
   o->myThreadExec(); //A member function which actually executes the thread
}

where impl is the derived class, and mThreadStart and myThreadExec are members of impl.

Returns: 0 on success; -1 on error

Parameters

[out]	thrd	The thread object to start executing
	thrdInit	[in/out] The thread initilization synchronizer.
	tpid	[in/out] The thread pid to be filled in by thrdStart immediately upon call
	thProp	[in/out] The INDI property to publish the thread details
[in]	thrdPrio	The r/t priority to set for this thread
[in]	cpuset	the cpuset to place this thread on. Ignored if "".
[in]	thrdName	The name of the thread (just for logging)
[in]	thrdThis	The `this` pointer to pass to the thread starter function
[in]	thrdStart	The thread starting function, a static function taking a `this` pointer as argument.

Definition at line 549 of file MagAOXApp.hpp.

◆ timespecToNs()

double MagAOX::app::mcp3208Ctrl::timespecToNs ( const timespec & t )

inlinestaticprotected

Convert a timespec timestamp to nanoseconds.

Parameters

[in] t the timespec value to convert

Definition at line 447 of file mcp3208Ctrl.hpp.

References MagAOX::app::MagAOXApp< true >::log().

◆ unlockPID()

int MagAOX::app::MagAOXApp< _useINDI >::unlockPID ( )

protectedinherited

Remove the PID file.

Definition at line 518 of file MagAOXApp.hpp.

◆ updateIfChanged() [1/4]

void MagAOX::app::MagAOXApp< _useINDI >::updateIfChanged	(	pcf::IndiProperty &	p,
		const std::string &	el,
		const char *	newVal,
		pcf::IndiProperty::PropertyStateType	ipState = `pcf::IndiProperty::Ok`
	)

protectedinherited

Update an INDI property element value if it has changed.

Will only peform a SetProperty if the new element value has changed compared to the stored value, or if the property state has changed.

This comparison is done in the true type of the value.

This is a specialization for const char * to std::string.

For a property with multiple elements, you should use the vector version to minimize network traffic. This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

	p	[in/out] The property containing the element to possibly update
[in]	el	The element name
[in]	newVal	the new value

Definition at line 1024 of file MagAOXApp.hpp.

◆ updateIfChanged() [2/4]

void MagAOX::app::MagAOXApp< _useINDI >::updateIfChanged	(	pcf::IndiProperty &	p,
		const std::string &	el,
		const std::vector< T > &	newVals,
		pcf::IndiProperty::PropertyStateType	ipState = `pcf::IndiProperty::Ok`
	)

protectedinherited

Update an INDI property if values have changed.

Will only peform a SetProperty if at least one value has changed compared to the stored value, or if the property state has changed.

Constructs the element names for each value as elX where X is the index of the vector.

This comparison is done in the true type of the value.

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

	p	[in/out] The property containing the element to possibly update
[in]	el	Beginning of each element name
[in]	newVals	the new values
[in]	ipState	[optional] the new state

Definition at line 1053 of file MagAOXApp.hpp.

◆ updateIfChanged() [3/4]

void MagAOX::app::MagAOXApp< _useINDI >::updateIfChanged	(	pcf::IndiProperty &	p,
		const std::string &	el,
		const T &	newVal,
		pcf::IndiProperty::PropertyStateType	ipState = `pcf::IndiProperty::Ok`
	)

protectedinherited

Update an INDI property element value if it has changed.

Will only peform a SetProperty if the new element value has changed compared to the stored value, or if the property state has changed.

This comparison is done in the true type of the value.

For a property with multiple elements, you should use the vector version to minimize network traffic.

Parameters

	p	[in/out] The property containing the element to possibly update
[in]	el	The element name
[in]	newVal	the new value

Definition at line 1007 of file MagAOXApp.hpp.

◆ updateIfChanged() [4/4]

void MagAOX::app::MagAOXApp< _useINDI >::updateIfChanged	(	pcf::IndiProperty &	p,
		const std::vector< std::string > &	els,
		const std::vector< T > &	newVals,
		pcf::IndiProperty::PropertyStateType	newState = `pcf::IndiProperty::Ok`
	)

protectedinherited

Update an INDI property if values have changed.

Will only peform a SetProperty if at least one value has changed compared to the stored value, or if the property state has changed.

This comparison is done in the true type of the value.

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

	p	[in/out] The property containing the element to possibly update
[in]	els	String vector of element names
[in]	newVals	the new values
[in]	newState	[optional] The state of the property

Definition at line 1070 of file MagAOXApp.hpp.

◆ updateINDI()

int MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::updateINDI ( )

inherited

Update the INDI properties for this device controller.

You should call this once per main loop. It is not called automatically.

Returns: 0 on success.; -1 on error.

Definition at line 302 of file frameGrabber.hpp.

◆ updatesIfChanged()

void MagAOX::app::MagAOXApp< _useINDI >::updatesIfChanged	(	pcf::IndiProperty &	p,
		const std::vector< const char * > &	els,
		const std::vector< T > &	newVals,
		pcf::IndiProperty::PropertyStateType	newState = `pcf::IndiProperty::Ok`
	)

protectedinherited

Parameters

	p	[in/out] The property containing the element to possibly update
[in]	els	String vector of element names
[in]	newVals	the new values
[in]	newState	[optional] The state of the property

Definition at line 1078 of file MagAOXApp.hpp.

◆ updateSwitchIfChanged()

void MagAOX::app::MagAOXApp< _useINDI >::updateSwitchIfChanged	(	pcf::IndiProperty &	p,
		const std::string &	el,
		const pcf::IndiElement::SwitchStateType &	newVal,
		pcf::IndiProperty::PropertyStateType	ipState = `pcf::IndiProperty::Ok`
	)

protectedinherited

Update an INDI switch element value if it has changed.

Will only peform a SetProperty if the new element switch state has changed, or the propery state has changed.

Parameters

	p	[in/out] The property containing the element to possibly update
[in]	el	The element name
[in]	newVal	the new value

Definition at line 1035 of file MagAOXApp.hpp.

◆ updateSynchroDelayController()

void MagAOX::app::mcp3208Ctrl::updateSynchroDelayController ( double desiredDelay_ns )

protected

Update the synchronized delay command with anti-windup and physical bounds.

Parameters

[in] desiredDelay_ns the unconstrained synchronized-delay command

Definition at line 1669 of file mcp3208Ctrl.hpp.

References MagAOX::app::MagAOXApp< true >::log(), m_avgReadLatency_ns, m_delayApplied_ns, m_delayBudget_ns, m_gain, m_synchroDelay, m_synchroDelayTarget, and m_wfsPeriodMeasured_ns.

Referenced by acquireSynchroAndCheckValid().

◆ updateTimingDiagnosticsIndi()

void MagAOX::app::mcp3208Ctrl::updateTimingDiagnosticsIndi ( )

protected

Publish acquisition timing diagnostics to the INDI read-only property.

The exported trigger_interval_us value reports measured current-to-previous trigger interval.

The exported trigger_time_us value is relative to the latest semaphore arrival (m_atime).

Definition at line 921 of file mcp3208Ctrl.hpp.

References MagAOX::app::MagAOXApp< true >::log(), m_atime, m_avgNonDelayService_ns, m_avgReadLatency_ns, m_avgSemaphorePeriod_ns, m_channelReadoutTime_ns, m_delayApplied_ns, m_delayBudget_ns, m_delayCapped, m_delayLock, m_delayLockAbsThreshold_ns, m_delayLockFracThreshold, m_delayModel_ns, m_delayPhaseError_ns, m_indiP_timingDiag, m_localFrameSeq, m_syncFrameIdGapCount, m_syncFramesDropped, m_syncFramesReceived, m_syncFramesWritten, m_synchroDelay, m_synchroDelayTarget, m_synchroShmimName, m_syncProducerFrameDelta, m_syncProducerFrameId, m_syncProducerFrameValid, m_triggerInterval_ns, m_triggerTime, m_wfsPeriodMeasured_ns, and timespecToNs().

Referenced by appLogic(), and appStartup().

◆ updateTriggerTiming()

void MagAOX::app::mcp3208Ctrl::updateTriggerTiming ( const timespec & atime )

protected

Update synchronized trigger timing from the current semaphore arrival.

Parameters

[in] atime the semaphore-arrival timestamp

Definition at line 474 of file mcp3208Ctrl.hpp.

References MagAOX::app::MagAOXApp< true >::log(), m_alpha, m_avgSemaphorePeriod_ns, m_delayModel_ns, m_firstSemaphore, m_firstTriggerTime, m_lastAtime, m_lastTriggerTime, m_synchroDelayTarget, m_synchroDtF_ns, m_synchroDtTransfer_ns, m_synchroPostDelay, m_synchroWfsProcess_ns, m_synchroWfsRead_ns, m_triggerInterval_ns, m_triggerTime, m_wfsPeriodMeasured_ns, nsToTimespec(), and timespecToNs().

Referenced by acquireSynchroAndCheckValid().

◆ waitOnSemaphore()

int MagAOX::app::mcp3208Ctrl::waitOnSemaphore	(	sem_t *	sem,
		timespec &	ts
	)

protected

Wait on the claimed synchronization semaphore until the supplied timeout.

Returns: 0 on success.; -1 on error.

Parameters

[in]	sem	the semaphore to wait on
[in]	ts	the absolute timeout for the wait

Definition at line 1649 of file mcp3208Ctrl.hpp.

References MagAOX::app::MagAOXApp< true >::log().

Referenced by acquireSynchroAndCheckValid().

◆ whilePowerOff()

int MagAOX::app::MagAOXApp< _useINDI >::whilePowerOff ( )

protectedvirtualinherited

This method is called while the power is off, once per FSM loop.

Returns: 0 on success.; -1 on any error which means the app should exit.

Reimplemented in MagAOX::app::alpaoCtrl, MagAOX::app::bmcCtrl, MagAOX::app::irisaoCtrl, MagAOX::app::zaberLowLevel, and MagAOX::app::zaberLowLevelBinary.

Definition at line 1200 of file MagAOXApp.hpp.

Friends And Related Symbol Documentation

◆ dev::frameGrabber< mcp3208Ctrl >

friend class dev::frameGrabber< mcp3208Ctrl >

friend

Definition at line 43 of file mcp3208Ctrl.hpp.

◆ dev::telemeter< mcp3208Ctrl >

friend class dev::telemeter< mcp3208Ctrl >

friend

Definition at line 43 of file mcp3208Ctrl.hpp.

◆ mcp3208Ctrl_test

friend class mcp3208Ctrl_test

friend

Definition at line 43 of file mcp3208Ctrl.hpp.

Member Data Documentation

◆ adc

MCP3208Lib::MCP3208 MagAOX::app::mcp3208Ctrl::adc

protected

Secondary MCP3208 handle retained with the legacy class state.

Definition at line 146 of file mcp3208Ctrl.hpp.

◆ c_frameGrabber_flippable

constexpr bool MagAOX::app::mcp3208Ctrl::c_frameGrabber_flippable = false

staticconstexprprivate

app:dev config indicating these images can not be flipped

Definition at line 53 of file mcp3208Ctrl.hpp.

◆ m_adc

MCP3208Lib::MCP3208 MagAOX::app::mcp3208Ctrl::m_adc

private

The active MCP3208 device interface used for hardware access.

Definition at line 51 of file mcp3208Ctrl.hpp.

Referenced by appStartup(), and readChannelValue().

◆ m_allDefsReceived

bool MagAOX::app::MagAOXApp< _useINDI >::m_allDefsReceived

protectedinherited

Flag indicating that all registered Set properties have been updated since last Get.

Definition at line 709 of file MagAOXApp.hpp.

◆ m_alpha

float MagAOX::app::mcp3208Ctrl::m_alpha { 0.01f }

protected

Global exponential moving-average coefficient applied to timing smoothers.

Definition at line 92 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), appLogic(), appStartup(), loadConfigImpl(), and updateTriggerTiming().

◆ m_atime

timespec MagAOX::app::mcp3208Ctrl::m_atime {}

protected

The most recent semaphore-arrival timestamp on the local realtime clock.

Definition at line 160 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), startAcquisition(), and updateTimingDiagnosticsIndi().

◆ m_atimes

mx::sigproc::circularBufferIndex<timespec, cbIndexT> MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_atimes

protectedinherited

Definition at line 159 of file frameGrabber.hpp.

◆ m_atimesD

std::vector<double> MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_atimesD

protectedinherited

Definition at line 162 of file frameGrabber.hpp.

◆ m_avgNonDelayService_ns

double MagAOX::app::mcp3208Ctrl::m_avgNonDelayService_ns { 0.0 }

protected

Exponential moving-average of non-delay synchronized service time.

Definition at line 212 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), loadConfigImpl(), startAcquisition(), and updateTimingDiagnosticsIndi().

◆ m_avgProducerPeriod_ns

double MagAOX::app::mcp3208Ctrl::m_avgProducerPeriod_ns { 0.0 }

protected

Exponential moving-average producer period estimate from metadata.

Definition at line 174 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), loadConfigImpl(), and startAcquisition().

◆ m_avgReadLatency_ns

double MagAOX::app::mcp3208Ctrl::m_avgReadLatency_ns { 0.0 }

protected

Exponential moving-average estimate of semaphore-to-read latency in nanoseconds.

Definition at line 198 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), startAcquisition(), updateSynchroDelayController(), and updateTimingDiagnosticsIndi().

◆ m_avgSemaphorePeriod_ns

double MagAOX::app::mcp3208Ctrl::m_avgSemaphorePeriod_ns { 0.0 }

protected

Exponential moving-average estimate of semaphore period in nanoseconds.

Definition at line 164 of file mcp3208Ctrl.hpp.

Referenced by closeSynchroStream(), startAcquisition(), updateTimingDiagnosticsIndi(), and updateTriggerTiming().

◆ m_basePath

std::string MagAOX::app::MagAOXApp< _useINDI >::m_basePath

protectedinherited

The base path of the MagAO-X system.

Definition at line 181 of file MagAOXApp.hpp.

◆ m_cadenceGuard_ns

double MagAOX::app::mcp3208Ctrl::m_cadenceGuard_ns { 20e3 }

protected

Reserved per-frame margin protecting synchronized cadence from overruns.

Definition at line 90 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), and loadConfigImpl().

◆ m_calibDir

std::string MagAOX::app::MagAOXApp< _useINDI >::m_calibDir

protectedinherited

The path to calibration files for MagAOX.

Definition at line 189 of file MagAOXApp.hpp.

◆ m_cbFPS

float MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_cbFPS

protectedinherited

The FPS used to configure the circular buffers.

Definition at line 157 of file frameGrabber.hpp.

◆ m_channelReadoutTime_ns

double MagAOX::app::mcp3208Ctrl::m_channelReadoutTime_ns { 0.0 }

protected

Measured duration of reading all configured channels in nanoseconds.

Definition at line 226 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), acquireTimerAndCheckValid(), closeSynchroStream(), loadConfigImpl(), startAcquisition(), and updateTimingDiagnosticsIndi().

◆ m_circBuffLength

uint32_t MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_circBuffLength

protectedinherited

Length of the circular buffer, in frames.

Definition at line 128 of file frameGrabber.hpp.

◆ m_configBase

std::string MagAOX::app::MagAOXApp< _useINDI >::m_configBase

protectedinherited

The name of a base config class for this app (minus .conf).

Definition at line 187 of file MagAOXApp.hpp.

◆ m_configDir

std::string MagAOX::app::MagAOXApp< _useINDI >::m_configDir

protectedinherited

The path to configuration files for MagAOX.

Definition at line 185 of file MagAOXApp.hpp.

◆ m_configName

std::string MagAOX::app::MagAOXApp< _useINDI >::m_configName

protectedinherited

The name of the configuration file (minus .conf).

Definition at line 183 of file MagAOXApp.hpp.

◆ m_cpusetPath

std::string MagAOX::app::MagAOXApp< _useINDI >::m_cpusetPath

protectedinherited

Path to the cpusets mount.

The path to the cpusets mount is configured by the environment variable defined by MAGOX_env_cpuset in environment.hpp. This environment variable is normally named "CGROUPS1_CPUSET_MOUNTPOINT". If the environment variable is not set, the default defined by MAGAOX_cpusetPath in paths.hpp is used.

Definition at line 200 of file MagAOXApp.hpp.

◆ m_currImageTimestamp

timespec MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_currImageTimestamp

protectedinherited

The timestamp of the current image.

Definition at line 147 of file frameGrabber.hpp.

◆ m_dataType

uint8_t MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_dataType

protectedinherited

The ImageStreamIO type code.

Definition at line 141 of file frameGrabber.hpp.

◆ m_defaultFlip

int MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_defaultFlip

protectedinherited

Definition at line 134 of file frameGrabber.hpp.

◆ m_delayApplied_ns

double MagAOX::app::mcp3208Ctrl::m_delayApplied_ns { 0.0 }

protected

Delay applied to the most recent synchronized ADC read.

Definition at line 206 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), delayBeforeRead(), loadConfigImpl(), startAcquisition(), updateSynchroDelayController(), and updateTimingDiagnosticsIndi().

◆ m_delayBudget_ns

double MagAOX::app::mcp3208Ctrl::m_delayBudget_ns { 0.0 }

protected

Maximum delay allowed this cycle after cadence budgeting.

Definition at line 208 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), loadConfigImpl(), startAcquisition(), updateSynchroDelayController(), and updateTimingDiagnosticsIndi().

◆ m_delayCapped

double MagAOX::app::mcp3208Ctrl::m_delayCapped { 0.0 }

protected

Delay-cap state exported as 1.0 when cadence budgeting limits the applied delay.

Definition at line 220 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), loadConfigImpl(), startAcquisition(), and updateTimingDiagnosticsIndi().

◆ m_delayLock

double MagAOX::app::mcp3208Ctrl::m_delayLock { 0.0 }

protected

Delay-lock state exported to diagnostics as 1.0 (locked) or 0.0 (unlocked).

Definition at line 218 of file mcp3208Ctrl.hpp.

Referenced by closeSynchroStream(), loadConfigImpl(), startAcquisition(), and updateTimingDiagnosticsIndi().

◆ m_delayLockAbsThreshold_ns

double MagAOX::app::mcp3208Ctrl::m_delayLockAbsThreshold_ns { 50e3 }

protected

Absolute phase-error threshold for declaring delay lock.

Definition at line 86 of file mcp3208Ctrl.hpp.

Referenced by loadConfigImpl(), and updateTimingDiagnosticsIndi().

◆ m_delayLockFracThreshold

double MagAOX::app::mcp3208Ctrl::m_delayLockFracThreshold { 0.1 }

protected

Fractional period phase-error threshold for declaring delay lock.

Definition at line 88 of file mcp3208Ctrl.hpp.

Referenced by loadConfigImpl(), and updateTimingDiagnosticsIndi().

◆ m_delayModel_ns

double MagAOX::app::mcp3208Ctrl::m_delayModel_ns { 0.0 }

protected

Current modulo-wrapped delay predicted by the synchronized phase model.

Definition at line 204 of file mcp3208Ctrl.hpp.

Referenced by closeSynchroStream(), loadConfigImpl(), startAcquisition(), updateTimingDiagnosticsIndi(), and updateTriggerTiming().

◆ m_delayPhaseError_ns

double MagAOX::app::mcp3208Ctrl::m_delayPhaseError_ns { 0.0 }

protected

Wrapped phase error between applied and modeled synchronized delay.

Definition at line 216 of file mcp3208Ctrl.hpp.

Referenced by closeSynchroStream(), loadConfigImpl(), startAcquisition(), and updateTimingDiagnosticsIndi().

◆ m_driverCtrlName

std::string MagAOX::app::MagAOXApp< _useINDI >::m_driverCtrlName

protectedinherited

Full path name of the INDI driver control FIFO.

This is currently only used to signal restarts.

Definition at line 720 of file MagAOXApp.hpp.

◆ m_driverInName

std::string MagAOX::app::MagAOXApp< _useINDI >::m_driverInName

protectedinherited

Full path name of the INDI driver input FIFO.

Definition at line 712 of file MagAOXApp.hpp.

◆ m_driverOutName

std::string MagAOX::app::MagAOXApp< _useINDI >::m_driverOutName

protectedinherited

Full path name of the INDI driver output FIFO.

Definition at line 715 of file MagAOXApp.hpp.

◆ m_dummy_c

char MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_dummy_c

protectedinherited

Definition at line 168 of file frameGrabber.hpp.

◆ m_dummy_cnt

uint64_t MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_dummy_cnt

protectedinherited

Definition at line 167 of file frameGrabber.hpp.

◆ m_dummy_ts

timespec MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_dummy_ts

protectedinherited

Definition at line 166 of file frameGrabber.hpp.

◆ m_euidCalled

uid_t MagAOX::app::MagAOXApp< _useINDI >::m_euidCalled

privateinherited

The user id of the process as called (i.e. the higher privileged id of the owner, root if setuid).

Definition at line 415 of file MagAOXApp.hpp.

◆ m_euidReal

uid_t MagAOX::app::MagAOXApp< _useINDI >::m_euidReal

privateinherited

The real user id of the proces (i.e. the lower privileged id of the user)

Definition at line 414 of file MagAOXApp.hpp.

◆ m_fgCpuset

std::string MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_fgCpuset

protectedinherited

The cpuset to assign the framegrabber thread to. Not used if empty, the default.

Definition at line 126 of file frameGrabber.hpp.

◆ m_fgThread

std::thread MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_fgThread

protectedinherited

A separate thread for the actual framegrabbings.

Definition at line 267 of file frameGrabber.hpp.

◆ m_fgThreadID

pid_t MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_fgThreadID

protectedinherited

The ID of the framegrabber thread.

Definition at line 263 of file frameGrabber.hpp.

◆ m_fgThreadInit

bool MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_fgThreadInit

protectedinherited

Synchronizer for thread startup, to allow priority setting to finish.

Definition at line 261 of file frameGrabber.hpp.

◆ m_fgThreadPrio

int MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_fgThreadPrio

protectedinherited

Priority of the framegrabber thread, should normally be > 00.

Definition at line 125 of file frameGrabber.hpp.

◆ m_fgThreadProp

pcf::IndiProperty MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_fgThreadProp

protectedinherited

The property to hold the f.g. thread details.

Definition at line 265 of file frameGrabber.hpp.

◆ m_firstNonDelayService

bool MagAOX::app::mcp3208Ctrl::m_firstNonDelayService { true }

protected

Tracks first-sample initialization for non-delay service-time averaging.

Definition at line 214 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), loadConfigImpl(), and startAcquisition().

◆ m_firstProducerSample

bool MagAOX::app::mcp3208Ctrl::m_firstProducerSample { true }

protected

Tracks first-sample initialization for producer-period estimation.

Definition at line 176 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), loadConfigImpl(), and startAcquisition().

◆ m_firstReadLatency

bool MagAOX::app::mcp3208Ctrl::m_firstReadLatency { true }

protected

Tracks first-arrival initialization for semaphore-to-read latency estimation.

Definition at line 200 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), and startAcquisition().

◆ m_firstSemaphore

bool MagAOX::app::mcp3208Ctrl::m_firstSemaphore { true }

protected

Tracks first-arrival initialization for semaphore period estimation.

Definition at line 196 of file mcp3208Ctrl.hpp.

Referenced by closeSynchroStream(), startAcquisition(), and updateTriggerTiming().

◆ m_firstTimerTrigger

bool MagAOX::app::mcp3208Ctrl::m_firstTimerTrigger { true }

protected

Tracks first-trigger initialization for timer-mode trigger-interval measurement.

Definition at line 232 of file mcp3208Ctrl.hpp.

Referenced by acquireTimerAndCheckValid(), closeSynchroStream(), and startAcquisition().

◆ m_firstTriggerTime

bool MagAOX::app::mcp3208Ctrl::m_firstTriggerTime { true }

protected

Tracks first-trigger initialization for synchronized trigger-interval measurement.

Definition at line 230 of file mcp3208Ctrl.hpp.

Referenced by closeSynchroStream(), startAcquisition(), and updateTriggerTiming().

◆ m_fps

float MagAOX::app::mcp3208Ctrl::m_fps { 2000 }

protected

The target acquisition rate in frames per second.

Definition at line 116 of file mcp3208Ctrl.hpp.

Referenced by appLogic(), appStartup(), fps(), and loadConfigImpl().

◆ m_fpsDevice

std::string MagAOX::app::mcp3208Ctrl::m_fpsDevice

protected

Device name providing external fps metadata for framegrabber sizing.

Definition at line 63 of file mcp3208Ctrl.hpp.

Referenced by appStartup(), and loadConfigImpl().

◆ m_fpsElement

std::string MagAOX::app::mcp3208Ctrl::m_fpsElement { "current" }

protected

Property element containing the fps value.

Definition at line 65 of file mcp3208Ctrl.hpp.

Referenced by loadConfigImpl().

◆ m_fpsProperty

std::string MagAOX::app::mcp3208Ctrl::m_fpsProperty { "fps" }

protected

Property name providing external fps metadata.

Definition at line 64 of file mcp3208Ctrl.hpp.

Referenced by appStartup(), and loadConfigImpl().

◆ m_fpsTol

float MagAOX::app::mcp3208Ctrl::m_fpsTol { 0 }

protected

The tolerance used when monitoring fps metadata changes.

Definition at line 67 of file mcp3208Ctrl.hpp.

Referenced by loadConfigImpl().

◆ m_gain

float MagAOX::app::mcp3208Ctrl::m_gain { .1 }

protected

The simple integrator gain used for timer and synchro delay control.

Definition at line 140 of file mcp3208Ctrl.hpp.

Referenced by acquireTimerAndCheckValid(), and updateSynchroDelayController().

◆ m_gitAlert

bool MagAOX::app::MagAOXApp< _useINDI >::m_gitAlert

privateinherited

Definition at line 575 of file MagAOXApp.hpp.

◆ m_height

uint32_t MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_height

protectedinherited

The height of the image, once deinterlaced etc.

Definition at line 139 of file frameGrabber.hpp.

◆ m_imageStream

IMAGE* MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_imageStream

protectedinherited

The ImageStreamIO shared memory buffer.

Definition at line 151 of file frameGrabber.hpp.

◆ m_indiCallBackMutex

std::mutex MagAOX::app::MagAOXApp< _useINDI >::m_indiCallBackMutex

inherited

Mutex for locking INDI callback maps and per-entry callback state.

Lock ordering policy: 1) Prefer never holding both m_indiMutex and m_indiCallBackMutex at the same time. 2) If both are required in future code, always acquire m_indiMutex before m_indiCallBackMutex.

Definition at line 662 of file MagAOXApp.hpp.

◆ m_indiDriver

indiDriver<MagAOXApp>* MagAOX::app::MagAOXApp< _useINDI >::m_indiDriver

inherited

The INDI driver wrapper. Constructed and initialized by execute, which starts and stops communications.

Todo:: instead of making this public, provide an accessor.

Definition at line 652 of file MagAOXApp.hpp.

◆ m_indiMutex

std::mutex MagAOX::app::MagAOXApp< _useINDI >::m_indiMutex

inherited

Mutex for locking INDI communications.

Definition at line 655 of file MagAOXApp.hpp.

◆ m_indiNewCallBacks

std::unordered_map<std::string, indiCallBack> MagAOX::app::MagAOXApp< _useINDI >::m_indiNewCallBacks

protectedinherited

Map to hold the NewProperty indiCallBacks for this App, with fast lookup by property name.

The key for these is the property name.

Definition at line 700 of file MagAOXApp.hpp.

◆ m_indiP_alpha

pcf::IndiProperty MagAOX::app::mcp3208Ctrl::m_indiP_alpha

protected

INDI property exposing the global EMA alpha used by timing smoothers.

Definition at line 125 of file mcp3208Ctrl.hpp.

Referenced by appLogic(), and appStartup().

◆ m_indiP_clearFSMAlert

pcf::IndiProperty MagAOX::app::MagAOXApp< _useINDI >::m_indiP_clearFSMAlert

protectedinherited

indi Property to clear an FSM alert.

Definition at line 1130 of file MagAOXApp.hpp.

◆ m_indiP_fps

pcf::IndiProperty MagAOX::app::mcp3208Ctrl::m_indiP_fps

protected

INDI property exposing the local fps target.

Definition at line 111 of file mcp3208Ctrl.hpp.

Referenced by appLogic(), and appStartup().

◆ m_indiP_fpsSource

pcf::IndiProperty MagAOX::app::mcp3208Ctrl::m_indiP_fpsSource

protected

INDI property subscription used to follow an external fps source.

Definition at line 119 of file mcp3208Ctrl.hpp.

Referenced by appStartup().

◆ m_indiP_frameSize

pcf::IndiProperty MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_indiP_frameSize

protectedinherited

Property used to report the current frame size.

Definition at line 290 of file frameGrabber.hpp.

◆ m_indiP_numChannels

pcf::IndiProperty MagAOX::app::mcp3208Ctrl::m_indiP_numChannels

protected

Definition at line 104 of file mcp3208Ctrl.hpp.

Referenced by appLogic(), and appStartup().

◆ m_indiP_numChannelsSource

pcf::IndiProperty MagAOX::app::mcp3208Ctrl::m_indiP_numChannelsSource

protected

Definition at line 107 of file mcp3208Ctrl.hpp.

Referenced by appStartup().

◆ m_indiP_powerChannel

pcf::IndiProperty MagAOX::app::MagAOXApp< _useINDI >::m_indiP_powerChannel

protectedinherited

INDI property used to communicate power state.

Definition at line 1186 of file MagAOXApp.hpp.

◆ m_indiP_shmimName

pcf::IndiProperty MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_indiP_shmimName

protectedinherited

Property used to report the shmim buffer name.

Definition at line 288 of file frameGrabber.hpp.

◆ m_indiP_state

pcf::IndiProperty MagAOX::app::MagAOXApp< _useINDI >::m_indiP_state

protectedinherited

indi Property to report the application state.

Definition at line 1127 of file MagAOXApp.hpp.

◆ m_indiP_synchroDelay

pcf::IndiProperty MagAOX::app::mcp3208Ctrl::m_indiP_synchroDelay

protected

INDI property exposing the synchronized-mode signed phase offset in microseconds.

Definition at line 131 of file mcp3208Ctrl.hpp.

Referenced by appLogic(), and appStartup().

◆ m_indiP_timing

pcf::IndiProperty MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_indiP_timing

protectedinherited

Definition at line 292 of file frameGrabber.hpp.

◆ m_indiP_timingDiag

pcf::IndiProperty MagAOX::app::mcp3208Ctrl::m_indiP_timingDiag

protected

INDI property exposing runtime timing diagnostics for acquisition health checks.

Definition at line 137 of file mcp3208Ctrl.hpp.

Referenced by appStartup(), and updateTimingDiagnosticsIndi().

◆ m_indiSetCallBacks

std::unordered_map<std::string, indiCallBack> MagAOX::app::MagAOXApp< _useINDI >::m_indiSetCallBacks

protectedinherited

Map to hold the SetProperty indiCallBacks for this App, with fast lookup by property name.

The key for these is device.name

Definition at line 705 of file MagAOXApp.hpp.

◆ m_inode

ino_t MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_inode

protectedinherited

The inode of the image stream file.

Definition at line 155 of file frameGrabber.hpp.

◆ m_lastAtime

timespec MagAOX::app::mcp3208Ctrl::m_lastAtime {}

protected

The previous semaphore-arrival timestamp used for period estimation.

Definition at line 162 of file mcp3208Ctrl.hpp.

Referenced by closeSynchroStream(), startAcquisition(), and updateTriggerTiming().

◆ m_lastProducerAtime

timespec MagAOX::app::mcp3208Ctrl::m_lastProducerAtime {}

protected

Previous producer atime from the synchronization stream metadata.

Definition at line 168 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), loadConfigImpl(), and startAcquisition().

◆ m_lastProducerCnt0

uint64_t MagAOX::app::mcp3208Ctrl::m_lastProducerCnt0 { 0 }

protected

Previous producer frame counter from the synchronization stream metadata.

Definition at line 170 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), loadConfigImpl(), and startAcquisition().

◆ m_lastSyncProducerFrameId

uint64_t MagAOX::app::mcp3208Ctrl::m_lastSyncProducerFrameId { 0 }

protected

Previous producer frame ID used to detect synchronized frame-ID gaps.

Definition at line 192 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), loadConfigImpl(), and startAcquisition().

◆ m_lastTriggerTime

timespec MagAOX::app::mcp3208Ctrl::m_lastTriggerTime {}

protected

Previous trigger timestamp used to compute the synchronized trigger interval.

Definition at line 228 of file mcp3208Ctrl.hpp.

Referenced by closeSynchroStream(), startAcquisition(), and updateTriggerTiming().

◆ m_latencyCircBuffMaxLength

cbIndexT MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_latencyCircBuffMaxLength

protectedinherited

Maximum length of the latency measurement circular buffers.

Definition at line 130 of file frameGrabber.hpp.

◆ m_latencyCircBuffMaxTime

float MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_latencyCircBuffMaxTime

protectedinherited

Maximum time of the latency meaurement circular buffers.

Definition at line 132 of file frameGrabber.hpp.

◆ m_localFrameSeq

uint64_t MagAOX::app::mcp3208Ctrl::m_localFrameSeq { 0 }

protected

Monotonic local acquisition sequence incremented on each published frame.

Definition at line 178 of file mcp3208Ctrl.hpp.

Referenced by closeSynchroStream(), loadConfigImpl(), loadImageIntoStream(), startAcquisition(), and updateTimingDiagnosticsIndi().

◆ m_log

MagAOXApp< _useINDI >::logManagerT MagAOX::app::MagAOXApp< _useINDI >::m_log

staticinherited

Definition at line 338 of file MagAOXApp.hpp.

◆ m_loopPause

unsigned long MagAOX::app::MagAOXApp< _useINDI >::m_loopPause

protectedinherited

The time in nanoseconds to pause the main loop. The appLogic() function of the derived class is called every m_loopPause nanoseconds. Default is 1,000,000,000 ns. Config with loopPause=X.

Definition at line 202 of file MagAOXApp.hpp.

◆ m_maxa

double MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_maxa

protectedinherited

Definition at line 173 of file frameGrabber.hpp.

◆ m_maxInterval

double MagAOX::app::dev::telemeter< mcp3208Ctrl >::m_maxInterval

inherited

The maximum interval, in seconds, between telemetry records. Default is 10.0 seconds.

Definition at line 83 of file telemeter.hpp.

◆ m_maxw

double MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_maxw

protectedinherited

Definition at line 178 of file frameGrabber.hpp.

◆ m_mina

double MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_mina

protectedinherited

Definition at line 172 of file frameGrabber.hpp.

◆ m_minw

double MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_minw

protectedinherited

Definition at line 177 of file frameGrabber.hpp.

◆ m_mna

double MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_mna

protectedinherited

Definition at line 170 of file frameGrabber.hpp.

◆ m_mnw

double MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_mnw

protectedinherited

Definition at line 175 of file frameGrabber.hpp.

◆ m_mnwa

double MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_mnwa

protectedinherited

Definition at line 180 of file frameGrabber.hpp.

◆ m_nonDelayService_ns

double MagAOX::app::mcp3208Ctrl::m_nonDelayService_ns { 0.0 }

protected

Measured wake-to-return service time minus applied delay for the latest cycle.

Definition at line 210 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), loadConfigImpl(), and startAcquisition().

◆ m_numChannels

int MagAOX::app::mcp3208Ctrl::m_numChannels { 2 }

protected

The number of MCP3208 channels read into each output frame.

Definition at line 61 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), acquireTimerAndCheckValid(), appLogic(), appStartup(), configureAcquisition(), loadConfigImpl(), and numChannels().

◆ m_numChannelsDevice

std::string MagAOX::app::mcp3208Ctrl::m_numChannelsDevice

protected

Device name for getting numChannels to set circular buffer length.

Definition at line 69 of file mcp3208Ctrl.hpp.

Referenced by appStartup(), and loadConfigImpl().

◆ m_numChannelsElement

std::string MagAOX::app::mcp3208Ctrl::m_numChannelsElement { "current" }

protected

Element name for getting numChannels to set circular buffer length.

Definition at line 71 of file mcp3208Ctrl.hpp.

Referenced by loadConfigImpl().

◆ m_numChannelsProperty

std::string MagAOX::app::mcp3208Ctrl::m_numChannelsProperty { "numChannels" }

protected

Property name for getting numChannels to set circular buffer length.

Definition at line 70 of file mcp3208Ctrl.hpp.

Referenced by appStartup(), and loadConfigImpl().

◆ m_numChannelsTol

float MagAOX::app::mcp3208Ctrl::m_numChannelsTol { 0 }

protected

The tolerance for detecting a change in numChannels.

Definition at line 73 of file mcp3208Ctrl.hpp.

Referenced by loadConfigImpl().

◆ m_ownShmim

bool MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_ownShmim

protectedinherited

Flag controlling if the shmim is owned. If true it will be destroyed as needed.

Definition at line 153 of file frameGrabber.hpp.

◆ m_pid

pid_t MagAOX::app::MagAOXApp< _useINDI >::m_pid

protectedinherited

This process's PID.

Definition at line 499 of file MagAOXApp.hpp.

◆ m_powerChannel

std::string MagAOX::app::MagAOXApp< _useINDI >::m_powerChannel

protectedinherited

The INDI property name of the channel controlling this device's power.

Definition at line 1172 of file MagAOXApp.hpp.

◆ m_powerDevice

std::string MagAOX::app::MagAOXApp< _useINDI >::m_powerDevice

protectedinherited

The INDI device name of the power controller.

Definition at line 1171 of file MagAOXApp.hpp.

◆ m_powerElement

std::string MagAOX::app::MagAOXApp< _useINDI >::m_powerElement

protectedinherited

The INDI element name to monitor for this device's power state.

Definition at line 1173 of file MagAOXApp.hpp.

◆ m_powerMgtEnabled

bool MagAOX::app::MagAOXApp< _useINDI >::m_powerMgtEnabled

protectedinherited

Flag controls whether power mgt is used. Set this in the constructor of a derived app. If true, then if after loadConfig the powerDevice and powerChannel are empty, then the app will exit with a critical error.

Definition at line 1166 of file MagAOXApp.hpp.

◆ m_powerOnCounter

int MagAOX::app::MagAOXApp< _useINDI >::m_powerOnCounter

protectedinherited

Counts numer of loops after power on, implements delay for device bootup. If -1, then device was NOT powered off on app startup.

Definition at line 1179 of file MagAOXApp.hpp.

◆ m_powerOnWait

unsigned long MagAOX::app::MagAOXApp< _useINDI >::m_powerOnWait

protectedinherited

Default time in sec to wait for device to boot after power on.

Definition at line 1176 of file MagAOXApp.hpp.

◆ m_powerState

int MagAOX::app::MagAOXApp< _useINDI >::m_powerState

protectedinherited

Current power state, 1=On, 0=Off, -1=Unk.

Definition at line 1183 of file MagAOXApp.hpp.

◆ m_powerTargetElement

std::string MagAOX::app::MagAOXApp< _useINDI >::m_powerTargetElement

protectedinherited

The INDI element name to monitor for this device's power state.

Definition at line 1174 of file MagAOXApp.hpp.

◆ m_powerTargetState

int MagAOX::app::MagAOXApp< _useINDI >::m_powerTargetState

protectedinherited

Current target power state, 1=On, 0=Off, -1=Unk.

Definition at line 1184 of file MagAOXApp.hpp.

◆ m_producerPeriodInst_ns

double MagAOX::app::mcp3208Ctrl::m_producerPeriodInst_ns { 0.0 }

protected

Instantaneous producer period estimate from metadata timestamps.

Definition at line 172 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), loadConfigImpl(), and startAcquisition().

◆ m_reconfig

bool MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_reconfig

protectedinherited

Flag to set if a camera reconfiguration requires a framegrabber reset.

Definition at line 149 of file frameGrabber.hpp.

◆ m_secretsPath

std::string MagAOX::app::MagAOXApp< _useINDI >::m_secretsPath

protectedinherited

Path to the secrets directory, where passwords, etc, are stored.

Definition at line 193 of file MagAOXApp.hpp.

◆ m_self

MagAOXApp< _useINDI > * MagAOX::app::MagAOXApp< _useINDI >::m_self

staticprivateinherited

Static pointer to this (set in constructor). Used to test whether a a MagAOXApp is already instatiated (a fatal error) and used for getting out of static signal handlers.

Definition at line 390 of file MagAOXApp.hpp.

◆ m_shmimName

std::string MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_shmimName

protectedinherited

The name of the shared memory image, is used in /tmp/<shmimName>.im.shm. Derived classes should set a default.

Definition at line 122 of file frameGrabber.hpp.

◆ m_shutdown

int MagAOX::app::MagAOXApp< _useINDI >::m_shutdown

protectedinherited

Flag to signal it's time to shutdown. When not 0, the main loop exits.

Definition at line 207 of file MagAOXApp.hpp.

◆ m_state

stateCodes::stateCodeT MagAOX::app::MagAOXApp< _useINDI >::m_state

privateinherited

The application's state. Never ever set this directly, use state(const stateCodeT & s).

Definition at line 569 of file MagAOXApp.hpp.

◆ m_stateAlert

bool MagAOX::app::MagAOXApp< _useINDI >::m_stateAlert

privateinherited

Definition at line 572 of file MagAOXApp.hpp.

◆ m_stateLogged

int MagAOX::app::MagAOXApp< _useINDI >::m_stateLogged

privateinherited

Counter and flag for use to log errors just once. Never ever access directly, use stateLogged().

Definition at line 577 of file MagAOXApp.hpp.

◆ m_suid

uid_t MagAOX::app::MagAOXApp< _useINDI >::m_suid

privateinherited

The save-set user id of the process.

Definition at line 417 of file MagAOXApp.hpp.

◆ m_syncFrameIdGapCount

uint64_t MagAOX::app::mcp3208Ctrl::m_syncFrameIdGapCount { 0 }

protected

Number of producer-frame gap events where ID delta exceeded one.

Definition at line 186 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), loadConfigImpl(), startAcquisition(), and updateTimingDiagnosticsIndi().

◆ m_syncFramesDropped

uint64_t MagAOX::app::mcp3208Ctrl::m_syncFramesDropped { 0 }

protected

Count of missing producer frame IDs inferred from positive counter gaps.

Definition at line 184 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), loadConfigImpl(), startAcquisition(), and updateTimingDiagnosticsIndi().

◆ m_syncFramesReceived

uint64_t MagAOX::app::mcp3208Ctrl::m_syncFramesReceived { 0 }

protected

Count of synchronized frames received from semaphore wakes.

Definition at line 180 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), loadConfigImpl(), startAcquisition(), and updateTimingDiagnosticsIndi().

◆ m_syncFramesWritten

uint64_t MagAOX::app::mcp3208Ctrl::m_syncFramesWritten { 0 }

protected

Count of synchronized frames published to the output stream.

Definition at line 182 of file mcp3208Ctrl.hpp.

Referenced by closeSynchroStream(), loadConfigImpl(), loadImageIntoStream(), startAcquisition(), and updateTimingDiagnosticsIndi().

◆ m_synchroDelay

float MagAOX::app::mcp3208Ctrl::m_synchroDelay { 0 }

protected

The commanded pre-read delay in synchronized mode, in nanoseconds.

Definition at line 142 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), loadConfigImpl(), startAcquisition(), updateSynchroDelayController(), and updateTimingDiagnosticsIndi().

◆ m_synchroDelayTarget

float MagAOX::app::mcp3208Ctrl::m_synchroDelayTarget { 0 }

protected

The synchronized-mode effective delay target in nanoseconds after applying signed offset and wrap.

Definition at line 143 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), loadConfigImpl(), startAcquisition(), updateSynchroDelayController(), updateTimingDiagnosticsIndi(), and updateTriggerTiming().

◆ m_synchroDtF_ns

double MagAOX::app::mcp3208Ctrl::m_synchroDtF_ns { 10e3 }

protected

Filter/transport-latency term in the synchronized delay model.

Definition at line 82 of file mcp3208Ctrl.hpp.

Referenced by loadConfigImpl(), and updateTriggerTiming().

◆ m_synchroDtTransfer_ns

double MagAOX::app::mcp3208Ctrl::m_synchroDtTransfer_ns { 3e3 }

protected

Transfer-latency term in the synchronized delay model.

Definition at line 78 of file mcp3208Ctrl.hpp.

Referenced by loadConfigImpl(), and updateTriggerTiming().

◆ m_synchroPostDelay

int MagAOX::app::mcp3208Ctrl::m_synchroPostDelay { 0 }

protected

Signed microsecond phase offset added to synchronized delay-model predictions.

Definition at line 76 of file mcp3208Ctrl.hpp.

Referenced by appLogic(), appStartup(), configureAcquisition(), loadConfigImpl(), and updateTriggerTiming().

◆ m_synchroSemaphore

sem_t* MagAOX::app::mcp3208Ctrl::m_synchroSemaphore { nullptr }

protected

Cached pointer to the claimed synchronization semaphore.

Definition at line 158 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), claimSynchroSemaphore(), closeSynchroStream(), and startAcquisition().

◆ m_synchroSemaphoreNumber

int MagAOX::app::mcp3208Ctrl::m_synchroSemaphoreNumber { 5 }

protected

The claimed semaphore slot for synchronization waits.

Definition at line 157 of file mcp3208Ctrl.hpp.

Referenced by claimSynchroSemaphore(), closeSynchroStream(), and startAcquisition().

◆ m_synchroShmimName

std::string MagAOX::app::mcp3208Ctrl::m_synchroShmimName

protected

The synchronization ImageStreamIO stream name; empty selects timer mode.

Definition at line 75 of file mcp3208Ctrl.hpp.

Referenced by acquireAndCheckValid(), claimSynchroSemaphore(), configureAcquisition(), loadConfigImpl(), loadImageIntoStream(), openSynchroStream(), startAcquisition(), synchroStreamStale(), and updateTimingDiagnosticsIndi().

◆ m_synchroStream

IMAGE MagAOX::app::mcp3208Ctrl::m_synchroStream {}

protected

The opened synchronization stream used for semaphore-triggered reads.

Definition at line 154 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), claimSynchroSemaphore(), closeSynchroStream(), openSynchroStream(), startAcquisition(), and synchroStreamStale().

◆ m_synchroStreamInode

ino_t MagAOX::app::mcp3208Ctrl::m_synchroStreamInode { 0 }

protected

Cached inode used to detect synchronization stream recreation.

Definition at line 156 of file mcp3208Ctrl.hpp.

Referenced by closeSynchroStream(), openSynchroStream(), and synchroStreamStale().

◆ m_synchroStreamOpen

bool MagAOX::app::mcp3208Ctrl::m_synchroStreamOpen { false }

protected

Tracks whether the synchronization stream is currently open.

Definition at line 155 of file mcp3208Ctrl.hpp.

Referenced by claimSynchroSemaphore(), closeSynchroStream(), openSynchroStream(), startAcquisition(), and synchroStreamStale().

◆ m_synchroWfsProcess_ns

double MagAOX::app::mcp3208Ctrl::m_synchroWfsProcess_ns { 51.5e3 }

protected

WFS processing-latency term in the synchronized delay model.

Definition at line 80 of file mcp3208Ctrl.hpp.

Referenced by loadConfigImpl(), and updateTriggerTiming().

◆ m_synchroWfsRead_ns

double MagAOX::app::mcp3208Ctrl::m_synchroWfsRead_ns { 276.1e3 }

protected

WFS read-latency term in the synchronized delay model.

Definition at line 84 of file mcp3208Ctrl.hpp.

Referenced by loadConfigImpl(), and updateTriggerTiming().

◆ m_syncProducerFrameDelta

uint64_t MagAOX::app::mcp3208Ctrl::m_syncProducerFrameDelta { 0 }

protected

Latest producer-frame ID delta between consecutive synchronized wakes.

Definition at line 190 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), loadConfigImpl(), startAcquisition(), and updateTimingDiagnosticsIndi().

◆ m_syncProducerFrameId

uint64_t MagAOX::app::mcp3208Ctrl::m_syncProducerFrameId { 0 }

protected

Latest producer frame ID (cnt0) observed on the synchronization stream.

Definition at line 188 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), loadConfigImpl(), startAcquisition(), and updateTimingDiagnosticsIndi().

◆ m_syncProducerFrameValid

bool MagAOX::app::mcp3208Ctrl::m_syncProducerFrameValid { false }

protected

Tracks whether producer frame-ID gap tracking has a valid prior sample.

Definition at line 194 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), loadConfigImpl(), startAcquisition(), and updateTimingDiagnosticsIndi().

◆ m_sysPath

std::string MagAOX::app::MagAOXApp< _useINDI >::m_sysPath

protectedinherited

The path to the system directory, for PID file, etc.

Definition at line 191 of file MagAOXApp.hpp.

◆ m_tel

logManagerT MagAOX::app::dev::telemeter< mcp3208Ctrl >::m_tel

inherited

Definition at line 81 of file telemeter.hpp.

◆ m_time_start

std::chrono::time_point<std::chrono::high_resolution_clock> MagAOX::app::mcp3208Ctrl::m_time_start

protected

The timer-mode reference point for the next internal acquisition cycle.

Definition at line 149 of file mcp3208Ctrl.hpp.

Referenced by acquireTimerAndCheckValid(), and startAcquisition().

◆ m_trigger

float MagAOX::app::mcp3208Ctrl::m_trigger { 1e9f / m_fps }

protected

The timer-mode read interval in nanoseconds.

Definition at line 139 of file mcp3208Ctrl.hpp.

Referenced by acquireTimerAndCheckValid().

◆ m_triggerInterval_ns

double MagAOX::app::mcp3208Ctrl::m_triggerInterval_ns { 0.0 }

protected

Measured interval between consecutive trigger events in nanoseconds.

Definition at line 224 of file mcp3208Ctrl.hpp.

Referenced by acquireTimerAndCheckValid(), closeSynchroStream(), startAcquisition(), updateTimingDiagnosticsIndi(), and updateTriggerTiming().

◆ m_triggerTime

timespec MagAOX::app::mcp3208Ctrl::m_triggerTime {}

protected

Computed trigger timestamp aligned to the estimated WFS integration midpoint.

Definition at line 222 of file mcp3208Ctrl.hpp.

Referenced by closeSynchroStream(), startAcquisition(), updateTimingDiagnosticsIndi(), and updateTriggerTiming().

◆ m_typeSize

size_t MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_typeSize

protectedinherited

The size of the type, in bytes. Result of sizeof.

Definition at line 142 of file frameGrabber.hpp.

◆ m_useINDI

constexpr bool MagAOX::app::MagAOXApp< _useINDI >::m_useINDI

staticconstexprprotectedinherited

Flag controlling whether INDI is used. If false, then no INDI code executes.

Definition at line 647 of file MagAOXApp.hpp.

◆ m_values

std::vector<uint16_t> MagAOX::app::mcp3208Ctrl::m_values

protected

The most recently read MCP3208 channel values published to the output stream.

Definition at line 152 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), acquireTimerAndCheckValid(), configureAcquisition(), and loadImageIntoStream().

◆ m_vara

double MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_vara

protectedinherited

Definition at line 171 of file frameGrabber.hpp.

◆ m_varw

double MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_varw

protectedinherited

Definition at line 176 of file frameGrabber.hpp.

◆ m_varwa

double MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_varwa

protectedinherited

Definition at line 181 of file frameGrabber.hpp.

◆ m_watimesD

std::vector<double> MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_watimesD

protectedinherited

Definition at line 164 of file frameGrabber.hpp.

◆ m_wfs_fps

double MagAOX::app::mcp3208Ctrl::m_wfs_fps { 0.0 }

protected

WFS frame rate estimate used for timing prediction; initialized from configured fps before callbacks.

Definition at line 202 of file mcp3208Ctrl.hpp.

Referenced by loadConfigImpl().

◆ m_wfsPeriodMeasured_ns

double MagAOX::app::mcp3208Ctrl::m_wfsPeriodMeasured_ns { 0.0 }

protected

Measured semaphore period used as the synchronized delay-model WFS period.

Definition at line 166 of file mcp3208Ctrl.hpp.

Referenced by acquireSynchroAndCheckValid(), closeSynchroStream(), loadConfigImpl(), startAcquisition(), updateSynchroDelayController(), updateTimingDiagnosticsIndi(), and updateTriggerTiming().

◆ m_width

uint32_t MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_width

protectedinherited

The width of the image, once deinterlaced etc.

Definition at line 138 of file frameGrabber.hpp.

◆ m_wtimes

mx::sigproc::circularBufferIndex<timespec, cbIndexT> MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_wtimes

protectedinherited

Definition at line 160 of file frameGrabber.hpp.

◆ m_wtimesD

std::vector<double> MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_wtimesD

protectedinherited

Definition at line 163 of file frameGrabber.hpp.

◆ m_xbinning

int MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_xbinning

protectedinherited

The x-binning according to the framegrabber.

Definition at line 144 of file frameGrabber.hpp.

◆ m_ybinning

int MagAOX::app::dev::frameGrabber< mcp3208Ctrl >::m_ybinning

protectedinherited

The y-binning according to the framegrabber.

Definition at line 145 of file frameGrabber.hpp.

◆ nano_sec_target

float MagAOX::app::mcp3208Ctrl::nano_sec_target { 1e9f / m_fps }

protected

The timer-mode target interval in nanoseconds.

Definition at line 141 of file mcp3208Ctrl.hpp.

Referenced by acquireTimerAndCheckValid().

◆ pidFileName

std::string MagAOX::app::MagAOXApp< _useINDI >::pidFileName

protectedinherited

The name of the PID file.

Definition at line 497 of file MagAOXApp.hpp.

The documentation for this class was generated from the following file:

apps/mcp3208Ctrl/mcp3208Ctrl.hpp

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Friends

Privilege Management

Application State

Signal Handling

Runtime State - Data

PID Locking

INDI Interface

Power Management

Framegrabber Thread

INDI

Synchronization Helpers

Logging

Detailed Description

Member Typedef Documentation

◆ callBackInsertResult

◆ callBackIterator

◆ callBackValueType

◆ cbIndexT

◆ frameGrabberT

◆ logManagerT [1/2]

◆ logManagerT [2/2]

◆ telemeterT

◆ verboseT [1/2]

◆ verboseT [2/2]

Member Enumeration Documentation

◆ fgFlip

Constructor & Destructor Documentation

◆ mcp3208Ctrl()

◆ ~mcp3208Ctrl()

Member Function Documentation

◆ _handlerSigTerm()

◆ acquireAndCheckValid()

◆ acquireSynchroAndCheckValid()

◆ acquireTimerAndCheckValid()

◆ appLogic()

◆ appShutdown()

◆ appStartup()

◆ basePath()

◆ calibDir()

◆ checkConfig()

◆ checkRecordTimes() [1/4]

◆ checkRecordTimes() [2/4]

◆ checkRecordTimes() [3/4]

◆ checkRecordTimes() [4/4]

◆ claimSynchroSemaphore()

◆ clearFSMAlert()

◆ closeSynchroStream()

◆ configBase()

◆ configCircBuffs()

◆ configDir()

◆ configLog()

◆ configName()

◆ configureAcquisition()

◆ cpusetPath()

◆ createINDIFIFOS()

◆ createROIndiNumber()

◆ createROIndiText()

◆ createStandardIndiNumber()

◆ createStandardIndiRequestSw()

◆ createStandardIndiSelectionSw() [1/2]

◆ createStandardIndiSelectionSw() [2/2]

◆ createStandardIndiText()

◆ createStandardIndiToggleSw()

◆ delayBeforeRead()

◆ derived()

◆ driverCtrlName()

◆ driverInName()

◆ driverOutName()

◆ execute()

◆ fgThreadExec()
