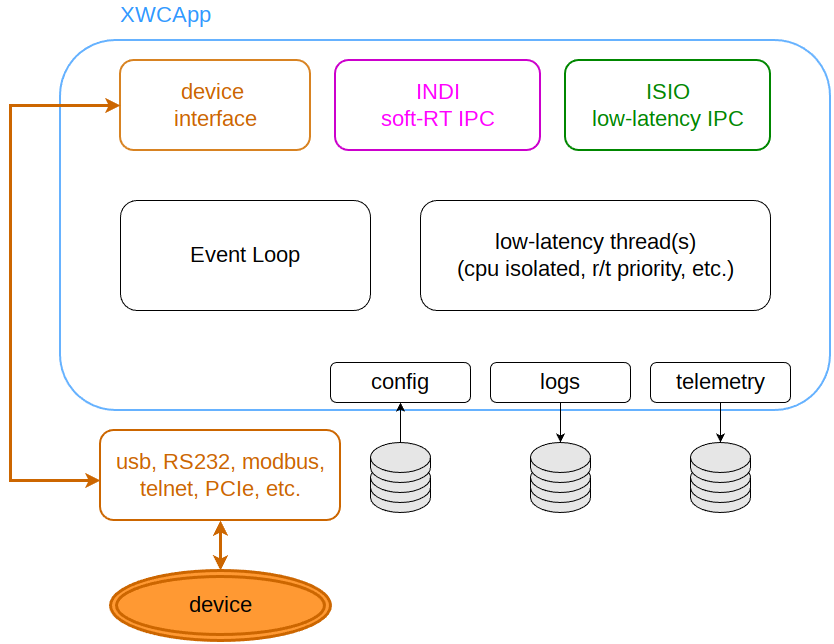

The base-class for XWCTk applications. More...

#include <MagAOXApp.hpp>

Inheritance diagram for MagAOX::app::MagAOXApp< _useINDI >:

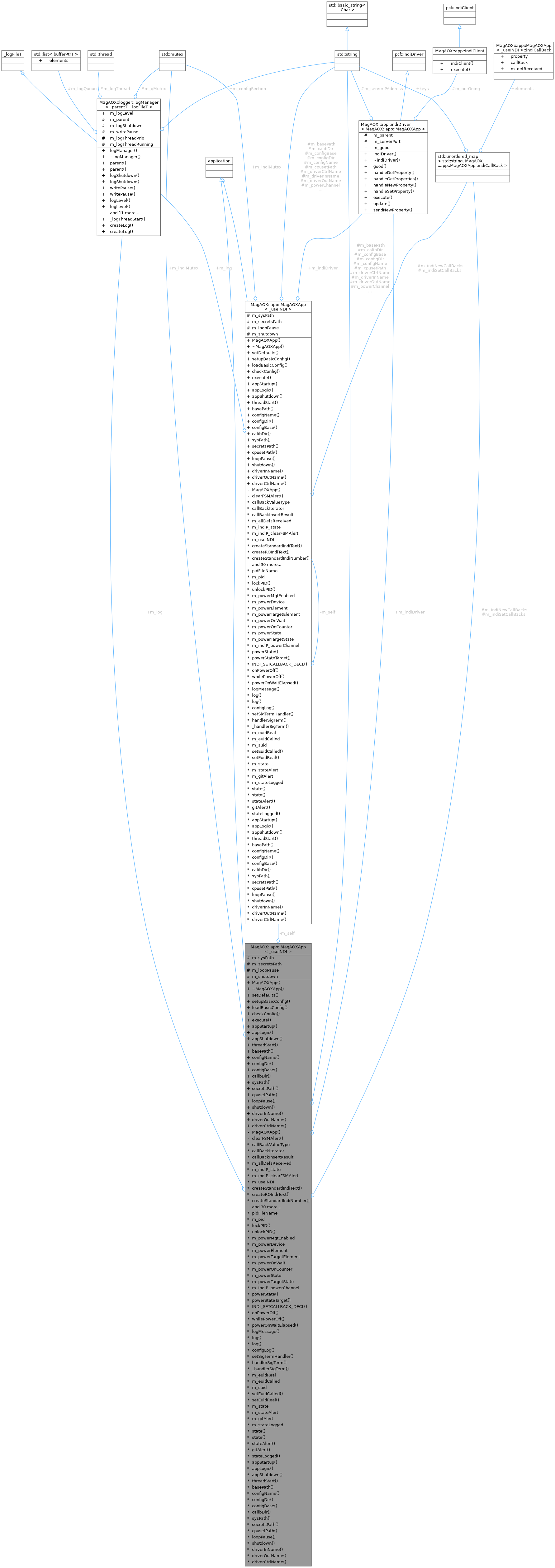

Collaboration diagram for MagAOX::app::MagAOXApp< _useINDI >:

Classes
class	elevatedPrivileges
	Internal class to manage setuid privilege escalation with RAII. More...

struct	indiCallBack
	Structure to hold the call-back details for handling INDI communications. More...

Public Types
typedef logger::logManager< MagAOXApp< _useINDI >, logFileRaw >	logManagerT
	The log manager type.

Public Member Functions
	MagAOXApp (const std::string &git_sha1, const bool git_modified)
	Public c'tor. Handles uid, logs git repo status, and initializes static members.

	~MagAOXApp () noexcept(true)

int	shutdown ()
	Get the value of the shutdown flag.

virtual void	setDefaults (int argc, char **argv)
	Set the paths for config files.

virtual void	setupBasicConfig ()
	The basic MagAO-X configuration setup method. Should not normally be overridden.

virtual void	loadBasicConfig ()
	The basic MagAO-X configuration processing method. Should not normally be overridden.

virtual void	checkConfig ()
	Check for unused and unrecognized config options and settings.

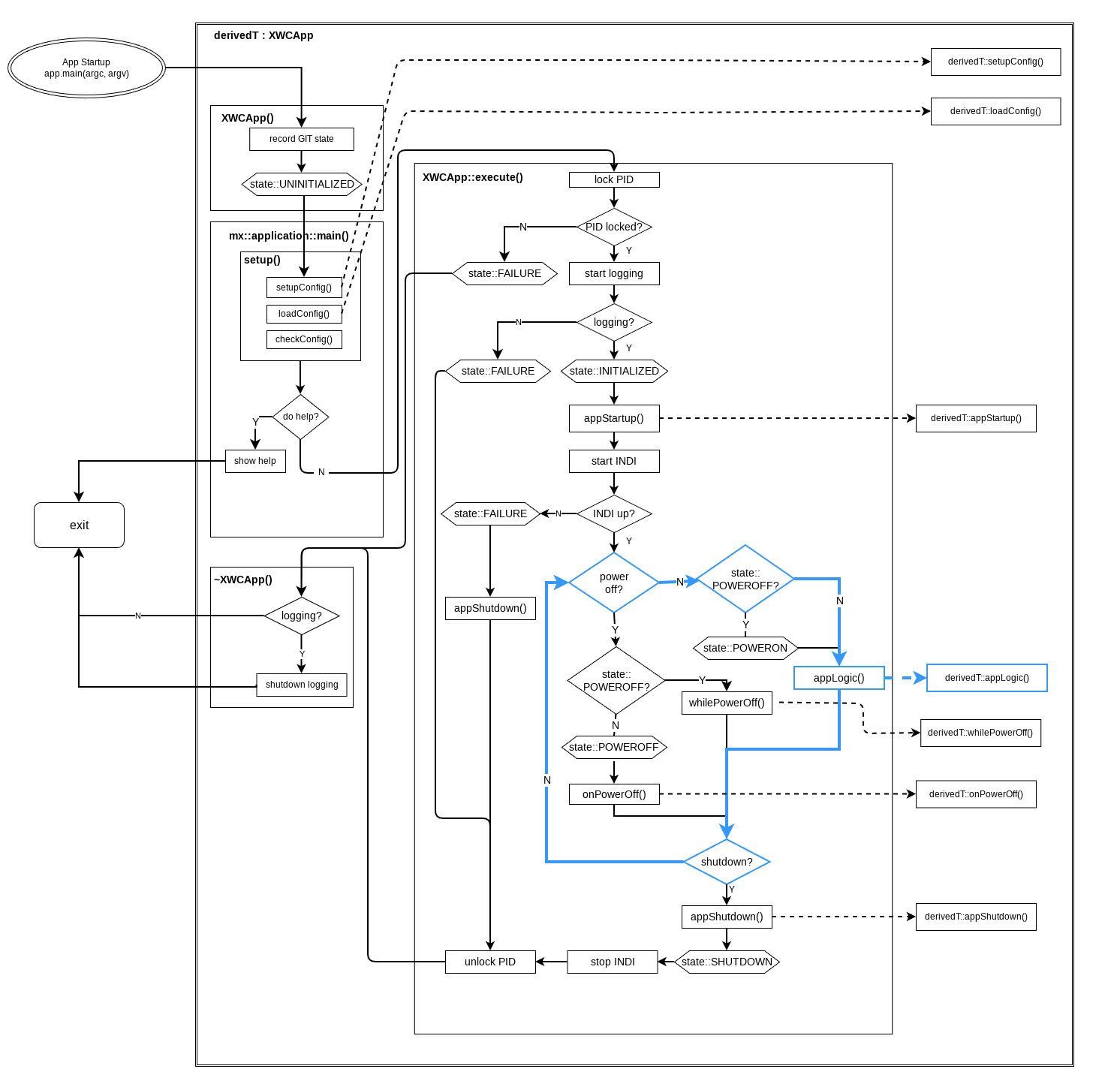

virtual int	execute ()
	The execute method implementing the standard main loop. Should not normally be overridden.

Pure Virtual Functions
Derived applications must implement these.
virtual int	appStartup ()=0
	Any tasks to perform prior to the main event loop go here.

virtual int	appLogic ()=0
	This is where derived applications implement their main FSM logic.

virtual int	appShutdown ()=0
	Any tasks to perform after main loop exit go here.

Threads
template<class thisPtr , class Function >
int	threadStart (std::thread &thrd, bool &thrdInit, pid_t &tpid, pcf::IndiProperty &thProp, int thrdPrio, const std::string &cpuset, const std::string &thrdName, thisPtr *thrdThis, Function &&thrdStart)
	Start a thread, using this class's privileges to set priority, etc.

Member Accessors
std::string	configName ()
	Get the config name.

std::string	configDir ()
	Get the config directory.

std::string	driverInName ()
	Get the INDI input FIFO file name.

std::string	driverOutName ()
	Get the INDI output FIFO file name.

std::string	driverCtrlName ()
	Get the INDI control FIFO file name.

Protected Attributes
std::string	MagAOXPath
	The base path of the MagAO-X system.

std::string	m_configName
	The name of the configuration file (minus .conf).

std::string	m_configDir
	The path to configuration files for MagAOX.

std::string	m_configBase
	The name of a base config class for this app (minus .conf).

std::string	m_calibDir
	The path to calibration files for MagAOX.

std::string	sysPath
	The path to the system directory, for PID file, etc.

std::string	secretsPath
	Path to the secrets directory, where passwords, etc, are stored.

unsigned long	m_loopPause { MAGAOX_default_loopPause }

int	m_shutdown { 0 }
	Flag to signal it's time to shutdown. When not 0, the main loop exits.

cpusets
The path to the cpusets mount is configured by the environment varialbe defined by MAGOX_env_cpuset in environment.hpp. This environment varialbe is normally named "CGROUPS1_CPUSET_MOUNTPOINT". If the environment variable is not set, the default defined by MAGAOX_cpusetPath in paths.hpp is used. This is normally "/opt/MagAOX/cpuset/"
std::string	m_cpusetPath { MAGAOX_cpusetPath }

Private Member Functions
	MagAOXApp ()=delete
	Default c'tor is deleted.

int	clearFSMAlert ()
	Clear the FSM alert state.

Friends
class	MagAOXApp_test

INDI Interface
For reference: "Get" and "New" refer to properties we own. "Set" refers to properties owned by others. So we respond to GetProperties by listing our own properties, and NewProperty is a request to change a property we own. Whereas SetProperty is a notification that someone else has changed a property.
typedef std::pair< std::string, indiCallBack >	callBackValueType
	Value type of the indiCallBack map.

typedef std::unordered_map< std::string, indiCallBack >::iterator	callBackIterator
	Iterator type of the indiCallBack map.

typedef std::pair< callBackIterator, bool >	callBackInsertResult
	Return type of insert on the indiCallBack map.

std::unordered_map< std::string, indiCallBack >	m_indiNewCallBacks
	Map to hold the NewProperty indiCallBacks for this App, with fast lookup by property name.

std::unordered_map< std::string, indiCallBack >	m_indiSetCallBacks
	Map to hold the SetProperty indiCallBacks for this App, with fast lookup by property name.

bool	m_allDefsReceived { false }
	Flag indicating that all registered Set properties have been updated since last Get.

std::string	m_driverInName
	Full path name of the INDI driver input FIFO.

std::string	m_driverOutName
	Full path name of the INDI driver output FIFO.

std::string	m_driverCtrlName
	Full path name of the INDI driver control FIFO.

pcf::IndiProperty	m_indiP_state
	indi Property to report the application state.

pcf::IndiProperty	m_indiP_clearFSMAlert
	indi Property to clear an FSM alert.

static constexpr bool	m_useINDI = _useINDI
	Flag controlling whether INDI is used. If false, then no INDI code executes.

indiDriver< MagAOXApp > *	m_indiDriver { nullptr }
	The INDI driver wrapper. Constructed and initialized by execute, which starts and stops communications.

std::mutex	m_indiMutex
	Mutex for locking INDI communications.

int	createStandardIndiText (pcf::IndiProperty &prop, const std::string &propName, const std::string &label="", const std::string &group="")
	Create a standard R/W INDI Text property with target and current elements.

int	createROIndiText (pcf::IndiProperty &prop, const std::string &propName, const std::string &elName, const std::string &propLabel="", const std::string &propGroup="", const std::string &elLabel="")
	Create a standard ReadOnly INDI Text property, with at least one element.

template<typename T >
int	createStandardIndiNumber (pcf::IndiProperty &prop, const std::string &name, const T &min, const T &max, const T &step, const std::string &format, const std::string &label="", const std::string &group="")
	Create a standard R/W INDI Number property with target and current elements.

int	createROIndiNumber (pcf::IndiProperty &prop, const std::string &propName, const std::string &propLabel="", const std::string &propGroup="")
	Create a ReadOnly INDI Number property.

int	createStandardIndiToggleSw (pcf::IndiProperty &prop, const std::string &name, const std::string &label="", const std::string &group="")
	Create a standard R/W INDI switch with a single toggle element.

int	createStandardIndiRequestSw (pcf::IndiProperty &prop, const std::string &name, const std::string &label="", const std::string &group="")
	Create a standard R/W INDI switch with a single request element.

int	createStandardIndiSelectionSw (pcf::IndiProperty &prop, const std::string &name, const std::vector< std::string > &elements, const std::vector< std::string > &elementLabels, const std::string &label="", const std::string &group="")
	Create a standard R/W INDI selection (one of many) switch with vector of elements and element labels.

int	createStandardIndiSelectionSw (pcf::IndiProperty &prop, const std::string &name, const std::vector< std::string > &elements, const std::string &label="", const std::string &group="")

int	registerIndiPropertyReadOnly (pcf::IndiProperty &prop)
	Register an INDI property which is read only.

int	registerIndiPropertyReadOnly (pcf::IndiProperty &prop, const std::string &propName, const pcf::IndiProperty::Type &propType, const pcf::IndiProperty::PropertyPermType &propPerm, const pcf::IndiProperty::PropertyStateType &propState)
	Register an INDI property which is read only.

int	registerIndiPropertyNew (pcf::IndiProperty &prop, int()(void , const pcf::IndiProperty &))
	Register an INDI property which is exposed for others to request a New Property for.

int	registerIndiPropertyNew (pcf::IndiProperty &prop, const std::string &propName, const pcf::IndiProperty::Type &propType, const pcf::IndiProperty::PropertyPermType &propPerm, const pcf::IndiProperty::PropertyStateType &propState, int()(void , const pcf::IndiProperty &))
	Register an INDI property which is exposed for others to request a New Property for.

int	registerIndiPropertyNew (pcf::IndiProperty &prop, const std::string &propName, const pcf::IndiProperty::Type &propType, const pcf::IndiProperty::PropertyPermType &propPerm, const pcf::IndiProperty::PropertyStateType &propState, const pcf::IndiProperty::SwitchRuleType &propRule, int()(void , const pcf::IndiProperty &))
	Register an INDI property which is exposed for others to request a New Property for, with a switch rule.

int	registerIndiPropertySet (pcf::IndiProperty &prop, const std::string &devName, const std::string &propName, int()(void , const pcf::IndiProperty &))
	Register an INDI property which is monitored for updates from others.

void	sendGetPropertySetList (bool all=false)

void	handleDefProperty (const pcf::IndiProperty &ipRecv)
	Handler for the DEF INDI properties notification.

void	handleGetProperties (const pcf::IndiProperty &ipRecv)
	Handler for the get INDI properties request.

void	handleNewProperty (const pcf::IndiProperty &ipRecv)
	Handler for the new INDI property request.

void	handleSetProperty (const pcf::IndiProperty &ipRecv)
	Handler for the set INDI property request.

static int	st_newCallBack_clearFSMAlert (void *app, const pcf::IndiProperty &ipRecv)
	The static callback function to be registered for requesting to clear the FSM alert.

int	createINDIFIFOS ()
	Create the INDI FIFOs.

int	startINDI ()
	Start INDI Communications.

template<typename T >
void	updateIfChanged (pcf::IndiProperty &p, const std::string &el, const T &newVal, pcf::IndiProperty::PropertyStateType ipState=pcf::IndiProperty::Ok)
	Update an INDI property element value if it has changed.

void	updateIfChanged (pcf::IndiProperty &p, const std::string &el, const char *newVal, pcf::IndiProperty::PropertyStateType ipState=pcf::IndiProperty::Ok)
	Update an INDI property element value if it has changed.

void	updateSwitchIfChanged (pcf::IndiProperty &p, const std::string &el, const pcf::IndiElement::SwitchStateType &newVal, pcf::IndiProperty::PropertyStateType ipState=pcf::IndiProperty::Ok)
	Update an INDI switch element value if it has changed.

template<typename T >
void	updateIfChanged (pcf::IndiProperty &p, const std::string &el, const std::vector< T > &newVals, pcf::IndiProperty::PropertyStateType ipState=pcf::IndiProperty::Ok)
	Update an INDI property if values have changed.

template<typename T >
void	updateIfChanged (pcf::IndiProperty &p, const std::vector< std::string > &els, const std::vector< T > &newVals, pcf::IndiProperty::PropertyStateType newState=pcf::IndiProperty::Ok)
	Update an INDI property if values have changed.

template<typename T >
void	updatesIfChanged (pcf::IndiProperty &p, const std::vector< const char * > &els, const std::vector< T > &newVals, pcf::IndiProperty::PropertyStateType newState=pcf::IndiProperty::Ok)

template<typename T >
int	indiTargetUpdate (pcf::IndiProperty &localProperty, T &localTarget, const pcf::IndiProperty &remoteProperty, bool setBusy=true)
	Get the target element value from an new property.

template<typename T >
int	sendNewProperty (const pcf::IndiProperty &ipSend, const std::string &el, const T &newVal)
	Send a newProperty command to another device (using the INDI Client interface)

int	sendNewProperty (const pcf::IndiProperty &ipSend)
	Send a newProperty command to another device (using the INDI Client interface)

int	sendNewStandardIndiToggle (const std::string &device, const std::string &property, bool onoff)
	Send a new property commmand for a standard toggle switch.

int	newCallBack_clearFSMAlert (const pcf::IndiProperty &ipRecv)
	The callback called by the static version, to actually process the FSM Alert Clear request.

PID Locking
Each MagAOXApp has a PID lock file in the system directory. The app will not startup if it detects that the PID is already locked, preventing duplicates. This is based on the configured name, not the invoked name (argv[0]).
std::string	pidFileName
	The name of the PID file.

pid_t	m_pid { 0 }
	This process's PID.

int	lockPID ()

int	unlockPID ()
	Remove the PID file.

Power Management
For devices which have remote power management (e.g. from one of the PDUs) we implement a standard power state monitoring and management component for the FSM. This needs to be enabled in the derived app constructor. To stay enabled, m_powerDevice and m_powerChannel must be not empty strings after the configuration. These could be set in the derived app defaults. If power management is enabled, then while power is off, appLogic will not be called. Instead a parrallel set of virtual functions is called, onPowerOff (to allow apps to perform cleanup) and whilePowerOff (to allow apps to keep variables updated, etc). Note that these could merely call appLogic if desired.
bool	m_powerMgtEnabled { false }

std::string	m_powerDevice
	The INDI device name of the power controller.

std::string	m_powerChannel
	The INDI property name of the channel controlling this device's power.

std::string	m_powerElement { "state" }
	The INDI element name to monitor for this device's power state.

std::string	m_powerTargetElement { "target" }
	The INDI element name to monitor for this device's power state.

unsigned long	m_powerOnWait { 0 }
	Time in sec to wait for device to boot after power on.

int	m_powerOnCounter { -1 }

int	m_powerState { -1 }
	Current power state, 1=On, 0=Off, -1=Unk.

int	m_powerTargetState { -1 }
	Current target power state, 1=On, 0=Off, -1=Unk.

pcf::IndiProperty	m_indiP_powerChannel
	INDI property used to communicate power state.

int	powerState ()
	Returns the current power state.

int	powerStateTarget ()
	Returns the target power state.

	INDI_SETCALLBACK_DECL (MagAOXApp, m_indiP_powerChannel)

virtual int	onPowerOff ()
	This method is called when the change to poweroff is detected.

virtual int	whilePowerOff ()
	This method is called while the power is off, once per FSM loop.

bool	powerOnWaitElapsed ()
	This method tests whether the power on wait time has elapsed.

Logging
static logManagerT	m_log

void	logMessage (bufferPtrT &b)
	Handle a log message from the logging system.

template<typename logT , int retval = 0>
static int	log (const typename logT::messageT &msg, logPrioT level=logPrio::LOG_DEFAULT)
	Make a log entry.

template<typename logT , int retval = 0>
static int	log (logPrioT level=logPrio::LOG_DEFAULT)
	Make a log entry.

static void	configLog (const std::string &name, const int &code, const std::string &value, const std::string &source)
	Callback for config system logging.

Signal Handling
libMagAOX/logger/types/software_log.hpp
static MagAOXApp *	m_self = nullptr

int	setSigTermHandler ()
	Sets the handler for SIGTERM, SIGQUIT, and SIGINT.

void	handlerSigTerm (int signum, siginfo_t siginf, void ucont)
	Handles SIGTERM, SIGQUIT, and SIGINT. Sets m_shutdown to 1 and logs the signal.

static void	_handlerSigTerm (int signum, siginfo_t siginf, void ucont)
	The handler called when SIGTERM, SIGQUIT, or SIGINT is received. Just a wrapper for handlerSigTerm.

Privilege Management
uid_t	m_euidReal
	The real user id of the proces (i.e. the lower privileged id of the user)

uid_t	m_euidCalled

uid_t	m_suid
	The save-set user id of the process.

int	setEuidCalled ()
	Set the effective user ID to the called value, i.e. the highest possible.

int	setEuidReal ()
	Set the effective user ID to the real value, i.e. the file owner.

Application State
stateCodes::stateCodeT	m_state { stateCodes::UNINITIALIZED }

bool	m_stateAlert { false }

bool	m_gitAlert { false }

int	m_stateLogged { 0 }

stateCodes::stateCodeT	state ()
	Get the current state code.

void	state (const stateCodes::stateCodeT &s, bool stateAlert=false)
	Set the current state code.

int	stateLogged ()
	Updates and returns the value of m_stateLogged. Will be 0 on first call after a state change, >0 afterwards.

Detailed Description

template<bool _useINDI = true>
class MagAOX::app::MagAOXApp< _useINDI >

The base-class for XWCTk applications.

This class implements the standard logic for an XWCTk application, including PID locking, privilege management, configuration, logging, INDI communications, and a finite state machine (FSM).

A typical XWCApp is the interface to a single piece of hardware, such as a camera or a filter wheel. Through various optional CRTP base classes, many different standard functionalities can be included. The following figure illustrates the facilities provided by a typical app.

Block diagram of a typical XWCApp. Note that ImageStreamIO (ISIO) is not included by default, but there are several ways to interface with 'image streams' provided in XWCTk. Many different hardware device interfaces are similarly provided.

This class is inherited using standard virtual inheritance. The virtual interface consists of the following functions:

/// Setup the configuration system (called by MagAOXApp::setup())
virtual void setupConfig();

/// load the configuration system results (called by MagAOXApp::setup())
virtual void loadConfig();

/// Startup functions

/// Sets up the INDI vars, starts any threads, and other preparatory tasks.
virtual int appStartup();

/// Implementation of the FSM specific to the application
virtual int appLogic();

/// Implementation of the on-power-off logic (called once on change to POWEROFF)
virtual int onPowerOff();

/// Implementation of the while-powered-off logic (called every loop while powered off)
virtual int whilePowerOff();

/// Do any needed shutdown tasks.
virtual int appShutdown();

The following figure illustrates the logic of the XWCApp FSM.

The XWCApp FSM. The blue sequence highlights the normal 'appLogic' loop.

Standard configurable options are set in setupBasicConfig(). See either the source code for that function or run an application with -h.

You can define a base configuration file for this class by defining

m_configBase = "base_name";

MagAOX::app::MagAOXApp::m_configBase

std::string m_configBase

The name of a base config class for this app (minus .conf).

Definition MagAOXApp.hpp:127

in the derived class constructor. This would be used, for instance to have a config common to all filter wheels.

Todo:: add a check if _useINDI== false and power management is true

Definition at line 112 of file MagAOXApp.hpp.

Member Typedef Documentation

◆ callBackInsertResult

template<bool _useINDI = true>

typedef std::pair<callBackIterator, bool> MagAOX::app::MagAOXApp< _useINDI >::callBackInsertResult

Return type of insert on the indiCallBack map.

Definition at line 607 of file MagAOXApp.hpp.

◆ callBackIterator

template<bool _useINDI = true>

typedef std::unordered_map<std::string,indiCallBack>::iterator MagAOX::app::MagAOXApp< _useINDI >::callBackIterator

Iterator type of the indiCallBack map.

Definition at line 604 of file MagAOXApp.hpp.

◆ callBackValueType

template<bool _useINDI = true>

typedef std::pair<std::string, indiCallBack> MagAOX::app::MagAOXApp< _useINDI >::callBackValueType

Value type of the indiCallBack map.

Definition at line 601 of file MagAOXApp.hpp.

◆ logManagerT

template<bool _useINDI = true>

typedef logger::logManager<MagAOXApp<_useINDI>, logFileRaw> MagAOX::app::MagAOXApp< _useINDI >::logManagerT

The log manager type.

Definition at line 118 of file MagAOXApp.hpp.

Constructor & Destructor Documentation

◆ MagAOXApp() [1/2]

template<bool _useINDI = true>

MagAOX::app::MagAOXApp< _useINDI >::MagAOXApp ( )

privatedelete

Default c'tor is deleted.

◆ MagAOXApp() [2/2]

template<bool _useINDI>

MagAOX::app::MagAOXApp< _useINDI >::MagAOXApp	(	const std::string &	git_sha1,
		const bool	git_modified
	)

Public c'tor. Handles uid, logs git repo status, and initializes static members.

Only one MagAOXApp can be instantiated per program. Hence this c'tor will issue exit(-1) if the static self-pointer m_self is already initialized.

euid is set to 'real' to ensure that the application has normal privileges unless explicitly needed.

Reference: http://man7.org/linux/man-pages/man2/getresuid.2.html

The git repository status is required to create a MagAOXApp. Derived classes should include the results of running gengithead.sh and pass the defined sha1 and modified flags.

Parameters

[in]	git_sha1	The current SHA1 hash of the git repository
[in]	git_modified	Whether or not the repo is modified.

Definition at line 1180 of file MagAOXApp.hpp.

◆ ~MagAOXApp()

template<bool _useINDI>

MagAOX::app::MagAOXApp< _useINDI >::~MagAOXApp ( )

noexcept

Definition at line 1220 of file MagAOXApp.hpp.

Member Function Documentation

◆ _handlerSigTerm()

template<bool _useINDI>

void MagAOX::app::MagAOXApp< _useINDI >::_handlerSigTerm	(	int	signum,
		siginfo_t *	siginf,
		void *	ucont
	)

staticprivate

The handler called when SIGTERM, SIGQUIT, or SIGINT is received. Just a wrapper for handlerSigTerm.

Parameters

[in]	signum	specifies the signal.
[in]	siginf	ignored by MagAOXApp
[in]	ucont	ignored by MagAOXApp

Definition at line 1969 of file MagAOXApp.hpp.

◆ appLogic()

template<bool _useINDI = true>

virtual int MagAOX::app::MagAOXApp< _useINDI >::appLogic ( )

pure virtual

This is where derived applications implement their main FSM logic.

This will be called every m_loopPause nanoseconds until the application terminates.

FSM state will be whatever it is on exti from appStartup.

Should return -1 on an any unrecoverable errors which will caues app to terminate. Could also set m_shutdown=1. Return 0 on success, or at least intent to continue.

Implemented in MagAOX::app::acesxeCtrl, MagAOX::app::acronameUsbHub, MagAOX::app::adcTracker, MagAOX::app::alignLoop, MagAOX::app::alpaoCtrl, MagAOX::app::andorCtrl, MagAOX::app::baslerCtrl, MagAOX::app::bmcCtrl, MagAOX::app::cacaoInterface, MagAOX::app::cameraSim, MagAOX::app::closedLoopIndi, MagAOX::app::dlDataCollection, MagAOX::app::dmMode, MagAOX::app::dmPokeCenter, MagAOX::app::dmPokeXCorr, MagAOX::app::dmSpeckle, MagAOX::app::filterWheelCtrl, MagAOX::app::flipperCtrl, MagAOX::app::hoPredCtrl, MagAOX::app::hsfwCtrl, MagAOX::app::indiTSAccumulator, MagAOX::app::irisaoCtrl, MagAOX::app::kcubeCtrl, MagAOX::app::koolanceCtrl, MagAOX::app::kTracker, MagAOX::app::loPredCtrl, MagAOX::app::magAOXMaths, MagAOX::app::mcp3008Ctrl, MagAOX::app::modalFilter, MagAOX::app::modalGainOpt, MagAOX::app::modalPSDs, MagAOX::app::mzmqClient, MagAOX::app::mzmqServer, MagAOX::app::nnReconstructor, MagAOX::app::nnReconstructor, MagAOX::app::observerCtrl, MagAOX::app::ocam2KCtrl, MagAOX::app::photonCounter, MagAOX::app::pi335Ctrl, MagAOX::app::picamCtrl, MagAOX::app::picoMotorCtrl, MagAOX::app::po4ao, MagAOX::app::psfAcq, MagAOX::app::psfFit, MagAOX::app::pupilAlign, MagAOX::app::pupilFit, MagAOX::app::pvcamCtrl, MagAOX::app::pwfsSlopeCalc, MagAOX::app::qhyCtrl, MagAOX::app::refRMS, MagAOX::app::rhusbMon, MagAOX::app::shmimIntegrator, MagAOX::app::siglentSDG, MagAOX::app::smc100ccCtrl, MagAOX::app::sparkleClock, MagAOX::app::sshDigger, MagAOX::app::stateRuleEngine, MagAOX::app::streamCircBuff, MagAOX::app::streamWriter, MagAOX::app::strehlEstimator, MagAOX::app::sysMonitor, MagAOX::app::t2wOffloader, MagAOX::app::tcsInterface, MagAOX::app::timeSeriesSimulator, MagAOX::app::trippLitePDU, MagAOX::app::ttmModulator, MagAOX::app::usbtempMon, MagAOX::app::userGainCtrl, MagAOX::app::w2tcsOffloader, MagAOX::app::xindiserver, MagAOX::app::xt1121Ctrl, MagAOX::app::xt1121DCDU, MagAOX::app::zaberCtrl, MagAOX::app::zaberLowLevel, MagAOX::app::zylaCtrl, and MagAOXApp_tests::MagAOXApp_test.

◆ appShutdown()

template<bool _useINDI = true>

virtual int MagAOX::app::MagAOXApp< _useINDI >::appShutdown ( )

pure virtual

Any tasks to perform after main loop exit go here.

Should be able to handle case where appStartup and/or appLogic have not run.

Implemented in MagAOX::app::acesxeCtrl, MagAOX::app::acronameUsbHub, MagAOX::app::adcTracker, MagAOX::app::alignLoop, MagAOX::app::alpaoCtrl, MagAOX::app::andorCtrl, MagAOX::app::baslerCtrl, MagAOX::app::bmcCtrl, MagAOX::app::cacaoInterface, MagAOX::app::cameraSim, MagAOX::app::closedLoopIndi, MagAOX::app::dlDataCollection, MagAOX::app::dmMode, MagAOX::app::dmPokeCenter, MagAOX::app::dmPokeXCorr, MagAOX::app::dmSpeckle, MagAOX::app::filterWheelCtrl, MagAOX::app::flipperCtrl, MagAOX::app::hoPredCtrl, MagAOX::app::hsfwCtrl, MagAOX::app::indiTSAccumulator, MagAOX::app::irisaoCtrl, MagAOX::app::kcubeCtrl, MagAOX::app::koolanceCtrl, MagAOX::app::kTracker, MagAOX::app::loPredCtrl, MagAOX::app::magAOXMaths, MagAOX::app::mcp3008Ctrl, MagAOX::app::modalFilter, MagAOX::app::modalGainOpt, MagAOX::app::modalPSDs, MagAOX::app::mzmqClient, MagAOX::app::mzmqServer, MagAOX::app::nnReconstructor, MagAOX::app::nnReconstructor, MagAOX::app::observerCtrl, MagAOX::app::ocam2KCtrl, MagAOX::app::photonCounter, MagAOX::app::pi335Ctrl, MagAOX::app::picamCtrl, MagAOX::app::picoMotorCtrl, MagAOX::app::po4ao, MagAOX::app::psfAcq, MagAOX::app::psfFit, MagAOX::app::pupilAlign, MagAOX::app::pupilFit, MagAOX::app::pvcamCtrl, MagAOX::app::pwfsSlopeCalc, MagAOX::app::qhyCtrl, MagAOX::app::refRMS, MagAOX::app::rhusbMon, MagAOX::app::shmimIntegrator, MagAOX::app::siglentSDG, MagAOX::app::smc100ccCtrl, MagAOX::app::sparkleClock, MagAOX::app::sshDigger, MagAOX::app::stateRuleEngine, MagAOX::app::streamCircBuff, MagAOX::app::streamWriter, MagAOX::app::strehlEstimator, MagAOX::app::sysMonitor, MagAOX::app::t2wOffloader, MagAOX::app::tcsInterface, MagAOX::app::timeSeriesSimulator, MagAOX::app::trippLitePDU, MagAOX::app::ttmModulator, MagAOX::app::usbtempMon, MagAOX::app::userGainCtrl, MagAOX::app::w2tcsOffloader, MagAOX::app::xindiserver, MagAOX::app::xt1121Ctrl, MagAOX::app::xt1121DCDU, MagAOX::app::zaberCtrl, MagAOX::app::zaberLowLevel, MagAOX::app::zylaCtrl, and MagAOXApp_tests::MagAOXApp_test.

◆ appStartup()

template<bool _useINDI = true>

virtual int MagAOX::app::MagAOXApp< _useINDI >::appStartup ( )

pure virtual

Any tasks to perform prior to the main event loop go here.

This is called after signal handling is installed. FSM state is stateCodes::INITIALIZED when this is called.

Set m_shutdown = 1 on any fatal errors here.

Implemented in MagAOX::app::acesxeCtrl, MagAOX::app::acronameUsbHub, MagAOX::app::adcTracker, MagAOX::app::alignLoop, MagAOX::app::alpaoCtrl, MagAOX::app::andorCtrl, MagAOX::app::baslerCtrl, MagAOX::app::bmcCtrl, MagAOX::app::cacaoInterface, MagAOX::app::cameraSim, MagAOX::app::closedLoopIndi, MagAOX::app::dlDataCollection, MagAOX::app::dmMode, MagAOX::app::dmPokeCenter, MagAOX::app::dmPokeXCorr, MagAOX::app::dmSpeckle, MagAOX::app::filterWheelCtrl, MagAOX::app::flipperCtrl, MagAOX::app::hoPredCtrl, MagAOX::app::hsfwCtrl, MagAOX::app::indiTSAccumulator, MagAOX::app::irisaoCtrl, MagAOX::app::kcubeCtrl, MagAOX::app::koolanceCtrl, MagAOX::app::kTracker, MagAOX::app::loPredCtrl, MagAOX::app::magAOXMaths, MagAOX::app::mcp3008Ctrl, MagAOX::app::modalFilter, MagAOX::app::modalGainOpt, MagAOX::app::modalPSDs, MagAOX::app::mzmqClient, MagAOX::app::mzmqServer, MagAOX::app::nnReconstructor, MagAOX::app::nnReconstructor, MagAOX::app::observerCtrl, MagAOX::app::ocam2KCtrl, MagAOX::app::photonCounter, MagAOX::app::pi335Ctrl, MagAOX::app::picamCtrl, MagAOX::app::picoMotorCtrl, MagAOX::app::po4ao, MagAOX::app::psfAcq, MagAOX::app::psfFit, MagAOX::app::pupilAlign, MagAOX::app::pupilFit, MagAOX::app::pvcamCtrl, MagAOX::app::pwfsSlopeCalc, MagAOX::app::qhyCtrl, MagAOX::app::refRMS, MagAOX::app::rhusbMon, MagAOX::app::shmimIntegrator, MagAOX::app::siglentSDG, MagAOX::app::smc100ccCtrl, MagAOX::app::sparkleClock, MagAOX::app::sshDigger, MagAOX::app::stateRuleEngine, MagAOX::app::streamCircBuff, MagAOX::app::streamWriter, MagAOX::app::strehlEstimator, MagAOX::app::sysMonitor, MagAOX::app::t2wOffloader, MagAOX::app::tcsInterface, MagAOX::app::timeSeriesSimulator, MagAOX::app::trippLitePDU, MagAOX::app::ttmModulator, MagAOX::app::usbtempMon, MagAOX::app::userGainCtrl, MagAOX::app::w2tcsOffloader, MagAOX::app::xindiserver, MagAOX::app::xt1121Ctrl, MagAOX::app::xt1121DCDU, MagAOX::app::zaberCtrl, MagAOX::app::zaberLowLevel, MagAOX::app::zylaCtrl, and MagAOXApp_tests::MagAOXApp_test.

◆ checkConfig()

template<bool _useINDI>

void MagAOX::app::MagAOXApp< _useINDI >::checkConfig ( )

virtual

Check for unused and unrecognized config options and settings.

Logs the unused targets as warnings. Unrecognized and unused options are logged as critical, and m_shutdown is set. Any command line argument (not an option) will also be critical and cause shutdown.

Definition at line 1489 of file MagAOXApp.hpp.

◆ clearFSMAlert()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::clearFSMAlert ( )

private

Clear the FSM alert state.

This can only be done from within this class, and this should only be possible via user action via INDI.

Definition at line 2424 of file MagAOXApp.hpp.

◆ configDir()

template<bool _useINDI>

std::string MagAOX::app::MagAOXApp< _useINDI >::configDir ( )

Get the config directory.

Returns: the current value of m_configDir

Definition at line 3553 of file MagAOXApp.hpp.

◆ configLog()

template<bool _useINDI>

void MagAOX::app::MagAOXApp< _useINDI >::configLog	(	const std::string &	name,
		const int &	code,
		const std::string &	value,
		const std::string &	source
	)

staticprotected

Callback for config system logging.

Called by appConfigurator each time a value is set using the config() operator. You never need to call this directly.

Parameters

[in]	name	The name of the config value
[in]	code	numeric code specifying the type
[in]	value	the value read by the config system
[in]	source	the source of the value.

Definition at line 1911 of file MagAOXApp.hpp.

◆ configName()

template<bool _useINDI>

std::string MagAOX::app::MagAOXApp< _useINDI >::configName ( )

Get the config name.

Returns: the current value of m_configName

Definition at line 3547 of file MagAOXApp.hpp.

Referenced by MagAOXApp_tests::MagAOXApp_test::configName(), MagAOX::app::andorCtrl::loadConfig(), and MagAOX::app::andorCtrl::writeConfig().

◆ createINDIFIFOS()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::createINDIFIFOS ( )

protected

Create the INDI FIFOs.

Changes permissions to max available and creates the FIFOs at the configured path.

Todo:: make driver FIFO path full configurable.

Definition at line 2876 of file MagAOXApp.hpp.

◆ createROIndiNumber()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::createROIndiNumber	(	pcf::IndiProperty &	prop,
		const std::string &	propName,
		const std::string &	propLabel = `""`,
		const std::string &	propGroup = `""`
	)

Create a ReadOnly INDI Number property.

Returns: 0 on success; -1 on error

Parameters

[out]	prop	the property to create and setup
[in]	propName	the name of the property
[in]	propLabel	[optional] the GUI label suggestion for this property
[in]	propGroup	[optional] the group for this property

Definition at line 2565 of file MagAOXApp.hpp.

Referenced by MagAOX::app::picamCtrl::appStartup(), and MagAOX::app::zaberCtrl::appStartup().

◆ createROIndiText()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::createROIndiText	(	pcf::IndiProperty &	prop,
		const std::string &	propName,
		const std::string &	elName,
		const std::string &	propLabel = `""`,
		const std::string &	propGroup = `""`,
		const std::string &	elLabel = `""`
	)

Create a standard ReadOnly INDI Text property, with at least one element.

Returns: 0 on success; -1 on error

Parameters

[out]	prop	the property to create and setup
[in]	propName	the name of the property
[in]	elName	the name of the element
[in]	propLabel	[optional] the GUI label suggestion for this property
[in]	propGroup	[optional] the group for this property
[in]	elLabel	[optional] the GUI label suggestion for the element

Definition at line 2482 of file MagAOXApp.hpp.

◆ createStandardIndiNumber()

template<bool _useINDI>

template<typename T >

int MagAOX::app::MagAOXApp< _useINDI >::createStandardIndiNumber	(	pcf::IndiProperty &	prop,
		const std::string &	name,
		const T &	min,
		const T &	max,
		const T &	step,
		const std::string &	format,
		const std::string &	label = `""`,
		const std::string &	group = `""`
	)

Create a standard R/W INDI Number property with target and current elements.

Returns: 0 on success; -1 on error

Parameters

[out]	prop	the property to create and setup
[in]	name	the name of the property
[in]	min	the minimum value for the elements, applied to both target and current
[in]	max	the minimum value for the elements, applied to both target and current
[in]	step	the step size for the elements, applied to both target and current
[in]	format	the _ value for the elements, applied to both target and current. Set to "" to use the MagAO-X standard for type.
[in]	label	[optional] the GUI label suggestion for this property
[in]	group	[optional] the group for this property

Definition at line 2518 of file MagAOXApp.hpp.

Referenced by MagAOX::app::picoMotorCtrl::appStartup().

◆ createStandardIndiRequestSw()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::createStandardIndiRequestSw	(	pcf::IndiProperty &	prop,
		const std::string &	name,
		const std::string &	label = `""`,
		const std::string &	group = `""`
	)

Create a standard R/W INDI switch with a single request element.

This switch is intended to function like a momentary switch.

Returns: 0 on success; -1 on error

Parameters

[out]	prop	the property to create and setup
[in]	name	the name of the property
[in]	label	[optional] the GUI label suggestion for this property
[in]	group	[optional] the group for this property

Definition at line 2621 of file MagAOXApp.hpp.

Referenced by MagAOX::app::ocam2KCtrl::appStartup().

◆ createStandardIndiSelectionSw() [1/2]

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::createStandardIndiSelectionSw	(	pcf::IndiProperty &	prop,
		const std::string &	name,
		const std::vector< std::string > &	elements,
		const std::string &	label = `""`,
		const std::string &	group = `""`
	)

Create a standard R/W INDI selection (one of many) switch with vector of elements using the element strings as their own labels This switch is intended to function like drop down menu.

Returns: 0 on success; -1 on error

Parameters

[out]	prop	the property to create and setup
[in]	name	the name of the property,
[in]	elements	the element names to give to the switches
[in]	label	[optional] the GUI label suggestion for this property
[in]	group	[optional] the group for this property

Definition at line 2693 of file MagAOXApp.hpp.

◆ createStandardIndiSelectionSw() [2/2]

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::createStandardIndiSelectionSw	(	pcf::IndiProperty &	prop,
		const std::string &	name,
		const std::vector< std::string > &	elements,
		const std::vector< std::string > &	elementLabels,
		const std::string &	label = `""`,
		const std::string &	group = `""`
	)

Create a standard R/W INDI selection (one of many) switch with vector of elements and element labels.

This switch is intended to function like drop down menu.

Returns: 0 on success; -1 on error

Parameters

[out]	prop	the property to create and setup
[in]	name	the name of the property,
[in]	elements	the element names to give to the switches
[in]	elementLabels	the element labels to give to the switches
[in]	label	[optional] the GUI label suggestion for this property
[in]	group	[optional] the group for this property

Definition at line 2651 of file MagAOXApp.hpp.

Referenced by MagAOX::app::picoMotorCtrl::appStartup().

◆ createStandardIndiText()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::createStandardIndiText	(	pcf::IndiProperty &	prop,
		const std::string &	propName,
		const std::string &	label = `""`,
		const std::string &	group = `""`
	)

Create a standard R/W INDI Text property with target and current elements.

Returns: 0 on success; -1 on error

Parameters

[out]	prop	the property to create and setup
[in]	propName	the name of the property
[in]	label	[optional] the GUI label suggestion for this property
[in]	group	[optional] the group for this property

Definition at line 2454 of file MagAOXApp.hpp.

◆ createStandardIndiToggleSw()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::createStandardIndiToggleSw	(	pcf::IndiProperty &	prop,
		const std::string &	name,
		const std::string &	label = `""`,
		const std::string &	group = `""`
	)

Create a standard R/W INDI switch with a single toggle element.

This switch is intended to function like an on/off toggle switch.

Returns: 0 on success; -1 on error

Parameters

[out]	prop	the property to create and setup
[in]	name	the name of the property
[in]	label	[optional] the GUI label suggestion for this property
[in]	group	[optional] the group for this property

Definition at line 2591 of file MagAOXApp.hpp.

Referenced by MagAOX::app::siglentSDG::appStartup(), MagAOX::app::streamWriter::appStartup(), and MagAOX::app::sysMonitor::appStartup().

◆ driverCtrlName()

template<bool _useINDI>

std::string MagAOX::app::MagAOXApp< _useINDI >::driverCtrlName ( )

Get the INDI control FIFO file name.

Returns: the current value of m_driverCtrlName

Definition at line 3571 of file MagAOXApp.hpp.

◆ driverInName()

template<bool _useINDI>

std::string MagAOX::app::MagAOXApp< _useINDI >::driverInName ( )

Get the INDI input FIFO file name.

Returns: the current value of m_driverInName

Definition at line 3559 of file MagAOXApp.hpp.

◆ driverOutName()

template<bool _useINDI>

std::string MagAOX::app::MagAOXApp< _useINDI >::driverOutName ( )

Get the INDI output FIFO file name.

Returns: the current value of m_driverOutName

Definition at line 3565 of file MagAOXApp.hpp.

◆ execute()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::execute ( )

virtual

The execute method implementing the standard main loop. Should not normally be overridden.

Performs final startup steps. That is:

Verifies correct effective user-id by comparison to logs directory.
PID locking lockPID()
log thread startup by logThreadStart()
signal handling installation by setSigTermHandler()
appStartup() is called
INDI communications started by startINDI()
power state is checked, pausing if unknown (if being managed)

Errors in the above steps will cause a process exit.

Then commences the main event loop. Conditions on entry to the main loop:

PID locked
Log thread running
Signal handling installed
appStartup successful
INDI communications started successfully (if being used)
power state known (if being managed)

In the event loop, the power state is checked (if being managed). If power is off, then onPowerOff is called. If power is on, or power is not managed, appLogic is called. These methods are implemented in derived classes, and are called every m_loopPause interval.

If an error is returned by either onPowerOff or appLogic, or a signal is handled, then the shutdown is managed. This includes shutting down INDI, calling appShutdown, and unlocking the PID. The log thread will shutdown.

Todo:: Need a heartbeat update here.

Definition at line 1556 of file MagAOXApp.hpp.

◆ handleDefProperty()

template<bool _useINDI>

void MagAOX::app::MagAOXApp< _useINDI >::handleDefProperty ( const pcf::IndiProperty & ipRecv )

Handler for the DEF INDI properties notification.

Uses the properties registered in m_indiSetCallBacks to process the notification. This is called by m_indiDriver's indiDriver::handleDefProperties.

Parameters

[in] ipRecv The property being sent.

Definition at line 3037 of file MagAOXApp.hpp.

◆ handleGetProperties()

template<bool _useINDI>

void MagAOX::app::MagAOXApp< _useINDI >::handleGetProperties ( const pcf::IndiProperty & ipRecv )

Handler for the get INDI properties request.

Uses the properties registered in m_indiCallBacks to respond to the request. This is called by m_indiDriver's indiDriver::handleGetProperties.

Parameters

[in] ipRecv The property being requested.

Definition at line 3043 of file MagAOXApp.hpp.

◆ handleNewProperty()

template<bool _useINDI>

void MagAOX::app::MagAOXApp< _useINDI >::handleNewProperty ( const pcf::IndiProperty & ipRecv )

Handler for the new INDI property request.

Uses the properties registered in m_indiCallBacks to respond to the request, looking up the callback for this property and calling it.

This is called by m_indiDriver's indiDriver::handleGetProperties.

Todo:: handle errors, are they FATAL?

Parameters

[in] ipRecv The property being changed.

Definition at line 3112 of file MagAOXApp.hpp.

Referenced by MagAOXApp_tests::SCENARIO().

◆ handlerSigTerm()

template<bool _useINDI>

void MagAOX::app::MagAOXApp< _useINDI >::handlerSigTerm	(	int	signum,
		siginfo_t *	siginf,
		void *	ucont
	)

private

Handles SIGTERM, SIGQUIT, and SIGINT. Sets m_shutdown to 1 and logs the signal.

Parameters

[in]	signum	specifies the signal.
[in]	siginf	ignored by MagAOXApp
[in]	ucont	ignored by MagAOXApp

Definition at line 1975 of file MagAOXApp.hpp.

◆ handleSetProperty()

template<bool _useINDI>

void MagAOX::app::MagAOXApp< _useINDI >::handleSetProperty ( const pcf::IndiProperty & ipRecv )

Handler for the set INDI property request.

This is called by m_indiDriver's indiDriver::handleSetProperties.

Todo:: handle errors, are they FATAL?

Todo:: log an error here because callBack should not be null

Todo:: log invalid SetProperty request.

Parameters

[in] ipRecv The property being changed.

Definition at line 3137 of file MagAOXApp.hpp.

◆ INDI_SETCALLBACK_DECL()

template<bool _useINDI = true>

MagAOX::app::MagAOXApp< _useINDI >::INDI_SETCALLBACK_DECL	(	MagAOXApp< _useINDI >	,
		m_indiP_powerChannel
	)

◆ indiTargetUpdate()

template<bool _useINDI>

template<typename T >

int MagAOX::app::MagAOXApp< _useINDI >::indiTargetUpdate	(	pcf::IndiProperty &	localProperty,
		T &	localTarget,
		const pcf::IndiProperty &	remoteProperty,
		bool	setBusy = `true`
	)

protected

Get the target element value from an new property.

Returns: 0 on success; -1 on error

Parameters

[out]	localProperty	The local property to update
[out]	localTarget	The local value to update
[in]	remoteProperty	the new property received
[in]	setBusy	[optional] set property to busy if true

Definition at line 3265 of file MagAOXApp.hpp.

Referenced by MagAOX::app::picoMotorCtrl::newCallBack_picopos().

◆ loadBasicConfig()

template<bool _useINDI>

void MagAOX::app::MagAOXApp< _useINDI >::loadBasicConfig ( )

virtual

The basic MagAO-X configuration processing method. Should not normally be overridden.

This method processes the standard MagAO-X key=value pairs.

Though it is virtual, it should not normally be overridden unless you need to depart from the MagAO-X standard.

Processing of app specific config goes in loadConfig() implemented by the derived class.

Definition at line 1431 of file MagAOXApp.hpp.

◆ lockPID()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::lockPID ( )

protected

Attempt to lock the PID by writing it to a file. Fails if a process is already running with the same config name. First checks the PID file for an existing PID. If found, interrogates /proc to determine if that process is running and if so if the command line matches. If a matching process is currently running, then this returns an error.

Will not fail if a PID file exists but the stored PID does not correspond to a running process with the same command line name.

Reference: https://linux.die.net/man/3/getpid

Returns: 0 on success.; -1 on any error, including creating the PID file or if this app is already running.

Definition at line 2047 of file MagAOXApp.hpp.

◆ log() [1/2]

template<bool _useINDI>

template<typename logT , int retval>

int MagAOX::app::MagAOXApp< _useINDI >::log	(	const typename logT::messageT &	msg,
		logPrioT	level = `logPrio::LOG_DEFAULT`
	)

static

Make a log entry.

Wrapper for logManager::log

Template Parameters

logT	the log entry type
retval	the value returned by this method.

Parameters

[in]	msg	the message to log
[in]	level	[optional] the log level. The default is used if not specified.

Definition at line 1852 of file MagAOXApp.hpp.

◆ log() [2/2]

template<bool _useINDI>

template<typename logT , int retval>

int MagAOX::app::MagAOXApp< _useINDI >::log ( logPrioT level = logPrio::LOG_DEFAULT )

static

Make a log entry.

Wrapper for logManager::log

Template Parameters

logT	the log entry type
retval	the value returned by this method.

Parameters

[in] level [optional] the log level. The default is used if not specified.

Definition at line 1860 of file MagAOXApp.hpp.

◆ logMessage()

template<bool _useINDI>

void MagAOX::app::MagAOXApp< _useINDI >::logMessage ( bufferPtrT & b )

Handle a log message from the logging system.

This is a callback from the logManager, and is called when the log thread is processing log entries.

Decides whether to display to stderr and whether to send via INDI.

Definition at line 1867 of file MagAOXApp.hpp.

◆ newCallBack_clearFSMAlert()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::newCallBack_clearFSMAlert ( const pcf::IndiProperty & ipRecv )

protected

The callback called by the static version, to actually process the FSM Alert Clear request.

Returns: 0 on success.; -1 on error.

Parameters

[in] ipRecv the INDI property sent with the new property request.

Definition at line 3432 of file MagAOXApp.hpp.

◆ onPowerOff()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::onPowerOff ( )

protectedvirtual

This method is called when the change to poweroff is detected.

Returns: 0 on success.; -1 on any error which means the app should exit.

Reimplemented in MagAOX::app::acronameUsbHub, MagAOX::app::alpaoCtrl, MagAOX::app::andorCtrl, MagAOX::app::bmcCtrl, MagAOX::app::filterWheelCtrl, MagAOX::app::hsfwCtrl, MagAOX::app::irisaoCtrl, MagAOX::app::ocam2KCtrl, MagAOX::app::picamCtrl, MagAOX::app::picoMotorCtrl, MagAOX::app::siglentSDG, MagAOX::app::smc100ccCtrl, MagAOX::app::xt1121Ctrl, MagAOX::app::zaberLowLevel, and MagAOX::app::zylaCtrl.

Definition at line 3453 of file MagAOXApp.hpp.

◆ powerOnWaitElapsed()

template<bool _useINDI>

bool MagAOX::app::MagAOXApp< _useINDI >::powerOnWaitElapsed ( )

protected

This method tests whether the power on wait time has elapsed.

You would call this once per appLogic loop while in state POWERON. While false, you would return 0. Once it becomes true, take post-power-on actions and go on with life.

Returns: true if the time since POWERON is greater than the power-on wait, or if power management is not enabled; false otherwise

Definition at line 3465 of file MagAOXApp.hpp.

Referenced by MagAOX::app::picoMotorCtrl::appLogic(), MagAOX::app::smc100ccCtrl::appLogic(), and MagAOX::app::xt1121Ctrl::appLogic().

◆ powerState()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::powerState ( )

Returns the current power state.

If power management is not enabled, this always returns 1=On.

Returns: -1 if power state is unknown; 0 if power is off; 1 if power is on or m_powerMgtEnabled==false

Definition at line 3484 of file MagAOXApp.hpp.

◆ powerStateTarget()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::powerStateTarget ( )

Returns the target power state.

If power management is not enabled, this always returns 1=On.

Returns: -1 if target power state is unknown; 0 if target power state is off; 1 if target power is on or m_powerMgtEnabled==false

Definition at line 3493 of file MagAOXApp.hpp.

◆ registerIndiPropertyNew() [1/3]

template<bool _useINDI = true>

int MagAOX::app::MagAOXApp< _useINDI >::registerIndiPropertyNew	(	pcf::IndiProperty &	prop,
		const std::string &	propName,
		const pcf::IndiProperty::Type &	propType,
		const pcf::IndiProperty::PropertyPermType &	propPerm,
		const pcf::IndiProperty::PropertyStateType &	propState,
		const pcf::IndiProperty::SwitchRuleType &	propRule,
		int()(void , const pcf::IndiProperty &)
	)

Register an INDI property which is exposed for others to request a New Property for, with a switch rule.

This verison sets up the INDI property according to the arguments.

Returns: 0 on success.; -1 on error.

Parameters

[out]	prop	the property to register
[in]	propName	the name of the property
[in]	propType	the type of the property
[in]	propPerm	the permissions of the property
[in]	propState	the state of the property
[in]	propRule	the switch rule type

◆ registerIndiPropertyNew() [2/3]

template<bool _useINDI = true>

int MagAOX::app::MagAOXApp< _useINDI >::registerIndiPropertyNew	(	pcf::IndiProperty &	prop,
		const std::string &	propName,
		const pcf::IndiProperty::Type &	propType,
		const pcf::IndiProperty::PropertyPermType &	propPerm,
		const pcf::IndiProperty::PropertyStateType &	propState,
		int()(void , const pcf::IndiProperty &)
	)

Register an INDI property which is exposed for others to request a New Property for.

This verison sets up the INDI property according to the arguments.

Returns: 0 on success.; -1 on error.

Parameters

[out]	prop	the property to register
[in]	propName	the name of the property
[in]	propType	the type of the property
[in]	propPerm	the permissions of the property
[in]	propState	the state of the property

◆ registerIndiPropertyNew() [3/3]

template<bool _useINDI = true>

int MagAOX::app::MagAOXApp< _useINDI >::registerIndiPropertyNew	(	pcf::IndiProperty &	prop,
		int()(void , const pcf::IndiProperty &)
	)

Register an INDI property which is exposed for others to request a New Property for.

In this version the supplied IndiProperty must be fully set up before passing in.

Returns: 0 on success.; -1 on error.

Parameters

[in] prop the property to register, must be fully set up

Referenced by MagAOX::app::filterWheelCtrl::appStartup(), MagAOX::app::magAOXMaths::appStartup(), MagAOX::app::ocam2KCtrl::appStartup(), MagAOX::app::picoMotorCtrl::appStartup(), MagAOX::app::siglentSDG::appStartup(), MagAOX::app::streamWriter::appStartup(), MagAOX::app::sysMonitor::appStartup(), MagAOX::app::zaberCtrl::appStartup(), and MagAOXApp_tests::SCENARIO().

◆ registerIndiPropertyReadOnly() [1/2]

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::registerIndiPropertyReadOnly ( pcf::IndiProperty & prop )

Register an INDI property which is read only.

This version requires the property be fully set up.

Returns: 0 on success.; -1 on error.

Parameters

[in] prop the property to register, must be completely setup

Definition at line 2703 of file MagAOXApp.hpp.

Referenced by MagAOX::app::picamCtrl::appStartup(), and MagAOX::app::zaberCtrl::appStartup().

◆ registerIndiPropertyReadOnly() [2/2]

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::registerIndiPropertyReadOnly	(	pcf::IndiProperty &	prop,
		const std::string &	propName,
		const pcf::IndiProperty::Type &	propType,
		const pcf::IndiProperty::PropertyPermType &	propPerm,
		const pcf::IndiProperty::PropertyStateType &	propState
	)

Register an INDI property which is read only.

This verison sets up the INDI property according to the arguments.

Returns: 0 on success.; -1 on error.

Parameters

[out]	prop	the property to register, will be configured
[in]	propName	the name of the property
[in]	propType	the type of the property
[in]	propPerm	the permissions of the property
[in]	propState	the state of the property

Definition at line 2732 of file MagAOXApp.hpp.

◆ registerIndiPropertySet()

template<bool _useINDI = true>

int MagAOX::app::MagAOXApp< _useINDI >::registerIndiPropertySet	(	pcf::IndiProperty &	prop,
		const std::string &	devName,
		const std::string &	propName,
		int()(void , const pcf::IndiProperty &)
	)

Register an INDI property which is monitored for updates from others.

Returns: 0 on success.; -1 on error.

Parameters

[out]	prop	the property to register
[in]	devName	the device which owns this property
[in]	propName	the name of the property

Definition at line 2840 of file MagAOXApp.hpp.

◆ sendGetPropertySetList()

template<bool _useINDI>

void MagAOX::app::MagAOXApp< _useINDI >::sendGetPropertySetList ( bool all = false )

Definition at line 2997 of file MagAOXApp.hpp.

◆ sendNewProperty() [1/2]

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::sendNewProperty ( const pcf::IndiProperty & ipSend )

protected

Send a newProperty command to another device (using the INDI Client interface)

Returns: 0 on success.; -1 on an error, which will be logged

Parameters

[in] ipSend The property to send a "new" INDI command for

Definition at line 3370 of file MagAOXApp.hpp.

◆ sendNewProperty() [2/2]

template<bool _useINDI>

template<typename T >

int MagAOX::app::MagAOXApp< _useINDI >::sendNewProperty	(	const pcf::IndiProperty &	ipSend,
		const std::string &	el,
		const T &	newVal
	)

protected

Send a newProperty command to another device (using the INDI Client interface)

Copies the input IndiProperty, then updates the element with the new value.

Returns: 0 on success.; -1 on an errory.

Parameters

[in]	ipSend	The property to send a "new" INDI command for
[in]	el	The element of the property to change
[in]	newVal	The value to request for the element.

Definition at line 3336 of file MagAOXApp.hpp.

Referenced by MagAOX::app::ttmModulator::modTTM(), MagAOX::app::zaberCtrl::moveTo(), MagAOX::app::ttmModulator::offset12(), MagAOX::app::ttmModulator::offsetXY(), MagAOX::app::ttmModulator::restTTM(), MagAOX::app::ocam2KCtrl::setFPS(), MagAOX::app::ttmModulator::setTTM(), MagAOX::app::zaberCtrl::startHoming(), MagAOX::app::zaberCtrl::stop(), MagAOX::app::xt1121DCDU::turnOutletOff(), and MagAOX::app::xt1121DCDU::turnOutletOn().

◆ sendNewStandardIndiToggle()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::sendNewStandardIndiToggle	(	const std::string &	device,
		const std::string &	property,
		bool	onoff
	)

protected

Send a new property commmand for a standard toggle switch.

Returns: 0 on success; -1 on an error, which will be logged.

Parameters

[in]	device	The device name
[in]	property	The property name
[in]	onoff	Switch state to send: true = on, false = off

Definition at line 3389 of file MagAOXApp.hpp.

◆ setDefaults()

template<bool _useINDI>

void MagAOX::app::MagAOXApp< _useINDI >::setDefaults	(	int	argc,
		char **	argv
	)

virtual

Set the paths for config files.

Replaces the mx::application defaults with the MagAO-X config system.

This function parses the CL for "-n" or "--name".

Do not override this unless you intend to depart from the MagAO-X standard.

Parameters

[in]	argc	standard command line result specifying number of arguments in argv
[in]	argv	standard command line result containing the arguments.

Definition at line 1236 of file MagAOXApp.hpp.

◆ setEuidCalled()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::setEuidCalled ( )

private

Set the effective user ID to the called value, i.e. the highest possible.

If setuid is set on the file, this will be super-user privileges.

Reference: http://pubs.opengroup.org/onlinepubs/009695399/functions/seteuid.html

Returns: 0 on success; -1 on error from setuid().

Definition at line 2009 of file MagAOXApp.hpp.

Referenced by MagAOX::app::MagAOXApp< _useINDI >::elevatedPrivileges::elevate().

◆ setEuidReal()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::setEuidReal ( )

private

Set the effective user ID to the real value, i.e. the file owner.

Reference: http://pubs.opengroup.org/onlinepubs/009695399/functions/seteuid.html

Returns: 0 on success; -1 on error from setuid().

Definition at line 2028 of file MagAOXApp.hpp.

Referenced by MagAOX::app::MagAOXApp< _useINDI >::elevatedPrivileges::restore().

◆ setSigTermHandler()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::setSigTermHandler ( )

private

Sets the handler for SIGTERM, SIGQUIT, and SIGINT.

Definition at line 1920 of file MagAOXApp.hpp.

◆ setupBasicConfig()

template<bool _useINDI>

void MagAOX::app::MagAOXApp< _useINDI >::setupBasicConfig ( )

virtual

The basic MagAO-X configuration setup method. Should not normally be overridden.

This method sets up the config system with the standard MagAO-X key=value pairs.

Though it is virtual, it should not normally be overridden unless you need to depart from the MagAO-X standard.

Setting up app specific config goes in setupConfig() implemented in the derived class.

Definition at line 1342 of file MagAOXApp.hpp.

◆ shutdown()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::shutdown ( )

Get the value of the shutdown flag.

Returns: the current value of m_shutdown

Definition at line 1230 of file MagAOXApp.hpp.

Referenced by MagAOX::app::streamWriter::swThreadExec().

◆ st_newCallBack_clearFSMAlert()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::st_newCallBack_clearFSMAlert	(	void *	app,
		const pcf::IndiProperty &	ipRecv
	)

staticprotected

The static callback function to be registered for requesting to clear the FSM alert.

Returns: 0 on success.; -1 on error.

Parameters

[in]	app	a pointer to this, will be static_cast-ed to MagAOXApp.
[in]	ipRecv	the INDI property sent with the new property request.

Definition at line 3426 of file MagAOXApp.hpp.

◆ startINDI()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::startINDI ( )

protected

Start INDI Communications.

Returns: 0 on success; -1 on error. This is fatal.

Definition at line 2940 of file MagAOXApp.hpp.

◆ state() [1/2]

template<bool _useINDI>

stateCodes::stateCodeT MagAOX::app::MagAOXApp< _useINDI >::state ( )

Get the current state code.

Returns: m_state

Definition at line 2345 of file MagAOXApp.hpp.

◆ state() [2/2]

template<bool _useINDI>

void MagAOX::app::MagAOXApp< _useINDI >::state	(	const stateCodes::stateCodeT &	s,
		bool	stateAlert = `false`
	)

Set the current state code.

Todo:: move this to a function in stateCodes

Parameters

[in]	s	The new application state
[in]	stateAlert	[optional] flag to set the alert state of the FSM property.

Definition at line 2351 of file MagAOXApp.hpp.

◆ stateLogged()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::stateLogged ( )

Updates and returns the value of m_stateLogged. Will be 0 on first call after a state change, >0 afterwards.

This method exists to facilitate logging the reason for a state change once, but not logging it on subsequent event loops. Returns the current value upon entry, but updates before returning so that the next call returns the incremented value. Example usage:

if( connection_failed ) //some condition set this to true
{
   state( stateCodes::NOTCONNECTED );
   if(!stateLogged()) log<text_log>("Not connected");
}

In this example, the log entry is made the first time the state changes. If there are no changes to a different state in the mean time, then when the event loop gets here again and decides it is not connected, the log entry will not be made.

Returns: current value of m_stateLogged, that is the value before it is incremented.

Definition at line 2409 of file MagAOXApp.hpp.

◆ threadStart()

template<bool _useINDI>

template<class thisPtr , class Function >

int MagAOX::app::MagAOXApp< _useINDI >::threadStart	(	std::thread &	thrd,
		bool &	thrdInit,
		pid_t &	tpid,
		pcf::IndiProperty &	thProp,
		int	thrdPrio,
		const std::string &	cpuset,
		const std::string &	thrdName,
		thisPtr *	thrdThis,
		Function &&	thrdStart
	)

Start a thread, using this class's privileges to set priority, etc.

The thread initialization synchronizer bool is set to true at the beginning of this function, then is set to false once all initialization is complete. The thread exec function should wait until this is false before doing anything except setting the pid. This is to avoid privilege escalation bugs.

The interface of the thread start function is:

static void impl::myThreadStart( impl * o )
{
   o->myThreadExec(); //A member function which actually executes the thread
}

where impl is the derived class, and mThreadStart and myThreadExec are members of impl.

Returns: 0 on success; -1 on error

Parameters

[out]	thrd	The thread object to start executing
	thrdInit	[in/out] The thread initilization synchronizer.
	tpid	[in/out] The thread pid to be filled in by thrdStart immediately upon call
	thProp	[in/out] The INDI property to publish the thread details
[in]	thrdPrio	The r/t priority to set for this thread
[in]	cpuset	the cpuset to place this thread on. Ignored if "".
[in]	thrdName	The name of the thread (just for logging)
[in]	thrdThis	The `this` pointer to pass to the thread starter function
[in]	thrdStart	The thread starting function, a static function taking a `this` pointer as argument.

Definition at line 2205 of file MagAOXApp.hpp.

Referenced by MagAOX::app::picoMotorCtrl::appStartup(), MagAOX::app::streamWriter::appStartup(), and MagAOX::app::sysMonitor::appStartup().

◆ unlockPID()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::unlockPID ( )

protected

Remove the PID file.

Definition at line 2181 of file MagAOXApp.hpp.

◆ updateIfChanged() [1/4]

template<bool _useINDI>

void MagAOX::app::MagAOXApp< _useINDI >::updateIfChanged	(	pcf::IndiProperty &	p,
		const std::string &	el,
		const char *	newVal,
		pcf::IndiProperty::PropertyStateType	ipState = `pcf::IndiProperty::Ok`
	)

protected

Update an INDI property element value if it has changed.

Will only peform a SetProperty if the new element value has changed compared to the stored value, or if the property state has changed.

This comparison is done in the true type of the value.

This is a specialization for const char * to std::string.

For a property with multiple elements, you should use the vector version to minimize network traffic. This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

	p	[in/out] The property containing the element to possibly update
[in]	el	The element name
[in]	newVal	the new value

Definition at line 3183 of file MagAOXApp.hpp.

◆ updateIfChanged() [2/4]

template<bool _useINDI>

template<typename T >

void MagAOX::app::MagAOXApp< _useINDI >::updateIfChanged	(	pcf::IndiProperty &	p,
		const std::string &	el,
		const std::vector< T > &	newVals,
		pcf::IndiProperty::PropertyStateType	ipState = `pcf::IndiProperty::Ok`
	)

protected

Update an INDI property if values have changed.

Will only peform a SetProperty if at least one value has changed compared to the stored value, or if the property state has changed.

Constructs the element names for each value as elX where X is the index of the vector.

This comparison is done in the true type of the value.

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

	p	[in/out] The property containing the element to possibly update
[in]	el	Beginning of each element name
[in]	newVals	the new values
[in]	ipState	[optional] the new state

Definition at line 3208 of file MagAOXApp.hpp.

◆ updateIfChanged() [3/4]

template<bool _useINDI>

template<typename T >

void MagAOX::app::MagAOXApp< _useINDI >::updateIfChanged	(	pcf::IndiProperty &	p,
		const std::string &	el,
		const T &	newVal,
		pcf::IndiProperty::PropertyStateType	ipState = `pcf::IndiProperty::Ok`
	)

protected

Update an INDI property element value if it has changed.

Will only peform a SetProperty if the new element value has changed compared to the stored value, or if the property state has changed.

This comparison is done in the true type of the value.

For a property with multiple elements, you should use the vector version to minimize network traffic.

Parameters

	p	[in/out] The property containing the element to possibly update
[in]	el	The element name
[in]	newVal	the new value

Definition at line 3168 of file MagAOXApp.hpp.

Referenced by MagAOX::app::filterWheelCtrl::appLogic(), MagAOX::app::ocam2KCtrl::appLogic(), MagAOX::app::picoMotorCtrl::appLogic(), MagAOX::app::smc100ccCtrl::appLogic(), MagAOX::app::ttmModulator::appLogic(), MagAOX::app::zaberCtrl::appLogic(), MagAOX::app::xt1121Ctrl::channelSetCallback(), MagAOX::app::baslerCtrl::checkNextROI(), MagAOX::app::cameraSim::checkNextROI(), MagAOX::app::andorCtrl::configureAcquisition(), MagAOX::app::baslerCtrl::configureAcquisition(), MagAOX::app::picamCtrl::configureAcquisition(), MagAOX::app::qhyCtrl::configureAcquisition(), MagAOX::app::zylaCtrl::configureAcquisition(), MagAOX::app::ocam2KCtrl::getEMGain(), MagAOX::app::xt1121Ctrl::getState(), MagAOX::app::ocam2KCtrl::getTemps(), MagAOX::app::INDI_NEWCALLBACK_DEFN(), MagAOX::app::smc100ccCtrl::moveTo(), MagAOX::app::filterWheelCtrl::moveToRaw(), MagAOX::app::acronameUsbHub::onPowerOff(), MagAOX::app::ocam2KCtrl::onPowerOff(), MagAOX::app::siglentSDG::onPowerOff(), MagAOX::app::xt1121Ctrl::onPowerOff(), MagAOX::app::siglentSDG::queryBSWV(), MagAOX::app::siglentSDG::queryOUTP(), MagAOX::app::ocam2KCtrl::resetEMProtection(), MagAOX::app::picamCtrl::setExpTime(), MagAOX::app::trippLitePDU::updateOutletStates(), MagAOX::app::magAOXMaths::updateVals(), and MagAOX::app::sysMonitor::updateVals().

◆ updateIfChanged() [4/4]

template<bool _useINDI>

template<typename T >

void MagAOX::app::MagAOXApp< _useINDI >::updateIfChanged	(	pcf::IndiProperty &	p,
		const std::vector< std::string > &	els,
		const std::vector< T > &	newVals,
		pcf::IndiProperty::PropertyStateType	newState = `pcf::IndiProperty::Ok`
	)

protected

Update an INDI property if values have changed.

Will only peform a SetProperty if at least one value has changed compared to the stored value, or if the property state has changed.

This comparison is done in the true type of the value.

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

	p	[in/out] The property containing the element to possibly update
[in]	els	String vector of element names
[in]	newVals	the new values
[in]	newState	[optional] The state of the property

Definition at line 3229 of file MagAOXApp.hpp.

◆ updatesIfChanged()

template<bool _useINDI>

template<typename T >

void MagAOX::app::MagAOXApp< _useINDI >::updatesIfChanged	(	pcf::IndiProperty &	p,
		const std::vector< const char * > &	els,
		const std::vector< T > &	newVals,
		pcf::IndiProperty::PropertyStateType	newState = `pcf::IndiProperty::Ok`
	)

protected

Parameters

	p	[in/out] The property containing the element to possibly update
[in]	els	String vector of element names
[in]	newVals	the new values
[in]	newState	[optional] The state of the property

Definition at line 3245 of file MagAOXApp.hpp.

◆ updateSwitchIfChanged()

template<bool _useINDI>

void MagAOX::app::MagAOXApp< _useINDI >::updateSwitchIfChanged	(	pcf::IndiProperty &	p,
		const std::string &	el,
		const pcf::IndiElement::SwitchStateType &	newVal,
		pcf::IndiProperty::PropertyStateType	ipState = `pcf::IndiProperty::Ok`
	)

protected

Update an INDI switch element value if it has changed.

Will only peform a SetProperty if the new element switch state has changed, or the propery state has changed.

Parameters

	p	[in/out] The property containing the element to possibly update
[in]	el	The element name
[in]	newVal	the new value

Definition at line 3192 of file MagAOXApp.hpp.

Referenced by MagAOX::app::siglentSDG::appLogic(), MagAOX::app::siglentSDG::onPowerOff(), MagAOX::app::andorCtrl::setNextROI(), MagAOX::app::baslerCtrl::setNextROI(), MagAOX::app::cameraSim::setNextROI(), MagAOX::app::picamCtrl::setNextROI(), MagAOX::app::qhyCtrl::setNextROI(), MagAOX::app::zylaCtrl::setNextROI(), MagAOX::app::ocam2KCtrl::setSynchro(), MagAOX::app::picamCtrl::setTempControl(), MagAOX::app::filterWheelCtrl::startHoming(), MagAOX::app::hsfwCtrl::startHoming(), MagAOX::app::smc100ccCtrl::startHoming(), MagAOX::app::zaberCtrl::startHoming(), MagAOX::app::filterWheelCtrl::stop(), MagAOX::app::hsfwCtrl::stop(), MagAOX::app::smc100ccCtrl::stop(), MagAOX::app::zaberCtrl::stop(), and MagAOX::app::sysMonitor::updateVals().

◆ whilePowerOff()

template<bool _useINDI>

int MagAOX::app::MagAOXApp< _useINDI >::whilePowerOff ( )

protectedvirtual

This method is called while the power is off, once per FSM loop.

Returns: 0 on success.; -1 on any error which means the app should exit.

Reimplemented in MagAOX::app::acronameUsbHub, MagAOX::app::alpaoCtrl, MagAOX::app::andorCtrl, MagAOX::app::bmcCtrl, MagAOX::app::filterWheelCtrl, MagAOX::app::hsfwCtrl, MagAOX::app::irisaoCtrl, MagAOX::app::ocam2KCtrl, MagAOX::app::picamCtrl, MagAOX::app::picoMotorCtrl, MagAOX::app::siglentSDG, MagAOX::app::xt1121Ctrl, MagAOX::app::zaberLowLevel, and MagAOX::app::zylaCtrl.

Definition at line 3459 of file MagAOXApp.hpp.

Friends And Related Symbol Documentation

◆ MagAOXApp_test

template<bool _useINDI = true>

friend class MagAOXApp_test

friend

Definition at line 114 of file MagAOXApp.hpp.

Member Data Documentation

◆ m_allDefsReceived

template<bool _useINDI = true>

bool MagAOX::app::MagAOXApp< _useINDI >::m_allDefsReceived { false }

protected

Flag indicating that all registered Set properties have been updated since last Get.

Definition at line 622 of file MagAOXApp.hpp.

◆ m_calibDir

template<bool _useINDI = true>

std::string MagAOX::app::MagAOXApp< _useINDI >::m_calibDir

protected

The path to calibration files for MagAOX.

Definition at line 129 of file MagAOXApp.hpp.

◆ m_configBase

template<bool _useINDI = true>

std::string MagAOX::app::MagAOXApp< _useINDI >::m_configBase

protected

The name of a base config class for this app (minus .conf).

Definition at line 127 of file MagAOXApp.hpp.

◆ m_configDir

template<bool _useINDI = true>

std::string MagAOX::app::MagAOXApp< _useINDI >::m_configDir

protected

The path to configuration files for MagAOX.

Definition at line 125 of file MagAOXApp.hpp.

Referenced by MagAOX::app::ocam2KCtrl::configureAcquisition().

◆ m_configName

template<bool _useINDI = true>

std::string MagAOX::app::MagAOXApp< _useINDI >::m_configName

protected

The name of the configuration file (minus .conf).

Definition at line 123 of file MagAOXApp.hpp.

Referenced by SMCTEST::cameraSim_test::cameraSim_test(), SDGTEST::siglentSDG_test::siglentSDG_test(), SMCTEST::smc100ccCtrl_test::smc100ccCtrl_test(), SYSMONTEST::sysMonitor_test::sysMonitor_test(), ZCTRLTEST::zaberCtrl_test::zaberCtrl_test(), MagAOX::app::mzmqClient::loadConfig(), MagAOX::app::mzmqServer::loadConfig(), MagAOX::app::zaberCtrl::loadConfigImpl(), MagAOX::app::picoMotorCtrl::readChannelCounts(), and MagAOX::app::picoMotorCtrl::writeChannelCounts().

◆ m_cpusetPath

template<bool _useINDI = true>

std::string MagAOX::app::MagAOXApp< _useINDI >::m_cpusetPath { MAGAOX_cpusetPath }

protected

Definition at line 464 of file MagAOXApp.hpp.

◆ m_driverCtrlName

template<bool _useINDI = true>

std::string MagAOX::app::MagAOXApp< _useINDI >::m_driverCtrlName

protected

Full path name of the INDI driver control FIFO.

This is currently only used to signal restarts.

Definition at line 633 of file MagAOXApp.hpp.

◆ m_driverInName

template<bool _useINDI = true>

std::string MagAOX::app::MagAOXApp< _useINDI >::m_driverInName

protected

Full path name of the INDI driver input FIFO.

Definition at line 625 of file MagAOXApp.hpp.

◆ m_driverOutName

template<bool _useINDI = true>

std::string MagAOX::app::MagAOXApp< _useINDI >::m_driverOutName

protected

Full path name of the INDI driver output FIFO.

Definition at line 628 of file MagAOXApp.hpp.

◆ m_euidCalled

template<bool _useINDI = true>

uid_t MagAOX::app::MagAOXApp< _useINDI >::m_euidCalled

private

The user id of the process as called (i.e. the higher privileged id of the owner, root if setuid).

Definition at line 354 of file MagAOXApp.hpp.

◆ m_euidReal

template<bool _useINDI = true>

uid_t MagAOX::app::MagAOXApp< _useINDI >::m_euidReal

private

The real user id of the proces (i.e. the lower privileged id of the user)

Definition at line 353 of file MagAOXApp.hpp.

◆ m_gitAlert

template<bool _useINDI = true>

bool MagAOX::app::MagAOXApp< _useINDI >::m_gitAlert { false }

private

Definition at line 518 of file MagAOXApp.hpp.

◆ m_indiDriver

template<bool _useINDI = true>

indiDriver<MagAOXApp>* MagAOX::app::MagAOXApp< _useINDI >::m_indiDriver { nullptr }

The INDI driver wrapper. Constructed and initialized by execute, which starts and stops communications.

Todo:: instead of making this public, provide an accessor.

Definition at line 582 of file MagAOXApp.hpp.

Referenced by MagAOX::app::picoMotorCtrl::appLogic(), MagAOX::app::smc100ccCtrl::appLogic(), MagAOX::app::zaberCtrl::appLogic(), MagAOX::app::streamWriter::updateINDI(), and MagAOX::app::magAOXMaths::updateVals().

◆ m_indiMutex

template<bool _useINDI = true>

std::mutex MagAOX::app::MagAOXApp< _useINDI >::m_indiMutex

Mutex for locking INDI communications.

Definition at line 585 of file MagAOXApp.hpp.

◆ m_indiNewCallBacks

template<bool _useINDI = true>

std::unordered_map<std::string, indiCallBack> MagAOX::app::MagAOXApp< _useINDI >::m_indiNewCallBacks

protected

Map to hold the NewProperty indiCallBacks for this App, with fast lookup by property name.

The key for these is the property name.

Definition at line 613 of file MagAOXApp.hpp.

◆ m_indiP_clearFSMAlert

template<bool _useINDI = true>

pcf::IndiProperty MagAOX::app::MagAOXApp< _useINDI >::m_indiP_clearFSMAlert

protected

indi Property to clear an FSM alert.

Definition at line 1028 of file MagAOXApp.hpp.

◆ m_indiP_powerChannel

template<bool _useINDI = true>

pcf::IndiProperty MagAOX::app::MagAOXApp< _useINDI >::m_indiP_powerChannel

protected

INDI property used to communicate power state.

Definition at line 1084 of file MagAOXApp.hpp.

◆ m_indiP_state

template<bool _useINDI = true>

pcf::IndiProperty MagAOX::app::MagAOXApp< _useINDI >::m_indiP_state

protected

indi Property to report the application state.

Definition at line 1025 of file MagAOXApp.hpp.

◆ m_indiSetCallBacks

template<bool _useINDI = true>

std::unordered_map<std::string, indiCallBack> MagAOX::app::MagAOXApp< _useINDI >::m_indiSetCallBacks

protected

Map to hold the SetProperty indiCallBacks for this App, with fast lookup by property name.

The key for these is device.name

Definition at line 618 of file MagAOXApp.hpp.

◆ m_log

template<bool _useINDI>

MagAOXApp< _useINDI >::logManagerT MagAOX::app::MagAOXApp< _useINDI >::m_log

static

Definition at line 277 of file MagAOXApp.hpp.

◆ m_loopPause

template<bool _useINDI = true>

unsigned long MagAOX::app::MagAOXApp< _useINDI >::m_loopPause { MAGAOX_default_loopPause }

protected

The time in nanoseconds to pause the main loop. The appLogic() function of the derived class is called every m_loopPause nanoseconds. Default is 1,000,000,000 ns. Config with loopPause=X.

Definition at line 135 of file MagAOXApp.hpp.

Referenced by MagAOX::app::trippLitePDU::trippLitePDU(), and MagAOX::app::siglentSDG::appLogic().

◆ m_pid

template<bool _useINDI = true>

pid_t MagAOX::app::MagAOXApp< _useINDI >::m_pid { 0 }

protected

This process's PID.

Definition at line 434 of file MagAOXApp.hpp.

◆ m_powerChannel

template<bool _useINDI = true>

std::string MagAOX::app::MagAOXApp< _useINDI >::m_powerChannel

protected

The INDI property name of the channel controlling this device's power.

Definition at line 1070 of file MagAOXApp.hpp.

◆ m_powerDevice

template<bool _useINDI = true>

std::string MagAOX::app::MagAOXApp< _useINDI >::m_powerDevice

protected

The INDI device name of the power controller.

Definition at line 1069 of file MagAOXApp.hpp.

◆ m_powerElement

template<bool _useINDI = true>

std::string MagAOX::app::MagAOXApp< _useINDI >::m_powerElement { "state" }

protected

The INDI element name to monitor for this device's power state.

Definition at line 1071 of file MagAOXApp.hpp.

◆ m_powerMgtEnabled

template<bool _useINDI = true>

bool MagAOX::app::MagAOXApp< _useINDI >::m_powerMgtEnabled { false }

protected

Flag controls whether power mgt is used. Set this in the constructor of a derived app. If true, then if after loadConfig the powerDevice and powerChannel are empty, then the app will exit with a critical error.

Definition at line 1064 of file MagAOXApp.hpp.

◆ m_powerOnCounter

template<bool _useINDI = true>

int MagAOX::app::MagAOXApp< _useINDI >::m_powerOnCounter { -1 }

protected

Counts numer of loops after power on, implements delay for device bootup. If -1, then device was NOT powered off on app startup.

Definition at line 1077 of file MagAOXApp.hpp.

Referenced by MagAOX::app::andorCtrl::onPowerOff(), MagAOX::app::ocam2KCtrl::onPowerOff(), and MagAOX::app::zylaCtrl::onPowerOff().

◆ m_powerOnWait

template<bool _useINDI = true>

unsigned long MagAOX::app::MagAOXApp< _useINDI >::m_powerOnWait { 0 }

protected

Time in sec to wait for device to boot after power on.

Definition at line 1074 of file MagAOXApp.hpp.

Referenced by MagAOX::app::andorCtrl::andorCtrl(), MagAOX::app::ocam2KCtrl::ocam2KCtrl(), MagAOX::app::smc100ccCtrl::smc100ccCtrl(), MagAOX::app::xt1121Ctrl::xt1121Ctrl(), and MagAOX::app::zylaCtrl::zylaCtrl().

◆ m_powerState

template<bool _useINDI = true>

int MagAOX::app::MagAOXApp< _useINDI >::m_powerState { -1 }

protected

Current power state, 1=On, 0=Off, -1=Unk.

Definition at line 1081 of file MagAOXApp.hpp.

◆ m_powerTargetElement

template<bool _useINDI = true>

std::string MagAOX::app::MagAOXApp< _useINDI >::m_powerTargetElement { "target" }

protected

The INDI element name to monitor for this device's power state.

Definition at line 1072 of file MagAOXApp.hpp.

◆ m_powerTargetState

template<bool _useINDI = true>

int MagAOX::app::MagAOXApp< _useINDI >::m_powerTargetState { -1 }

protected

Current target power state, 1=On, 0=Off, -1=Unk.

Definition at line 1082 of file MagAOXApp.hpp.

◆ m_self

template<bool _useINDI>

MagAOXApp< _useINDI > * MagAOX::app::MagAOXApp< _useINDI >::m_self = nullptr

staticprivate

Static pointer to this (set in constructor). Used to test whether a a MagAOXApp is already instatiated (a fatal error) and used for getting out of static signal handlers.

Definition at line 329 of file MagAOXApp.hpp.

◆ m_shutdown

template<bool _useINDI = true>

int MagAOX::app::MagAOXApp< _useINDI >::m_shutdown { 0 }

protected

Flag to signal it's time to shutdown. When not 0, the main loop exits.

Definition at line 140 of file MagAOXApp.hpp.

◆ m_state

template<bool _useINDI = true>

stateCodes::stateCodeT MagAOX::app::MagAOXApp< _useINDI >::m_state { stateCodes::UNINITIALIZED }

private

The application's state. Never ever set this directly, use state(const stateCodeT & s).

Definition at line 512 of file MagAOXApp.hpp.

◆ m_stateAlert

template<bool _useINDI = true>

bool MagAOX::app::MagAOXApp< _useINDI >::m_stateAlert { false }

private

Definition at line 515 of file MagAOXApp.hpp.

◆ m_stateLogged

template<bool _useINDI = true>

int MagAOX::app::MagAOXApp< _useINDI >::m_stateLogged { 0 }

private

Counter and flag for use to log errors just once. Never ever access directly, use stateLogged().

Definition at line 520 of file MagAOXApp.hpp.

◆ m_suid

template<bool _useINDI = true>

uid_t MagAOX::app::MagAOXApp< _useINDI >::m_suid

private

The save-set user id of the process.

Definition at line 356 of file MagAOXApp.hpp.

◆ m_useINDI

template<bool _useINDI = true>

constexpr bool MagAOX::app::MagAOXApp< _useINDI >::m_useINDI = _useINDI

staticconstexprprotected

Flag controlling whether INDI is used. If false, then no INDI code executes.

Definition at line 577 of file MagAOXApp.hpp.

◆ MagAOXPath

template<bool _useINDI = true>

std::string MagAOX::app::MagAOXApp< _useINDI >::MagAOXPath

protected

The base path of the MagAO-X system.

Definition at line 121 of file MagAOXApp.hpp.

Referenced by MagAOX::app::streamWriter::loadConfig().

◆ pidFileName

template<bool _useINDI = true>

std::string MagAOX::app::MagAOXApp< _useINDI >::pidFileName

protected

The name of the PID file.

Definition at line 432 of file MagAOXApp.hpp.

◆ secretsPath

template<bool _useINDI = true>

std::string MagAOX::app::MagAOXApp< _useINDI >::secretsPath

protected

Path to the secrets directory, where passwords, etc, are stored.

Definition at line 133 of file MagAOXApp.hpp.

◆ sysPath

template<bool _useINDI = true>

std::string MagAOX::app::MagAOXApp< _useINDI >::sysPath

protected

The path to the system directory, for PID file, etc.

Definition at line 131 of file MagAOXApp.hpp.

Referenced by MagAOX::app::picoMotorCtrl::readChannelCounts(), and MagAOX::app::picoMotorCtrl::writeChannelCounts().

The documentation for this class was generated from the following file:

libMagAOX/app/MagAOXApp.hpp

Classes

Public Types

Public Member Functions

Protected Attributes

Private Member Functions

Friends

INDI Interface

PID Locking

Power Management

Logging

Signal Handling

Privilege Management

Application State

Detailed Description

Member Typedef Documentation

◆ callBackInsertResult

◆ callBackIterator

◆ callBackValueType

◆ logManagerT

Constructor & Destructor Documentation

◆ MagAOXApp() [1/2]

◆ MagAOXApp() [2/2]

◆ ~MagAOXApp()

Member Function Documentation

◆ _handlerSigTerm()

◆ appLogic()

◆ appShutdown()

◆ appStartup()

◆ checkConfig()

◆ clearFSMAlert()

◆ configDir()

◆ configLog()

◆ configName()

◆ createINDIFIFOS()

◆ createROIndiNumber()

◆ createROIndiText()

◆ createStandardIndiNumber()

◆ createStandardIndiRequestSw()

◆ createStandardIndiSelectionSw() [1/2]

◆ createStandardIndiSelectionSw() [2/2]

◆ createStandardIndiText()

◆ createStandardIndiToggleSw()

◆ driverCtrlName()

◆ driverInName()

◆ driverOutName()

◆ execute()

◆ handleDefProperty()

◆ handleGetProperties()

◆ handleNewProperty()

◆ handlerSigTerm()

◆ handleSetProperty()

◆ INDI_SETCALLBACK_DECL()

◆ indiTargetUpdate()

◆ loadBasicConfig()

◆ lockPID()

◆ log() [1/2]

◆ log() [2/2]

◆ logMessage()

◆ newCallBack_clearFSMAlert()

◆ onPowerOff()

◆ powerOnWaitElapsed()

◆ powerState()

◆ powerStateTarget()

◆ registerIndiPropertyNew() [1/3]

◆ registerIndiPropertyNew() [2/3]

◆ registerIndiPropertyNew() [3/3]

◆ registerIndiPropertyReadOnly() [1/2]

◆ registerIndiPropertyReadOnly() [2/2]

◆ registerIndiPropertySet()

◆ sendGetPropertySetList()

◆ sendNewProperty() [1/2]

◆ sendNewProperty() [2/2]

◆ sendNewStandardIndiToggle()

◆ setDefaults()

◆ setEuidCalled()

◆ setEuidReal()

◆ setSigTermHandler()

◆ setupBasicConfig()

◆ shutdown()

◆ st_newCallBack_clearFSMAlert()
