MagAOX::app::observerCtrl Class Reference

The MagAO-X Observer Controller. More...

#include <observerCtrl.hpp>

Inheritance diagram for MagAOX::app::observerCtrl:

Collaboration diagram for MagAOX::app::observerCtrl:

Classes

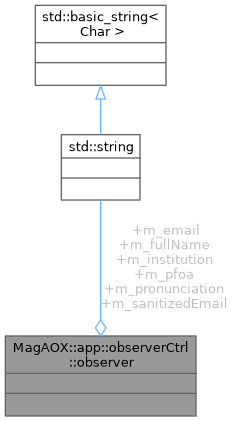

struct	observer
	The observer specification. More...

Public Types
typedef XWC_DEFAULT_VERBOSITY	verboseT
typedef logger::logManager< MagAOXApp< _useINDI >, logFileRaw< verboseT > >	logManagerT
	The log manager type.
typedef XWC_DEFAULT_VERBOSITY	verboseT
typedef logger::logManager< observerCtrl, logFileRaw< verboseT > >	logManagerT
	The log manager type.

Public Member Functions
	observerCtrl ()
	Default c'tor.
	~observerCtrl () noexcept
	D'tor, declared and defined for noexcept.
virtual void	setupConfig ()
	Set up the observerCtrl configuration parameters.
int	loadConfigImpl (mx::app::appConfigurator &_config)
	Implementation of loadConfig logic, separated for testing.
virtual void	loadConfig ()
	Load the observerCtrl configuration.
virtual int	appStartup ()
	Startup function.
virtual int	appLogic ()
	Implementation of the FSM for observerCtrl.
virtual int	appShutdown ()
	Shutdown the app.
void	startObserving ()
	Start the current observation and any stream writers owned by observerCtrl.
void	stopObserving ()
	Stop the current observation and any stream writers owned by observerCtrl.
virtual void	setDefaults (int argc, char **argv)
	Set the paths for config files.
virtual void	setupBasicConfig ()
	The basic MagAO-X configuration setup method. Should not normally be overridden.
virtual void	loadBasicConfig ()
	The basic MagAO-X configuration processing method. Should not normally be overridden.
virtual void	checkConfig ()
	Check for unused and unrecognized config options and settings.
virtual int	execute ()
	The execute method implementing the standard main loop. Should not normally be overridden.
int	telem (const typename telT::messageT &msg)
	Make a telemetry recording.
int	setupConfig (appConfigurator &config)
	Setup an application configurator for the device section.
int	loadConfig (appConfigurator &config)
	Load the device section from an application configurator.
int	checkRecordTimes (const telT &tel, telTs... tels)
	Check the time of the last record for each telemetry type and make an entry if needed.
int	checkRecordTimes (timespec &ts, const telT &tel, telTs... tels)
	Worker function to actually perform the record time checking logic.
int	checkRecordTimes (timespec &ts)
	Empty function called at the end of the template list.
Telemeter Interface
int	checkRecordTimes ()
int	recordTelem (const telem_observer *)
int	recordObserver (bool force=false)
Threads
int	threadStart (std::thread &thrd, bool &thrdInit, pid_t &tpid, pcf::IndiProperty &thProp, int thrdPrio, const std::string &cpuset, const std::string &thrdName, thisPtr *thrdThis, Function &&thrdStart)
	Start a thread, using this class's privileges to set priority, etc.
Member Accessors
std::string	basePath ()
	Get the.
std::string	configName ()
	Get the config name.
std::string	configDir ()
	Get the config directory.
std::string	configBase ()
	Get the config base file.
std::string	calibDir ()
	Get the calibration directory.
std::string	sysPath ()
	Get the system path.
std::string	secretsPath ()
	Get the secrets path.
std::string	cpusetPath ()
	Get the cpuset path.
unsigned long	loopPause ()
	Get the loop pause time.
int	shutdown ()
	Get the value of the shutdown flag.
std::string	driverInName ()
	Get the INDI input FIFO file name.
std::string	driverOutName ()
	Get the INDI output FIFO file name.
std::string	driverCtrlName ()
	Get the INDI control FIFO file name.

Public Attributes
logManagerT	m_tel
double	m_maxInterval
	The maximum interval, in seconds, between telemetry records. Default is 10.0 seconds.

Protected Types
typedef std::map< std::string, observer >	observerMapT

Protected Member Functions
std::string	streamWriterDeviceName (const std::string &writerName) const
	Return the INDI device name used for a configured stream writer.
bool	streamWriterSelected (const std::string &writerName) const
	Return whether a stream writer is enabled for observation control.
int	registerStreamWriter (const std::string &writerName, bool userSelectable)
	Register one configured stream writer for remote writing-state tracking.
bool	beginObservationStreamWriter (const std::string &writerName)
	Determine whether observerCtrl should start a stream writer for a new observation.
bool	endObservationStreamWriter (const std::string &writerName)
	Determine whether observerCtrl should stop a stream writer when an observation ends.
int	commandStreamWriter (const std::string &writerName, pcf::IndiElement::SwitchStateType state)
	Send a writing toggle command to a configured stream writer.

Protected Attributes
observerMapT	m_observers
	The observers from the configuration file.
observer	m_currentObserver
	The current selected observer.
observer	m_currentOperator
	The current selected observer.
std::string	m_obsName
	The name of the observation.
double	m_obsDuration { 0 }
	The desired duration of the observation. If 0 then until stopped.
bool	m_observing { false }
	Flag indicating whether or not we are in an observation.
std::string	m_target
	The current target name shown to the observer.
std::string	m_catObj
	The latest catalog object name reported by the TCS.
std::string	m_catRA
	The latest catalog right ascension reported by the TCS.
std::string	m_catDec
	The latest catalog declination reported by the TCS.
bool	m_loop { false }
	Flag tracking loop state. true is loop closed.
bool	m_labMode { false }
	Flag tracking whether the TCS interface is in lab mode.
bool	m_newTargetBlock { true }
bool	m_newTarget { false }
timePointT	m_obsStartTime
	The start time of the current observation.
timeStampT	m_obsStartTimeStamp
	The UTC start time of the current observation.
double	m_obsStartParang { 0 }
	The parallactic angle at the start of the observation.
timePointT	m_tgtStartTime
	The start time of the current target.
timeStampT	m_tgtStartTimeStamp
	The UTC start time of the current target.
double	m_tgtStartParang { 0 }
	The parallactic angle at the start of observing the current target.
double	m_parang { 0 }
	The current parallactic angle.
durationT	m_tgtTime
	The current target time. Only updated while observing.
double	m_tgtAng { 0 }
	The current target angle. Only updated while observing.
std::string	m_basePath
	The base path of the MagAO-X system.
std::string	m_configName
	The name of the configuration file (minus .conf).
std::string	m_configDir
	The path to configuration files for MagAOX.
std::string	m_configBase
	The name of a base config class for this app (minus .conf).
std::string	m_calibDir
	The path to calibration files for MagAOX.
std::string	m_sysPath
	The path to the system directory, for PID file, etc.
std::string	m_secretsPath
	Path to the secrets directory, where passwords, etc, are stored.
std::string	m_cpusetPath
	Path to the cpusets mount.
unsigned long	m_loopPause
int	m_shutdown
	Flag to signal it's time to shutdown. When not 0, the main loop exits.
Configurable Parameters
std::vector< std::string >	m_streamWriters
	The configured stream writers available for user selection.
std::vector< std::string >	m_defStreamWriters
	The configured stream writers always managed for observations.
std::map< std::string, pcf::IndiProperty >	m_indiP_streamWriterWriting
	Tracks the remote writing properties for configured stream writers.
std::map< std::string, bool >	m_streamWriterSelectable
	Tracks whether each configured stream writer is user-selectable in INDI.
std::map< std::string, std::string >	m_streamWriterDevices
	Reverse lookup from remote stream writer device name to configured writer name.
std::map< std::string, bool >	m_streamWriterWriting
	Tracks the last known remote writing state for each configured stream writer.
std::map< std::string, bool >	m_streamWriterWritingKnown
	Tracks whether a remote writing state has been received for each configured stream writer.
std::map< std::string, bool >	m_streamWriterStartedByObserver
	Tracks whether observerCtrl started each stream writer for the current observation.
std::string	m_tcsDev { "tcsi" }
std::string	m_catalogProp { "catalog" }
std::string	m_objEl { "object" }
std::string	m_catdataProp { "catdata" }
std::string	m_raEl { "ra" }
std::string	m_decEl { "dec" }
std::string	m_labModeProp { "labMode" }
std::string	m_teldataProp { "teldata" }
std::string	m_parangEl { "pa" }
std::string	m_loopDev { "holoop" }
std::string	m_loopStateProp { "loop_state" }

Private Types
typedef dev::telemeter< observerCtrl >	telemeterT
typedef std::chrono::time_point< std::chrono::steady_clock >	timePointT
typedef std::string	timeStampT
typedef std::chrono::duration< double >	durationT

Private Member Functions
std::string	timeStampAsISO8601 (const std::chrono::time_point< std::chrono::system_clock > &tp)
	Format a system-clock time point as an ISO 8601 UTC timestamp.
int	clearFSMAlert ()
	Clear the FSM alert state.
observerCtrl &	derived ()
	Access the derived class.

Friends
class	observerCtrl_test
class	dev::telemeter< observerCtrl >

INDI
pcf::IndiProperty	m_indiP_observers
	Selection switch to allow selection of the observer.
pcf::IndiProperty	m_indiP_observer
	Text which contains the specifications of the current observer.
pcf::IndiProperty	m_indiP_operators
	Selection switch to allow selection of the observer.
pcf::IndiProperty	m_indiP_operator
	Text which contains the specifications of the current observer.
pcf::IndiProperty	m_indiP_obsName
pcf::IndiProperty	m_indiP_observing
	Toggle switch to trigger observation.
pcf::IndiProperty	m_indiP_obsDuration
	Number to set the desired duration of observation.
pcf::IndiProperty	m_indiP_obsStart
	String timestamp indicating the start for target/observation.
pcf::IndiProperty	m_indiP_obsTime
	Number tracking the elapsed time.
pcf::IndiProperty	m_indiP_obsAngle
	Number tracking the change in angle.
pcf::IndiProperty	m_indiP_sws
	Selection to switch which user-managed stream writers are enabled.
pcf::IndiProperty	m_indiP_userlog
	Text to enter a user log.
pcf::IndiProperty	m_indiP_resetTarget
	Reset the target statistics.
pcf::IndiProperty	m_indiP_target
	The target name, which can be overridden by the user.
pcf::IndiProperty	m_indiP_tcsTarget
	Set the target to match TCS catObj.
pcf::IndiProperty	m_indiP_catalog
	Catalog text data.
pcf::IndiProperty	m_indiP_catdata
	Catalog numeric data.
pcf::IndiProperty	m_indiP_teldata
	Telescope data (for parang)
pcf::IndiProperty	m_indiP_labMode
	Tracks whether TCS is in lab mode.
pcf::IndiProperty	m_indiP_loop
	Tracks the loop state.
	INDI_NEWCALLBACK_DECL (observerCtrl, m_indiP_observers)
	INDI_NEWCALLBACK_DECL (observerCtrl, m_indiP_operators)
	INDI_NEWCALLBACK_DECL (observerCtrl, m_indiP_obsName)
	INDI_NEWCALLBACK_DECL (observerCtrl, m_indiP_observing)
	INDI_NEWCALLBACK_DECL (observerCtrl, m_indiP_obsDuration)
	INDI_NEWCALLBACK_DECL (observerCtrl, m_indiP_sws)
	INDI_NEWCALLBACK_DECL (observerCtrl, m_indiP_userlog)
	INDI_NEWCALLBACK_DECL (observerCtrl, m_indiP_resetTarget)
	INDI_NEWCALLBACK_DECL (observerCtrl, m_indiP_target)
	INDI_NEWCALLBACK_DECL (observerCtrl, m_indiP_tcsTarget)
	INDI_SETCALLBACK_DECL (observerCtrl, m_indiP_catalog)
	INDI_SETCALLBACK_DECL (observerCtrl, m_indiP_catdata)
	INDI_SETCALLBACK_DECL (observerCtrl, m_indiP_teldata)
	INDI_SETCALLBACK_DECL (observerCtrl, m_indiP_labMode)
	INDI_SETCALLBACK_DECL (observerCtrl, m_indiP_loop)
int	setCallBack_streamWriterWriting (const pcf::IndiProperty &ipRecv)
	Handle remote stream writer writing property updates.
static int	st_setCallBack_streamWriterWriting (void *app, const pcf::IndiProperty &ipRecv)
	Static wrapper for remote stream writer writing property updates.

PID Locking
Each MagAOXApp has a PID lock file in the system directory. The app will not startup if it detects that the PID is already locked, preventing duplicates. This is based on the configured name, not the invoked name (argv[0]).
std::string	pidFileName
	The name of the PID file.
pid_t	m_pid
	This process's PID.
int	lockPID ()
int	unlockPID ()
	Remove the PID file.

INDI Interface
For reference: "Get" and "New" refer to properties we own. "Set" refers to properties owned by others. So we respond to GetProperties by listing our own properties, and NewProperty is a request to change a property we own. Whereas SetProperty is a notification that someone else has changed a property.
std::unordered_map< std::string, indiCallBack >	m_indiNewCallBacks
	Map to hold the NewProperty indiCallBacks for this App, with fast lookup by property name.
std::unordered_map< std::string, indiCallBack >	m_indiSetCallBacks
	Map to hold the SetProperty indiCallBacks for this App, with fast lookup by property name.
bool	m_allDefsReceived
	Flag indicating that all registered Set properties have been updated since last Get.
std::string	m_driverInName
	Full path name of the INDI driver input FIFO.
std::string	m_driverOutName
	Full path name of the INDI driver output FIFO.
std::string	m_driverCtrlName
	Full path name of the INDI driver control FIFO.
pcf::IndiProperty	m_indiP_state
	indi Property to report the application state.
pcf::IndiProperty	m_indiP_clearFSMAlert
	indi Property to clear an FSM alert.
int	createINDIFIFOS ()
	Create the INDI FIFOs.
int	startINDI ()
	Start INDI Communications.
void	updateIfChanged (pcf::IndiProperty &p, const std::string &el, const T &newVal, pcf::IndiProperty::PropertyStateType ipState=pcf::IndiProperty::Ok)
	Update an INDI property element value if it has changed.
void	updateIfChanged (pcf::IndiProperty &p, const std::string &el, const char *newVal, pcf::IndiProperty::PropertyStateType ipState=pcf::IndiProperty::Ok)
	Update an INDI property element value if it has changed.
void	updateIfChanged (pcf::IndiProperty &p, const std::string &el, const std::vector< T > &newVals, pcf::IndiProperty::PropertyStateType ipState=pcf::IndiProperty::Ok)
	Update an INDI property if values have changed.
void	updateIfChanged (pcf::IndiProperty &p, const std::vector< std::string > &els, const std::vector< T > &newVals, pcf::IndiProperty::PropertyStateType newState=pcf::IndiProperty::Ok)
	Update an INDI property if values have changed.
void	updateSwitchIfChanged (pcf::IndiProperty &p, const std::string &el, const pcf::IndiElement::SwitchStateType &newVal, pcf::IndiProperty::PropertyStateType ipState=pcf::IndiProperty::Ok)
	Update an INDI switch element value if it has changed.
void	updatesIfChanged (pcf::IndiProperty &p, const std::vector< const char * > &els, const std::vector< T > &newVals, pcf::IndiProperty::PropertyStateType newState=pcf::IndiProperty::Ok)
int	indiTargetUpdate (pcf::IndiProperty &localProperty, T &localTarget, const pcf::IndiProperty &remoteProperty, bool setBusy=true)
	Get the target element value from an new property.
int	sendNewProperty (const pcf::IndiProperty &ipSend, const std::string &el, const T &newVal)
	Send a newProperty command to another device (using the INDI Client interface)
int	sendNewProperty (const pcf::IndiProperty &ipSend)
	Send a newProperty command to another device (using the INDI Client interface)
int	sendNewStandardIndiToggle (const std::string &device, const std::string &property, bool onoff)
	Send a new property commmand for a standard toggle switch.
int	newCallBack_clearFSMAlert (const pcf::IndiProperty &ipRecv)
	The callback called by the static version, to actually process the FSM Alert Clear request.
int	createStandardIndiText (pcf::IndiProperty &prop, const std::string &propName, const std::string &label="", const std::string &group="")
	Create a standard R/W INDI Text property with target and current elements.
int	createROIndiText (pcf::IndiProperty &prop, const std::string &propName, const std::string &elName, const std::string &propLabel="", const std::string &propGroup="", const std::string &elLabel="")
	Create a standard ReadOnly INDI Text property, with at least one element.
int	createStandardIndiNumber (pcf::IndiProperty &prop, const std::string &name, const T &min, const T &max, const T &step, const std::string &format, const std::string &label="", const std::string &group="")
	Create a standard R/W INDI Number property with target and current elements.
int	createROIndiNumber (pcf::IndiProperty &prop, const std::string &propName, const std::string &propLabel="", const std::string &propGroup="")
	Create a ReadOnly INDI Number property.
int	createStandardIndiToggleSw (pcf::IndiProperty &prop, const std::string &name, const std::string &label="", const std::string &group="")
	Create a standard R/W INDI switch with a single toggle element.
int	createStandardIndiRequestSw (pcf::IndiProperty &prop, const std::string &name, const std::string &label="", const std::string &group="")
	Create a standard R/W INDI switch with a single request element.
int	createStandardIndiSelectionSw (pcf::IndiProperty &prop, const std::string &name, const std::vector< std::string > &elements, const std::vector< std::string > &elementLabels, const std::string &label="", const std::string &group="")
	Create a standard R/W INDI selection (one of many) switch with vector of elements and element labels.
int	createStandardIndiSelectionSw (pcf::IndiProperty &prop, const std::string &name, const std::vector< std::string > &elements, const std::string &label="", const std::string &group="")
int	registerIndiPropertyReadOnly (pcf::IndiProperty &prop)
	Register an INDI property which is read only.
int	registerIndiPropertyReadOnly (pcf::IndiProperty &prop, const std::string &propName, const pcf::IndiProperty::Type &propType, const pcf::IndiProperty::PropertyPermType &propPerm, const pcf::IndiProperty::PropertyStateType &propState)
	Register an INDI property which is read only.
int	registerIndiPropertyNew (pcf::IndiProperty &prop, int(*)(void *, const pcf::IndiProperty &))
	Register an INDI property which is exposed for others to request a New Property for.
int	registerIndiPropertyNew (pcf::IndiProperty &prop, const std::string &propName, const pcf::IndiProperty::Type &propType, const pcf::IndiProperty::PropertyPermType &propPerm, const pcf::IndiProperty::PropertyStateType &propState, int(*)(void *, const pcf::IndiProperty &))
	Register an INDI property which is exposed for others to request a New Property for.
int	registerIndiPropertyNew (pcf::IndiProperty &prop, const std::string &propName, const pcf::IndiProperty::Type &propType, const pcf::IndiProperty::PropertyPermType &propPerm, const pcf::IndiProperty::PropertyStateType &propState, const pcf::IndiProperty::SwitchRuleType &propRule, int(*)(void *, const pcf::IndiProperty &))
	Register an INDI property which is exposed for others to request a New Property for, with a switch rule.
int	registerIndiPropertySet (pcf::IndiProperty &prop, const std::string &devName, const std::string &propName, int(*)(void *, const pcf::IndiProperty &))
	Register an INDI property which is monitored for updates from others.
void	resetIndiSetPropertyRetry (indiCallBack &callBack)
	Reset retry tracking for a monitored INDI Set-property subscription.
bool	indiSetPropertyShouldRequest (const indiCallBack &callBack, bool all, const std::chrono::steady_clock::time_point &now) const
	Determine whether an unresolved Set-property subscription should be requested now.
void	noteIndiSetPropertyRequested (indiCallBack &callBack, const std::chrono::steady_clock::time_point &now)
	Update retry tracking after sending a GetProperties request for a monitored Set-property.
void	sendGetPropertySetList (bool all=false)
void	handleDefProperty (const pcf::IndiProperty &ipRecv)
	Handler for the DEF INDI properties notification.
void	handleGetProperties (const pcf::IndiProperty &ipRecv)
	Handler for the get INDI properties request.
void	handleNewProperty (const pcf::IndiProperty &ipRecv)
	Handler for the new INDI property request.
void	handleSetProperty (const pcf::IndiProperty &ipRecv)
	Handler for the set INDI property request.
typedef std::pair< std::string, indiCallBack >	callBackValueType
	Value type of the indiCallBack map.
typedef std::unordered_map< std::string, indiCallBack >::iterator	callBackIterator
	Iterator type of the indiCallBack map.
typedef std::pair< callBackIterator, bool >	callBackInsertResult
	Return type of insert on the indiCallBack map.
static constexpr bool	m_useINDI
	Flag controlling whether INDI is used. If false, then no INDI code executes.
indiDriver< MagAOXApp > *	m_indiDriver
	The INDI driver wrapper. Constructed and initialized by execute, which starts and stops communications.
std::mutex	m_indiMutex
	Mutex for locking INDI communications.
std::mutex	m_indiCallBackMutex
	Mutex for locking INDI callback maps and per-entry callback state.
static int	st_newCallBack_clearFSMAlert (void *app, const pcf::IndiProperty &ipRecv)
	The static callback function to be registered for requesting to clear the FSM alert.

Power Management
For devices which have remote power management (e.g. from one of the PDUs) we implement a standard power state monitoring and management component for the FSM. This needs to be enabled in the derived app constructor. To stay enabled, m_powerDevice and m_powerChannel must be not empty strings after the configuration. These could be set in the derived app defaults. If power management is enabled, then while power is off, appLogic will not be called. Instead a parrallel set of virtual functions is called, onPowerOff (to allow apps to perform cleanup) and whilePowerOff (to allow apps to keep variables updated, etc). Note that these could merely call appLogic if desired.
bool	m_powerMgtEnabled
std::string	m_powerDevice
	The INDI device name of the power controller.
std::string	m_powerChannel
	The INDI property name of the channel controlling this device's power.
std::string	m_powerElement
	The INDI element name to monitor for this device's power state.
std::string	m_powerTargetElement
	The INDI element name to monitor for this device's power state.
unsigned long	m_powerOnWait
	Default time in sec to wait for device to boot after power on.
int	m_powerOnCounter
int	m_powerState
	Current power state, 1=On, 0=Off, -1=Unk.
int	m_powerTargetState
	Current target power state, 1=On, 0=Off, -1=Unk.
pcf::IndiProperty	m_indiP_powerChannel
	INDI property used to communicate power state.
virtual int	onPowerOff ()
	This method is called when the change to poweroff is detected.
virtual int	whilePowerOff ()
	This method is called while the power is off, once per FSM loop.
bool	powerOnWaitElapsed ()
	This method tests whether the power on wait time has elapsed.
int	powerState ()
	Returns the current power state.
int	powerStateTarget ()
	Returns the target power state.
	INDI_SETCALLBACK_DECL (MagAOXApp, m_indiP_powerChannel)

Signal Handling
libMagAOX/logger/types/software_log.hpp
int	setSigTermHandler ()
	Sets the handler for SIGTERM, SIGQUIT, and SIGINT.
void	handlerSigTerm (int signum, siginfo_t *siginf, void *ucont)
	Handles SIGTERM, SIGQUIT, and SIGINT. Sets m_shutdown to 1 and logs the signal.
static MagAOXApp *	m_self
static void	_handlerSigTerm (int signum, siginfo_t *siginf, void *ucont)
	The handler called when SIGTERM, SIGQUIT, or SIGINT is received. Just a wrapper for handlerSigTerm.

Privilege Management
int	setEuidCalled ()
	Set the effective user ID to the called value, i.e. the highest possible.
int	setEuidReal ()
	Set the effective user ID to the real value, i.e. the file owner.
uid_t	m_euidReal
	The real user id of the proces (i.e. the lower privileged id of the user)
uid_t	m_euidCalled
uid_t	m_suid
	The save-set user id of the process.

Logging
void	logMessage (bufferPtrT &b)
	Handle a log message from the logging system.
static int	log (const typename logT::messageT &msg, logPrioT level=logPrio::LOG_DEFAULT)
	Make a log entry.
static int	log (logPrioT level=logPrio::LOG_DEFAULT)
	Make a log entry.
static logManagerT	m_log
static void	configLog (const std::string &name, const int &code, const std::string &value, const std::string &source)
	Callback for config system logging.

Application State
stateCodes::stateCodeT	state ()
	Get the current state code.
void	state (const stateCodes::stateCodeT &s, bool stateAlert=false)
	Set the current state code.
bool	stateAlert ()
	Get the value of the state alert flag.
bool	gitAlert ()
	Get the value of the git alert flag.
int	stateLogged ()
	Updates and returns the value of m_stateLogged. Will be 0 on first call after a state change, >0 afterwards.
stateCodes::stateCodeT	m_state
bool	m_stateAlert
bool	m_gitAlert
int	m_stateLogged

Detailed Description

The MagAO-X Observer Controller.

Definition at line 38 of file observerCtrl.hpp.

---

Class Documentation

MagAOX::app::observerCtrl::observer

struct MagAOX::app::observerCtrl::observer

The observer specification.

Definition at line 100 of file observerCtrl.hpp.

Collaboration diagram for MagAOX::app::observerCtrl::observer:

Class Members
string	m_email	Observer's email. Must be unique.
string	m_fullName	Obsever's full name.
string	m_institution	The observer's institution.
string	m_pfoa	Observer's preferred forma of address.
string	m_pronunciation	Guide for the TTS to pronounced the pfoa (defaults to pfoa)
string	m_sanitizedEmail	Observer's email sanitized for use in INDI properties.

Member Typedef Documentation

callBackInsertResult

typedef std::pair<callBackIterator, bool> MagAOX::app::MagAOXApp< _useINDI >::callBackInsertResult

inherited

Return type of insert on the indiCallBack map.

Definition at line 701 of file MagAOXApp.hpp.

callBackIterator

typedef std::unordered_map<std::string,indiCallBack>::iterator MagAOX::app::MagAOXApp< _useINDI >::callBackIterator

inherited

Iterator type of the indiCallBack map.

Definition at line 698 of file MagAOXApp.hpp.

callBackValueType

typedef std::pair<std::string, indiCallBack> MagAOX::app::MagAOXApp< _useINDI >::callBackValueType

inherited

Value type of the indiCallBack map.

Definition at line 695 of file MagAOXApp.hpp.

durationT

typedef std::chrono::duration<double> MagAOX::app::observerCtrl::durationT

private

Definition at line 50 of file observerCtrl.hpp.

logManagerT [1/2]

typedef logger::logManager<observerCtrl , logFileRaw<verboseT> > MagAOX::app::dev::telemeter< observerCtrl >::logManagerT

inherited

The log manager type.

Definition at line 79 of file telemeter.hpp.

logManagerT [2/2]

typedef logger::logManager<MagAOXApp<_useINDI>, logFileRaw<verboseT> > MagAOX::app::MagAOXApp< _useINDI >::logManagerT

inherited

The log manager type.

Definition at line 185 of file MagAOXApp.hpp.

observerMapT

typedef std::map<std::string, observer> MagAOX::app::observerCtrl::observerMapT

protected

Definition at line 110 of file observerCtrl.hpp.

telemeterT

typedef dev::telemeter<observerCtrl> MagAOX::app::observerCtrl::telemeterT

private

Definition at line 46 of file observerCtrl.hpp.

timePointT

typedef std::chrono::time_point<std::chrono::steady_clock> MagAOX::app::observerCtrl::timePointT

private

Definition at line 48 of file observerCtrl.hpp.

timeStampT

typedef std::string MagAOX::app::observerCtrl::timeStampT

private

Definition at line 49 of file observerCtrl.hpp.

verboseT [1/2]

typedef XWC_DEFAULT_VERBOSITY MagAOX::app::dev::telemeter< observerCtrl >::verboseT

inherited

Definition at line 76 of file telemeter.hpp.

verboseT [2/2]

typedef XWC_DEFAULT_VERBOSITY MagAOX::app::MagAOXApp< _useINDI >::verboseT

inherited

Definition at line 182 of file MagAOXApp.hpp.

Constructor & Destructor Documentation

observerCtrl()

MagAOX::app::observerCtrl::observerCtrl

(

)

Default c'tor.

Definition at line 327 of file observerCtrl.hpp.

~observerCtrl()

MagAOX::app::observerCtrl::~observerCtrl ( )

inlinenoexcept

D'tor, declared and defined for noexcept.

Definition at line 193 of file observerCtrl.hpp.

Member Function Documentation

_handlerSigTerm()

void MagAOX::app::MagAOXApp< _useINDI >::_handlerSigTerm ( int  signum, siginfo_t *  siginf, void *  ucont  )

staticprivateinherited

The handler called when SIGTERM, SIGQUIT, or SIGINT is received. Just a wrapper for handlerSigTerm.

Parameters

[in]	signum	specifies the signal.
[in]	siginf	ignored by MagAOXApp
[in]	ucont	ignored by MagAOXApp

Definition at line 404 of file MagAOXApp.hpp.

appLogic()

int MagAOX::app::observerCtrl::appLogic ( )

virtual

Implementation of the FSM for observerCtrl.

Returns

0 on no critical error

-1 on an error requiring shutdown

Implements MagAOX::app::MagAOXApp< true >.

Definition at line 669 of file observerCtrl.hpp.

References INDI_IDLE, INDI_OK, MagAOX::app::it, MagAOX::app::lock(), MagAOX::app::MagAOXApp< true >::log(), m_currentObserver, m_currentOperator, MagAOX::app::observerCtrl::observer::m_email, MagAOX::app::observerCtrl::observer::m_fullName, MagAOX::app::MagAOXApp< true >::m_indiMutex, m_indiP_obsAngle, m_indiP_obsDuration, m_indiP_observer, m_indiP_observers, m_indiP_observing, m_indiP_obsName, m_indiP_obsStart, m_indiP_obsTime, m_indiP_operator, m_indiP_operators, MagAOX::app::observerCtrl::observer::m_institution, m_obsDuration, m_observers, m_observing, m_obsName, m_obsStartParang, m_obsStartTime, m_obsStartTimeStamp, m_parang, MagAOX::app::observerCtrl::observer::m_pfoa, MagAOX::app::observerCtrl::observer::m_pronunciation, m_tgtAng, m_tgtStartParang, m_tgtStartTime, m_tgtStartTimeStamp, m_tgtTime, stopObserving(), TELEMETER_APP_LOGIC, and MagAOX::app::MagAOXApp< true >::updateSwitchIfChanged().

appShutdown()

int MagAOX::app::observerCtrl::appShutdown ( )

virtual

Shutdown the app.

Implements MagAOX::app::MagAOXApp< true >.

Definition at line 760 of file observerCtrl.hpp.

References TELEMETER_APP_SHUTDOWN.

appStartup()

int MagAOX::app::observerCtrl::appStartup ( )

virtual

Startup function.

Todo:

do something else. maybe a default user is specified in the config?

Todo:

do something else. maybe a default user is specified in the config?

Implements MagAOX::app::MagAOXApp< true >.

Definition at line 523 of file observerCtrl.hpp.

References MagAOX::app::indi::addTextElement(), MagAOX::app::MagAOXApp< true >::configName(), CREATE_REG_INDI_NEW_NUMBERD, CREATE_REG_INDI_NEW_REQUESTSWITCH, CREATE_REG_INDI_NEW_TEXT, CREATE_REG_INDI_NEW_TOGGLESWITCH, CREATE_REG_INDI_RO_NUMBER, MagAOX::app::MagAOXApp< true >::createStandardIndiSelectionSw(), MagAOX::app::it, MagAOX::app::MagAOXApp< true >::log(), m_catalogProp, m_catdataProp, m_currentObserver, m_currentOperator, m_defStreamWriters, m_indiP_catalog, m_indiP_catdata, m_indiP_labMode, m_indiP_loop, m_indiP_obsAngle, m_indiP_obsDuration, m_indiP_observer, m_indiP_observers, m_indiP_observing, m_indiP_obsName, m_indiP_obsStart, m_indiP_obsTime, m_indiP_operator, m_indiP_operators, m_indiP_resetTarget, m_indiP_sws, m_indiP_target, m_indiP_tcsTarget, m_indiP_teldata, m_indiP_userlog, m_labModeProp, m_loopDev, m_loopStateProp, m_observers, m_streamWriters, m_tcsDev, m_teldataProp, MagAOX::app::stateCodes::READY, REG_INDI_NEWPROP_NOCB, REG_INDI_NEWPROP_NOSETUP, REG_INDI_SETPROP, registerStreamWriter(), MagAOX::app::MagAOXApp< true >::state(), and TELEMETER_APP_STARTUP.

basePath()

std::string MagAOX::app::MagAOXApp< _useINDI >::basePath ( )

inherited

Get the.

Returns

the value of m_ *

Definition at line 1251 of file MagAOXApp.hpp.

beginObservationStreamWriter()

bool MagAOX::app::observerCtrl::beginObservationStreamWriter ( const std::string &  writerName )

inlineprotected

Determine whether observerCtrl should start a stream writer for a new observation.

Parameters

[in]

writerName

the configured stream writer name

Definition at line 378 of file observerCtrl.hpp.

References MagAOX::app::MagAOXApp< true >::log(), m_streamWriterStartedByObserver, m_streamWriterWriting, m_streamWriterWritingKnown, and streamWriterSelected().

Referenced by startObserving(), and libXWCTest::observerCtrlTest::TEST_CASE().

calibDir()

std::string MagAOX::app::MagAOXApp< _useINDI >::calibDir ( )

inherited

Get the calibration directory.

Returns

the value of m_calibDir

Definition at line 1273 of file MagAOXApp.hpp.

checkConfig()

void MagAOX::app::MagAOXApp< _useINDI >::checkConfig ( )

virtualinherited

Check for unused and unrecognized config options and settings.

Logs the unused targets as warnings. Unrecognized and unused options are logged as critical, and m_shutdown is set. Any command line argument (not an option) will also be critical and cause shutdown.

Definition at line 278 of file MagAOXApp.hpp.

checkRecordTimes() [1/4]

int MagAOX::app::observerCtrl::checkRecordTimes ( )

inline

Definition at line 1356 of file observerCtrl.hpp.

References MagAOX::app::MagAOXApp< true >::log().

checkRecordTimes() [2/4]

int MagAOX::app::dev::telemeter< observerCtrl >::checkRecordTimes ( const telT &  tel, telTs...  tels  )

inherited

Check the time of the last record for each telemetry type and make an entry if needed.

This must be called from derivedT::checkRecordTimes(), with one template parameter for ach telemetry log type being recorded.

Returns

0 on succcess

-1 on error

Parameters

[in]	tel	[unused] object of the telemetry type to record
[in]	tels	[unused] objects of the additional telemetry types to record

Definition at line 156 of file telemeter.hpp.

checkRecordTimes() [3/4]

int MagAOX::app::dev::telemeter< observerCtrl >::checkRecordTimes ( timespec &  ts )

inherited

Empty function called at the end of the template list.

Returns

0 on succcess

-1 on error

Parameters

[in]

ts

[unused] the timestamp that records are compared to

Definition at line 177 of file telemeter.hpp.

checkRecordTimes() [4/4]

int MagAOX::app::dev::telemeter< observerCtrl >::checkRecordTimes ( timespec &  ts, const telT &  tel, telTs...  tels  )

inherited

Worker function to actually perform the record time checking logic.

Recursively calls itself until the variadic template list is exhausted.

Returns

0 on succcess

-1 on error

Parameters

[in]	ts	[unused] the timestamp that records are compared to
[in]	tel	[unused] objects of the telemetry type to record
[in]	tels	[unused] objects of the additional telemetry types to record

Definition at line 167 of file telemeter.hpp.

clearFSMAlert()

int MagAOX::app::MagAOXApp< _useINDI >::clearFSMAlert ( )

privateinherited

Clear the FSM alert state.

This can only be done from within this class, and this should only be possible via user action via INDI.

Definition at line 642 of file MagAOXApp.hpp.

commandStreamWriter()

int MagAOX::app::observerCtrl::commandStreamWriter ( const std::string &  writerName, pcf::IndiElement::SwitchStateType  state  )

inlineprotected

Send a writing toggle command to a configured stream writer.

Parameters

[in]	writerName	the configured stream writer name
[in]	state	the requested writing switch state

Definition at line 406 of file observerCtrl.hpp.

References MagAOX::app::MagAOXApp< true >::log(), MagAOX::app::MagAOXApp< true >::sendNewProperty(), MagAOX::app::MagAOXApp< true >::state(), and streamWriterDeviceName().

Referenced by startObserving(), and stopObserving().

configBase()

std::string MagAOX::app::MagAOXApp< _useINDI >::configBase ( )

inherited

Get the config base file.

Returns

the value of m_confgBase

Definition at line 1268 of file MagAOXApp.hpp.

configDir()

std::string MagAOX::app::MagAOXApp< _useINDI >::configDir ( )

inherited

Get the config directory.

Returns

the current value of m_configDir

Definition at line 1263 of file MagAOXApp.hpp.

configLog()

void MagAOX::app::MagAOXApp< _useINDI >::configLog ( const std::string &  name, const int &  code, const std::string &  value, const std::string &  source  )

staticprotectedinherited

Callback for config system logging.

Called by appConfigurator each time a value is set using the config() operator. You never need to call this directly.

Parameters

[in]	name	The name of the config value
[in]	code	numeric code specifying the type
[in]	value	the value read by the config system
[in]	source	the source of the value.

Definition at line 384 of file MagAOXApp.hpp.

configName()

std::string MagAOX::app::MagAOXApp< _useINDI >::configName ( )

inherited

Get the config name.

Returns

the current value of m_configName

Definition at line 1257 of file MagAOXApp.hpp.

cpusetPath()

std::string MagAOX::app::MagAOXApp< _useINDI >::cpusetPath ( )

inherited

Get the cpuset path.

Returns

the value of m_cpusetPath

Definition at line 1288 of file MagAOXApp.hpp.

createINDIFIFOS()

int MagAOX::app::MagAOXApp< _useINDI >::createINDIFIFOS ( )

protectedinherited

Create the INDI FIFOs.

Changes permissions to max available and creates the FIFOs at the configured path.

Todo:

make driver FIFO path full configurable.

Definition at line 960 of file MagAOXApp.hpp.

createROIndiNumber()

int MagAOX::app::MagAOXApp< _useINDI >::createROIndiNumber ( pcf::IndiProperty &  prop, const std::string &  propName, const std::string &  propLabel = "", const std::string &  propGroup = ""  )

inherited

Create a ReadOnly INDI Number property.

Returns

0 on success

-1 on error

Parameters

[out]	prop	the property to create and setup
[in]	propName	the name of the property
[in]	propLabel	[optional] the GUI label suggestion for this property
[in]	propGroup	[optional] the group for this property

Definition at line 783 of file MagAOXApp.hpp.

createROIndiText()

int MagAOX::app::MagAOXApp< _useINDI >::createROIndiText ( pcf::IndiProperty &  prop, const std::string &  propName, const std::string &  elName, const std::string &  propLabel = "", const std::string &  propGroup = "", const std::string &  elLabel = ""  )

inherited

Create a standard ReadOnly INDI Text property, with at least one element.

Returns

0 on success

-1 on error

Parameters

[out]	prop	the property to create and setup
[in]	propName	the name of the property
[in]	elName	the name of the element
[in]	propLabel	[optional] the GUI label suggestion for this property
[in]	propGroup	[optional] the group for this property
[in]	elLabel	[optional] the GUI label suggestion for the element

Definition at line 748 of file MagAOXApp.hpp.

createStandardIndiNumber()

int MagAOX::app::MagAOXApp< _useINDI >::createStandardIndiNumber ( pcf::IndiProperty &  prop, const std::string &  name, const T &  min, const T &  max, const T &  step, const std::string &  format, const std::string &  label = "", const std::string &  group = ""  )

inherited

Create a standard R/W INDI Number property with target and current elements.

Returns

0 on success

-1 on error

Parameters

[out]	prop	the property to create and setup
[in]	name	the name of the property
[in]	min	the minimum value for the elements, applied to both target and current
[in]	max	the minimum value for the elements, applied to both target and current
[in]	step	the step size for the elements, applied to both target and current
[in]	format	the _ value for the elements, applied to both target and current. Set to "" to use the MagAO-X standard for type.
[in]	label	[optional] the GUI label suggestion for this property
[in]	group	[optional] the group for this property

Definition at line 762 of file MagAOXApp.hpp.

createStandardIndiRequestSw()

int MagAOX::app::MagAOXApp< _useINDI >::createStandardIndiRequestSw ( pcf::IndiProperty &  prop, const std::string &  name, const std::string &  label = "", const std::string &  group = ""  )

inherited

Create a standard R/W INDI switch with a single request element.

This switch is intended to function like a momentary switch.

Returns

0 on success

-1 on error

Parameters

[out]	prop	the property to create and setup
[in]	name	the name of the property
[in]	label	[optional] the GUI label suggestion for this property
[in]	group	[optional] the group for this property

Definition at line 809 of file MagAOXApp.hpp.

createStandardIndiSelectionSw() [1/2]

int MagAOX::app::MagAOXApp< _useINDI >::createStandardIndiSelectionSw ( pcf::IndiProperty &  prop, const std::string &  name, const std::vector< std::string > &  elements, const std::string &  label = "", const std::string &  group = ""  )

inherited

Create a standard R/W INDI selection (one of many) switch with vector of elements using the element strings as their own labels This switch is intended to function like drop down menu.

Returns

0 on success

-1 on error

Parameters

[out]	prop	the property to create and setup
[in]	name	the name of the property,
[in]	elements	the element names to give to the switches
[in]	label	[optional] the GUI label suggestion for this property
[in]	group	[optional] the group for this property

Definition at line 840 of file MagAOXApp.hpp.

createStandardIndiSelectionSw() [2/2]

int MagAOX::app::MagAOXApp< _useINDI >::createStandardIndiSelectionSw ( pcf::IndiProperty &  prop, const std::string &  name, const std::vector< std::string > &  elements, const std::vector< std::string > &  elementLabels, const std::string &  label = "", const std::string &  group = ""  )

inherited

Create a standard R/W INDI selection (one of many) switch with vector of elements and element labels.

This switch is intended to function like drop down menu.

Returns

0 on success

-1 on error

Parameters

[out]	prop	the property to create and setup
[in]	name	the name of the property,
[in]	elements	the element names to give to the switches
[in]	elementLabels	the element labels to give to the switches
[in]	label	[optional] the GUI label suggestion for this property
[in]	group	[optional] the group for this property

Definition at line 822 of file MagAOXApp.hpp.

createStandardIndiText()

int MagAOX::app::MagAOXApp< _useINDI >::createStandardIndiText ( pcf::IndiProperty &  prop, const std::string &  propName, const std::string &  label = "", const std::string &  group = ""  )

inherited

Create a standard R/W INDI Text property with target and current elements.

Returns

0 on success

-1 on error

Parameters

[out]	prop	the property to create and setup
[in]	propName	the name of the property
[in]	label	[optional] the GUI label suggestion for this property
[in]	group	[optional] the group for this property

Definition at line 735 of file MagAOXApp.hpp.

createStandardIndiToggleSw()

int MagAOX::app::MagAOXApp< _useINDI >::createStandardIndiToggleSw ( pcf::IndiProperty &  prop, const std::string &  name, const std::string &  label = "", const std::string &  group = ""  )

inherited

Create a standard R/W INDI switch with a single toggle element.

This switch is intended to function like an on/off toggle switch.

Returns

0 on success

-1 on error

Parameters

[out]	prop	the property to create and setup
[in]	name	the name of the property
[in]	label	[optional] the GUI label suggestion for this property
[in]	group	[optional] the group for this property

Definition at line 796 of file MagAOXApp.hpp.

derived()

observerCtrl & MagAOX::app::dev::telemeter< observerCtrl >::derived ( )

inlineprivateinherited

Access the derived class.

Definition at line 181 of file telemeter.hpp.

driverCtrlName()

std::string MagAOX::app::MagAOXApp< _useINDI >::driverCtrlName ( )

inherited

Get the INDI control FIFO file name.

Returns

the current value of m_driverCtrlName

Definition at line 1317 of file MagAOXApp.hpp.

driverInName()

std::string MagAOX::app::MagAOXApp< _useINDI >::driverInName ( )

inherited

Get the INDI input FIFO file name.

Returns

the current value of m_driverInName

Definition at line 1305 of file MagAOXApp.hpp.

driverOutName()

std::string MagAOX::app::MagAOXApp< _useINDI >::driverOutName ( )

inherited

Get the INDI output FIFO file name.

Returns

the current value of m_driverOutName

Definition at line 1311 of file MagAOXApp.hpp.

endObservationStreamWriter()

bool MagAOX::app::observerCtrl::endObservationStreamWriter ( const std::string &  writerName )

inlineprotected

Determine whether observerCtrl should stop a stream writer when an observation ends.

Parameters

[in]

writerName

the configured stream writer name

Definition at line 398 of file observerCtrl.hpp.

References MagAOX::app::MagAOXApp< true >::log(), and m_streamWriterStartedByObserver.

Referenced by stopObserving(), and libXWCTest::observerCtrlTest::TEST_CASE().

execute()

int MagAOX::app::MagAOXApp< _useINDI >::execute ( )

virtualinherited

The execute method implementing the standard main loop. Should not normally be overridden.

Performs final startup steps. That is:

• Verifies correct effective user-id by comparison to logs directory.
• PID locking lockPID()
• log thread startup by logThreadStart()
• signal handling installation by setSigTermHandler()
• appStartup() is called
• INDI communications started by startINDI()
• power state is checked, pausing if unknown (if being managed)

Errors in the above steps will cause a process exit.

Then commences the main event loop. Conditions on entry to the main loop:

• PID locked
• Log thread running
• Signal handling installed
• appStartup successful
• INDI communications started successfully (if being used)
• power state known (if being managed)

In the event loop, the power state is checked (if being managed). If power is off, then onPowerOff is called. If power is on, or power is not managed, appLogic is called. These methods are implemented in derived classes, and are called every m_loopPause interval.

If an error is returned by either onPowerOff or appLogic, or a signal is handled, then the shutdown is managed. This includes shutting down INDI, calling appShutdown, and unlocking the PID. The log thread will shutdown.

Todo:

Need a heartbeat update here.

Definition at line 308 of file MagAOXApp.hpp.

gitAlert()

bool MagAOX::app::MagAOXApp< _useINDI >::gitAlert ( )

inherited

Get the value of the git alert flag.

Returns

the current value of m_gitAlert

Definition at line 613 of file MagAOXApp.hpp.

handleDefProperty()

void MagAOX::app::MagAOXApp< _useINDI >::handleDefProperty ( const pcf::IndiProperty &  ipRecv )

inherited

Handler for the DEF INDI properties notification.

Uses the properties registered in m_indiSetCallBacks to process the notification. This is called by m_indiDriver's indiDriver::handleDefProperties.

Parameters

[in]

ipRecv

The property being sent.

Definition at line 976 of file MagAOXApp.hpp.

handleGetProperties()

void MagAOX::app::MagAOXApp< _useINDI >::handleGetProperties ( const pcf::IndiProperty &  ipRecv )

inherited

Handler for the get INDI properties request.

Uses the properties registered in m_indiCallBacks to respond to the request. This is called by m_indiDriver's indiDriver::handleGetProperties.

Parameters

[in]

ipRecv

The property being requested.

Definition at line 982 of file MagAOXApp.hpp.

handleNewProperty()

void MagAOX::app::MagAOXApp< _useINDI >::handleNewProperty ( const pcf::IndiProperty &  ipRecv )

inherited

Handler for the new INDI property request.

Uses the properties registered in m_indiCallBacks to respond to the request, looking up the callback for this property and calling it.

This is called by m_indiDriver's indiDriver::handleGetProperties.

Todo:

handle errors, are they FATAL?

Parameters

[in]

ipRecv

The property being changed.

Definition at line 992 of file MagAOXApp.hpp.

handlerSigTerm()

void MagAOX::app::MagAOXApp< _useINDI >::handlerSigTerm ( int  signum, siginfo_t *  siginf, void *  ucont  )

privateinherited

Handles SIGTERM, SIGQUIT, and SIGINT. Sets m_shutdown to 1 and logs the signal.

Parameters

[in]	signum	specifies the signal.
[in]	siginf	ignored by MagAOXApp
[in]	ucont	ignored by MagAOXApp

Definition at line 410 of file MagAOXApp.hpp.

handleSetProperty()

void MagAOX::app::MagAOXApp< _useINDI >::handleSetProperty ( const pcf::IndiProperty &  ipRecv )

inherited

Handler for the set INDI property request.

This is called by m_indiDriver's indiDriver::handleSetProperties.

Todo:

handle errors, are they FATAL?

Todo:

log an error here because callBack should not be null

Todo:

log invalid SetProperty request.

Parameters

[in]

ipRecv

The property being changed.

Definition at line 1001 of file MagAOXApp.hpp.

INDI_NEWCALLBACK_DECL() [1/10]

MagAOX::app::observerCtrl::INDI_NEWCALLBACK_DECL	(	observerCtrl	,
		m_indiP_obsDuration
	)

INDI_NEWCALLBACK_DECL() [2/10]

MagAOX::app::observerCtrl::INDI_NEWCALLBACK_DECL	(	observerCtrl	,
		m_indiP_observers
	)

INDI_NEWCALLBACK_DECL() [3/10]

MagAOX::app::observerCtrl::INDI_NEWCALLBACK_DECL	(	observerCtrl	,
		m_indiP_observing
	)

INDI_NEWCALLBACK_DECL() [4/10]

MagAOX::app::observerCtrl::INDI_NEWCALLBACK_DECL	(	observerCtrl	,
		m_indiP_obsName
	)

INDI_NEWCALLBACK_DECL() [5/10]

MagAOX::app::observerCtrl::INDI_NEWCALLBACK_DECL	(	observerCtrl	,
		m_indiP_operators
	)

INDI_NEWCALLBACK_DECL() [6/10]

MagAOX::app::observerCtrl::INDI_NEWCALLBACK_DECL	(	observerCtrl	,
		m_indiP_resetTarget
	)

INDI_NEWCALLBACK_DECL() [7/10]

MagAOX::app::observerCtrl::INDI_NEWCALLBACK_DECL	(	observerCtrl	,
		m_indiP_sws
	)

INDI_NEWCALLBACK_DECL() [8/10]

MagAOX::app::observerCtrl::INDI_NEWCALLBACK_DECL	(	observerCtrl	,
		m_indiP_target
	)

INDI_NEWCALLBACK_DECL() [9/10]

MagAOX::app::observerCtrl::INDI_NEWCALLBACK_DECL	(	observerCtrl	,
		m_indiP_tcsTarget
	)

INDI_NEWCALLBACK_DECL() [10/10]

MagAOX::app::observerCtrl::INDI_NEWCALLBACK_DECL	(	observerCtrl	,
		m_indiP_userlog
	)

INDI_SETCALLBACK_DECL() [1/6]

MagAOX::app::MagAOXApp< _useINDI >::INDI_SETCALLBACK_DECL ( MagAOXApp< true >  , m_indiP_powerChannel    )

inherited

INDI_SETCALLBACK_DECL() [2/6]

MagAOX::app::observerCtrl::INDI_SETCALLBACK_DECL	(	observerCtrl	,
		m_indiP_catalog
	)

INDI_SETCALLBACK_DECL() [3/6]

MagAOX::app::observerCtrl::INDI_SETCALLBACK_DECL	(	observerCtrl	,
		m_indiP_catdata
	)

INDI_SETCALLBACK_DECL() [4/6]

MagAOX::app::observerCtrl::INDI_SETCALLBACK_DECL	(	observerCtrl	,
		m_indiP_labMode
	)

INDI_SETCALLBACK_DECL() [5/6]

MagAOX::app::observerCtrl::INDI_SETCALLBACK_DECL	(	observerCtrl	,
		m_indiP_loop
	)

INDI_SETCALLBACK_DECL() [6/6]

MagAOX::app::observerCtrl::INDI_SETCALLBACK_DECL	(	observerCtrl	,
		m_indiP_teldata
	)

indiSetPropertyShouldRequest()

bool MagAOX::app::MagAOXApp< _useINDI >::indiSetPropertyShouldRequest ( const indiCallBack &  callBack, bool  all, const std::chrono::steady_clock::time_point &  now  ) const

inlineinherited

Determine whether an unresolved Set-property subscription should be requested now.

Parameters

[in]	callBack	the subscription retry state to evaluate
[in]	all	if true, force an immediate refresh regardless of retry timing
[in]	now	the current monotonic time for scheduling

Definition at line 944 of file MagAOXApp.hpp.

indiTargetUpdate()

int MagAOX::app::MagAOXApp< _useINDI >::indiTargetUpdate ( pcf::IndiProperty &  localProperty, T &  localTarget, const pcf::IndiProperty &  remoteProperty, bool  setBusy = true  )

protectedinherited

Get the target element value from an new property.

Returns

0 on success

-1 on error

Parameters

[out]	localProperty	The local property to update
[out]	localTarget	The local value to update
[in]	remoteProperty	the new property received
[in]	setBusy	[optional] set property to busy if true

Definition at line 1098 of file MagAOXApp.hpp.

loadBasicConfig()

void MagAOX::app::MagAOXApp< _useINDI >::loadBasicConfig ( )

virtualinherited

The basic MagAO-X configuration processing method. Should not normally be overridden.

This method processes the standard MagAO-X key=value pairs.

Though it is virtual, it should not normally be overridden unless you need to depart from the MagAO-X standard.

Processing of app specific config goes in loadConfig() implemented by the derived class.

Definition at line 272 of file MagAOXApp.hpp.

loadConfig() [1/2]

void MagAOX::app::observerCtrl::loadConfig ( )

virtual

Load the observerCtrl configuration.

Definition at line 505 of file observerCtrl.hpp.

References MagAOX::app::dev::telemeter< derivedT >::loadConfig(), loadConfigImpl(), MagAOX::app::MagAOXApp< true >::log(), flatlogs::logPrio::LOG_CRITICAL, m_observers, and MagAOX::app::MagAOXApp< true >::m_shutdown.

loadConfig() [2/2]

int MagAOX::app::dev::telemeter< observerCtrl >::loadConfig ( appConfigurator &  config )

inherited

Load the device section from an application configurator.

Returns

0 on success

-1 on error (nothing implemented yet)

Parameters

[in]

config

an application configuration from which to load values

Definition at line 120 of file telemeter.hpp.

loadConfigImpl()

int MagAOX::app::observerCtrl::loadConfigImpl

(

mx::app::appConfigurator &

_config

)

Implementation of loadConfig logic, separated for testing.

This is called by loadConfig().

Parameters

[in]

_config

an application configuration from which to load values

Definition at line 443 of file observerCtrl.hpp.

References MagAOX::app::MagAOXApp< true >::log(), flatlogs::logPrio::LOG_CRITICAL, m_defStreamWriters, m_observers, and m_streamWriters.

Referenced by loadConfig().

lockPID()

int MagAOX::app::MagAOXApp< _useINDI >::lockPID ( )

protectedinherited

Attempt to lock the PID by writing it to a file. Fails if a process is already running with the same config name. First checks the PID file for an existing PID. If found, interrogates /proc to determine if that process is running and if so if the command line matches. If a matching process is currently running, then this returns an error.

Will not fail if a PID file exists but the stored PID does not correspond to a running process with the same command line name.

Reference: https://linux.die.net/man/3/getpid

Returns

0 on success.

-1 on any error, including creating the PID file or if this app is already running.

Definition at line 522 of file MagAOXApp.hpp.

log() [1/2]

int MagAOX::app::MagAOXApp< _useINDI >::log ( const typename logT::messageT &  msg, logPrioT  level = logPrio::LOG_DEFAULT  )

staticinherited

Make a log entry.

Wrapper for logManager::log

Template Parameters

logT	the log entry type
retval	the value returned by this method.

Parameters

[in]	msg	the message to log
[in]	level	[optional] the log level. The default is used if not specified.

Definition at line 355 of file MagAOXApp.hpp.

log() [2/2]

int MagAOX::app::MagAOXApp< _useINDI >::log ( logPrioT  level = logPrio::LOG_DEFAULT )

staticinherited

Make a log entry.

Wrapper for logManager::log

Template Parameters

logT	the log entry type
retval	the value returned by this method.

Parameters

[in]

level

[optional] the log level. The default is used if not specified.

Definition at line 368 of file MagAOXApp.hpp.

logMessage()

void MagAOX::app::MagAOXApp< _useINDI >::logMessage ( bufferPtrT &  b )

inherited

Handle a log message from the logging system.

This is a callback from the logManager, and is called when the log thread is processing log entries.

Decides whether to display to stderr and whether to send via INDI.

Definition at line 377 of file MagAOXApp.hpp.

loopPause()

unsigned long MagAOX::app::MagAOXApp< _useINDI >::loopPause ( )

inherited

Get the loop pause time.

Returns

the value of m_loopPause

Definition at line 1293 of file MagAOXApp.hpp.

newCallBack_clearFSMAlert()

int MagAOX::app::MagAOXApp< _useINDI >::newCallBack_clearFSMAlert ( const pcf::IndiProperty &  ipRecv )

protectedinherited

The callback called by the static version, to actually process the FSM Alert Clear request.

Returns

0 on success.

-1 on error.

Parameters

[in]

ipRecv

the INDI property sent with the new property request.

Definition at line 1155 of file MagAOXApp.hpp.

noteIndiSetPropertyRequested()

void MagAOX::app::MagAOXApp< _useINDI >::noteIndiSetPropertyRequested ( indiCallBack &  callBack, const std::chrono::steady_clock::time_point &  now  )

inlineinherited

Update retry tracking after sending a GetProperties request for a monitored Set-property.

Parameters

	callBack	[in/out] the subscription retry state to update
[in]	now	the current monotonic time for scheduling

Definition at line 951 of file MagAOXApp.hpp.

onPowerOff()

int MagAOX::app::MagAOXApp< _useINDI >::onPowerOff ( )

protectedvirtualinherited

This method is called when the change to poweroff is detected.

Returns

0 on success.

-1 on any error which means the app should exit.

Reimplemented in MagAOX::app::alpaoCtrl, MagAOX::app::bmcCtrl, MagAOX::app::irisaoCtrl, MagAOX::app::zaberLowLevel, and MagAOX::app::zaberLowLevelBinary.

Definition at line 1200 of file MagAOXApp.hpp.

powerOnWaitElapsed()

bool MagAOX::app::MagAOXApp< _useINDI >::powerOnWaitElapsed ( )

protectedinherited

This method tests whether the power on wait time has elapsed.

You would call this once per appLogic loop while in state POWERON. While false, you would return 0. Once it becomes true, take post-power-on actions and go on with life.

Returns

true if the time since POWERON is greater than the power-on wait, or if power management is not enabled

false otherwise

Definition at line 1216 of file MagAOXApp.hpp.

powerState()

int MagAOX::app::MagAOXApp< _useINDI >::powerState ( )

inherited

Returns the current power state.

If power management is not enabled, this always returns 1=On.

Returns

-1 if power state is unknown

0 if power is off

1 if power is on or m_powerMgtEnabled==false

Definition at line 1226 of file MagAOXApp.hpp.

powerStateTarget()

int MagAOX::app::MagAOXApp< _useINDI >::powerStateTarget ( )

inherited

Returns the target power state.

If power management is not enabled, this always returns 1=On.

Returns

-1 if target power state is unknown

0 if target power state is off

1 if target power is on or m_powerMgtEnabled==false

Definition at line 1235 of file MagAOXApp.hpp.

recordObserver()

int MagAOX::app::observerCtrl::recordObserver ( bool  force = false )

inline

Definition at line 1366 of file observerCtrl.hpp.

References MagAOX::app::MagAOXApp< true >::log(), m_currentObserver, m_currentOperator, MagAOX::app::observerCtrl::observer::m_email, m_observing, m_obsName, and m_target.

Referenced by recordTelem(), startObserving(), and stopObserving().

recordTelem()

int MagAOX::app::observerCtrl::recordTelem ( const telem_observer *  )

inline

Definition at line 1361 of file observerCtrl.hpp.

References recordObserver().

registerIndiPropertyNew() [1/3]

int MagAOX::app::MagAOXApp< _useINDI >::registerIndiPropertyNew ( pcf::IndiProperty &  prop, const std::string &  propName, const pcf::IndiProperty::Type &  propType, const pcf::IndiProperty::PropertyPermType &  propPerm, const pcf::IndiProperty::PropertyStateType &  propState, const pcf::IndiProperty::SwitchRuleType &  propRule, int(*)(void *, const pcf::IndiProperty &)    )

inherited

Register an INDI property which is exposed for others to request a New Property for, with a switch rule.

This verison sets up the INDI property according to the arguments.

Returns

0 on success.

-1 on error.

Parameters

[out]	prop	the property to register
[in]	propName	the name of the property
[in]	propType	the type of the property
[in]	propPerm	the permissions of the property
[in]	propState	the state of the property
[in]	propRule	the switch rule type

registerIndiPropertyNew() [2/3]

int MagAOX::app::MagAOXApp< _useINDI >::registerIndiPropertyNew ( pcf::IndiProperty &  prop, const std::string &  propName, const pcf::IndiProperty::Type &  propType, const pcf::IndiProperty::PropertyPermType &  propPerm, const pcf::IndiProperty::PropertyStateType &  propState, int(*)(void *, const pcf::IndiProperty &)    )

inherited

Register an INDI property which is exposed for others to request a New Property for.

This verison sets up the INDI property according to the arguments.

Returns

0 on success.

-1 on error.

Parameters

[out]	prop	the property to register
[in]	propName	the name of the property
[in]	propType	the type of the property
[in]	propPerm	the permissions of the property
[in]	propState	the state of the property

registerIndiPropertyNew() [3/3]

int MagAOX::app::MagAOXApp< _useINDI >::registerIndiPropertyNew ( pcf::IndiProperty &  prop, int(*)(void *, const pcf::IndiProperty &)    )

inherited

Register an INDI property which is exposed for others to request a New Property for.

In this version the supplied IndiProperty must be fully set up before passing in.

Returns

0 on success.

-1 on error.

Parameters

[in]

prop

the property to register, must be fully set up

registerIndiPropertyReadOnly() [1/2]

int MagAOX::app::MagAOXApp< _useINDI >::registerIndiPropertyReadOnly ( pcf::IndiProperty &  prop )

inherited

Register an INDI property which is read only.

This version requires the property be fully set up.

Returns

0 on success.

-1 on error.

Parameters

[in]

prop

the property to register, must be completely setup

Definition at line 856 of file MagAOXApp.hpp.

registerIndiPropertyReadOnly() [2/2]

int MagAOX::app::MagAOXApp< _useINDI >::registerIndiPropertyReadOnly ( pcf::IndiProperty &  prop, const std::string &  propName, const pcf::IndiProperty::Type &  propType, const pcf::IndiProperty::PropertyPermType &  propPerm, const pcf::IndiProperty::PropertyStateType &  propState  )

inherited

Register an INDI property which is read only.

This verison sets up the INDI property according to the arguments.

Returns

0 on success.

-1 on error.

Parameters

[out]	prop	the property to register, will be configured
[in]	propName	the name of the property
[in]	propType	the type of the property
[in]	propPerm	the permissions of the property
[in]	propState	the state of the property

Definition at line 866 of file MagAOXApp.hpp.

registerIndiPropertySet()

int MagAOX::app::MagAOXApp< _useINDI >::registerIndiPropertySet ( pcf::IndiProperty &  prop, const std::string &  devName, const std::string &  propName, int(*)(void *, const pcf::IndiProperty &)    )

inherited

Register an INDI property which is monitored for updates from others.

Returns

0 on success.

-1 on error.

Parameters

[out]	prop	the property to register
[in]	devName	the device which owns this property
[in]	propName	the name of the property

Definition at line 933 of file MagAOXApp.hpp.

registerStreamWriter()

int MagAOX::app::observerCtrl::registerStreamWriter ( const std::string &  writerName, bool  userSelectable  )

inlineprotected

Register one configured stream writer for remote writing-state tracking.

Parameters

[in]	writerName	the configured stream writer name
[in]	userSelectable	true if the writer should appear in the INDI selector

Definition at line 353 of file observerCtrl.hpp.

References MagAOX::app::MagAOXApp< true >::log(), m_indiP_streamWriterWriting, m_streamWriterDevices, m_streamWriterSelectable, m_streamWriterStartedByObserver, m_streamWriterWriting, m_streamWriterWritingKnown, MagAOX::app::MagAOXApp< true >::registerIndiPropertySet(), st_setCallBack_streamWriterWriting(), and streamWriterDeviceName().

Referenced by appStartup().

resetIndiSetPropertyRetry()

void MagAOX::app::MagAOXApp< _useINDI >::resetIndiSetPropertyRetry ( indiCallBack &  callBack )

inlineinherited

Reset retry tracking for a monitored INDI Set-property subscription.

Parameters

callBack

[in/out] the subscription retry state to reset

Definition at line 941 of file MagAOXApp.hpp.

secretsPath()

std::string MagAOX::app::MagAOXApp< _useINDI >::secretsPath ( )

inherited

Get the secrets path.

Returns

the value of m_secretsPath

Definition at line 1283 of file MagAOXApp.hpp.

sendGetPropertySetList()

void MagAOX::app::MagAOXApp< _useINDI >::sendGetPropertySetList ( bool  all = false )

inherited

Definition at line 970 of file MagAOXApp.hpp.

sendNewProperty() [1/2]

int MagAOX::app::MagAOXApp< _useINDI >::sendNewProperty ( const pcf::IndiProperty &  ipSend )

protectedinherited

Send a newProperty command to another device (using the INDI Client interface)

Returns

0 on success.

-1 on an error, which will be logged

Parameters

[in]

ipSend

The property to send a "new" INDI command for

Definition at line 1121 of file MagAOXApp.hpp.

sendNewProperty() [2/2]

int MagAOX::app::MagAOXApp< _useINDI >::sendNewProperty ( const pcf::IndiProperty &  ipSend, const std::string &  el, const T &  newVal  )

protectedinherited

Send a newProperty command to another device (using the INDI Client interface)

Copies the input IndiProperty, then updates the element with the new value.

Returns

0 on success.

-1 on an errory.

Parameters

[in]	ipSend	The property to send a "new" INDI command for
[in]	el	The element of the property to change
[in]	newVal	The value to request for the element.

Definition at line 1111 of file MagAOXApp.hpp.

sendNewStandardIndiToggle()

int MagAOX::app::MagAOXApp< _useINDI >::sendNewStandardIndiToggle ( const std::string &  device, const std::string &  property, bool  onoff  )

protectedinherited

Send a new property commmand for a standard toggle switch.

Returns

0 on success

-1 on an error, which will be logged.

Parameters

[in]	device	The device name
[in]	property	The property name
[in]	onoff	Switch state to send: true = on, false = off

Definition at line 1128 of file MagAOXApp.hpp.

setCallBack_streamWriterWriting()

int MagAOX::app::observerCtrl::setCallBack_streamWriterWriting

(

const pcf::IndiProperty &

ipRecv

)

Handle remote stream writer writing property updates.

Parameters

[in]

ipRecv

the remote writing property update

Definition at line 838 of file observerCtrl.hpp.

References MagAOX::app::ipRecv, MagAOX::app::lock(), MagAOX::app::MagAOXApp< true >::log(), MagAOX::app::MagAOXApp< true >::m_indiMutex, m_streamWriterDevices, m_streamWriterWriting, and m_streamWriterWritingKnown.

Referenced by st_setCallBack_streamWriterWriting(), and libXWCTest::observerCtrlTest::TEST_CASE().

setDefaults()

void MagAOX::app::MagAOXApp< _useINDI >::setDefaults ( int  argc, char **  argv  )

virtualinherited

Set the paths for config files.

Replaces the mx::application defaults with the MagAO-X config system.

This function parses the CL for "-n" or "--name".

Do not override this unless you intend to depart from the MagAO-X standard.

Parameters

[in]	argc	standard command line result specifying number of arguments in argv
[in]	argv	standard command line result containing the arguments.

Definition at line 250 of file MagAOXApp.hpp.

setEuidCalled()

int MagAOX::app::MagAOXApp< _useINDI >::setEuidCalled ( )

privateinherited

Set the effective user ID to the called value, i.e. the highest possible.

If setuid is set on the file, this will be super-user privileges.

Reference: http://pubs.opengroup.org/onlinepubs/009695399/functions/seteuid.html

Returns

0 on success

-1 on error from setuid().

Definition at line 481 of file MagAOXApp.hpp.

setEuidReal()

int MagAOX::app::MagAOXApp< _useINDI >::setEuidReal ( )

privateinherited

Set the effective user ID to the real value, i.e. the file owner.

Reference: http://pubs.opengroup.org/onlinepubs/009695399/functions/seteuid.html

Returns

0 on success

-1 on error from setuid().

Definition at line 490 of file MagAOXApp.hpp.

setSigTermHandler()

int MagAOX::app::MagAOXApp< _useINDI >::setSigTermHandler ( )

privateinherited

Sets the handler for SIGTERM, SIGQUIT, and SIGINT.

Definition at line 401 of file MagAOXApp.hpp.

setupBasicConfig()

void MagAOX::app::MagAOXApp< _useINDI >::setupBasicConfig ( )

virtualinherited

The basic MagAO-X configuration setup method. Should not normally be overridden.

This method sets up the config system with the standard MagAO-X key=value pairs.

Though it is virtual, it should not normally be overridden unless you need to depart from the MagAO-X standard.

Setting up app specific config goes in setupConfig() implemented in the derived class.

Definition at line 262 of file MagAOXApp.hpp.

setupConfig() [1/2]

void MagAOX::app::observerCtrl::setupConfig ( )

virtual

Set up the observerCtrl configuration parameters.

Definition at line 418 of file observerCtrl.hpp.

References MagAOX::app::dev::telemeter< derivedT >::setupConfig().

setupConfig() [2/2]

int MagAOX::app::dev::telemeter< observerCtrl >::setupConfig ( appConfigurator &  config )

inherited

Setup an application configurator for the device section.

Returns

0 on success.

-1 on error (nothing implemented yet)

Parameters

[in]

config

an application configuration to setup

Definition at line 112 of file telemeter.hpp.

shutdown()

int MagAOX::app::MagAOXApp< _useINDI >::shutdown ( )

inherited

Get the value of the shutdown flag.

Returns

the current value of m_shutdown

Definition at line 1299 of file MagAOXApp.hpp.

st_newCallBack_clearFSMAlert()

int MagAOX::app::MagAOXApp< _useINDI >::st_newCallBack_clearFSMAlert ( void *  app, const pcf::IndiProperty &  ipRecv  )

staticprotectedinherited

The static callback function to be registered for requesting to clear the FSM alert.

Returns

0 on success.

-1 on error.

Parameters

[in]	app	a pointer to this, will be static_cast-ed to MagAOXApp.
[in]	ipRecv	the INDI property sent with the new property request.

Definition at line 1144 of file MagAOXApp.hpp.

st_setCallBack_streamWriterWriting()

int MagAOX::app::observerCtrl::st_setCallBack_streamWriterWriting ( void *  app, const pcf::IndiProperty &  ipRecv  )

inlinestatic

Static wrapper for remote stream writer writing property updates.

Parameters

[in]	app	the application instance
[in]	ipRecv	the remote writing property update

Definition at line 322 of file observerCtrl.hpp.

References MagAOX::app::ipRecv, and setCallBack_streamWriterWriting().

Referenced by registerStreamWriter().

startINDI()

int MagAOX::app::MagAOXApp< _useINDI >::startINDI ( )

protectedinherited

Start INDI Communications.

Returns

0 on success

-1 on error. This is fatal.

Definition at line 967 of file MagAOXApp.hpp.

startObserving()

void MagAOX::app::observerCtrl::startObserving

(

)

Start the current observation and any stream writers owned by observerCtrl.

Definition at line 767 of file observerCtrl.hpp.

References beginObservationStreamWriter(), commandStreamWriter(), MagAOX::app::MagAOXApp< true >::log(), m_defStreamWriters, m_labMode, m_newTargetBlock, m_observing, m_obsStartParang, m_obsStartTime, m_obsStartTimeStamp, m_parang, m_streamWriters, m_tgtStartParang, m_tgtStartTime, m_tgtStartTimeStamp, recordObserver(), and timeStampAsISO8601().

state() [1/2]

stateCodes::stateCodeT MagAOX::app::MagAOXApp< _useINDI >::state ( )

inherited

Get the current state code.

Returns

m_state

Definition at line 591 of file MagAOXApp.hpp.

state() [2/2]

void MagAOX::app::MagAOXApp< _useINDI >::state ( const stateCodes::stateCodeT &  s, bool  stateAlert = false  )

inherited

Set the current state code.

Todo:

move this to a function in stateCodes

Parameters

[in]	s	The new application state
[in]	stateAlert	[optional] flag to set the alert state of the FSM property.

Definition at line 599 of file MagAOXApp.hpp.

stateAlert()

bool MagAOX::app::MagAOXApp< _useINDI >::stateAlert ( )

inherited

Get the value of the state alert flag.

Returns

the current value of m_stateAlert

Definition at line 607 of file MagAOXApp.hpp.

stateLogged()

int MagAOX::app::MagAOXApp< _useINDI >::stateLogged ( )

inherited

Updates and returns the value of m_stateLogged. Will be 0 on first call after a state change, >0 afterwards.

This method exists to facilitate logging the reason for a state change once, but not logging it on subsequent event loops. Returns the current value upon entry, but updates before returning so that the next call returns the incremented value. Example usage:

if( connection_failed ) //some condition set this to true
{
   state( stateCodes::NOTCONNECTED );
   if(!stateLogged()) log<text_log>("Not connected");
}

In this example, the log entry is made the first time the state changes. If there are no changes to a different state in the mean time, then when the event loop gets here again and decides it is not connected, the log entry will not be made.

Returns

current value of m_stateLogged, that is the value before it is incremented.

Definition at line 632 of file MagAOXApp.hpp.

stopObserving()

void MagAOX::app::observerCtrl::stopObserving

(

)

Stop the current observation and any stream writers owned by observerCtrl.

Definition at line 810 of file observerCtrl.hpp.

References commandStreamWriter(), endObservationStreamWriter(), MagAOX::app::MagAOXApp< true >::log(), m_defStreamWriters, m_observing, m_streamWriters, and recordObserver().

Referenced by appLogic().

streamWriterDeviceName()

std::string MagAOX::app::observerCtrl::streamWriterDeviceName ( const std::string &  writerName ) const

inlineprotected

Return the INDI device name used for a configured stream writer.

Parameters

[in]

writerName

the configured stream writer name

Definition at line 332 of file observerCtrl.hpp.

References MagAOX::app::MagAOXApp< true >::log().

Referenced by commandStreamWriter(), and registerStreamWriter().

streamWriterSelected()

bool MagAOX::app::observerCtrl::streamWriterSelected ( const std::string &  writerName ) const

inlineprotected

Return whether a stream writer is enabled for observation control.

Parameters

[in]

writerName

the configured stream writer name

Definition at line 337 of file observerCtrl.hpp.

References MagAOX::app::MagAOXApp< true >::log(), m_indiP_sws, and m_streamWriterSelectable.

Referenced by beginObservationStreamWriter().

sysPath()

std::string MagAOX::app::MagAOXApp< _useINDI >::sysPath ( )

inherited

Get the system path.

Returns

the value of m_sysPath

Definition at line 1278 of file MagAOXApp.hpp.

telem()

int MagAOX::app::dev::telemeter< observerCtrl >::telem ( const typename telT::messageT &  msg )

inherited

Make a telemetry recording.

Wrapper for logManager::log, which updates telT::lastRecord.

Template Parameters

logT	the log entry type
retval	the value returned by this method.

Parameters

[in]

msg

the data to log

Definition at line 95 of file telemeter.hpp.

threadStart()

int MagAOX::app::MagAOXApp< _useINDI >::threadStart ( std::thread &  thrd, bool &  thrdInit, pid_t &  tpid, pcf::IndiProperty &  thProp, int  thrdPrio, const std::string &  cpuset, const std::string &  thrdName, thisPtr *  thrdThis, Function &&  thrdStart  )

inherited

Start a thread, using this class's privileges to set priority, etc.

The thread initialization synchronizer bool is set to true at the beginning of this function, then is set to false once all initialization is complete. The thread exec function should wait until this is false before doing anything except setting the pid. This is to avoid privilege escalation bugs.

The interface of the thread start function is:

static void impl::myThreadStart( impl * o )
{
   o->myThreadExec(); //A member function which actually executes the thread
}

where impl is the derived class, and mThreadStart and myThreadExec are members of impl.

Returns

0 on success

-1 on error

Parameters

[out]	thrd	The thread object to start executing
	thrdInit	[in/out] The thread initilization synchronizer.
	tpid	[in/out] The thread pid to be filled in by thrdStart immediately upon call
	thProp	[in/out] The INDI property to publish the thread details
[in]	thrdPrio	The r/t priority to set for this thread
[in]	cpuset	the cpuset to place this thread on. Ignored if "".
[in]	thrdName	The name of the thread (just for logging)
[in]	thrdThis	The this pointer to pass to the thread starter function
[in]	thrdStart	The thread starting function, a static function taking a this pointer as argument.

Definition at line 556 of file MagAOXApp.hpp.

timeStampAsISO8601()

std::string MagAOX::app::observerCtrl::timeStampAsISO8601 ( const std::chrono::time_point< std::chrono::system_clock > &  tp )

private

Format a system-clock time point as an ISO 8601 UTC timestamp.

Parameters

[in]

tp

the time point to format

Definition at line 978 of file observerCtrl.hpp.

References MagAOX::app::MagAOXApp< true >::log().

Referenced by startObserving().

unlockPID()

int MagAOX::app::MagAOXApp< _useINDI >::unlockPID ( )

protectedinherited

Remove the PID file.

Definition at line 525 of file MagAOXApp.hpp.

updateIfChanged() [1/4]

void MagAOX::app::MagAOXApp< _useINDI >::updateIfChanged ( pcf::IndiProperty &  p, const std::string &  el, const char *  newVal, pcf::IndiProperty::PropertyStateType  ipState = pcf::IndiProperty::Ok  )

protectedinherited

Update an INDI property element value if it has changed.

Will only peform a SetProperty if the new element value has changed compared to the stored value, or if the property state has changed.

This comparison is done in the true type of the value.

This is a specialization for const char * to std::string.

For a property with multiple elements, you should use the vector version to minimize network traffic. This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

	p	[in/out] The property containing the element to possibly update
[in]	el	The element name
[in]	newVal	the new value

Definition at line 1031 of file MagAOXApp.hpp.

updateIfChanged() [2/4]

void MagAOX::app::MagAOXApp< _useINDI >::updateIfChanged ( pcf::IndiProperty &  p, const std::string &  el, const std::vector< T > &  newVals, pcf::IndiProperty::PropertyStateType  ipState = pcf::IndiProperty::Ok  )

protectedinherited

Update an INDI property if values have changed.

Will only peform a SetProperty if at least one value has changed compared to the stored value, or if the property state has changed.

Constructs the element names for each value as elX where X is the index of the vector.

This comparison is done in the true type of the value.

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

	p	[in/out] The property containing the element to possibly update
[in]	el	Beginning of each element name
[in]	newVals	the new values
[in]	ipState	[optional] the new state

Definition at line 1060 of file MagAOXApp.hpp.

updateIfChanged() [3/4]

void MagAOX::app::MagAOXApp< _useINDI >::updateIfChanged ( pcf::IndiProperty &  p, const std::string &  el, const T &  newVal, pcf::IndiProperty::PropertyStateType  ipState = pcf::IndiProperty::Ok  )

protectedinherited

Update an INDI property element value if it has changed.

Will only peform a SetProperty if the new element value has changed compared to the stored value, or if the property state has changed.

This comparison is done in the true type of the value.

For a property with multiple elements, you should use the vector version to minimize network traffic.

Parameters

	p	[in/out] The property containing the element to possibly update
[in]	el	The element name
[in]	newVal	the new value

Definition at line 1014 of file MagAOXApp.hpp.

updateIfChanged() [4/4]

void MagAOX::app::MagAOXApp< _useINDI >::updateIfChanged ( pcf::IndiProperty &  p, const std::vector< std::string > &  els, const std::vector< T > &  newVals, pcf::IndiProperty::PropertyStateType  newState = pcf::IndiProperty::Ok  )

protectedinherited

Update an INDI property if values have changed.

Will only peform a SetProperty if at least one value has changed compared to the stored value, or if the property state has changed.

This comparison is done in the true type of the value.

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

	p	[in/out] The property containing the element to possibly update
[in]	els	String vector of element names
[in]	newVals	the new values
[in]	newState	[optional] The state of the property

Definition at line 1077 of file MagAOXApp.hpp.

updatesIfChanged()

void MagAOX::app::MagAOXApp< _useINDI >::updatesIfChanged ( pcf::IndiProperty &  p, const std::vector< const char * > &  els, const std::vector< T > &  newVals, pcf::IndiProperty::PropertyStateType  newState = pcf::IndiProperty::Ok  )

protectedinherited

Parameters

	p	[in/out] The property containing the element to possibly update
[in]	els	String vector of element names
[in]	newVals	the new values
[in]	newState	[optional] The state of the property

Definition at line 1085 of file MagAOXApp.hpp.

updateSwitchIfChanged()

void MagAOX::app::MagAOXApp< _useINDI >::updateSwitchIfChanged ( pcf::IndiProperty &  p, const std::string &  el, const pcf::IndiElement::SwitchStateType &  newVal, pcf::IndiProperty::PropertyStateType  ipState = pcf::IndiProperty::Ok  )

protectedinherited

Update an INDI switch element value if it has changed.

Will only peform a SetProperty if the new element switch state has changed, or the propery state has changed.

Parameters

	p	[in/out] The property containing the element to possibly update
[in]	el	The element name
[in]	newVal	the new value

Definition at line 1042 of file MagAOXApp.hpp.

whilePowerOff()

int MagAOX::app::MagAOXApp< _useINDI >::whilePowerOff ( )

protectedvirtualinherited

This method is called while the power is off, once per FSM loop.

Returns

0 on success.

-1 on any error which means the app should exit.

Reimplemented in MagAOX::app::alpaoCtrl, MagAOX::app::bmcCtrl, MagAOX::app::irisaoCtrl, MagAOX::app::zaberLowLevel, and MagAOX::app::zaberLowLevelBinary.

Definition at line 1207 of file MagAOXApp.hpp.

Friends And Related Symbol Documentation

dev::telemeter< observerCtrl >

friend class dev::telemeter< observerCtrl >

friend

Definition at line 42 of file observerCtrl.hpp.

observerCtrl_test

friend class observerCtrl_test

friend

Definition at line 42 of file observerCtrl.hpp.

Member Data Documentation

m_allDefsReceived

bool MagAOX::app::MagAOXApp< _useINDI >::m_allDefsReceived

protectedinherited

Flag indicating that all registered Set properties have been updated since last Get.

Definition at line 716 of file MagAOXApp.hpp.

m_basePath

std::string MagAOX::app::MagAOXApp< _useINDI >::m_basePath

protectedinherited

The base path of the MagAO-X system.

Definition at line 188 of file MagAOXApp.hpp.

m_calibDir

std::string MagAOX::app::MagAOXApp< _useINDI >::m_calibDir

protectedinherited

The path to calibration files for MagAOX.

Definition at line 196 of file MagAOXApp.hpp.

m_catalogProp

std::string MagAOX::app::observerCtrl::m_catalogProp { "catalog" }

protected

Definition at line 84 of file observerCtrl.hpp.

Referenced by appStartup().

m_catdataProp

std::string MagAOX::app::observerCtrl::m_catdataProp { "catdata" }

protected

Definition at line 86 of file observerCtrl.hpp.

Referenced by appStartup().

m_catDec

std::string MagAOX::app::observerCtrl::m_catDec

protected

The latest catalog declination reported by the TCS.

Definition at line 128 of file observerCtrl.hpp.

m_catObj

std::string MagAOX::app::observerCtrl::m_catObj

protected

The latest catalog object name reported by the TCS.

Definition at line 125 of file observerCtrl.hpp.

m_catRA

std::string MagAOX::app::observerCtrl::m_catRA

protected

The latest catalog right ascension reported by the TCS.

Definition at line 127 of file observerCtrl.hpp.

m_configBase

std::string MagAOX::app::MagAOXApp< _useINDI >::m_configBase

protectedinherited

The name of a base config class for this app (minus .conf).

Definition at line 194 of file MagAOXApp.hpp.

m_configDir

std::string MagAOX::app::MagAOXApp< _useINDI >::m_configDir

protectedinherited

The path to configuration files for MagAOX.

Definition at line 192 of file MagAOXApp.hpp.

m_configName

std::string MagAOX::app::MagAOXApp< _useINDI >::m_configName

protectedinherited

The name of the configuration file (minus .conf).

Definition at line 190 of file MagAOXApp.hpp.

m_cpusetPath

std::string MagAOX::app::MagAOXApp< _useINDI >::m_cpusetPath

protectedinherited

Path to the cpusets mount.

The path to the cpusets mount is configured by the environment variable defined by MAGOX_env_cpuset in environment.hpp. This environment variable is normally named "CGROUPS1_CPUSET_MOUNTPOINT". If the environment variable is not set, the default defined by MAGAOX_cpusetPath in paths.hpp is used.

Definition at line 207 of file MagAOXApp.hpp.

m_currentObserver

observer MagAOX::app::observerCtrl::m_currentObserver

protected

The current selected observer.

Definition at line 114 of file observerCtrl.hpp.

Referenced by appLogic(), appStartup(), and recordObserver().

m_currentOperator

observer MagAOX::app::observerCtrl::m_currentOperator

protected

The current selected observer.

Definition at line 116 of file observerCtrl.hpp.

Referenced by appLogic(), appStartup(), and recordObserver().

m_decEl

std::string MagAOX::app::observerCtrl::m_decEl { "dec" }

protected

Definition at line 88 of file observerCtrl.hpp.

m_defStreamWriters

std::vector<std::string> MagAOX::app::observerCtrl::m_defStreamWriters

protected

The configured stream writers always managed for observations.

Definition at line 63 of file observerCtrl.hpp.

Referenced by appStartup(), loadConfigImpl(), startObserving(), and stopObserving().

m_driverCtrlName

std::string MagAOX::app::MagAOXApp< _useINDI >::m_driverCtrlName

protectedinherited

Full path name of the INDI driver control FIFO.

This is currently only used to signal restarts.

Definition at line 727 of file MagAOXApp.hpp.

m_driverInName

std::string MagAOX::app::MagAOXApp< _useINDI >::m_driverInName

protectedinherited

Full path name of the INDI driver input FIFO.

Definition at line 719 of file MagAOXApp.hpp.

m_driverOutName

std::string MagAOX::app::MagAOXApp< _useINDI >::m_driverOutName

protectedinherited

Full path name of the INDI driver output FIFO.

Definition at line 722 of file MagAOXApp.hpp.

m_euidCalled

uid_t MagAOX::app::MagAOXApp< _useINDI >::m_euidCalled

privateinherited

The user id of the process as called (i.e. the higher privileged id of the owner, root if setuid).

Definition at line 422 of file MagAOXApp.hpp.

m_euidReal

uid_t MagAOX::app::MagAOXApp< _useINDI >::m_euidReal

privateinherited

The real user id of the proces (i.e. the lower privileged id of the user)

Definition at line 421 of file MagAOXApp.hpp.

m_gitAlert

bool MagAOX::app::MagAOXApp< _useINDI >::m_gitAlert

privateinherited

Definition at line 582 of file MagAOXApp.hpp.

m_indiCallBackMutex

std::mutex MagAOX::app::MagAOXApp< _useINDI >::m_indiCallBackMutex

inherited

Mutex for locking INDI callback maps and per-entry callback state.

Lock ordering policy: 1) Prefer never holding both m_indiMutex and m_indiCallBackMutex at the same time. 2) If both are required in future code, always acquire m_indiMutex before m_indiCallBackMutex.

Definition at line 669 of file MagAOXApp.hpp.

m_indiDriver

indiDriver<MagAOXApp>* MagAOX::app::MagAOXApp< _useINDI >::m_indiDriver

inherited

The INDI driver wrapper. Constructed and initialized by execute, which starts and stops communications.

Todo:

instead of making this public, provide an accessor.

Definition at line 659 of file MagAOXApp.hpp.

m_indiMutex

std::mutex MagAOX::app::MagAOXApp< _useINDI >::m_indiMutex

inherited

Mutex for locking INDI communications.

Definition at line 662 of file MagAOXApp.hpp.

m_indiNewCallBacks

std::unordered_map<std::string, indiCallBack> MagAOX::app::MagAOXApp< _useINDI >::m_indiNewCallBacks

protectedinherited

Map to hold the NewProperty indiCallBacks for this App, with fast lookup by property name.

The key for these is the property name.

Definition at line 707 of file MagAOXApp.hpp.

m_indiP_catalog

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_catalog

protected

Catalog text data.

Definition at line 261 of file observerCtrl.hpp.

Referenced by appStartup().

m_indiP_catdata

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_catdata

protected

Catalog numeric data.

Definition at line 262 of file observerCtrl.hpp.

Referenced by appStartup().

m_indiP_clearFSMAlert

pcf::IndiProperty MagAOX::app::MagAOXApp< _useINDI >::m_indiP_clearFSMAlert

protectedinherited

indi Property to clear an FSM alert.

Definition at line 1137 of file MagAOXApp.hpp.

m_indiP_labMode

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_labMode

protected

Tracks whether TCS is in lab mode.

Definition at line 265 of file observerCtrl.hpp.

Referenced by appStartup().

m_indiP_loop

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_loop

protected

Tracks the loop state.

Definition at line 267 of file observerCtrl.hpp.

Referenced by appStartup().

m_indiP_obsAngle

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_obsAngle

protected

Number tracking the change in angle.

Definition at line 251 of file observerCtrl.hpp.

Referenced by appLogic(), and appStartup().

m_indiP_obsDuration

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_obsDuration

protected

Number to set the desired duration of observation.

Definition at line 248 of file observerCtrl.hpp.

Referenced by appLogic(), and appStartup().

m_indiP_observer

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_observer

protected

Text which contains the specifications of the current observer.

Definition at line 240 of file observerCtrl.hpp.

Referenced by appLogic(), and appStartup().

m_indiP_observers

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_observers

protected

Selection switch to allow selection of the observer.

Definition at line 239 of file observerCtrl.hpp.

Referenced by appLogic(), and appStartup().

m_indiP_observing

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_observing

protected

Toggle switch to trigger observation.

Definition at line 247 of file observerCtrl.hpp.

Referenced by appLogic(), and appStartup().

m_indiP_obsName

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_obsName

protected

The current observation name, used to specify the purpose of the observation

Definition at line 245 of file observerCtrl.hpp.

Referenced by appLogic(), and appStartup().

m_indiP_obsStart

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_obsStart

protected

String timestamp indicating the start for target/observation.

Definition at line 249 of file observerCtrl.hpp.

Referenced by appLogic(), and appStartup().

m_indiP_obsTime

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_obsTime

protected

Number tracking the elapsed time.

Definition at line 250 of file observerCtrl.hpp.

Referenced by appLogic(), and appStartup().

m_indiP_operator

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_operator

protected

Text which contains the specifications of the current observer.

Definition at line 243 of file observerCtrl.hpp.

Referenced by appLogic(), and appStartup().

m_indiP_operators

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_operators

protected

Selection switch to allow selection of the observer.

Definition at line 242 of file observerCtrl.hpp.

Referenced by appLogic(), and appStartup().

m_indiP_powerChannel

pcf::IndiProperty MagAOX::app::MagAOXApp< _useINDI >::m_indiP_powerChannel

protectedinherited

INDI property used to communicate power state.

Definition at line 1193 of file MagAOXApp.hpp.

m_indiP_resetTarget

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_resetTarget

protected

Reset the target statistics.

Definition at line 255 of file observerCtrl.hpp.

Referenced by appStartup().

m_indiP_state

pcf::IndiProperty MagAOX::app::MagAOXApp< _useINDI >::m_indiP_state

protectedinherited

indi Property to report the application state.

Definition at line 1134 of file MagAOXApp.hpp.

m_indiP_streamWriterWriting

std::map<std::string, pcf::IndiProperty> MagAOX::app::observerCtrl::m_indiP_streamWriterWriting

protected

Tracks the remote writing properties for configured stream writers.

Definition at line 66 of file observerCtrl.hpp.

Referenced by registerStreamWriter().

m_indiP_sws

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_sws

protected

Selection to switch which user-managed stream writers are enabled.

Definition at line 252 of file observerCtrl.hpp.

Referenced by appStartup(), and streamWriterSelected().

m_indiP_target

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_target

protected

The target name, which can be overridden by the user.

Definition at line 257 of file observerCtrl.hpp.

Referenced by appStartup().

m_indiP_tcsTarget

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_tcsTarget

protected

Set the target to match TCS catObj.

Definition at line 259 of file observerCtrl.hpp.

Referenced by appStartup().

m_indiP_teldata

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_teldata

protected

Telescope data (for parang)

Definition at line 263 of file observerCtrl.hpp.

Referenced by appStartup().

m_indiP_userlog

pcf::IndiProperty MagAOX::app::observerCtrl::m_indiP_userlog

protected

Text to enter a user log.

Definition at line 253 of file observerCtrl.hpp.

Referenced by appStartup().

m_indiSetCallBacks

std::unordered_map<std::string, indiCallBack> MagAOX::app::MagAOXApp< _useINDI >::m_indiSetCallBacks

protectedinherited

Map to hold the SetProperty indiCallBacks for this App, with fast lookup by property name.

The key for these is device.name

Definition at line 712 of file MagAOXApp.hpp.

m_labMode

bool MagAOX::app::observerCtrl::m_labMode { false }

protected

Flag tracking whether the TCS interface is in lab mode.

Definition at line 132 of file observerCtrl.hpp.

Referenced by startObserving().

m_labModeProp

std::string MagAOX::app::observerCtrl::m_labModeProp { "labMode" }

protected

Definition at line 89 of file observerCtrl.hpp.

Referenced by appStartup().

m_log

MagAOXApp< _useINDI >::logManagerT MagAOX::app::MagAOXApp< _useINDI >::m_log

staticinherited

Definition at line 345 of file MagAOXApp.hpp.

m_loop

bool MagAOX::app::observerCtrl::m_loop { false }

protected

Flag tracking loop state. true is loop closed.

Definition at line 130 of file observerCtrl.hpp.

m_loopDev

std::string MagAOX::app::observerCtrl::m_loopDev { "holoop" }

protected

Definition at line 94 of file observerCtrl.hpp.

Referenced by appStartup().

m_loopPause

unsigned long MagAOX::app::MagAOXApp< _useINDI >::m_loopPause

protectedinherited

The time in nanoseconds to pause the main loop. The appLogic() function of the derived class is called every m_loopPause nanoseconds. Default is 1,000,000,000 ns. Config with loopPause=X.

Definition at line 209 of file MagAOXApp.hpp.

m_loopStateProp

std::string MagAOX::app::observerCtrl::m_loopStateProp { "loop_state" }

protected

Definition at line 95 of file observerCtrl.hpp.

Referenced by appStartup().

m_maxInterval

double MagAOX::app::dev::telemeter< observerCtrl >::m_maxInterval

inherited

The maximum interval, in seconds, between telemetry records. Default is 10.0 seconds.

Definition at line 83 of file telemeter.hpp.

m_newTarget

bool MagAOX::app::observerCtrl::m_newTarget { false }

protected

Flag to track when the target changes. Occurs either automatically on a TCS update or on a user override.

Definition at line 137 of file observerCtrl.hpp.

m_newTargetBlock

bool MagAOX::app::observerCtrl::m_newTargetBlock { true }

protected

Flag to indicate that this is a new target block. This starts out as true but becomes false on the first observation. Then becomes true when the loop closes for the first time after a target change.

Definition at line 134 of file observerCtrl.hpp.

Referenced by startObserving().

m_objEl

std::string MagAOX::app::observerCtrl::m_objEl { "object" }

protected

Definition at line 85 of file observerCtrl.hpp.

m_obsDuration

double MagAOX::app::observerCtrl::m_obsDuration { 0 }

protected

The desired duration of the observation. If 0 then until stopped.

Definition at line 119 of file observerCtrl.hpp.

Referenced by appLogic().

m_observers

observerMapT MagAOX::app::observerCtrl::m_observers

protected

The observers from the configuration file.

Definition at line 112 of file observerCtrl.hpp.

Referenced by appLogic(), appStartup(), loadConfig(), and loadConfigImpl().

m_observing

bool MagAOX::app::observerCtrl::m_observing { false }

protected

Flag indicating whether or not we are in an observation.

Definition at line 121 of file observerCtrl.hpp.

Referenced by appLogic(), recordObserver(), startObserving(), and stopObserving().

m_obsName

std::string MagAOX::app::observerCtrl::m_obsName

protected

The name of the observation.

Definition at line 118 of file observerCtrl.hpp.

Referenced by appLogic(), and recordObserver().

m_obsStartParang

double MagAOX::app::observerCtrl::m_obsStartParang { 0 }

protected

The parallactic angle at the start of the observation.

Definition at line 147 of file observerCtrl.hpp.

Referenced by appLogic(), and startObserving().

m_obsStartTime

timePointT MagAOX::app::observerCtrl::m_obsStartTime

protected

The start time of the current observation.

Definition at line 141 of file observerCtrl.hpp.

Referenced by appLogic(), and startObserving().

m_obsStartTimeStamp

timeStampT MagAOX::app::observerCtrl::m_obsStartTimeStamp

protected

The UTC start time of the current observation.

Definition at line 144 of file observerCtrl.hpp.

Referenced by appLogic(), and startObserving().

m_parang

double MagAOX::app::observerCtrl::m_parang { 0 }

protected

The current parallactic angle.

Definition at line 159 of file observerCtrl.hpp.

Referenced by appLogic(), and startObserving().

m_parangEl

std::string MagAOX::app::observerCtrl::m_parangEl { "pa" }

protected

Definition at line 92 of file observerCtrl.hpp.

m_pid

pid_t MagAOX::app::MagAOXApp< _useINDI >::m_pid

protectedinherited

This process's PID.

Definition at line 506 of file MagAOXApp.hpp.

m_powerChannel

std::string MagAOX::app::MagAOXApp< _useINDI >::m_powerChannel

protectedinherited

The INDI property name of the channel controlling this device's power.

Definition at line 1179 of file MagAOXApp.hpp.

m_powerDevice

std::string MagAOX::app::MagAOXApp< _useINDI >::m_powerDevice

protectedinherited

The INDI device name of the power controller.

Definition at line 1178 of file MagAOXApp.hpp.

m_powerElement

std::string MagAOX::app::MagAOXApp< _useINDI >::m_powerElement

protectedinherited

The INDI element name to monitor for this device's power state.

Definition at line 1180 of file MagAOXApp.hpp.

m_powerMgtEnabled

bool MagAOX::app::MagAOXApp< _useINDI >::m_powerMgtEnabled

protectedinherited

Flag controls whether power mgt is used. Set this in the constructor of a derived app. If true, then if after loadConfig the powerDevice and powerChannel are empty, then the app will exit with a critical error.

Definition at line 1173 of file MagAOXApp.hpp.

m_powerOnCounter

int MagAOX::app::MagAOXApp< _useINDI >::m_powerOnCounter

protectedinherited

Counts numer of loops after power on, implements delay for device bootup. If -1, then device was NOT powered off on app startup.

Definition at line 1186 of file MagAOXApp.hpp.

m_powerOnWait

unsigned long MagAOX::app::MagAOXApp< _useINDI >::m_powerOnWait

protectedinherited

Default time in sec to wait for device to boot after power on.

Definition at line 1183 of file MagAOXApp.hpp.

m_powerState

int MagAOX::app::MagAOXApp< _useINDI >::m_powerState

protectedinherited

Current power state, 1=On, 0=Off, -1=Unk.

Definition at line 1190 of file MagAOXApp.hpp.

m_powerTargetElement

std::string MagAOX::app::MagAOXApp< _useINDI >::m_powerTargetElement

protectedinherited

The INDI element name to monitor for this device's power state.

Definition at line 1181 of file MagAOXApp.hpp.

m_powerTargetState

int MagAOX::app::MagAOXApp< _useINDI >::m_powerTargetState

protectedinherited

Current target power state, 1=On, 0=Off, -1=Unk.

Definition at line 1191 of file MagAOXApp.hpp.

m_raEl

std::string MagAOX::app::observerCtrl::m_raEl { "ra" }

protected

Definition at line 87 of file observerCtrl.hpp.

m_secretsPath

std::string MagAOX::app::MagAOXApp< _useINDI >::m_secretsPath

protectedinherited

Path to the secrets directory, where passwords, etc, are stored.

Definition at line 200 of file MagAOXApp.hpp.

m_self

MagAOXApp< _useINDI > * MagAOX::app::MagAOXApp< _useINDI >::m_self

staticprivateinherited

Static pointer to this (set in constructor). Used to test whether a a MagAOXApp is already instatiated (a fatal error) and used for getting out of static signal handlers.

Definition at line 397 of file MagAOXApp.hpp.

m_shutdown

int MagAOX::app::MagAOXApp< _useINDI >::m_shutdown

protectedinherited

Flag to signal it's time to shutdown. When not 0, the main loop exits.

Definition at line 214 of file MagAOXApp.hpp.

m_state

stateCodes::stateCodeT MagAOX::app::MagAOXApp< _useINDI >::m_state

privateinherited

The application's state. Never ever set this directly, use state(const stateCodeT & s).

Definition at line 576 of file MagAOXApp.hpp.

m_stateAlert

bool MagAOX::app::MagAOXApp< _useINDI >::m_stateAlert

privateinherited

Definition at line 579 of file MagAOXApp.hpp.

m_stateLogged

int MagAOX::app::MagAOXApp< _useINDI >::m_stateLogged

privateinherited

Counter and flag for use to log errors just once. Never ever access directly, use stateLogged().

Definition at line 584 of file MagAOXApp.hpp.

m_streamWriterDevices

std::map<std::string, std::string> MagAOX::app::observerCtrl::m_streamWriterDevices

protected

Reverse lookup from remote stream writer device name to configured writer name.

Definition at line 72 of file observerCtrl.hpp.

Referenced by registerStreamWriter(), and setCallBack_streamWriterWriting().

m_streamWriters

std::vector<std::string> MagAOX::app::observerCtrl::m_streamWriters

protected

The configured stream writers available for user selection.

Definition at line 61 of file observerCtrl.hpp.

Referenced by appStartup(), loadConfigImpl(), startObserving(), and stopObserving().

m_streamWriterSelectable

std::map<std::string, bool> MagAOX::app::observerCtrl::m_streamWriterSelectable

protected

Tracks whether each configured stream writer is user-selectable in INDI.

Definition at line 69 of file observerCtrl.hpp.

Referenced by registerStreamWriter(), and streamWriterSelected().

m_streamWriterStartedByObserver

std::map<std::string, bool> MagAOX::app::observerCtrl::m_streamWriterStartedByObserver

protected

Tracks whether observerCtrl started each stream writer for the current observation.

Definition at line 81 of file observerCtrl.hpp.

Referenced by beginObservationStreamWriter(), endObservationStreamWriter(), and registerStreamWriter().

m_streamWriterWriting

std::map<std::string, bool> MagAOX::app::observerCtrl::m_streamWriterWriting

protected

Tracks the last known remote writing state for each configured stream writer.

Definition at line 75 of file observerCtrl.hpp.

Referenced by beginObservationStreamWriter(), registerStreamWriter(), and setCallBack_streamWriterWriting().

m_streamWriterWritingKnown

std::map<std::string, bool> MagAOX::app::observerCtrl::m_streamWriterWritingKnown

protected

Tracks whether a remote writing state has been received for each configured stream writer.

Definition at line 78 of file observerCtrl.hpp.

Referenced by beginObservationStreamWriter(), registerStreamWriter(), and setCallBack_streamWriterWriting().

m_suid

uid_t MagAOX::app::MagAOXApp< _useINDI >::m_suid

privateinherited

The save-set user id of the process.

Definition at line 424 of file MagAOXApp.hpp.

m_sysPath

std::string MagAOX::app::MagAOXApp< _useINDI >::m_sysPath

protectedinherited

The path to the system directory, for PID file, etc.

Definition at line 198 of file MagAOXApp.hpp.

m_target

std::string MagAOX::app::observerCtrl::m_target

protected

The current target name shown to the observer.

Definition at line 123 of file observerCtrl.hpp.

Referenced by recordObserver().

m_tcsDev

std::string MagAOX::app::observerCtrl::m_tcsDev { "tcsi" }

protected

Definition at line 83 of file observerCtrl.hpp.

Referenced by appStartup().

m_tel

logManagerT MagAOX::app::dev::telemeter< observerCtrl >::m_tel

inherited

Definition at line 81 of file telemeter.hpp.

m_teldataProp

std::string MagAOX::app::observerCtrl::m_teldataProp { "teldata" }

protected

Definition at line 91 of file observerCtrl.hpp.

Referenced by appStartup().

m_tgtAng

double MagAOX::app::observerCtrl::m_tgtAng { 0 }

protected

The current target angle. Only updated while observing.

Definition at line 186 of file observerCtrl.hpp.

Referenced by appLogic().

m_tgtStartParang

double MagAOX::app::observerCtrl::m_tgtStartParang { 0 }

protected

The parallactic angle at the start of observing the current target.

Definition at line 156 of file observerCtrl.hpp.

Referenced by appLogic(), and startObserving().

m_tgtStartTime

timePointT MagAOX::app::observerCtrl::m_tgtStartTime

protected

The start time of the current target.

Definition at line 150 of file observerCtrl.hpp.

Referenced by appLogic(), and startObserving().

m_tgtStartTimeStamp

timeStampT MagAOX::app::observerCtrl::m_tgtStartTimeStamp

protected

The UTC start time of the current target.

Definition at line 153 of file observerCtrl.hpp.

Referenced by appLogic(), and startObserving().

m_tgtTime

durationT MagAOX::app::observerCtrl::m_tgtTime

protected

The current target time. Only updated while observing.

Definition at line 183 of file observerCtrl.hpp.

Referenced by appLogic().

m_useINDI

constexpr bool MagAOX::app::MagAOXApp< _useINDI >::m_useINDI

staticconstexprprotectedinherited

Flag controlling whether INDI is used. If false, then no INDI code executes.

Definition at line 654 of file MagAOXApp.hpp.

pidFileName

std::string MagAOX::app::MagAOXApp< _useINDI >::pidFileName

protectedinherited

The name of the PID file.

Definition at line 504 of file MagAOXApp.hpp.

---

The documentation for this class was generated from the following file:

• apps/observerCtrl/observerCtrl.hpp
