The log entry header. More...

#include <logHeader.hpp>

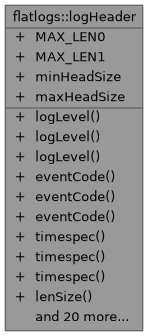

Collaboration diagram for flatlogs::logHeader:

Classes
struct	internal_logHeader

union	internal_logHeader.__unnamed4__

Static Public Member Functions
static int	logLevel (bufferPtrT &logBuffer, const logPrioT &lvl)
	Set the level of a log entry in a logBuffer header. More...

static logPrioT	logLevel (bufferPtrT &logBuffer)
	Extract the level of a log entry. More...

static logPrioT	logLevel (char *logBuffer)
	Extract the level of a log entry. More...

static int	eventCode (bufferPtrT &logBuffer, const eventCodeT &ec)
	Set the event code of a log entry. More...

static eventCodeT	eventCode (bufferPtrT &logBuffer)
	Extract the event code of a log entry. More...

static eventCodeT	eventCode (char *logBuffer)
	Extract the event code of a log entry. More...

static int	timespec (bufferPtrT &logBuffer, const timespecX &ts)
	Set the timespec of a log entry. More...

static timespecX	timespec (bufferPtrT &logBuffer)
	Extract the timespec of a log entry. More...

static timespecX	timespec (char *logBuffer)
	Extract the timespec of a log entry. More...

static size_t	lenSize (bufferPtrT &logBuffer)
	Get the size in bytes of the length field for an existing logBuffer. More...

static size_t	lenSize (char *logBuffer)
	Get the size in bytes of the length field for an existing logBuffer. More...

static size_t	lenSize (msgLenT &msgSz)
	Get the size in bytes of the length field for a logBuffer given the intended message length. More...

static int	msgLen (bufferPtrT &logBuffer, const msgLenT &msgLen)
	Set the message length of a log entry message. More...

static msgLen0T	msgLen0 (bufferPtrT &logBuffer)
	Extract the short message length of a log entry message. More...

static msgLen0T	msgLen0 (char *logBuffer)
	Extract the short message length of a log entry message. More...

static msgLen1T	msgLen1 (bufferPtrT &logBuffer)
	Extract the medium message length of a log entry message. More...

static msgLen1T	msgLen1 (char *logBuffer)
	Extract the medium message length of a log entry message. More...

static msgLenT	msgLen (bufferPtrT &logBuffer)
	Extract the message length of a log entry message. More...

static msgLenT	msgLen (char *logBuffer)
	Extract the message length of a log entry message. More...

static size_t	headerSize (bufferPtrT &logBuffer)
	Get the size of the header, including the variable size length field, for an existing logBuffer. More...

static size_t	headerSize (char *logBuffer)
	Get the size of the header, including the variable size length field, for an existing logBuffer. More...

static size_t	headerSize (msgLenT &msgSz)
	Get the size of the header, including the variable size length field, given a message size. More...

static size_t	totalSize (bufferPtrT &logBuffer)
	Get the total size of the log entry, including the message buffer. More...

static size_t	totalSize (char *logBuffer)
	Get the total size of the log entry, including the message buffer. More...

static size_t	totalSize (msgLenT &msgSz)
	Get the total size of a log entry, given the message buffer size. More...

static void *	messageBuffer (bufferPtrT &logBuffer)
	Get the message buffer address. More...

static void *	messageBuffer (char *logBuffer)
	Get the message buffer address. More...

template<typename logT >
static int	createLog (bufferPtrT &logBuffer, const timespecX &ts, const typename logT::messageT &msg, const logPrioT &level)
	Create a formatted log entry, filling in a buffer. More...

static int	extractBasicLog (logPrioT &lvl, eventCodeT &ec, timespecX &ts, msgLenT &len, bufferPtrT &logBuffer)
	Extract the basic details of a log entry. More...

static int	extractBasicLog (logPrioT &lvl, eventCodeT &ec, timespecX &ts, msgLenT &len, char *logBuffer)
	Extract the basic details of a log entry. More...

Static Public Attributes
constexpr static size_t	MAX_LEN0 = std::numeric_limits<msgLen0T>::max()
	The max value in the msgLen0 field. More...

constexpr static size_t	MAX_LEN1 = std::numeric_limits<msgLen1T>::max()
	The max value in the msgLen1 field. More...

constexpr static int	minHeadSize
	The minimum header size. More...

constexpr static int	maxHeadSize = minHeadSize + sizeof(msgLen2T)
	The maximum header size. More...

Detailed Description

The log entry header.

This class is designed to work with the log header only as a shared pointer to it, not directly on the members. The actual header struct is private so we ensure that it is accessed properly. As such all of the member methods are static and take a shared_ptr as first argument.

Definition at line 70 of file logHeader.hpp.

Class Documentation

◆ flatlogs::logHeader::internal_logHeader

struct flatlogs::logHeader::internal_logHeader

Definition at line 94 of file logHeader.hpp.

Collaboration diagram for flatlogs::logHeader::internal_logHeader:

Class Members
union internal_logHeader	__unnamed__
eventCodeT	m_eventCode
logPrioT	m_logLevel
timespecX	m_timespecX
msgLen0T	msgLen0	The short message length. Always present.

◆ flatlogs::logHeader::internal_logHeader.unnamed4

union flatlogs::logHeader::internal_logHeader.__unnamed4__

Definition at line 100 of file logHeader.hpp.

Collaboration diagram for flatlogs::logHeader::internal_logHeader.__unnamed4__:

Class Members
msgLen1T	msgLen1	The intermediate message length. Only present if msgLen0 == max-1 of msgLen0T.
msgLen2T	msgLen2	The long message length. Only present if msgLen1 == max-value of msgLen0T.

Member Function Documentation

◆ createLog()

template<typename logT >

int flatlogs::logHeader::createLog	(	bufferPtrT &	logBuffer,
		const timespecX &	ts,
		const typename logT::messageT &	msg,
		const logPrioT &	level
	)

static

Create a formatted log entry, filling in a buffer.

This version has the timestamp provided.

Template Parameters

logT	is a log entry type

Returns: 0 on success, -1 on error.

Parameters

[out]	logBuffer	a shared_ptr<logBuffer>, which will be allocated and populated with the log entry
[in]	ts	the timestamp of this log entry.
[in]	msg	the message to log (could be of type emptyMessage)
[in]	level	the level (verbosity) of this log

Definition at line 634 of file logHeader.hpp.

Member Data Documentation

◆ MAX_LEN0

constexpr static size_t flatlogs::logHeader::MAX_LEN0 = std::numeric_limits<msgLen0T>::max()

staticconstexpr

The max value in the msgLen0 field.

Definition at line 76 of file logHeader.hpp.

Referenced by lenSize(), and msgLen().

◆ MAX_LEN1

constexpr static size_t flatlogs::logHeader::MAX_LEN1 = std::numeric_limits<msgLen1T>::max()

staticconstexpr

The max value in the msgLen1 field.

Definition at line 79 of file logHeader.hpp.

Referenced by lenSize(), and msgLen().

◆ maxHeadSize

constexpr static int flatlogs::logHeader::maxHeadSize = minHeadSize + sizeof(msgLen2T)

staticconstexpr

The maximum header size.

The header component could be as big as this.

Definition at line 90 of file logHeader.hpp.

◆ minHeadSize

constexpr static int flatlogs::logHeader::minHeadSize

staticconstexpr

Initial value:

= sizeof(logPrioT) + sizeof(eventCodeT) +

sizeof(secT) + sizeof(nanosecT) + sizeof(msgLen0T)

flatlogs::eventCodeT

uint16_t eventCodeT

The type of an event code (16-bit unsigned int).

Definition: logDefs.hpp:40

flatlogs::logPrioT

int8_t logPrioT

The type of the log priority code.

Definition: logDefs.hpp:21

flatlogs::secT

uint32_t secT

The type used for seconds.

Definition: logDefs.hpp:29

flatlogs::msgLen0T

uint8_t msgLen0T

The type used for the short message length.

Definition: logDefs.hpp:47

flatlogs::nanosecT

uint32_t nanosecT

The type used for nanoseconds.

Definition: logDefs.hpp:34

The minimum header size.

A buffer must be allocated to at least this size.

Definition at line 84 of file logHeader.hpp.

The documentation for this class was generated from the following file:

flatlogs/include/flatlogs/logHeader.hpp
