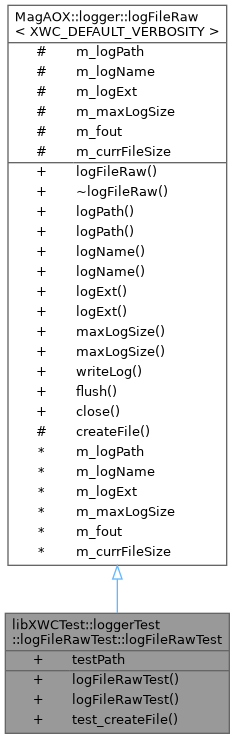

Inheritance diagram for libXWCTest::loggerTest::logFileRawTest::logFileRawTest:

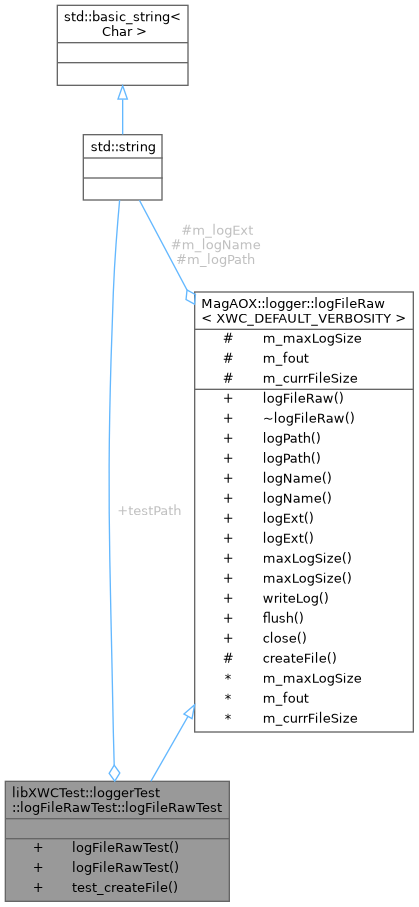

Collaboration diagram for libXWCTest::loggerTest::logFileRawTest::logFileRawTest:

Public Member Functions
	logFileRawTest ()

	logFileRawTest (const std::string &lp)

mx::error_t	test_createFile (flatlogs::timespecX &ts)

mx::error_t	logPath (const std::string &newPath)
	Set the path.

std::string	logPath ()
	Get the path.

mx::error_t	logName (const std::string &newName)
	Set the log name.

std::string	logName ()
	Get the name.

mx::error_t	logExt (const std::string &newExt)
	Set the log extension.

std::string	logExt ()
	Get the log extension.

mx::error_t	maxLogSize (size_t newMaxFileSize)
	Set the maximum file size.

size_t	maxLogSize ()
	Get the maximum file size.

mx::error_t	writeLog (flatlogs::bufferPtrT &data)
	Write a log entry to the file.

mx::error_t	flush ()
	Flush the stream.

mx::error_t	close ()
	Close the file pointer.

Public Attributes
std::string	testPath

Protected Member Functions
mx::error_t	createFile (flatlogs::timespecX &ts)
	Create a new file.

Protected Attributes
Configurable Parameters
std::string	m_logPath
	The base path for the log files.

std::string	m_logName
	The base name for the log files.

std::string	m_logExt
	The extension for the log files.

size_t	m_maxLogSize
	The maximum file size in bytes. Default is 10 MB.

Internal State
FILE *	m_fout
	The file pointer.

size_t	m_currFileSize
	The current file size.

Detailed Description

Definition at line 35 of file logFileRaw_test.cpp.

Constructor & Destructor Documentation

◆ logFileRawTest() [1/2]

libXWCTest::loggerTest::logFileRawTest::logFileRawTest::logFileRawTest ( )

inline

Definition at line 40 of file logFileRaw_test.cpp.

References MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::m_logName, MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::m_logPath, and testPath.

◆ logFileRawTest() [2/2]

libXWCTest::loggerTest::logFileRawTest::logFileRawTest::logFileRawTest ( const std::string & lp )

inlineexplicit

Definition at line 47 of file logFileRaw_test.cpp.

References MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::m_logName, MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::m_logPath, and testPath.

Member Function Documentation

◆ close()

mx::error_t MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::close ( )

inherited

Close the file pointer.

Sets m_fout to nullptr after calling fclose regardless of error.

Returns: 0 on success; -1 on error

Definition at line 150 of file logFileRaw.hpp.

◆ createFile()

mx::error_t MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::createFile ( flatlogs::timespecX & ts )

protectedinherited

Create a new file.

Closes the current file if open. Then creates a new file with a name of the form [path]/[name]/YYYY_MM_DD/[name]_YYYYMMDDHHMMSSNNNNNNNNN.[ext]

Returns: 0 on success; -1 on error

Parameters

[in] ts A MagAOX timespec, used to set the timestamp

Definition at line 161 of file logFileRaw.hpp.

◆ flush()

mx::error_t MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::flush ( )

inherited

Flush the stream.

Calls fflush. See issue #192

Returns: 0 on success; -1 on error

Todo:: this probably should be fsync, with appropriate error handling (see fsyncgate) [issue #192]

Definition at line 142 of file logFileRaw.hpp.

◆ logExt() [1/2]

std::string MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::logExt ( )

inherited

Get the log extension.

Returns: the current value of m_logExt.

Definition at line 111 of file logFileRaw.hpp.

◆ logExt() [2/2]

mx::error_t MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::logExt ( const std::string & newExt )

inherited

Set the log extension.

Returns: 0 on success; -1 on error

Parameters

[in] newExt the new value of m_logExt

Definition at line 105 of file logFileRaw.hpp.

◆ logName() [1/2]

std::string MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::logName ( )

inherited

Get the name.

Returns: the current value of _name.

Definition at line 97 of file logFileRaw.hpp.

◆ logName() [2/2]

mx::error_t MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::logName ( const std::string & newName )

inherited

Set the log name.

Returns: 0 on success; -1 on error

Parameters

[in] newName the new value of m_logName

Definition at line 91 of file logFileRaw.hpp.

◆ logPath() [1/2]

std::string MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::logPath ( )

inherited

Get the path.

Returns: the current value of m_logPath.

Definition at line 83 of file logFileRaw.hpp.

◆ logPath() [2/2]

mx::error_t MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::logPath ( const std::string & newPath )

inherited

Set the path.

Returns: 0 on success; -1 on error

Parameters

[in] newPath the new value of _path

Definition at line 77 of file logFileRaw.hpp.

◆ maxLogSize() [1/2]

size_t MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::maxLogSize ( )

inherited

Get the maximum file size.

Returns: the current value of m_maxLogSize

Definition at line 125 of file logFileRaw.hpp.

◆ maxLogSize() [2/2]

mx::error_t MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::maxLogSize ( size_t newMaxFileSize )

inherited

Set the maximum file size.

Returns: 0 on success; -1 on error

Parameters

[in] newMaxFileSize the new value of _maxLogSize

Definition at line 119 of file logFileRaw.hpp.

◆ test_createFile()

mx::error_t libXWCTest::loggerTest::logFileRawTest::logFileRawTest::test_createFile ( flatlogs::timespecX & ts )

inline

Definition at line 54 of file logFileRaw_test.cpp.

References MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::createFile().

Referenced by libXWCTest::loggerTest::logFileRawTest::TEST_CASE(), and libXWCTest::loggerTest::logFileRawTest::TEST_CASE().

◆ writeLog()

mx::error_t MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::writeLog ( flatlogs::bufferPtrT & data )

inherited

Write a log entry to the file.

Checks if this write will exceed m_maxLogSize, and if so opens a new file. The new file will have the timestamp of this log entry.

Returns: 0 on success; -1 on error

Parameters

[in] data the log entry to write to disk

Definition at line 134 of file logFileRaw.hpp.

Member Data Documentation

◆ m_currFileSize

size_t MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::m_currFileSize

protectedinherited

The current file size.

Definition at line 56 of file logFileRaw.hpp.

◆ m_fout

FILE* MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::m_fout

protectedinherited

The file pointer.

Definition at line 54 of file logFileRaw.hpp.

◆ m_logExt

std::string MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::m_logExt

protectedinherited

The extension for the log files.

Definition at line 45 of file logFileRaw.hpp.

◆ m_logName

std::string MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::m_logName

protectedinherited

The base name for the log files.

Definition at line 44 of file logFileRaw.hpp.

◆ m_logPath

std::string MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::m_logPath

protectedinherited

The base path for the log files.

Definition at line 43 of file logFileRaw.hpp.

◆ m_maxLogSize

size_t MagAOX::logger::logFileRaw< XWC_DEFAULT_VERBOSITY >::m_maxLogSize

protectedinherited

The maximum file size in bytes. Default is 10 MB.

Definition at line 47 of file logFileRaw.hpp.

◆ testPath

std::string libXWCTest::loggerTest::logFileRawTest::logFileRawTest::testPath

Definition at line 38 of file logFileRaw_test.cpp.

Referenced by logFileRawTest(), logFileRawTest(), libXWCTest::loggerTest::logFileRawTest::TEST_CASE(), and libXWCTest::loggerTest::logFileRawTest::TEST_CASE().

The documentation for this class was generated from the following file:

libMagAOX/logger/tests/logFileRaw_test.cpp
