flowRPM.hpp File Reference

The MagAO-X flowRPM application header. More...

#include <cerrno>
#include <cmath>
#include <fstream>
#include <sstream>
#include "../../libMagAOX/libMagAOX.hpp"
#include "../../magaox_git_version.h"

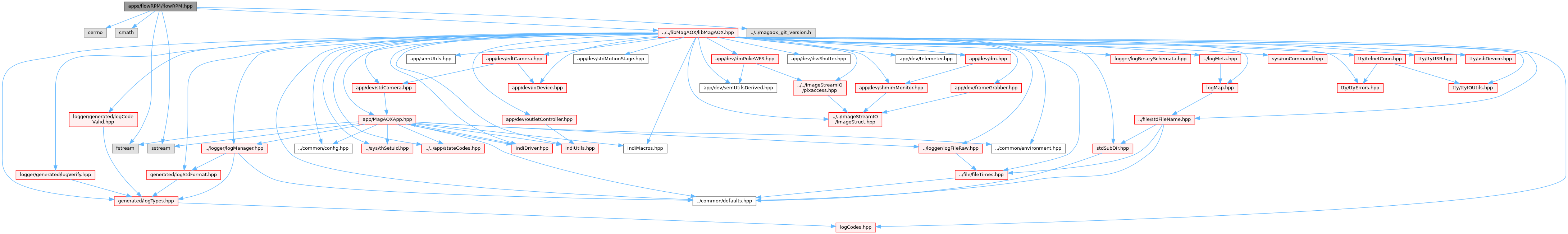

Include dependency graph for flowRPM.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	MagAOX::app::flowRPM
	The MagAO-X flow-from-RPM monitor. More...
struct	MagAOX::app::flowRPM::parseResult
	Parsed result of the current file contents. More...

Namespaces
namespace	MagAOX
namespace	MagAOX::app
namespace	MagAOX::app::flowRPMDetail

Functions
std::string	MagAOX::app::flowRPMDetail::trimToken (const std::string &token)
	Trim leading and trailing ASCII whitespace from a token.
double	MagAOX::app::flowRPMDetail::timespecToDouble (const timespec &ts)
	Convert a timespec to fractional seconds.
double	MagAOX::app::flowRPMDetail::elapsedSeconds (const timespec &start, const timespec &end)
	Measure elapsed seconds between two timestamps.
std::vector< std::string >	MagAOX::app::flowRPMDetail::splitPipeDelimited (const std::string &line)
	Split a pipe-delimited sensor line into trimmed fields.
bool	MagAOX::app::flowRPMDetail::isValidStatusField (const std::string &statusField)
	Determine whether the IPMI sensor status token represents a valid flow reading.
std::vector< std::string >	MagAOX::app::flowRPMDetail::splitLogicalLines (const std::string &contents)
	Split file contents into non-empty logical lines.

Detailed Description

The MagAO-X flowRPM application header.

Definition in file flowRPM.hpp.

---

Class Documentation

MagAOX::app::flowRPM::parseResult

struct MagAOX::app::flowRPM::parseResult

Parsed result of the current file contents.

Definition at line 65 of file flowRPM.hpp.

Collaboration diagram for MagAOX::app::flowRPM::parseResult:

Class Members
double	m_age { -999.0 }	Displayed age in seconds or the bad-value sentinel.
double	m_flowRate { -999.0 }	Displayed flow rate in LPM or the bad-value sentinel.
timespec	m_sourceTs { 0, 0 }	Parsed source timestamp when available.
parseStatus	m_status { parseStatus::fileReadError }	Outcome of the parse attempt.
