The rules for the MagAO-X stateRuleEngine. More...

#include <variant>
#include <mx/mxException.hpp>
#include "../../libMagAOX/libMagAOX.hpp"

Include dependency graph for indiCompRules.hpp:

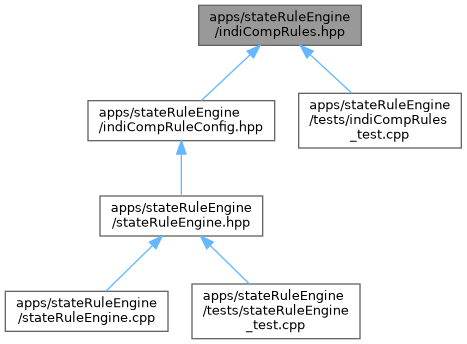

This graph shows which files directly or indirectly include this file:

Classes
struct	indiCompRule
	Virtual base-class for all rules. More...

struct	onePropRule
	A rule base class for testing an element in one property. More...

struct	twoPropRule
	A rule base class for testing elements in two properties. More...

struct	numValRule
	Compare the value of a number element to a target. More...

struct	txtValRule
	Compare the value of a text element to a target value. More...

struct	swValRule
	Compare the value of a switch to a target value. More...

struct	elCompNumRule
	Compare two elements based on their numeric values. More...

struct	elCompTxtRule
	Compare two elements based on their text values. More...

struct	elCompSwRule
	Compare two elements based on their switch values. More...

struct	ruleCompRule
	A rule to compare two rules. More...

Enumerations
enum class	ruleComparison { Eq , Neq , Lt , Gt , LtEq , GtEq , And , Nand , Or , Nor , Xor = Neq , Xnor = Eq }
	Logical comparisons for the INDI rules. More...

enum class	rulePriority { none , info , caution , warning , alert }
	Reporting priorities for rules. More...

Functions
ruleComparison	string2comp (const std::string &cstr)
	Get the ruleComparison member from a string representation. More...

rulePriority	string2priority (const std::string &pstr)
	Get the rulePriority member from a string representation. More...

Detailed Description

The rules for the MagAO-X stateRuleEngine.

Definition in file indiCompRules.hpp.

Enumeration Type Documentation

strong

Logical comparisons for the INDI rules.

Enumerator
Eq	Equal.
Neq	Not equal.
Lt	Less than.
Gt	Greater than.
LtEq	Less than or equal to.
GtEq	Greater than or equal to.
And	boolean and
Nand	boolean nand
Or	boolean or
Nor	boolean nor
Xor	boolean xor, equivalent to not equal
Xnor	boolean xnor, equivalent to equal

Definition at line 17 of file indiCompRules.hpp.

strong

Reporting priorities for rules.

Enumerator
none	Don't publish.
info	For information only.
caution	Caution – make sure you know what you're doing.
warning	Warning – something is probably wrong, you should check.
alert	Alert – something is definitely wrong, you should take action.

Definition at line 93 of file indiCompRules.hpp.

ruleComparison string2comp ( const std::string & cstr )

Get the ruleComparison member from a string representation.

Needed for processing configuration files

Definition at line 36 of file indiCompRules.hpp.

rulePriority string2priority ( const std::string & pstr )

Get the rulePriority member from a string representation.

Needed for processing configuration files

Definition at line 105 of file indiCompRules.hpp.
