A rule to compare two rules. More...

#include <indiCompRules.hpp>

Inheritance diagram for ruleCompRule:

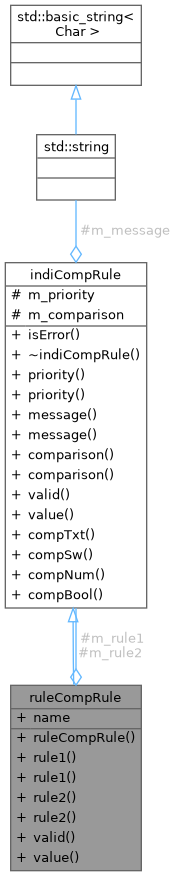

Collaboration diagram for ruleCompRule:

Public Types
typedef std::variant< bool, std::string >	boolorerr_t
	In-band error reporting type.

Public Member Functions
	ruleCompRule ()
	Default c'tor.

virtual ruleComparison	defaultComparison () const
	Get the default comparison for this rule type.

void	rule1 (indiCompRule *r)
	Set the pointer to the first rule.

const indiCompRule *	rule1 ()
	Get the pointer to the first rule.

void	rule2 (indiCompRule *r)
	Set the pointer to the second rule.

const indiCompRule *	rule2 ()
	Get the pointer to the first rule.

virtual boolorerr_t	valid ()
	Check if this rule is valid.

virtual bool	value ()
	Get the value of this rule.

virtual bool	popRuntimeDiagnostic (std::string &diagnostic)
	Pop one pending runtime diagnostic from either child rule.

bool	isError (boolorerr_t rv)
	Check if returned value indicates an error.

void	priority (const rulePriority &p, double delay=-1)
	Set priority of this rule.

const rulePriority &	priority ()
	Get the rule priority.

void	message (const std::string &m)
	Set the message.

const std::string &	message (bool settime=false)
	Get the message.

const timespec &	lastMsg ()

double	sinceLastMsg ()
	Get the time since the last message.

bool	timeToSend ()
	Check if it's time to send a message.

void	messageDelay (double md)
	Set the message delay.

double	messageDelay ()
	Get the message delay.

void	messageCount (int mc)
	Set the message count.

int	messageCount ()
	Get the message count.

int	incMessageCount ()
	Increment the message count.

void	comparison (const ruleComparison &c)
	Set the comparison for this rule.

const ruleComparison &	comparison ()
	Get the rule comparison.

boolorerr_t	compTxt (const std::string &str1, const std::string &str2)
	Compare two strings.

boolorerr_t	compSw (const pcf::IndiElement::SwitchStateType &sw1, const pcf::IndiElement::SwitchStateType &sw2)
	Compare two switches.

boolorerr_t	compNum (const double &num1, const double &num2, const double &tol)
	Compare two numbers.

boolorerr_t	compBool (const bool &b1, const bool &b2)
	Compare two booleans.

Static Public Attributes
static constexpr char	name [] = "ruleComp"
	Name of this rule, used by config system.

static constexpr double	default_info_msg_delay = 0

static constexpr double	default_caution_msg_delay = 60

static constexpr double	default_warning_msg_delay = 30

static constexpr double	default_alert_msg_delay = 5

Protected Attributes
indiCompRule *	m_rule1 { nullptr }
	rule one

indiCompRule *	m_rule2 { nullptr }
	rule two

rulePriority	m_priority { rulePriority::none }
	The reporting priority for this rule.

std::string	m_message
	The message used for notifications.

timespec	m_lastMsg { 0, 0 }
	Time the message was last sent.

double	m_messageDelay { 0 }
	Delay between sending messages.

int	m_messageCount { 0 }
	Number of times the message has been sent.

ruleComparison	m_comparison { ruleComparison::Eq }
	The comparison for this rule.

Detailed Description

A rule to compare two rules.

Definition at line 1723 of file indiCompRules.hpp.

Member Typedef Documentation

◆ boolorerr_t

typedef std::variant<bool, std::string> indiCompRule::boolorerr_t

inherited

In-band error reporting type.

Definition at line 187 of file indiCompRules.hpp.

Constructor & Destructor Documentation

◆ ruleCompRule()

ruleCompRule::ruleCompRule ( )

inline

Default c'tor.

Changes default comparison to And for ruleCompRule

Definition at line 1738 of file indiCompRules.hpp.

References indiCompRule::comparison(), and defaultComparison().

Member Function Documentation

◆ comparison() [1/2]

const ruleComparison & indiCompRule::comparison ( )

inlineinherited

Get the rule comparison.

Returns: the current rule comparison

Definition at line 387 of file indiCompRules.hpp.

References indiCompRule::m_comparison.

Referenced by multiSwitchComboRule::multiSwitchComboRule(), and ruleCompRule().

◆ comparison() [2/2]

void indiCompRule::comparison ( const ruleComparison & c )

inlineinherited

Set the comparison for this rule.

Parameters

[in] c the new comparison

Definition at line 377 of file indiCompRules.hpp.

References indiCompRule::m_comparison.

Referenced by libXWCTest::stateRuleEngineTest::SCENARIO(), SCENARIO(), SCENARIO(), SCENARIO(), and libXWCTest::stateRuleEngineTest::SCENARIO().

◆ compBool()

boolorerr_t indiCompRule::compBool	(	const bool &	b1,
		const bool &	b2
	)

inlineinherited

Compare two booleans.

Returns: true if the comparison is true; false if the comparison is false; std::string with error message if the comparison is not valid

Parameters

[in]	b1	the first bool to compare
[in]	b2	the second bool to compare

Definition at line 533 of file indiCompRules.hpp.

References And, Eq, Imply, indiCompRule::m_comparison, Nand, Neq, Nimply, Nor, and Or.

Referenced by value().

◆ compNum()

boolorerr_t indiCompRule::compNum	(	const double &	num1,
		const double &	num2,
		const double &	tol
	)

inlineinherited

Compare two numbers.

The comparison is (num1 comp num2), e.g. (num1 < num2). A tolerance is included for floating point equality.

Returns: true if the comparison is true; false if the comparison is false; std::string with error message if the comparison is not valid

Parameters

[in]	num1	the first number to compare
[in]	num2	the second number to compare
[in]	tol	the tolerance for the comparison

Definition at line 483 of file indiCompRules.hpp.

References Eq, Gt, GtEq, Lt, LtEq, indiCompRule::m_comparison, and Neq.

Referenced by numValRule::value(), timeDiffRule::value(), and elCompNumRule::value().

◆ compSw()

boolorerr_t indiCompRule::compSw	(	const pcf::IndiElement::SwitchStateType &	sw1,
		const pcf::IndiElement::SwitchStateType &	sw2
	)

inlineinherited

Compare two switches.

Switch comparison can only be Eq or Neq.

Returns: true if the comparison is true; false if the comparison is false; std::string with error message if the comparison is not valid

Parameters

[in]	sw1	the first switch to compare
[in]	sw2	the first switch to compare

Definition at line 452 of file indiCompRules.hpp.

References Eq, indiCompRule::m_comparison, and Neq.

Referenced by swValRule::value(), and elCompSwRule::value().

◆ compTxt()

boolorerr_t indiCompRule::compTxt	(	const std::string &	str1,
		const std::string &	str2
	)

inlineinherited

Compare two strings.

String comparison can only be Eq or Neq.

Returns: true if the comparison is true; false if the comparison is false; std::string with error message if the comparison is not valid

Parameters

[in]	str1	the first string to compare
[in]	str2	the second string to compare

Definition at line 422 of file indiCompRules.hpp.

References Eq, indiCompRule::m_comparison, and Neq.

Referenced by txtValRule::value(), elCompTxtRule::value(), and multiSwitchComboRule::value().

◆ defaultComparison()

virtual ruleComparison ruleCompRule::defaultComparison ( ) const

inlinevirtual

Get the default comparison for this rule type.

Returns: ruleComparison::And

Reimplemented from indiCompRule.

Definition at line 1747 of file indiCompRules.hpp.

References And.

Referenced by ruleCompRule().

◆ incMessageCount()

int indiCompRule::incMessageCount ( )

inlineinherited

Increment the message count.

Definition at line 364 of file indiCompRules.hpp.

References indiCompRule::m_messageCount.

◆ isError()

bool indiCompRule::isError ( boolorerr_t rv )

inlineinherited

Check if returned value indicates an error.

Parameters

[in] rv the return value to check

Definition at line 190 of file indiCompRules.hpp.

Referenced by loadRuleConfig(), valid(), numValRule::value(), txtValRule::value(), swValRule::value(), timeDiffRule::value(), elCompNumRule::value(), elCompTxtRule::value(), elCompSwRule::value(), multiSwitchComboRule::value(), and value().

◆ lastMsg()

const timespec & indiCompRule::lastMsg ( )

inlineinherited

Definition at line 298 of file indiCompRules.hpp.

References indiCompRule::m_lastMsg.

◆ message() [1/2]

const std::string & indiCompRule::message ( bool settime = false )

inlineinherited

Get the message.

Optionally sets the message time to now.

Returns: the current message

Parameters

settime If true m_lastMsg is set to now

Definition at line 285 of file indiCompRules.hpp.

References indiCompRule::m_lastMsg, and indiCompRule::m_message.

◆ message() [2/2]

void indiCompRule::message ( const std::string & m )

inlineinherited

Set the message.

Parameters

[in] m the new message

Definition at line 276 of file indiCompRules.hpp.

References indiCompRule::m_message.

Referenced by libXWCTest::stateRuleEngineTest::TEST_CASE().

◆ messageCount() [1/2]

int indiCompRule::messageCount ( )

inlineinherited

Get the message count.

Definition at line 371 of file indiCompRules.hpp.

References indiCompRule::m_messageCount.

◆ messageCount() [2/2]

void indiCompRule::messageCount ( int mc )

inlineinherited

Set the message count.

Parameters

[in] mc the new message count

Definition at line 358 of file indiCompRules.hpp.

References indiCompRule::m_messageCount.

Referenced by libXWCTest::stateRuleEngineTest::TEST_CASE().

◆ messageDelay() [1/2]

double indiCompRule::messageDelay ( )

inlineinherited

Get the message delay.

Definition at line 352 of file indiCompRules.hpp.

References indiCompRule::m_messageDelay.

◆ messageDelay() [2/2]

void indiCompRule::messageDelay ( double md )

inlineinherited

Set the message delay.

Parameters

[in] md the new message delay

Definition at line 346 of file indiCompRules.hpp.

References indiCompRule::m_messageDelay.

◆ popRuntimeDiagnostic()

virtual bool ruleCompRule::popRuntimeDiagnostic ( std::string & diagnostic )

inlinevirtual

Pop one pending runtime diagnostic from either child rule.

Parameters

[out] diagnostic the next pending diagnostic message

Reimplemented from indiCompRule.

Definition at line 1846 of file indiCompRules.hpp.

References m_rule1, m_rule2, and indiCompRule::popRuntimeDiagnostic().

Referenced by libXWCTest::stateRuleEngineTest::SCENARIO().

◆ priority() [1/2]

const rulePriority & indiCompRule::priority ( )

inlineinherited

Get the rule priority.

Returns: the current rule priority

Definition at line 270 of file indiCompRules.hpp.

References indiCompRule::m_priority.

◆ priority() [2/2]

void indiCompRule::priority	(	const rulePriority &	p,
		double	delay = `-1`
	)

inlineinherited

Set priority of this rule.

Also sets the message delay, to default for priority if not set.

Parameters

[in]	p	the new priority
[in]	delay	[opt] the message delay, if < 0 the default is used

Definition at line 234 of file indiCompRules.hpp.

References alert, caution, indiCompRule::default_alert_msg_delay, indiCompRule::default_caution_msg_delay, indiCompRule::default_info_msg_delay, indiCompRule::default_warning_msg_delay, info, indiCompRule::m_messageDelay, indiCompRule::m_priority, and warning.

Referenced by libXWCTest::stateRuleEngineTest::TEST_CASE().

◆ rule1() [1/2]

const indiCompRule * ruleCompRule::rule1 ( )

inline

Get the pointer to the first rule.

Returns: the current value of m_rule1

Definition at line 1762 of file indiCompRules.hpp.

References m_rule1.

◆ rule1() [2/2]

void ruleCompRule::rule1 ( indiCompRule * r )

inline

Set the pointer to the first rule.

Parameters

[in] r the new pointer to rule1

Definition at line 1753 of file indiCompRules.hpp.

References m_rule1.

Referenced by finalizeRuleValRules(), SCENARIO(), SCENARIO(), libXWCTest::stateRuleEngineTest::SCENARIO(), libXWCTest::stateRuleEngineTest::SCENARIO(), and libXWCTest::stateRuleEngineTest::SCENARIO().

◆ rule2() [1/2]

const indiCompRule * ruleCompRule::rule2 ( )

inline

Get the pointer to the first rule.

Returns: the current value of m_rule2

Definition at line 1777 of file indiCompRules.hpp.

References m_rule2.

◆ rule2() [2/2]

void ruleCompRule::rule2 ( indiCompRule * r )

inline

Set the pointer to the second rule.

Parameters

[in] r the new pointer to rule2

Definition at line 1768 of file indiCompRules.hpp.

References m_rule2.

Referenced by finalizeRuleValRules(), SCENARIO(), SCENARIO(), libXWCTest::stateRuleEngineTest::SCENARIO(), libXWCTest::stateRuleEngineTest::SCENARIO(), and libXWCTest::stateRuleEngineTest::SCENARIO().

◆ sinceLastMsg()

double indiCompRule::sinceLastMsg ( )

inlineinherited

Get the time since the last message.

Definition at line 304 of file indiCompRules.hpp.

References indiCompRule::m_lastMsg.

Referenced by indiCompRule::timeToSend().

◆ timeToSend()

bool indiCompRule::timeToSend ( )

inlineinherited

Check if it's time to send a message.

If the message delay is <= 0, this is based on message count (i.e. has it been sent). Otherwise it's based on the time since last sent

Definition at line 319 of file indiCompRules.hpp.

References indiCompRule::m_messageCount, indiCompRule::m_messageDelay, and indiCompRule::sinceLastMsg().

◆ valid()

virtual boolorerr_t ruleCompRule::valid ( )

inlinevirtual

Check if this rule is valid.

The rule is valid if the rule pointers are not nullptr, and if each rule is itself valid.

If not valid, the return value is a std::string with the reason. If valid, the return value is a bool set to true.

Implements indiCompRule.

Definition at line 1788 of file indiCompRules.hpp.

References indiCompRule::isError(), m_rule1, m_rule2, and indiCompRule::valid().

Referenced by value().

◆ value()

virtual bool ruleCompRule::value ( )

inlinevirtual

Get the value of this rule.

First checks if the rule is currently valid. The performs the comparison and returns the result.

Returns: the value of the comparison, true or false

Exceptions

mx::err::invalidconfig	if the rule is not currently valid
mx::err::invalidconfig	on an error from the comparison

Implements indiCompRule.

Definition at line 1828 of file indiCompRules.hpp.

References indiCompRule::compBool(), indiCompRule::isError(), m_rule1, m_rule2, valid(), and indiCompRule::value().

Referenced by audibleAlerts.personality.Operation::__str__(), audibleAlerts.personality.Transition::compare(), SCENARIO(), SCENARIO(), and libXWCTest::stateRuleEngineTest::SCENARIO().

Member Data Documentation

◆ default_alert_msg_delay

constexpr double indiCompRule::default_alert_msg_delay = 5

staticconstexprinherited

Definition at line 198 of file indiCompRules.hpp.

Referenced by indiCompRule::priority().

◆ default_caution_msg_delay

constexpr double indiCompRule::default_caution_msg_delay = 60

staticconstexprinherited

Definition at line 196 of file indiCompRules.hpp.

Referenced by indiCompRule::priority().

◆ default_info_msg_delay

constexpr double indiCompRule::default_info_msg_delay = 0

staticconstexprinherited

Definition at line 195 of file indiCompRules.hpp.

Referenced by indiCompRule::priority().

◆ default_warning_msg_delay

constexpr double indiCompRule::default_warning_msg_delay = 30

staticconstexprinherited

Definition at line 197 of file indiCompRules.hpp.

Referenced by indiCompRule::priority().

◆ m_comparison

ruleComparison indiCompRule::m_comparison { ruleComparison::Eq }

protectedinherited

The comparison for this rule.

Definition at line 214 of file indiCompRules.hpp.

Referenced by indiCompRule::comparison(), indiCompRule::comparison(), indiCompRule::compBool(), indiCompRule::compNum(), indiCompRule::compSw(), indiCompRule::compTxt(), and multiSwitchComboRule::valid().

◆ m_lastMsg

timespec indiCompRule::m_lastMsg { 0, 0 }

protectedinherited

Time the message was last sent.

Definition at line 207 of file indiCompRules.hpp.

Referenced by indiCompRule::lastMsg(), indiCompRule::message(), and indiCompRule::sinceLastMsg().

◆ m_message

std::string indiCompRule::m_message

protectedinherited

The message used for notifications.

Definition at line 205 of file indiCompRules.hpp.

Referenced by indiCompRule::message(), and indiCompRule::message().

◆ m_messageCount

int indiCompRule::m_messageCount { 0 }

protectedinherited

Number of times the message has been sent.

Definition at line 211 of file indiCompRules.hpp.

Referenced by indiCompRule::incMessageCount(), indiCompRule::messageCount(), indiCompRule::messageCount(), and indiCompRule::timeToSend().

◆ m_messageDelay

double indiCompRule::m_messageDelay { 0 }

protectedinherited

Delay between sending messages.

Definition at line 209 of file indiCompRules.hpp.

Referenced by indiCompRule::messageDelay(), indiCompRule::messageDelay(), indiCompRule::priority(), and indiCompRule::timeToSend().

◆ m_priority

rulePriority indiCompRule::m_priority { rulePriority::none }

protectedinherited

The reporting priority for this rule.

Definition at line 202 of file indiCompRules.hpp.

Referenced by indiCompRule::priority(), and indiCompRule::priority().

◆ m_rule1

indiCompRule* ruleCompRule::m_rule1 { nullptr }

protected

rule one

Definition at line 1731 of file indiCompRules.hpp.

Referenced by popRuntimeDiagnostic(), rule1(), rule1(), valid(), and value().

◆ m_rule2

indiCompRule* ruleCompRule::m_rule2 { nullptr }

protected

rule two

Definition at line 1732 of file indiCompRules.hpp.

Referenced by popRuntimeDiagnostic(), rule2(), rule2(), valid(), and value().

◆ name

constexpr char ruleCompRule::name[] = "ruleComp"

staticconstexpr

Name of this rule, used by config system.

Definition at line 1728 of file indiCompRules.hpp.

Referenced by loadRuleConfig().

The documentation for this struct was generated from the following file:

apps/stateRuleEngine/indiCompRules.hpp

Public Types

Public Member Functions

Static Public Attributes

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ boolorerr_t

Constructor & Destructor Documentation

◆ ruleCompRule()

Member Function Documentation

◆ comparison() [1/2]

◆ comparison() [2/2]

◆ compBool()

◆ compNum()

◆ compSw()

◆ compTxt()

◆ defaultComparison()

◆ incMessageCount()

◆ isError()

◆ lastMsg()

◆ message() [1/2]

◆ message() [2/2]

◆ messageCount() [1/2]

◆ messageCount() [2/2]

◆ messageDelay() [1/2]

◆ messageDelay() [2/2]

◆ popRuntimeDiagnostic()

◆ priority() [1/2]

◆ priority() [2/2]

◆ rule1() [1/2]

◆ rule1() [2/2]

◆ rule2() [1/2]

◆ rule2() [2/2]

◆ sinceLastMsg()

◆ timeToSend()

◆ valid()

◆ value()

Member Data Documentation

◆ default_alert_msg_delay

◆ default_caution_msg_delay

◆ default_info_msg_delay

◆ default_warning_msg_delay

◆ m_comparison

◆ m_lastMsg

◆ m_message

◆ m_messageCount

◆ m_messageDelay

◆ m_priority

◆ m_rule1

◆ m_rule2

◆ name
