strehlEstimator.hpp File Reference

Declares the strehlEstimator MagAO-X application. More...

#include <cmath>
#include <limits>
#include <mutex>
#include <sstream>
#include <mx/ao/analysis/aoSystem.hpp>
#include "../../libMagAOX/libMagAOX.hpp"
#include "../../magaox_git_version.h"

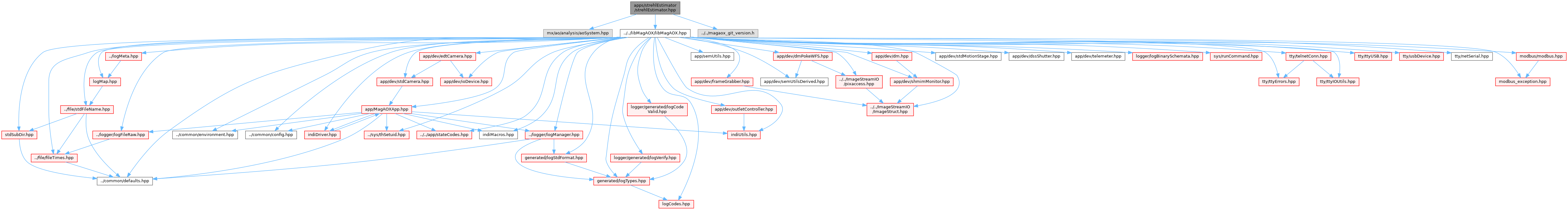

Include dependency graph for strehlEstimator.hpp:

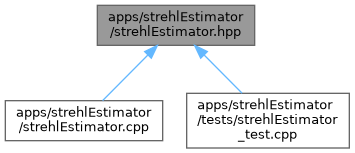

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	MagAOX::app::wfsavgShmimT
	Tag type for the live WFS average shmim monitor. More...
struct	MagAOX::app::wfsmaskShmimT
	Tag type for the WFS mask shmim monitor. More...
class	MagAOX::app::strehlEstimator
	Predicts Strehl and WFE from live WFS telemetry and optional planning overrides. More...
struct	MagAOX::app::strehlEstimator::predictionInputs
	Snapshot of the scalar inputs used to update the AO prediction model. More...

Namespaces
namespace	MagAOX
namespace	MagAOX::app

Functions
	MagAOX::app::INDI_SETCALLBACK_DEFN (strehlEstimator, m_indiP_fps)(const pcf
	MagAOX::app::INDI_SETCALLBACK_DEFN (strehlEstimator, m_indiP_emg)(const pcf
	MagAOX::app::INDI_SETCALLBACK_DEFN (strehlEstimator, m_indiP_stage)(const pcf
	MagAOX::app::INDI_SETCALLBACK_DEFN (strehlEstimator, m_indiP_tcsi_seeing)(const pcf
	MagAOX::app::INDI_SETCALLBACK_DEFN (strehlEstimator, m_indiP_tcsi_telpos)(const pcf
	MagAOX::app::INDI_NEWCALLBACK_DEFN (strehlEstimator, m_indiP_mag)(const pcf
	MagAOX::app::INDI_NEWCALLBACK_DEFN (strehlEstimator, m_indiP_seeing_magaox)(const pcf
	MagAOX::app::INDI_NEWCALLBACK_DEFN (strehlEstimator, m_indiP_windSpeed)(const pcf
	MagAOX::app::INDI_NEWCALLBACK_DEFN (strehlEstimator, m_indiP_useEstimates)(const pcf

Detailed Description

Declares the strehlEstimator MagAO-X application.

Definition in file strehlEstimator.hpp.

---

Class Documentation

MagAOX::app::strehlEstimator::predictionInputs

struct MagAOX::app::strehlEstimator::predictionInputs

Snapshot of the scalar inputs used to update the AO prediction model.

Definition at line 276 of file strehlEstimator.hpp.

Collaboration diagram for MagAOX::app::strehlEstimator::predictionInputs:

Class Members
float	m_elevation { 0.0f }	Telescope elevation in degrees.
float	m_emg { 0.0f }	Live EM gain.
float	m_F0 { 0.0f }	Active zero-magnitude photon flux.
float	m_fps { 0.0f }	Live loop speed in Hz.
float	m_lam0 { 0.0f }	Active wavelength in microns.
float	m_mag { 0.0f }	Live guide-star magnitude.
float	m_magEstimated { 0.0f }	Operator-entered guide-star magnitude estimate.
int	m_npix { 0 }	Current illuminated WFS-pixel count.
float	m_qe { 0.0f }	Active quantum efficiency.
float	m_seeing { 0.0f }	Live seeing in arcseconds.
float	m_seeingEstimated { 0.0f }	Operator-entered seeing estimate in arcseconds.
float	m_selectedMag { 0.0f }	Selected guide-star magnitude used for prediction.
float	m_selectedSeeing { 0.0f }	Selected seeing used for prediction.
float	m_selectedWindSpeed { 0.0f }	Selected wind speed used for prediction.
bool	m_useEstimates { false }	Whether estimated planning inputs are currently selected.
float	m_windSpeed { 0.0f }	Operator-selected wind speed in m/s.
