Map of log entries by application name, mapping both to files and to loaded buffers. More...

#include <logMap.hpp>

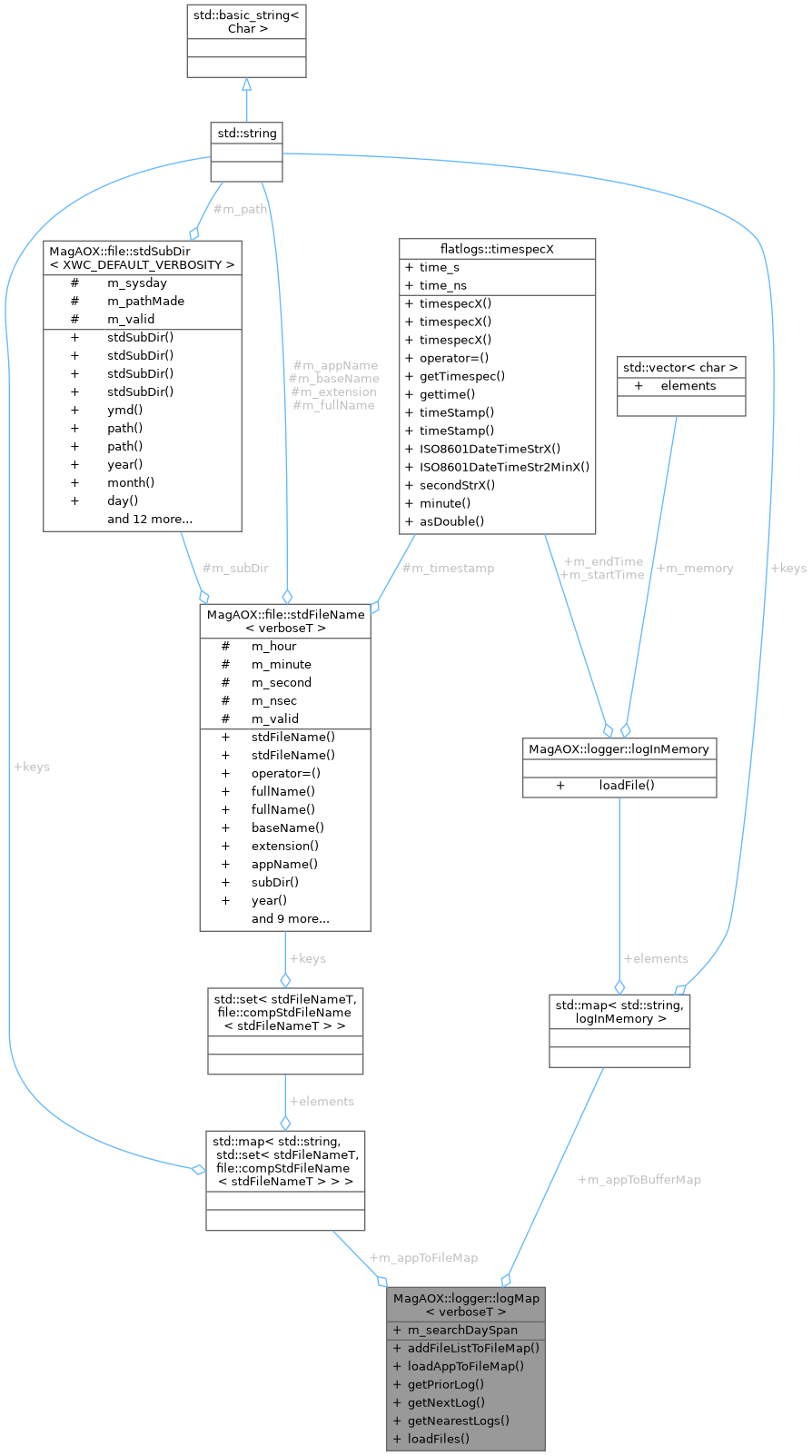

Collaboration diagram for MagAOX::logger::logMap< verboseT >:

Public Types
typedef file::stdSubDir< verboseT >	stdSubDirT

typedef file::stdFileName< verboseT >	stdFileNameT

typedef std::map< std::string, std::set< stdFileNameT, file::compStdFileName< stdFileNameT > > >	appToFileMapT
	The app-name to file-name map type, for sorting the input files by application.

typedef std::map< std::string, logInMemory >	appToBufferMapT
	The app-name to buffer map type, for looking up the currently loaded logs for a given app.

Public Member Functions
mx::error_t	addFileListToFileMap (const std::string &dev, const std::vector< std::string > &flist, size_t n0, size_t nf)
	Add a list of files to the file map.

mx::error_t	loadAppToFileMap (const std::string &dir, const std::string &dev, const std::string &ext, const stdFileNameT &firstFile, const stdFileNameT &lastFile)
	Get log file names in a directory and distribute them into the map by app-name.

int	getPriorLog (char &logBefore, const std::string &appName, const flatlogs::eventCodeT &ev, const flatlogs::timespecX &ts, char hint=0)
	Get the log for an event code which is the first prior to the supplied time.

int	getNextLog (char &logAfter, char logCurrent, const std::string &appName)
	Get the next log with the same event code which is after the supplied time.

int	getNearestLogs (flatlogs::bufferPtrT &logBefore, flatlogs::bufferPtrT &logAfter, const std::string &appName)

int	loadFiles (const std::string &appName, const flatlogs::timespecX &startTime)

Public Attributes
appToFileMapT	m_appToFileMap

appToBufferMapT	m_appToBufferMap

Detailed Description

template<class verboseT = XWC_DEFAULT_VERBOSITY>
struct MagAOX::logger::logMap< verboseT >

Map of log entries by application name, mapping both to files and to loaded buffers.

Definition at line 50 of file logMap.hpp.

Member Typedef Documentation

◆ appToBufferMapT

template<class verboseT = XWC_DEFAULT_VERBOSITY>

typedef std::map<std::string, logInMemory> MagAOX::logger::logMap< verboseT >::appToBufferMapT

The app-name to buffer map type, for looking up the currently loaded logs for a given app.

Definition at line 60 of file logMap.hpp.

◆ appToFileMapT

template<class verboseT = XWC_DEFAULT_VERBOSITY>

typedef std::map<std::string, std::set<stdFileNameT, file::compStdFileName<stdFileNameT> > > MagAOX::logger::logMap< verboseT >::appToFileMapT

The app-name to file-name map type, for sorting the input files by application.

Definition at line 57 of file logMap.hpp.

◆ stdFileNameT

template<class verboseT = XWC_DEFAULT_VERBOSITY>

typedef file::stdFileName<verboseT> MagAOX::logger::logMap< verboseT >::stdFileNameT

Definition at line 54 of file logMap.hpp.

◆ stdSubDirT

template<class verboseT = XWC_DEFAULT_VERBOSITY>

typedef file::stdSubDir<verboseT> MagAOX::logger::logMap< verboseT >::stdSubDirT

Definition at line 53 of file logMap.hpp.

Member Function Documentation

◆ addFileListToFileMap()

template<class verboseT >

mx::error_t MagAOX::logger::logMap< verboseT >::addFileListToFileMap	(	const std::string &	dev,
		const std::vector< std::string > &	flist,
		size_t	n0,
		size_t	nf
	)

Add a list of files to the file map.

This is a worker function for loadAppToFileMap

Returns: mx::error_t::noerror on success; mx::error_t::std_exception if a std::exception is thrown

Parameters

[in]	dev	the device name to add
[in]	flist	the file list from which to add files
[in]	n0	the first entry in the file list to add
[in]	nf	one past the last entry in the file list to add, e.g. flist.size()

Definition at line 118 of file logMap.hpp.

References MagAOX::file::stdFileName< verboseT >::appName(), MagAOX::file::stdFileName< verboseT >::valid(), and MagAOX::xwcException::what().

◆ getNearestLogs()

template<class verboseT = XWC_DEFAULT_VERBOSITY>

int MagAOX::logger::logMap< verboseT >::getNearestLogs	(	flatlogs::bufferPtrT &	logBefore,
		flatlogs::bufferPtrT &	logAfter,
		const std::string &	appName
	)

◆ getNextLog()

template<class verboseT >

int MagAOX::logger::logMap< verboseT >::getNextLog	(	char *&	logAfter,
		char *	logCurrent,
		const std::string &	appName
	)

Get the next log with the same event code which is after the supplied time.

Parameters

[out]	logAfter	pointer to the first byte of the prior log entry
[in]	logCurrent	The log to start from
[in]	appName	the name of the app specifying which log to search

Definition at line 634 of file logMap.hpp.

References flatlogs::logHeader::eventCode(), MagAOX::logger::logInMemory::m_memory, and flatlogs::logHeader::totalSize().

Referenced by MagAOX::logger::getLogContVal(), and MagAOX::logger::getLogStateVal().

◆ getPriorLog()

template<class verboseT >

int MagAOX::logger::logMap< verboseT >::getPriorLog	(	char *&	logBefore,
		const std::string &	appName,
		const flatlogs::eventCodeT &	ev,
		const flatlogs::timespecX &	ts,
		char *	hint = `0`
	)

Get the log for an event code which is the first prior to the supplied time.

Parameters

[out]	logBefore	pointer to the first byte of the prior log entry
[in]	appName	the name of the app specifying which log to search
[in]	ev	the event code to search for
[in]	ts	the timestamp to be prior to
[in]	hint	[optional] a hint specifying where to start searching. If null search starts at beginning.

Definition at line 510 of file logMap.hpp.

References flatlogs::logHeader::eventCode(), MagAOX::logger::logInMemory::m_endTime, MagAOX::logger::logInMemory::m_memory, MagAOX::logger::logInMemory::m_startTime, flatlogs::timespecX::time_s, flatlogs::logHeader::timespec(), and flatlogs::logHeader::totalSize().

Referenced by MagAOX::logger::getLogContVal(), and MagAOX::logger::getLogStateVal().

◆ loadAppToFileMap()

template<class verboseT >

mx::error_t MagAOX::logger::logMap< verboseT >::loadAppToFileMap	(	const std::string &	dir,
		const std::string &	dev,
		const std::string &	ext,
		const stdFileNameT &	firstFile,
		const stdFileNameT &	lastFile
	)

Get log file names in a directory and distribute them into the map by app-name.

Finding no logs is not reported as an error (no exception is thrown). You must check the size of m_appToFileMap to check if any files were found.

Parameters

[in]	dir	the directory to search for files (contains the dev/YYYY_MM_DD subdirs)
[in]	dev	the device name to search for logs of
[in]	ext	the extension to search for
[in]	firstFile	the first file that needs coverage
[in]	lastFile	the last file that needs coverage

Definition at line 174 of file logMap.hpp.

References MagAOX::file::stdSubDir< verboseT >::addDay(), MagAOX::file::stdFileName< verboseT >::fullName(), MagAOX::file::stdSubDir< verboseT >::path(), MagAOX::file::stdSubDir< verboseT >::subDay(), MagAOX::file::stdFileName< verboseT >::subDir(), flatlogs::timespecX::time_s, MagAOX::file::stdFileName< verboseT >::timestamp(), and MagAOX::file::stdFileName< verboseT >::valid().

Referenced by libXWCTest::loggerTest::logMapTest::TEST_CASE(), libXWCTest::loggerTest::logMapTest::TEST_CASE(), and libXWCTest::loggerTest::logMapTest::TEST_CASE().

◆ loadFiles()

template<class verboseT >

int MagAOX::logger::logMap< verboseT >::loadFiles	(	const std::string &	appName,
		const flatlogs::timespecX &	startTime
	)

Parameters

appName MagAO-X app name for which to load files

Definition at line 682 of file logMap.hpp.

Member Data Documentation

◆ m_appToBufferMap

template<class verboseT = XWC_DEFAULT_VERBOSITY>

appToBufferMapT MagAOX::logger::logMap< verboseT >::m_appToBufferMap

Definition at line 64 of file logMap.hpp.

◆ m_appToFileMap

template<class verboseT = XWC_DEFAULT_VERBOSITY>

appToFileMapT MagAOX::logger::logMap< verboseT >::m_appToFileMap

Definition at line 62 of file logMap.hpp.

Referenced by libXWCTest::loggerTest::logMapTest::TEST_CASE(), libXWCTest::loggerTest::logMapTest::TEST_CASE(), and libXWCTest::loggerTest::logMapTest::TEST_CASE().

The documentation for this struct was generated from the following file:

libMagAOX/logger/logMap.hpp
