MagAOX::tty::usbDevice Struct Reference

A USB device as a TTY device. More...

#include <usbDevice.hpp>

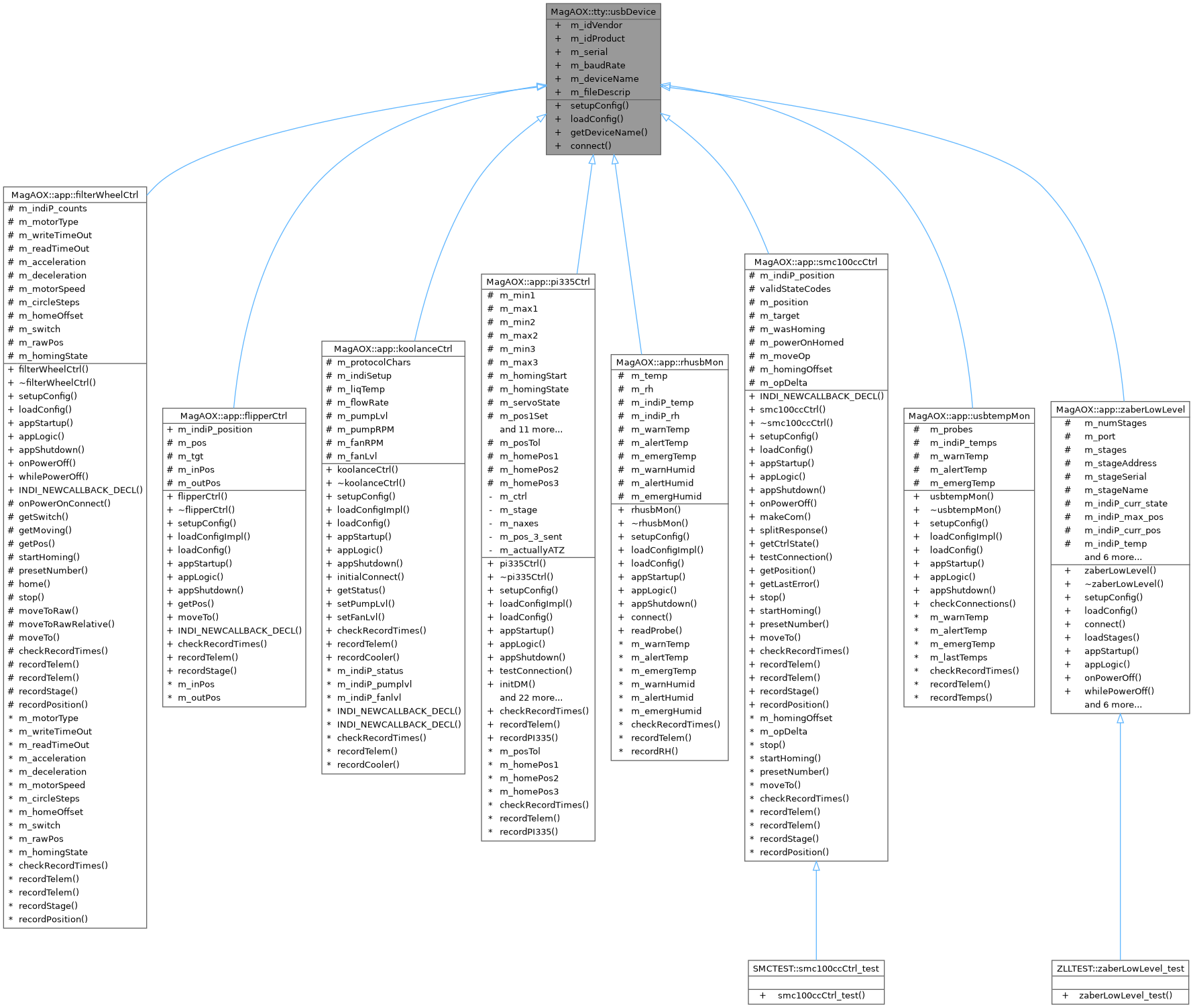

Inheritance diagram for MagAOX::tty::usbDevice:

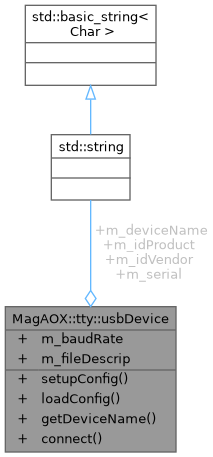

Collaboration diagram for MagAOX::tty::usbDevice:

Public Member Functions
int	setupConfig (mx::app::appConfigurator &config)
	Setup an application configurator for the USB section. More...
int	loadConfig (mx::app::appConfigurator &config)
	Load the USB section from an application configurator. More...
int	getDeviceName ()
	Get the device name from udev using the vendor, product, and serial number. More...
int	connect ()
	Connect to the device. More...

Public Attributes
std::string	m_idVendor
	The vendor id 4-digit code. More...
std::string	m_idProduct
	The product id 4-digit code. More...
std::string	m_serial
	The serial number. More...
speed_t	m_baudRate {0}
	The baud rate specification. More...
std::string	m_deviceName
	The device path name, e.g. /dev/ttyUSB0. More...
int	m_fileDescrip {0}
	The file descriptor. More...

Detailed Description

A USB device as a TTY device.

Definition at line 32 of file usbDevice.hpp.

Member Function Documentation

connect()

int MagAOX::tty::usbDevice::connect

(

)

Connect to the device.

Closes the device file descriptor if open, then calls ttyOpenRaw.

Returns

TTY_E_NOERROR on success.

TTY_E_TCGETATTR on a error from tcgetattr.

TTY_E_TCSETATTR on an error from tcsetattr.

TTY_E_SETISPEED on a cfsetispeed error.

TTY_E_SETOSPEED on a cfsetospeed error.

Definition at line 108 of file usbDevice.cpp.

Referenced by MagAOX::app::filterWheelCtrl::appLogic(), MagAOX::app::flipperCtrl::appLogic(), MagAOX::app::koolanceCtrl::appLogic(), MagAOX::app::pi335Ctrl::appLogic(), MagAOX::app::smc100ccCtrl::appLogic(), and MagAOX::app::rhusbMon::connect().

getDeviceName()

int MagAOX::tty::usbDevice::getDeviceName

(

)

Get the device name from udev using the vendor, product, and serial number.

Definition at line 103 of file usbDevice.cpp.

Referenced by MagAOX::app::filterWheelCtrl::appLogic(), MagAOX::app::flipperCtrl::appLogic(), MagAOX::app::koolanceCtrl::appLogic(), MagAOX::app::pi335Ctrl::appLogic(), MagAOX::app::smc100ccCtrl::appLogic(), MagAOX::app::zaberLowLevel::appLogic(), and MagAOX::app::rhusbMon::connect().

loadConfig()

int MagAOX::tty::usbDevice::loadConfig

(

mx::app::appConfigurator &

config

)

Load the USB section from an application configurator.

If config does not contain a baud rate, m_baudRate is unchanged. If m_baudRate is 0 at the end of this method, an error is returned. Set m_baudRate prior to calling to avoid this error.

Returns

0 on success

-1 on error (nothing implemented yet)

Parameters

[in]

config

an application configuration from which to load values

Definition at line 34 of file usbDevice.cpp.

Referenced by MagAOX::app::filterWheelCtrl::loadConfig(), MagAOX::app::smc100ccCtrl::loadConfig(), MagAOX::app::zaberLowLevel::loadConfig(), MagAOX::app::flipperCtrl::loadConfigImpl(), MagAOX::app::koolanceCtrl::loadConfigImpl(), MagAOX::app::pi335Ctrl::loadConfigImpl(), and MagAOX::app::rhusbMon::loadConfigImpl().

setupConfig()

int MagAOX::tty::usbDevice::setupConfig

(

mx::app::appConfigurator &

config

)

Setup an application configurator for the USB section.

Returns

0 on success.

-1 on error (nothing implemented yet)

Parameters

[in]

config

an application configuration to setup

Definition at line 24 of file usbDevice.cpp.

Referenced by MagAOX::app::filterWheelCtrl::setupConfig(), MagAOX::app::flipperCtrl::setupConfig(), MagAOX::app::koolanceCtrl::setupConfig(), MagAOX::app::pi335Ctrl::setupConfig(), MagAOX::app::rhusbMon::setupConfig(), MagAOX::app::smc100ccCtrl::setupConfig(), and MagAOX::app::zaberLowLevel::setupConfig().

Member Data Documentation

m_baudRate

speed_t MagAOX::tty::usbDevice::m_baudRate {0}

The baud rate specification.

Definition at line 38 of file usbDevice.hpp.

Referenced by MagAOX::app::filterWheelCtrl::loadConfig(), MagAOX::app::smc100ccCtrl::loadConfig(), MagAOX::app::zaberLowLevel::loadConfig(), MagAOX::app::flipperCtrl::loadConfigImpl(), MagAOX::app::koolanceCtrl::loadConfigImpl(), and MagAOX::app::pi335Ctrl::loadConfigImpl().

m_deviceName

std::string MagAOX::tty::usbDevice::m_deviceName

The device path name, e.g. /dev/ttyUSB0.

Definition at line 40 of file usbDevice.hpp.

Referenced by MagAOX::app::filterWheelCtrl::appLogic(), MagAOX::app::flipperCtrl::appLogic(), MagAOX::app::koolanceCtrl::appLogic(), MagAOX::app::pi335Ctrl::appLogic(), MagAOX::app::smc100ccCtrl::appLogic(), MagAOX::app::zaberLowLevel::appLogic(), MagAOX::app::pi335Ctrl::appStartup(), MagAOX::app::rhusbMon::connect(), MagAOX::app::zaberLowLevel::connect(), and MagAOX::app::pi335Ctrl::testConnection().

m_fileDescrip

int MagAOX::tty::usbDevice::m_fileDescrip {0}

The file descriptor.

Definition at line 42 of file usbDevice.hpp.

Referenced by MagAOX::app::filterWheelCtrl::appLogic(), MagAOX::app::smc100ccCtrl::appLogic(), MagAOX::app::pi335Ctrl::finishInit(), MagAOX::app::pi335Ctrl::getCom(), MagAOX::app::smc100ccCtrl::getCtrlState(), MagAOX::app::smc100ccCtrl::getLastError(), MagAOX::app::filterWheelCtrl::getMoving(), MagAOX::app::filterWheelCtrl::getPos(), MagAOX::app::flipperCtrl::getPos(), MagAOX::app::smc100ccCtrl::getPosition(), MagAOX::app::koolanceCtrl::getStatus(), MagAOX::app::filterWheelCtrl::getSwitch(), MagAOX::app::filterWheelCtrl::home(), MagAOX::app::pi335Ctrl::home_1(), MagAOX::app::pi335Ctrl::home_2(), MagAOX::app::pi335Ctrl::home_3(), MagAOX::app::pi335Ctrl::initDM(), MagAOX::app::koolanceCtrl::initialConnect(), MagAOX::app::pi335Ctrl::move_1(), MagAOX::app::pi335Ctrl::move_2(), MagAOX::app::pi335Ctrl::move_3(), MagAOX::app::smc100ccCtrl::moveTo(), MagAOX::app::flipperCtrl::moveTo(), MagAOX::app::filterWheelCtrl::moveToRaw(), MagAOX::app::filterWheelCtrl::moveToRawRelative(), MagAOX::app::filterWheelCtrl::onPowerOnConnect(), MagAOX::app::rhusbMon::readProbe(), MagAOX::app::pi335Ctrl::releaseDM(), MagAOX::app::koolanceCtrl::setFanLvl(), MagAOX::app::koolanceCtrl::setPumpLvl(), MagAOX::app::smc100ccCtrl::startHoming(), MagAOX::app::filterWheelCtrl::stop(), MagAOX::app::smc100ccCtrl::stop(), MagAOX::app::pi335Ctrl::testConnection(), and MagAOX::app::smc100ccCtrl::testConnection().

m_idProduct

std::string MagAOX::tty::usbDevice::m_idProduct

The product id 4-digit code.

Definition at line 35 of file usbDevice.hpp.

Referenced by MagAOX::app::filterWheelCtrl::appLogic(), MagAOX::app::flipperCtrl::appLogic(), MagAOX::app::koolanceCtrl::appLogic(), MagAOX::app::pi335Ctrl::appLogic(), MagAOX::app::smc100ccCtrl::appLogic(), MagAOX::app::zaberLowLevel::appLogic(), MagAOX::app::pi335Ctrl::appStartup(), MagAOX::app::usbtempMon::checkConnections(), MagAOX::app::rhusbMon::connect(), and MagAOX::app::usbtempMon::loadConfigImpl().

m_idVendor

std::string MagAOX::tty::usbDevice::m_idVendor

The vendor id 4-digit code.

Definition at line 34 of file usbDevice.hpp.

Referenced by MagAOX::app::filterWheelCtrl::appLogic(), MagAOX::app::flipperCtrl::appLogic(), MagAOX::app::koolanceCtrl::appLogic(), MagAOX::app::pi335Ctrl::appLogic(), MagAOX::app::smc100ccCtrl::appLogic(), MagAOX::app::zaberLowLevel::appLogic(), MagAOX::app::pi335Ctrl::appStartup(), MagAOX::app::usbtempMon::checkConnections(), MagAOX::app::rhusbMon::connect(), and MagAOX::app::usbtempMon::loadConfigImpl().

m_serial

std::string MagAOX::tty::usbDevice::m_serial

The serial number.

Definition at line 36 of file usbDevice.hpp.

Referenced by MagAOX::app::filterWheelCtrl::appLogic(), MagAOX::app::flipperCtrl::appLogic(), MagAOX::app::koolanceCtrl::appLogic(), MagAOX::app::pi335Ctrl::appLogic(), MagAOX::app::smc100ccCtrl::appLogic(), MagAOX::app::zaberLowLevel::appLogic(), MagAOX::app::pi335Ctrl::appStartup(), MagAOX::app::usbtempMon::checkConnections(), and MagAOX::app::rhusbMon::connect().

---

The documentation for this struct was generated from the following files:

• libMagAOX/tty/usbDevice.hpp
• libMagAOX/tty/usbDevice.cpp
