Utility class for managing Acromag xt12XX digital I/O channels. More...

#include <xtChannels.hpp>

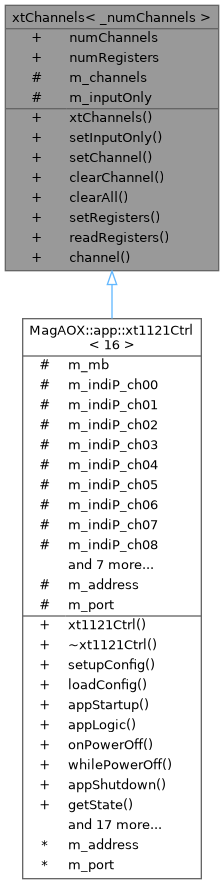

Inheritance diagram for xtChannels< _numChannels >:

Collaboration diagram for xtChannels< _numChannels >:

Public Member Functions
	xtChannels ()
	c'tor More...

int	setInputOnly (size_t chNo)
	Set a channel to be input only. More...

int	setChannel (size_t chNo)
	Set a channel to true. More...

int	clearChannel (size_t chNo)
	Set a channel to false. More...

int	clearAll ()
	Clear all channels. More...

int	setRegisters (uint16_t registers[numRegisters])
	Set registers based on current channel states. More...

int	readRegisters (uint16_t registers[numRegisters])
	Read channel states from the registers. More...

int	channel (size_t chNo)
	Gets the current state of a channel. More...

Static Public Attributes
static constexpr int	numChannels = _numChannels
	The number of channels controlled by the device. More...

static constexpr int	numRegisters = _numChannels/4
	The number of registers needed for the number of channels. More...

Protected Attributes
bool	m_channels [numChannels]
	The state of the channels. More...

bool	m_inputOnly [numChannels]
	Control which channels can not be set to output. More...

Detailed Description

template<int _numChannels>
struct xtChannels< _numChannels >

Utility class for managing Acromag xt12XX digital I/O channels.

Reads and writes input "registers" (uint16_t) for modbus protocol.

Template Parameters

_numChannels is the number of channels controlled by this device.

Definition at line 22 of file xtChannels.hpp.

Constructor & Destructor Documentation

◆ xtChannels()

template<int numChannels>

xtChannels< numChannels >::xtChannels

c'tor

Sets m_channels and m_inputOnly to false.

Definition at line 100 of file xtChannels.hpp.

Member Function Documentation

◆ channel()

template<int numChannels>

int xtChannels< numChannels >::channel ( size_t chNo )

Gets the current state of a channel.

Returns: 0 if channel is not set; 1 if channel is set; -1 on error

Parameters

[in] chNo the channel to retrieve

Definition at line 193 of file xtChannels.hpp.

Referenced by MagAOX::app::xt1121Ctrl::channelSetCallback(), MagAOX::app::xt1121Ctrl::getState(), and xtChannels_test::SCENARIO().

◆ clearAll()

template<int numChannels>

int xtChannels< numChannels >::clearAll

Clear all channels.

Returns: 0 on success; -1 on error

Definition at line 146 of file xtChannels.hpp.

Referenced by xtChannels_test::SCENARIO().

◆ clearChannel()

template<int numChannels>

int xtChannels< numChannels >::clearChannel ( size_t chNo )

Set a channel to false.

Returns: 0 on success; -1 on error

Parameters

[in] chNo the channel to clear

Definition at line 136 of file xtChannels.hpp.

Referenced by MagAOX::app::xt1121Ctrl::channelSetCallback().

◆ readRegisters()

template<int numChannels>

int xtChannels< numChannels >::readRegisters ( uint16_t registers[numRegisters] )

Read channel states from the registers.

This changes m_channels as they are read.

Returns: 0 on success; -1 on error

Parameters

[in] registers the array of registers to read

Definition at line 178 of file xtChannels.hpp.

Referenced by MagAOX::app::xt1121Ctrl::getState(), and xtChannels_test::SCENARIO().

◆ setChannel()

template<int numChannels>

int xtChannels< numChannels >::setChannel ( size_t chNo )

Set a channel to true.

Returns: 0 on success; -1 on error

Parameters

[in] chNo the channel to set

Definition at line 110 of file xtChannels.hpp.

Referenced by MagAOX::app::xt1121Ctrl::channelSetCallback(), and xtChannels_test::SCENARIO().

◆ setInputOnly()

template<int numChannels>

int xtChannels< numChannels >::setInputOnly ( size_t chNo )

Set a channel to be input only.

A channel which is input only will not be sent as an output to the device regardless of its state in m_channels.

Returns: 0 on success; -1 on error

Parameters

[in] chNo the channel to set to input only

Definition at line 126 of file xtChannels.hpp.

Referenced by MagAOX::app::xt1121Ctrl::loadConfig(), and xtChannels_test::SCENARIO().

◆ setRegisters()

template<int numChannels>

int xtChannels< numChannels >::setRegisters ( uint16_t registers[numRegisters] )

Set registers based on current channel states.

Respects input only settings.

Returns: 0 on success; -1 on error

Parameters

[out] registers the array of registers to set

Definition at line 154 of file xtChannels.hpp.

Referenced by MagAOX::app::xt1121Ctrl::channelSetCallback(), and xtChannels_test::SCENARIO().

Member Data Documentation

◆ m_channels

template<int _numChannels>

bool xtChannels< _numChannels >::m_channels[numChannels]

protected

The state of the channels.

Definition at line 29 of file xtChannels.hpp.

◆ m_inputOnly

template<int _numChannels>

bool xtChannels< _numChannels >::m_inputOnly[numChannels]

protected

Control which channels can not be set to output.

Definition at line 31 of file xtChannels.hpp.

◆ numChannels

template<int _numChannels>

constexpr int xtChannels< _numChannels >::numChannels = _numChannels

staticconstexpr

The number of channels controlled by the device.

Definition at line 24 of file xtChannels.hpp.

◆ numRegisters

template<int _numChannels>

constexpr int xtChannels< _numChannels >::numRegisters = _numChannels/4

staticconstexpr

The number of registers needed for the number of channels.

Definition at line 26 of file xtChannels.hpp.

Referenced by MagAOX::app::xt1121Ctrl::channelSetCallback(), and MagAOX::app::xt1121Ctrl::getState().

The documentation for this struct was generated from the following file:

apps/xt1121Ctrl/xtChannels.hpp
