MagAO-X Uniblitz DSS Shutter interface. More...

#include <dssShutter.hpp>

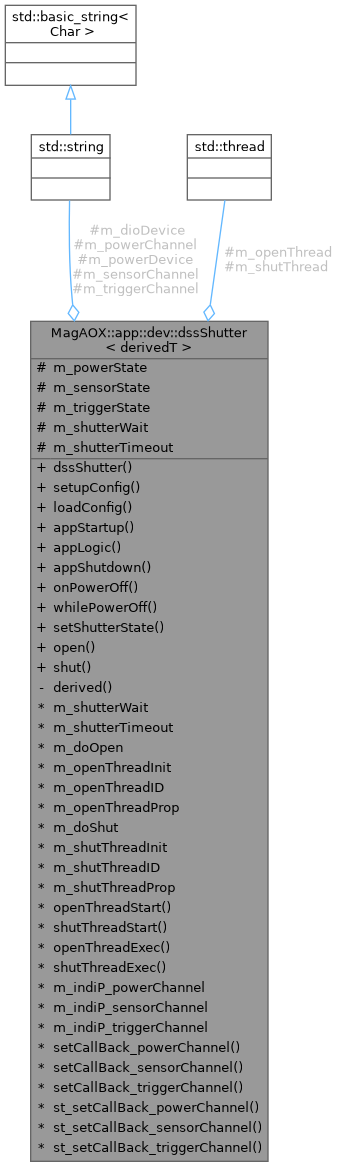

Collaboration diagram for MagAOX::app::dev::dssShutter< derivedT >:

Public Member Functions
	dssShutter ()
	Default c'tor. More...

void	setupConfig (mx::app::appConfigurator &config)
	Setup the configuration system. More...

void	loadConfig (mx::app::appConfigurator &config)
	load the configuration system results More...

int	appStartup ()
	Startup function. More...

int	appLogic ()
	application logic More...

int	appShutdown ()
	applogic shutdown More...

int	onPowerOff ()
	Actions on power off. More...

int	whilePowerOff ()
	Actions while powered off. More...

int	setShutterState (int sh)
	Change shutter state. More...

int	open ()
	Open the shutter. More...

int	shut ()
	Shut the shutter. More...

Protected Attributes
int	m_powerState {-1}
	The current power state, -1 is unknown, 0 is off, 1 is on. More...

int	m_sensorState {-1}
	The current sensor state, -1 is unknown, 0 is shut, 1 is open. More...

int	m_triggerState {-1}
	The current trigger state. -1 is unknown, 0 is low, 1 is high. More...

Configurable Parameters
std::string	m_powerDevice
	The device controlling this shutter's power. More...

std::string	m_powerChannel
	The channel controlling this shutter's power. More...

std::string	m_dioDevice
	The device controlling this shutter's digital I/O. More...

std::string	m_sensorChannel
	The channel reading this shutter's sensor. More...

std::string	m_triggerChannel
	The channel sending this shutter's trigger. More...

unsigned	m_shutterWait {100}
	The time to pause between checks of the sensor state during open/shut [msec]. Default is 100. More...

unsigned	m_shutterTimeout {2000}
	Total time to wait for sensor to change state before timing out [msec]. Default is 2000. More...

Private Member Functions
derivedT &	derived ()
	Access the derived class. More...

Open/Shut Threads
Separate threads are used since we need INDI updates while trying to open/shut. These threads sleep(1), unless interrupted by a signal. When signaled, they check for the m_doOpen or m_doShut flag, and if true the appropriate open() or shut() function is called. If not, they go back to sleep unless m_shutdown is true.
bool	m_doOpen {false}
	Flag telling the open thread that it should actually open the shutter, not just go back to sleep. More...

bool	m_openThreadInit {true}
	Initialization flag for the open thread. More...

pid_t	m_openThreadID {0}
	Open thread PID. More...

pcf::IndiProperty	m_openThreadProp
	The property to hold the open thread details. More...

std::thread	m_openThread
	The opening thread. More...

bool	m_doShut {false}
	Flag telling the shut thread that it should actually shut the shutter, not just go back to sleep. More...

bool	m_shutThreadInit {true}
	Initialization flag for the shut thread. More...

pid_t	m_shutThreadID {0}
	Shut thread PID. More...

pcf::IndiProperty	m_shutThreadProp
	The property to hold the shut thread details. More...

std::thread	m_shutThread
	The shutting thread. More...

static void	openThreadStart (dssShutter *d)
	Open thread starter function. More...

static void	shutThreadStart (dssShutter *d)
	Shut thread starter function. More...

void	openThreadExec ()
	Open thread function. More...

void	shutThreadExec ()
	Shut thread function. More...

INDI
pcf::IndiProperty	m_indiP_powerChannel
	Property used to monitor the shutter's power state. More...

pcf::IndiProperty	m_indiP_sensorChannel
	Property used to monitor the shutter's hall sensor. More...

pcf::IndiProperty	m_indiP_triggerChannel
	Property used to monitor and set the shutter's trigger. More...

int	setCallBack_powerChannel (const pcf::IndiProperty &ipRecv)
	The callback called by the static version, to actually process the new request. More...

int	setCallBack_sensorChannel (const pcf::IndiProperty &ipRecv)
	The callback called by the static version, to actually process the new request. More...

int	setCallBack_triggerChannel (const pcf::IndiProperty &ipRecv)
	The callback called by the static version, to actually process the new request. More...

static int	st_setCallBack_powerChannel (void *app, const pcf::IndiProperty &ipRecv)
	The static callback function to be registered for shutter power channel changes. More...

static int	st_setCallBack_sensorChannel (void *app, const pcf::IndiProperty &ipRecv)
	The static callback function to be registered for shutter sensor channel changes. More...

static int	st_setCallBack_triggerChannel (void *app, const pcf::IndiProperty &ipRecv)
	The static callback function to be registered for shutter trigger channel changes. More...

Detailed Description

template<class derivedT>
class MagAOX::app::dev::dssShutter< derivedT >

MagAO-X Uniblitz DSS Shutter interface.

This is actually an interface to the digital I/O system, which controls the shutter.

The derived class derivedT must be a MagAOXApp<true>, and should declare this class a friend like so:

friend class dev::dssShutter<derivedT>;

Calls to this class's setupConfig, loadConfig, appStartup, appLogic, appShutdown onPowerOff, whilePowerOff, functions must be placed in the derived class's functions of the same name.

Definition at line 36 of file dssShutter.hpp.

Constructor & Destructor Documentation

◆ dssShutter()

template<class derivedT >

MagAOX::app::dev::dssShutter< derivedT >::dssShutter

Default c'tor.

Sets derived().m_hasShutter to true.

Definition at line 299 of file dssShutter.hpp.

Member Function Documentation

◆ appLogic()

template<class derivedT >

int MagAOX::app::dev::dssShutter< derivedT >::appLogic

application logic

This should be called in derivedT::appLogic as

dssShutter<derivedT>::appLogic();

MagAOX::app::dev::dssShutter::appLogic

int appLogic()

application logic

Definition: dssShutter.hpp:403

with appropriate error checking.

Returns: 0 on success; -1 on error, which is logged.

Definition at line 403 of file dssShutter.hpp.

◆ appShutdown()

template<class derivedT >

int MagAOX::app::dev::dssShutter< derivedT >::appShutdown

applogic shutdown

This should be called in derivedT::appShutdown as

dssShutter<derivedT>::appShutdown();

MagAOX::app::dev::dssShutter::appShutdown

int appShutdown()

applogic shutdown

Definition: dssShutter.hpp:437

with appropriate error checking.

Returns: 0 on success; -1 on error, which is logged.

Definition at line 437 of file dssShutter.hpp.

Referenced by MagAOX::app::ocam2KCtrl::appShutdown(), and MagAOX::app::picamCtrl::appShutdown().

◆ appStartup()

template<class derivedT >

int MagAOX::app::dev::dssShutter< derivedT >::appStartup

Startup function.

This should be called in derivedT::appStartup as

dssShutter<derivedT>::appStartup();

MagAOX::app::dev::dssShutter::appStartup

int appStartup()

Startup function.

Definition: dssShutter.hpp:335

with appropriate error checking.

Returns: 0 on success; -1 on error, which is logged.

Definition at line 335 of file dssShutter.hpp.

◆ derived()

template<class derivedT >

derivedT& MagAOX::app::dev::dssShutter< derivedT >::derived ( )

inlineprivate

Access the derived class.

Definition at line 292 of file dssShutter.hpp.

◆ loadConfig()

template<class derivedT >

void MagAOX::app::dev::dssShutter< derivedT >::loadConfig ( mx::app::appConfigurator & config )

load the configuration system results

This should be called in derivedT::loadConfig as

dssShutter<derivedT>::loadConfig(config);

MagAOX::app::dev::dssShutter::loadConfig

void loadConfig(mx::app::appConfigurator &config)

load the configuration system results

Definition: dssShutter.hpp:322

with appropriate error checking.

Parameters

[in] config the derived classes configurator

Definition at line 322 of file dssShutter.hpp.

Referenced by MagAOX::app::ocam2KCtrl::loadConfig(), and MagAOX::app::picamCtrl::loadConfig().

◆ onPowerOff()

template<class derivedT >

int MagAOX::app::dev::dssShutter< derivedT >::onPowerOff

Actions on power off.

This should be called in derivedT::appPowerOff as

dssShutter<derivedT>::appPowerOff();

with appropriate error checking.

Returns: 0 on success; -1 on error, which is logged.

Definition at line 474 of file dssShutter.hpp.

◆ open()

template<class derivedT >

int MagAOX::app::dev::dssShutter< derivedT >::open

Open the shutter.

Do not lock the mutex before calling this.

Returns: 0 on success; -1 on error

Todo:: need shutter log types

Definition at line 513 of file dssShutter.hpp.

◆ openThreadExec()

template<class derivedT >

void MagAOX::app::dev::dssShutter< derivedT >::openThreadExec

protected

Open thread function.

Runs until m_shutdown is true.

Definition at line 646 of file dssShutter.hpp.

Referenced by MagAOX::app::dev::dssShutter< derivedT >::openThreadStart().

◆ openThreadStart()

template<class derivedT >

void MagAOX::app::dev::dssShutter< derivedT >::openThreadStart ( dssShutter< derivedT > * d )

staticprotected

Open thread starter function.

Parameters

[in] d pointer to this

Definition at line 640 of file dssShutter.hpp.

◆ setCallBack_powerChannel()

template<class derivedT >

int MagAOX::app::dev::dssShutter< derivedT >::setCallBack_powerChannel ( const pcf::IndiProperty & ipRecv )

The callback called by the static version, to actually process the new request.

Returns: 0 on success.; -1 on error.

Parameters

[in] ipRecv the INDI property sent with the the new property request.

Definition at line 715 of file dssShutter.hpp.

◆ setCallBack_sensorChannel()

template<class derivedT >

int MagAOX::app::dev::dssShutter< derivedT >::setCallBack_sensorChannel ( const pcf::IndiProperty & ipRecv )

The callback called by the static version, to actually process the new request.

Returns: 0 on success.; -1 on error.

Parameters

[in] ipRecv the INDI property sent with the the new property request.

Definition at line 752 of file dssShutter.hpp.

◆ setCallBack_triggerChannel()

template<class derivedT >

int MagAOX::app::dev::dssShutter< derivedT >::setCallBack_triggerChannel ( const pcf::IndiProperty & ipRecv )

The callback called by the static version, to actually process the new request.

Returns: 0 on success.; -1 on error.

Parameters

[in] ipRecv the INDI property sent with the the new property request.

Definition at line 789 of file dssShutter.hpp.

◆ setShutterState()

template<class derivedT >

int MagAOX::app::dev::dssShutter< derivedT >::setShutterState ( int sh )

Change shutter state.

Sets m_doOpen or m_doShut and signals the appropriate thread.

Returns: 0 on success; -1 on error

Parameters

sh	Desired shutter state. 0 for shut,1 for open

Definition at line 486 of file dssShutter.hpp.

◆ setupConfig()

template<class derivedT >

void MagAOX::app::dev::dssShutter< derivedT >::setupConfig ( mx::app::appConfigurator & config )

Setup the configuration system.

This should be called in derivedT::setupConfig as

dssShutter<derivedT>::setupConfig(config);

MagAOX::app::dev::dssShutter::setupConfig

void setupConfig(mx::app::appConfigurator &config)

Setup the configuration system.

Definition: dssShutter.hpp:304

with appropriate error checking.

Parameters

[out] config the derived classes configurator

Definition at line 304 of file dssShutter.hpp.

Referenced by MagAOX::app::ocam2KCtrl::setupConfig(), and MagAOX::app::picamCtrl::setupConfig().

◆ shut()

template<class derivedT >

int MagAOX::app::dev::dssShutter< derivedT >::shut

Shut the shutter.

Do not lock the mutex before calling this.

Returns: 0 on success; -1 on error

Todo:: need shutter log types

Todo:: need shutter log types

Definition at line 575 of file dssShutter.hpp.

◆ shutThreadExec()

template<class derivedT >

void MagAOX::app::dev::dssShutter< derivedT >::shutThreadExec

protected

Shut thread function.

Runs until m_shutdown is true.

Definition at line 680 of file dssShutter.hpp.

Referenced by MagAOX::app::dev::dssShutter< derivedT >::shutThreadStart().

◆ shutThreadStart()

template<class derivedT >

void MagAOX::app::dev::dssShutter< derivedT >::shutThreadStart ( dssShutter< derivedT > * d )

staticprotected

Shut thread starter function.

Parameters

[in] d pointer to this

Definition at line 674 of file dssShutter.hpp.

◆ st_setCallBack_powerChannel()

template<class derivedT >

int MagAOX::app::dev::dssShutter< derivedT >::st_setCallBack_powerChannel	(	void *	app,
		const pcf::IndiProperty &	ipRecv
	)

static

The static callback function to be registered for shutter power channel changes.

Returns: 0 on success.; -1 on error.

Parameters

[in]	app	a pointer to this, will be static_cast-ed to derivedT.
[in]	ipRecv	the INDI property sent with the the new property request.

Definition at line 707 of file dssShutter.hpp.

◆ st_setCallBack_sensorChannel()

template<class derivedT >

int MagAOX::app::dev::dssShutter< derivedT >::st_setCallBack_sensorChannel	(	void *	app,
		const pcf::IndiProperty &	ipRecv
	)

static

The static callback function to be registered for shutter sensor channel changes.

Returns: 0 on success.; -1 on error.

Parameters

[in]	app	a pointer to this, will be static_cast-ed to derivedT.
[in]	ipRecv	the INDI property sent with the the new property request.

Definition at line 744 of file dssShutter.hpp.

◆ st_setCallBack_triggerChannel()

template<class derivedT >

int MagAOX::app::dev::dssShutter< derivedT >::st_setCallBack_triggerChannel	(	void *	app,
		const pcf::IndiProperty &	ipRecv
	)

static

The static callback function to be registered for shutter trigger channel changes.

Returns: 0 on success.; -1 on error.

Parameters

[in]	app	a pointer to this, will be static_cast-ed to derivedT.
[in]	ipRecv	the INDI property sent with the the new property request.

Definition at line 781 of file dssShutter.hpp.

◆ whilePowerOff()

template<class derivedT >

int MagAOX::app::dev::dssShutter< derivedT >::whilePowerOff

Actions while powered off.

This should be called in derivedT::whilePowerOff as

dssShutter<derivedT>::whilePowerOff();

MagAOX::app::dev::dssShutter::whilePowerOff

int whilePowerOff()

Actions while powered off.

Definition: dssShutter.hpp:480

with appropriate error checking.

Returns: 0 on success; -1 on error, which is logged.

Definition at line 480 of file dssShutter.hpp.

Member Data Documentation

◆ m_dioDevice

template<class derivedT >

std::string MagAOX::app::dev::dssShutter< derivedT >::m_dioDevice

protected

The device controlling this shutter's digital I/O.

Definition at line 47 of file dssShutter.hpp.

◆ m_doOpen

template<class derivedT >

bool MagAOX::app::dev::dssShutter< derivedT >::m_doOpen {false}

protected

Flag telling the open thread that it should actually open the shutter, not just go back to sleep.

Definition at line 186 of file dssShutter.hpp.

◆ m_doShut

template<class derivedT >

bool MagAOX::app::dev::dssShutter< derivedT >::m_doShut {false}

protected

Flag telling the shut thread that it should actually shut the shutter, not just go back to sleep.

Definition at line 204 of file dssShutter.hpp.

◆ m_indiP_powerChannel

template<class derivedT >

pcf::IndiProperty MagAOX::app::dev::dssShutter< derivedT >::m_indiP_powerChannel

protected

Property used to monitor the shutter's power state.

Definition at line 231 of file dssShutter.hpp.

◆ m_indiP_sensorChannel

template<class derivedT >

pcf::IndiProperty MagAOX::app::dev::dssShutter< derivedT >::m_indiP_sensorChannel

protected

Property used to monitor the shutter's hall sensor.

Definition at line 232 of file dssShutter.hpp.

◆ m_indiP_triggerChannel

template<class derivedT >

pcf::IndiProperty MagAOX::app::dev::dssShutter< derivedT >::m_indiP_triggerChannel

protected

Property used to monitor and set the shutter's trigger.

Definition at line 233 of file dssShutter.hpp.

◆ m_openThread

template<class derivedT >

std::thread MagAOX::app::dev::dssShutter< derivedT >::m_openThread

protected

The opening thread.

Definition at line 194 of file dssShutter.hpp.

◆ m_openThreadID

template<class derivedT >

pid_t MagAOX::app::dev::dssShutter< derivedT >::m_openThreadID {0}

protected

Open thread PID.

Definition at line 190 of file dssShutter.hpp.

◆ m_openThreadInit

template<class derivedT >

bool MagAOX::app::dev::dssShutter< derivedT >::m_openThreadInit {true}

protected

Initialization flag for the open thread.

Definition at line 188 of file dssShutter.hpp.

◆ m_openThreadProp

template<class derivedT >

pcf::IndiProperty MagAOX::app::dev::dssShutter< derivedT >::m_openThreadProp

protected

The property to hold the open thread details.

Definition at line 192 of file dssShutter.hpp.

◆ m_powerChannel

template<class derivedT >

std::string MagAOX::app::dev::dssShutter< derivedT >::m_powerChannel

protected

The channel controlling this shutter's power.

Definition at line 45 of file dssShutter.hpp.

◆ m_powerDevice

template<class derivedT >

std::string MagAOX::app::dev::dssShutter< derivedT >::m_powerDevice

protected

The device controlling this shutter's power.

Definition at line 44 of file dssShutter.hpp.

◆ m_powerState

template<class derivedT >

int MagAOX::app::dev::dssShutter< derivedT >::m_powerState {-1}

protected

The current power state, -1 is unknown, 0 is off, 1 is on.

Definition at line 56 of file dssShutter.hpp.

◆ m_sensorChannel

template<class derivedT >

std::string MagAOX::app::dev::dssShutter< derivedT >::m_sensorChannel

protected

The channel reading this shutter's sensor.

Definition at line 48 of file dssShutter.hpp.

◆ m_sensorState

template<class derivedT >

int MagAOX::app::dev::dssShutter< derivedT >::m_sensorState {-1}

protected

The current sensor state, -1 is unknown, 0 is shut, 1 is open.

Definition at line 58 of file dssShutter.hpp.

◆ m_shutterTimeout

template<class derivedT >

unsigned MagAOX::app::dev::dssShutter< derivedT >::m_shutterTimeout {2000}

protected

Total time to wait for sensor to change state before timing out [msec]. Default is 2000.

Definition at line 53 of file dssShutter.hpp.

◆ m_shutterWait

template<class derivedT >

unsigned MagAOX::app::dev::dssShutter< derivedT >::m_shutterWait {100}

protected

The time to pause between checks of the sensor state during open/shut [msec]. Default is 100.

Definition at line 51 of file dssShutter.hpp.

◆ m_shutThread

template<class derivedT >

std::thread MagAOX::app::dev::dssShutter< derivedT >::m_shutThread

protected

The shutting thread.

Definition at line 212 of file dssShutter.hpp.

◆ m_shutThreadID

template<class derivedT >

pid_t MagAOX::app::dev::dssShutter< derivedT >::m_shutThreadID {0}

protected

Shut thread PID.

Definition at line 208 of file dssShutter.hpp.

◆ m_shutThreadInit

template<class derivedT >

bool MagAOX::app::dev::dssShutter< derivedT >::m_shutThreadInit {true}

protected

Initialization flag for the shut thread.

Definition at line 206 of file dssShutter.hpp.

◆ m_shutThreadProp

template<class derivedT >

pcf::IndiProperty MagAOX::app::dev::dssShutter< derivedT >::m_shutThreadProp

protected

The property to hold the shut thread details.

Definition at line 210 of file dssShutter.hpp.

◆ m_triggerChannel

template<class derivedT >

std::string MagAOX::app::dev::dssShutter< derivedT >::m_triggerChannel

protected

The channel sending this shutter's trigger.

Definition at line 49 of file dssShutter.hpp.

◆ m_triggerState

template<class derivedT >

int MagAOX::app::dev::dssShutter< derivedT >::m_triggerState {-1}

protected

The current trigger state. -1 is unknown, 0 is low, 1 is high.

Definition at line 60 of file dssShutter.hpp.

The documentation for this class was generated from the following file:

libMagAOX/app/dev/dssShutter.hpp

Public Member Functions

Protected Attributes

Private Member Functions

Open/Shut Threads

INDI

Detailed Description

template<class derivedT> class MagAOX::app::dev::dssShutter< derivedT >

Constructor & Destructor Documentation

◆ dssShutter()

Member Function Documentation

◆ appLogic()

◆ appShutdown()

◆ appStartup()

◆ derived()

◆ loadConfig()

◆ onPowerOff()

◆ open()

◆ openThreadExec()

◆ openThreadStart()

◆ setCallBack_powerChannel()

◆ setCallBack_sensorChannel()

◆ setCallBack_triggerChannel()

◆ setShutterState()

◆ setupConfig()

◆ shut()

◆ shutThreadExec()

◆ shutThreadStart()

◆ st_setCallBack_powerChannel()

◆ st_setCallBack_sensorChannel()

◆ st_setCallBack_triggerChannel()

◆ whilePowerOff()

Member Data Documentation

◆ m_dioDevice

◆ m_doOpen

◆ m_doShut

◆ m_indiP_powerChannel

◆ m_indiP_sensorChannel

◆ m_indiP_triggerChannel

◆ m_openThread

◆ m_openThreadID

◆ m_openThreadInit

◆ m_openThreadProp

◆ m_powerChannel

◆ m_powerDevice

◆ m_powerState

◆ m_sensorChannel

◆ m_sensorState

◆ m_shutterTimeout

◆ m_shutterWait

◆ m_shutThread

◆ m_shutThreadID

◆ m_shutThreadInit

◆ m_shutThreadProp

◆ m_triggerChannel

◆ m_triggerState

template<class derivedT>
class MagAOX::app::dev::dssShutter< derivedT >
