An instGraph node which tracks a specific INDI property and element of that property. More...

#include <indiPropNode.hpp>

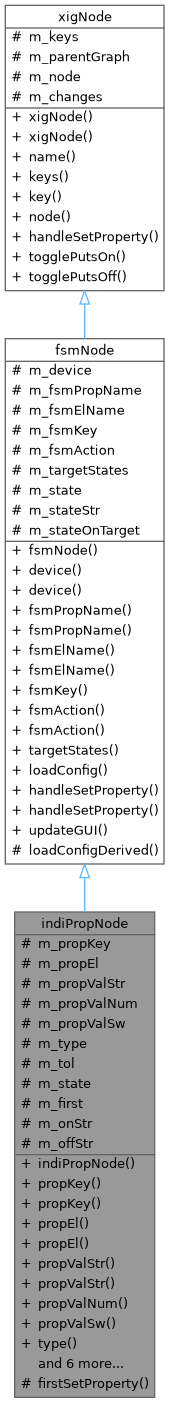

Inheritance diagram for indiPropNode:

Collaboration diagram for indiPropNode:

Public Member Functions
	indiPropNode (const std::string &name, ingr::instGraphXML *parentGraph)
	Only c'tor. Must be constructed with node name and a parent graph.

void	propKey (const std::string &pk)
	Set the unique key of the INDI property to track.

const std::string &	propKey () const
	Get the unique key of the INDI property to track.

void	propEl (const std::string &pe)
	Set the element of the INDI property to track.

const std::string &	propEl () const
	Get the element of the INDI property to track.

void	propValStr (const std::string &pv)
	Set the target value of the INDI element.

const std::string &	propValStr () const
	Get the target value of the INDI element.

const double &	propValNum () const
	Get the target value of the INDI element if it's a number.

const pcf::IndiElement::SwitchStateType &	propValSw ()
	Get the target value of the INDI element if it's a switch.

const pcf::IndiProperty::Type &	type () const
	Get the type of the INDI property being tracked.

const double &	tol () const
	Get the tolerance used for numeric comparison.

const bool &	state () const
	Get the current value of the comparison.

virtual int	handleSetProperty (const pcf::IndiProperty &ipRecv)
	INDI SetProperty callback.

virtual void	toggleOn ()
	Toggle all puts on.

virtual void	toggleOff ()
	Toggle all puts off.

void	loadConfig (mx::app::appConfigurator &config)
	Configure this node form an appConfigurator.

virtual void	device (const std::string &dev)
	Set the device name.

const std::string &	device () const
	Get the device name.

virtual void	fsmPropName (const std::string &pn)
	Set the fsm property name.

const std::string &	fsmPropName () const
	Get the fsm property name.

virtual void	fsmElName (const std::string &en)
	Set the fsm element name.

const std::string &	fsmElName () const
	Get the fsm element name.

const std::string &	fsmKey () const
	Get the FSM unique key.

fsmNodeActionT	fsmAction () const
	Get the action.

void	fsmAction (fsmNodeActionT act)
	Set the action.

const std::vector< stateCodeT > &	targetStates () const
	Get the target states.

virtual int	handleSetProperty (bool &actionTaken, const pcf::IndiProperty &ipRecv)
	INDI SetProperty callback with indication if action was taken.

virtual void	updateGUI ()

std::string	name ()
	Get the name of this node.

const std::set< std::string > &	keys ()
	Get the set holding the INDI keys for this node.

void	key (const std::string &nkey)
	Add a key to the set.

ingr::instNode *	node ()
	Get the pointer to the underlying node.

virtual void	togglePutsOn ()
	Change the state of all inputs and all outputs to on.

virtual void	togglePutsOff ()
	Change the state of all inputs and all outputs to off.

Protected Member Functions
virtual int	firstSetProperty (const pcf::IndiProperty &ipRecv)
	On first call to handleSetProperty we find the property type and convert the target value.

void	loadConfigDerived (mx::app::appConfigurator &config)
	Load this specific node's settings from an application configuration of a derived class.

Protected Attributes
std::string	m_propKey
	unique key, device.name, of the property tp track

std::string	m_propEl
	the element of the property to track

std::string	m_propValStr
	the target value of the element. This is always set.

double	m_propValNum { std::numeric_limits<double>::lowest() }

pcf::IndiElement::SwitchStateType	m_propValSw { pcf::IndiElement::SwitchStateType::UnknownSwitchState }

pcf::IndiProperty::Type	m_type { pcf::IndiProperty::Unknown }
	The property type. Discovered introspectively on first call to handleSetProperty.

double	m_tol { 1e-7 }
	The tolerance for floating point comparison. Default is 1e-7.

bool	m_state { false }
	The current state of the comparison.

bool	m_first { true }
	Flag indicating if it's the first call to handleSetProperty.

std::string	m_onStr {"ON"}

std::string	m_offStr {"OFF"}

std::string	m_device
	The INDI device name. Defaults to the node name set on construction.

std::string	m_fsmPropName { "fsm" }
	The INDI property name for the FSM, normally "fsm".

std::string	m_fsmElName { "state" }
	The INDI property element name for the FSM, normally "state".

std::string	m_fsmKey
	The unique INDI key, `<device>.<fsmPropName>`, for the FSM state INDI property.

fsmNodeActionT	m_fsmAction { fsmNodeActionT::passive }

std::vector< stateCodeT >	m_targetStates

std::string	m_stateStr
	The string name of the current state.

bool	m_stateOnTarget { false }
	Flag indicating if the current state matches any of the target states.

std::set< std::string >	m_keys
	The INDI keys (device.property) which this node subscribes to.

ingr::instGraphXML *	m_parentGraph { nullptr }
	The parent instGraph that this node is a part of.

ingr::instNode *	m_node { nullptr }
	The underlying instGraph node.

int	m_changes { 0 }
	Counter that can be incremented when changes are detected. Set to 0 when graph is updated.

Private Types
typedef MagAOX::app::stateCodes::stateCodeT	stateCodeT

Detailed Description

An instGraph node which tracks a specific INDI property and element of that property.

When the element matches the target value all puts are turned on. All puts are off otherwise.

Definition at line 16 of file indiPropNode.hpp.

Member Typedef Documentation

◆ stateCodeT

typedef MagAOX::app::stateCodes::stateCodeT fsmNode::stateCodeT

privateinherited

Definition at line 71 of file fsmNode.hpp.

Constructor & Destructor Documentation

◆ indiPropNode()

indiPropNode::indiPropNode	(	const std::string &	name,
		ingr::instGraphXML *	parentGraph
	)

Only c'tor. Must be constructed with node name and a parent graph.

Parameters

[in] parentGraph the name of this node [in] the graph which this node belongs to

Definition at line 129 of file indiPropNode.hpp.

References xigNode::m_node, and xigNode::m_parentGraph.

Member Function Documentation

◆ device() [1/2]

const std::string & fsmNode::device ( ) const

inlineinherited

Get the device name.

Returns: the current value of m_device

Definition at line 228 of file fsmNode.hpp.

References fsmNode::m_device.

Referenced by stdMotionNode::device(), and fsmNode::loadConfigDerived().

◆ device() [2/2]

void fsmNode::device ( const std::string & dev )

inlinevirtualinherited

Set the device name.

Derived classes may implement this to add extra logic. The device name defaults to the node name on construction.

Parameters

[in] dev the new device name

Reimplemented in stdMotionNode, and stdMotionNode.

Definition at line 201 of file fsmNode.hpp.

References xigNode::key(), fsmNode::m_device, fsmNode::m_fsmKey, fsmNode::m_fsmPropName, and xigNode::name().

Referenced by SCENARIO().

◆ firstSetProperty()

int indiPropNode::firstSetProperty ( const pcf::IndiProperty & ipRecv )

inlineprotectedvirtual

On first call to handleSetProperty we find the property type and convert the target value.

Parameters

[in] ipRecv the received INDI property

Definition at line 194 of file indiPropNode.hpp.

References m_propValNum, m_propValStr, m_propValSw, m_type, and XIGN_EXCEPTION.

Referenced by handleSetProperty().

◆ fsmAction() [1/2]

fsmNodeActionT fsmNode::fsmAction ( ) const

inherited

Get the action.

Returns: the current value of m_fsmAction

Definition at line 295 of file fsmNode.hpp.

References fsmNode::m_fsmAction.

Referenced by SCENARIO().

◆ fsmAction() [2/2]

void fsmNode::fsmAction ( fsmNodeActionT act )

inherited

Set the action.

Definition at line 300 of file fsmNode.hpp.

References fsmNode::m_fsmAction.

◆ fsmElName() [1/2]

const std::string & fsmNode::fsmElName ( ) const

inlineinherited

Get the fsm element name.

Returns: the current value of m_fsmElName

Definition at line 285 of file fsmNode.hpp.

References fsmNode::m_fsmElName.

Referenced by fsmNode::loadConfigDerived().

◆ fsmElName() [2/2]

void fsmNode::fsmElName ( const std::string & en )

inlinevirtualinherited

Set the fsm element name.

Derived classes may implement this to add extra logic. The fsm element name defaults to "state"

This can be called at any time

Parameters

[in] en the new element name

Definition at line 271 of file fsmNode.hpp.

References fsmNode::m_fsmElName, and xigNode::name().

◆ fsmKey()

const std::string & fsmNode::fsmKey ( ) const

inherited

Get the FSM unique key.

Returns: the current value of m_fsmKey

Definition at line 290 of file fsmNode.hpp.

References fsmNode::m_fsmKey.

Referenced by SCENARIO().

◆ fsmPropName() [1/2]

const std::string & fsmNode::fsmPropName ( ) const

inlineinherited

Get the fsm property name.

Returns: the current value of m_fsmPropName

Definition at line 266 of file fsmNode.hpp.

References fsmNode::m_fsmPropName.

Referenced by fsmNode::loadConfigDerived().

◆ fsmPropName() [2/2]

void fsmNode::fsmPropName ( const std::string & pn )

inlinevirtualinherited

Set the fsm property name.

Derived classes may implement this to add extra logic. The fsm property name defaults to "fsm"

This can only be called before device is set

Parameters

[in] pn the new property name

Definition at line 233 of file fsmNode.hpp.

References fsmNode::m_device, fsmNode::m_fsmPropName, and xigNode::name().

◆ handleSetProperty() [1/2]

int fsmNode::handleSetProperty	(	bool &	actionTaken,
		const pcf::IndiProperty &	ipRecv
	)

inlinevirtualinherited

INDI SetProperty callback with indication if action was taken.

The possible actions are determined by m_fsmAction. If the action was taken then the caller should return without further processing.

Parameters

ipRecv < [out] indicates if action taken (true). [in] the received INDI property to handle

Definition at line 381 of file fsmNode.hpp.

References active, xigNode::m_changes, fsmNode::m_fsmAction, fsmNode::m_fsmElName, fsmNode::m_fsmKey, xigNode::m_node, xigNode::m_parentGraph, fsmNode::m_state, fsmNode::m_stateOnTarget, fsmNode::m_stateStr, fsmNode::m_targetStates, MagAOX::app::stateCodes::str2CodeFast(), threshOff, xigNode::togglePutsOff(), and xigNode::togglePutsOn().

◆ handleSetProperty() [2/2]

int indiPropNode::handleSetProperty ( const pcf::IndiProperty & ipRecv )

inlinevirtual

INDI SetProperty callback.

Parameters

[in] ipRecv the received INDI property to handle

Reimplemented from fsmNode.

Definition at line 258 of file indiPropNode.hpp.

References firstSetProperty(), fsmNode::handleSetProperty(), xigNode::m_changes, m_first, xigNode::m_node, m_offStr, m_onStr, xigNode::m_parentGraph, m_propEl, m_propKey, m_propValNum, m_propValStr, m_propValSw, m_state, m_tol, m_type, toggleOff(), toggleOn(), and XIGN_EXCEPTION.

Referenced by SCENARIO().

◆ key()

void xigNode::key ( const std::string & nkey )

inlineinherited

Add a key to the set.

Definition at line 116 of file xigNode.hpp.

References xigNode::m_keys.

Referenced by fsmNode::device(), stdMotionNode::device(), stdMotionNode::presetPrefix(), propKey(), pwrOnOffNode::pwrKey(), SCENARIO(), stdMotionNode::trackerKey(), and stdMotionNode::trackingReqKey().

◆ keys()

const std::set< std::string > & xigNode::keys ( )

inlineinherited

Get the set holding the INDI keys for this node.

Returns: a const reference to m_keys

Definition at line 111 of file xigNode.hpp.

References xigNode::m_keys.

Referenced by SCENARIO().

◆ loadConfig()

void indiPropNode::loadConfig ( mx::app::appConfigurator & config )

inline

Configure this node form an appConfigurator.

Parameters

[in] config the loaded configuration

Definition at line 382 of file indiPropNode.hpp.

References fsmNode::loadConfigDerived(), m_offStr, m_onStr, xigNode::m_parentGraph, m_propEl, m_propValStr, m_tol, xigNode::name(), propKey(), type(), and XIGN_EXCEPTION.

Referenced by SCENARIO().

◆ loadConfigDerived()

void fsmNode::loadConfigDerived ( mx::app::appConfigurator & config )

inlineprotectedinherited

Load this specific node's settings from an application configuration of a derived class.

Does not cerifies that the named node is an fsmNode.

Parameters

[in] config the application configurator loaded with this node's options

Definition at line 336 of file fsmNode.hpp.

References fsmNode::device(), fsmNode::fsmElName(), fsmNodeActionT2String(), fsmNodeActionTFromString(), fsmNode::fsmPropName(), fsmNode::m_fsmAction, xigNode::m_node, xigNode::m_parentGraph, fsmNode::m_targetStates, xigNode::name(), MagAOX::app::stateCodes::str2Code(), fsmNode::targetStates(), unknown, and XIGN_EXCEPTION.

Referenced by fsmNode::loadConfig(), and loadConfig().

◆ name()

std::string xigNode::name ( )

inlineinherited

Get the name of this node.

Returns: the nodes' name (the value of m_name).

Definition at line 106 of file xigNode.hpp.

References xigNode::m_node.

Referenced by xigNode::xigNode(), fsmNode::device(), fsmNode::fsmElName(), fsmNode::fsmPropName(), fsmNode::loadConfig(), loadConfig(), pwrOnOffNode::loadConfig(), staticNode::loadConfig(), stdMotionNode::loadConfig(), fsmNode::loadConfigDerived(), SCENARIO(), SCENARIO(), SCENARIO(), SCENARIO(), SCENARIO(), TEST_CASE(), TEST_CASE(), stdMotionNode::togglePutsOff(), and stdMotionNode::togglePutsOn().

◆ node()

ingr::instNode * xigNode::node ( )

inlineinherited

Get the pointer to the underlying node.

Returns: the node pointer, which can not be nullptr after construction

Definition at line 121 of file xigNode.hpp.

References xigNode::m_node.

Referenced by SCENARIO(), SCENARIO(), SCENARIO(), SCENARIO(), SCENARIO(), TEST_CASE(), and TEST_CASE().

◆ propEl() [1/2]

const std::string & indiPropNode::propEl ( ) const

Get the element of the INDI property to track.

Returns: the value of m_propEl

Definition at line 154 of file indiPropNode.hpp.

References m_propEl.

◆ propEl() [2/2]

void indiPropNode::propEl ( const std::string & pe )

inline

Set the element of the INDI property to track.

Parameters

[in] pe

Definition at line 149 of file indiPropNode.hpp.

References m_propEl.

Referenced by SCENARIO().

◆ propKey() [1/2]

const std::string & indiPropNode::propKey ( ) const

Get the unique key of the INDI property to track.

Returns: the value of m_propKey

Definition at line 144 of file indiPropNode.hpp.

References m_propKey.

Referenced by loadConfig().

◆ propKey() [2/2]

void indiPropNode::propKey ( const std::string & pk )

inline

Set the unique key of the INDI property to track.

Parameters

[in] pk

Definition at line 137 of file indiPropNode.hpp.

References xigNode::key(), and m_propKey.

Referenced by SCENARIO().

◆ propValNum()

const double & indiPropNode::propValNum ( ) const

Get the target value of the INDI element if it's a number.

Returns: the value of m_propValNum

Definition at line 169 of file indiPropNode.hpp.

References m_propValNum.

Referenced by SCENARIO().

◆ propValStr() [1/2]

const std::string & indiPropNode::propValStr ( ) const

Get the target value of the INDI element.

Returns: the value of m_propValStr

Definition at line 164 of file indiPropNode.hpp.

References m_propValStr.

◆ propValStr() [2/2]

void indiPropNode::propValStr ( const std::string & pv )

inline

Set the target value of the INDI element.

Always set in its string form and converted as needed

Parameters

[in] pv

Definition at line 159 of file indiPropNode.hpp.

References m_propValStr.

Referenced by SCENARIO().

◆ propValSw()

const pcf::IndiElement::SwitchStateType & indiPropNode::propValSw ( )

Get the target value of the INDI element if it's a switch.

Returns: the value of m_propValSw

Definition at line 174 of file indiPropNode.hpp.

References m_propValSw.

Referenced by SCENARIO().

◆ state()

const bool & indiPropNode::state ( ) const

Get the current value of the comparison.

Returns: the value of m_state

Definition at line 189 of file indiPropNode.hpp.

References m_state.

Referenced by SCENARIO().

◆ targetStates()

const std::vector< fsmNode::stateCodeT > & fsmNode::targetStates ( ) const

inherited

Get the target states.

Returns: the current value of m_targetStates

Definition at line 305 of file fsmNode.hpp.

References fsmNode::m_targetStates.

Referenced by fsmNode::loadConfigDerived(), and SCENARIO().

◆ toggleOff()

void indiPropNode::toggleOff ( )

inlinevirtual

Toggle all puts off.

Definition at line 377 of file indiPropNode.hpp.

References xigNode::togglePutsOff().

Referenced by handleSetProperty().

◆ toggleOn()

void indiPropNode::toggleOn ( )

inlinevirtual

Toggle all puts on.

Definition at line 372 of file indiPropNode.hpp.

References xigNode::togglePutsOn().

Referenced by handleSetProperty().

◆ togglePutsOff()

void xigNode::togglePutsOff ( )

inlinevirtualinherited

Change the state of all inputs and all outputs to off.

Reimplemented in staticNode, and stdMotionNode.

Definition at line 141 of file xigNode.hpp.

References xigNode::m_node.

Referenced by fsmNode::handleSetProperty(), toggleOff(), and pwrOnOffNode::toggleOff().

◆ togglePutsOn()

void xigNode::togglePutsOn ( )

inlinevirtualinherited

Change the state of all inputs and all outputs to on.

Reimplemented in staticNode, and stdMotionNode.

Definition at line 126 of file xigNode.hpp.

References xigNode::m_node.

Referenced by fsmNode::handleSetProperty(), toggleOn(), pwrOnOffNode::toggleOn(), and stdMotionNode::togglePutsOn().

◆ tol()

const double & indiPropNode::tol ( ) const

Get the tolerance used for numeric comparison.

Returns: the value of m_tol

Definition at line 184 of file indiPropNode.hpp.

References m_tol.

Referenced by SCENARIO().

◆ type()

const pcf::IndiProperty::Type & indiPropNode::type ( ) const

Get the type of the INDI property being tracked.

Returns: the value of m_type

Definition at line 179 of file indiPropNode.hpp.

References m_type.

Referenced by loadConfig(), and SCENARIO().

◆ updateGUI()

void fsmNode::updateGUI ( )

inlinevirtualinherited

Definition at line 456 of file fsmNode.hpp.

Member Data Documentation

◆ m_changes

int xigNode::m_changes { 0 }

protectedinherited

Counter that can be incremented when changes are detected. Set to 0 when graph is updated.

Definition at line 39 of file xigNode.hpp.

Referenced by fsmNode::handleSetProperty(), handleSetProperty(), and stdMotionNode::handleSetProperty().

◆ m_device

std::string fsmNode::m_device

protectedinherited

The INDI device name. Defaults to the node name set on construction.

Definition at line 74 of file fsmNode.hpp.

Referenced by fsmNode::device(), fsmNode::device(), stdMotionNode::device(), fsmNode::fsmPropName(), and stdMotionNode::presetPrefix().

◆ m_first

bool indiPropNode::m_first { true }

protected

Flag indicating if it's the first call to handleSetProperty.

Definition at line 41 of file indiPropNode.hpp.

Referenced by handleSetProperty().

◆ m_fsmAction

fsmNodeActionT fsmNode::m_fsmAction { fsmNodeActionT::passive }

protectedinherited

Definition at line 80 of file fsmNode.hpp.

Referenced by fsmNode::fsmAction(), fsmNode::fsmAction(), fsmNode::handleSetProperty(), and fsmNode::loadConfigDerived().

◆ m_fsmElName

std::string fsmNode::m_fsmElName { "state" }

protectedinherited

The INDI property element name for the FSM, normally "state".

Definition at line 76 of file fsmNode.hpp.

Referenced by fsmNode::fsmElName(), fsmNode::fsmElName(), and fsmNode::handleSetProperty().

◆ m_fsmKey

std::string fsmNode::m_fsmKey

protectedinherited

The unique INDI key, <device>.<fsmPropName>, for the FSM state INDI property.

Definition at line 78 of file fsmNode.hpp.

Referenced by fsmNode::device(), fsmNode::fsmKey(), and fsmNode::handleSetProperty().

◆ m_fsmPropName

std::string fsmNode::m_fsmPropName { "fsm" }

protectedinherited

The INDI property name for the FSM, normally "fsm".

Definition at line 75 of file fsmNode.hpp.

Referenced by fsmNode::device(), fsmNode::fsmPropName(), and fsmNode::fsmPropName().

◆ m_keys

std::set<std::string> xigNode::m_keys

protectedinherited

The INDI keys (device.property) which this node subscribes to.

Definition at line 33 of file xigNode.hpp.

Referenced by xigNode::key(), and xigNode::keys().

◆ m_node

ingr::instNode* xigNode::m_node { nullptr }

protectedinherited

The underlying instGraph node.

Definition at line 37 of file xigNode.hpp.

Referenced by indiPropNode(), pwrOnOffNode::pwrOnOffNode(), xigNode::xigNode(), fsmNode::handleSetProperty(), handleSetProperty(), stdMotionNode::handleSetProperty(), fsmNode::loadConfigDerived(), xigNode::name(), xigNode::node(), pwrOnOffNode::toggleOff(), pwrOnOffNode::toggleOn(), staticNode::togglePutsAll(), stdMotionNode::togglePutsOff(), xigNode::togglePutsOff(), stdMotionNode::togglePutsOn(), and xigNode::togglePutsOn().

◆ m_offStr

std::string indiPropNode::m_offStr {"OFF"}

protected

Definition at line 44 of file indiPropNode.hpp.

Referenced by handleSetProperty(), and loadConfig().

◆ m_onStr

std::string indiPropNode::m_onStr {"ON"}

protected

Definition at line 43 of file indiPropNode.hpp.

Referenced by handleSetProperty(), and loadConfig().

◆ m_parentGraph

ingr::instGraphXML* xigNode::m_parentGraph { nullptr }

protectedinherited

The parent instGraph that this node is a part of.

Definition at line 35 of file xigNode.hpp.

Referenced by indiPropNode(), pwrOnOffNode::pwrOnOffNode(), xigNode::xigNode(), fsmNode::handleSetProperty(), handleSetProperty(), fsmNode::loadConfig(), loadConfig(), pwrOnOffNode::loadConfig(), staticNode::loadConfig(), stdMotionNode::loadConfig(), fsmNode::loadConfigDerived(), pwrOnOffNode::toggleOff(), pwrOnOffNode::toggleOn(), stdMotionNode::togglePutsOff(), and stdMotionNode::togglePutsOn().

◆ m_propEl

std::string indiPropNode::m_propEl

protected

the element of the property to track

Definition at line 21 of file indiPropNode.hpp.

Referenced by handleSetProperty(), loadConfig(), propEl(), and propEl().

◆ m_propKey

std::string indiPropNode::m_propKey

protected

unique key, device.name, of the property tp track

Definition at line 20 of file indiPropNode.hpp.

Referenced by handleSetProperty(), propKey(), and propKey().

◆ m_propValNum

double indiPropNode::m_propValNum { std::numeric_limits<double>::lowest() }

protected

the numeric target value, set from m_propValStr if the property is a number.

Definition at line 25 of file indiPropNode.hpp.

Referenced by firstSetProperty(), handleSetProperty(), and propValNum().

◆ m_propValStr

std::string indiPropNode::m_propValStr

protected

the target value of the element. This is always set.

Definition at line 23 of file indiPropNode.hpp.

Referenced by firstSetProperty(), handleSetProperty(), loadConfig(), propValStr(), and propValStr().

◆ m_propValSw

pcf::IndiElement::SwitchStateType indiPropNode::m_propValSw { pcf::IndiElement::SwitchStateType::UnknownSwitchState }

protected

The switch target value, set from m_propValStr if the property is a switch. In this case m_propValStr can have values On or Off. The comparison is made insensitive to case (ON and off are valid).

Definition at line 32 of file indiPropNode.hpp.

Referenced by firstSetProperty(), handleSetProperty(), and propValSw().

◆ m_state

bool indiPropNode::m_state { false }

protected

The current state of the comparison.

Definition at line 39 of file indiPropNode.hpp.

Referenced by handleSetProperty(), and state().

◆ m_stateOnTarget

bool fsmNode::m_stateOnTarget { false }

protectedinherited

Flag indicating if the current state matches any of the target states.

Definition at line 87 of file fsmNode.hpp.

Referenced by fsmNode::handleSetProperty().

◆ m_stateStr

std::string fsmNode::m_stateStr

protectedinherited

The string name of the current state.

Definition at line 85 of file fsmNode.hpp.

Referenced by fsmNode::handleSetProperty().

◆ m_targetStates

std::vector<stateCodeT> fsmNode::m_targetStates

protectedinherited

Definition at line 82 of file fsmNode.hpp.

Referenced by fsmNode::handleSetProperty(), fsmNode::loadConfigDerived(), and fsmNode::targetStates().

◆ m_tol

double indiPropNode::m_tol { 1e-7 }

protected

The tolerance for floating point comparison. Default is 1e-7.

Definition at line 37 of file indiPropNode.hpp.

Referenced by handleSetProperty(), loadConfig(), and tol().

◆ m_type

pcf::IndiProperty::Type indiPropNode::m_type { pcf::IndiProperty::Unknown }

protected

The property type. Discovered introspectively on first call to handleSetProperty.

Definition at line 35 of file indiPropNode.hpp.

Referenced by firstSetProperty(), handleSetProperty(), and type().

The documentation for this class was generated from the following file:

apps/xInstGraph/xigNodes/indiPropNode.hpp

Public Member Functions

Protected Member Functions

Protected Attributes

Private Types

Detailed Description

Member Typedef Documentation

◆ stateCodeT

Constructor & Destructor Documentation

◆ indiPropNode()

Member Function Documentation

◆ device() [1/2]

◆ device() [2/2]

◆ firstSetProperty()

◆ fsmAction() [1/2]

◆ fsmAction() [2/2]

◆ fsmElName() [1/2]

◆ fsmElName() [2/2]

◆ fsmKey()

◆ fsmPropName() [1/2]

◆ fsmPropName() [2/2]

◆ handleSetProperty() [1/2]

◆ handleSetProperty() [2/2]

◆ key()

◆ keys()

◆ loadConfig()

◆ loadConfigDerived()

◆ name()

◆ node()

◆ propEl() [1/2]

◆ propEl() [2/2]

◆ propKey() [1/2]

◆ propKey() [2/2]

◆ propValNum()

◆ propValStr() [1/2]

◆ propValStr() [2/2]

◆ propValSw()

◆ state()

◆ targetStates()

◆ toggleOff()

◆ toggleOn()

◆ togglePutsOff()

◆ togglePutsOn()

◆ tol()

◆ type()

◆ updateGUI()

Member Data Documentation

◆ m_changes

◆ m_device

◆ m_first

◆ m_fsmAction

◆ m_fsmElName

◆ m_fsmKey

◆ m_fsmPropName

◆ m_keys

◆ m_node

◆ m_offStr

◆ m_onStr

◆ m_parentGraph

◆ m_propEl

◆ m_propKey

◆ m_propValNum

◆ m_propValStr

◆ m_propValSw

◆ m_state

◆ m_stateOnTarget

◆ m_stateStr

◆ m_targetStates

◆ m_tol

◆ m_type
