xigNode Class Reference

Implementation of basic instGraph node interface for MagAO-X. More...

#include <xigNode.hpp>

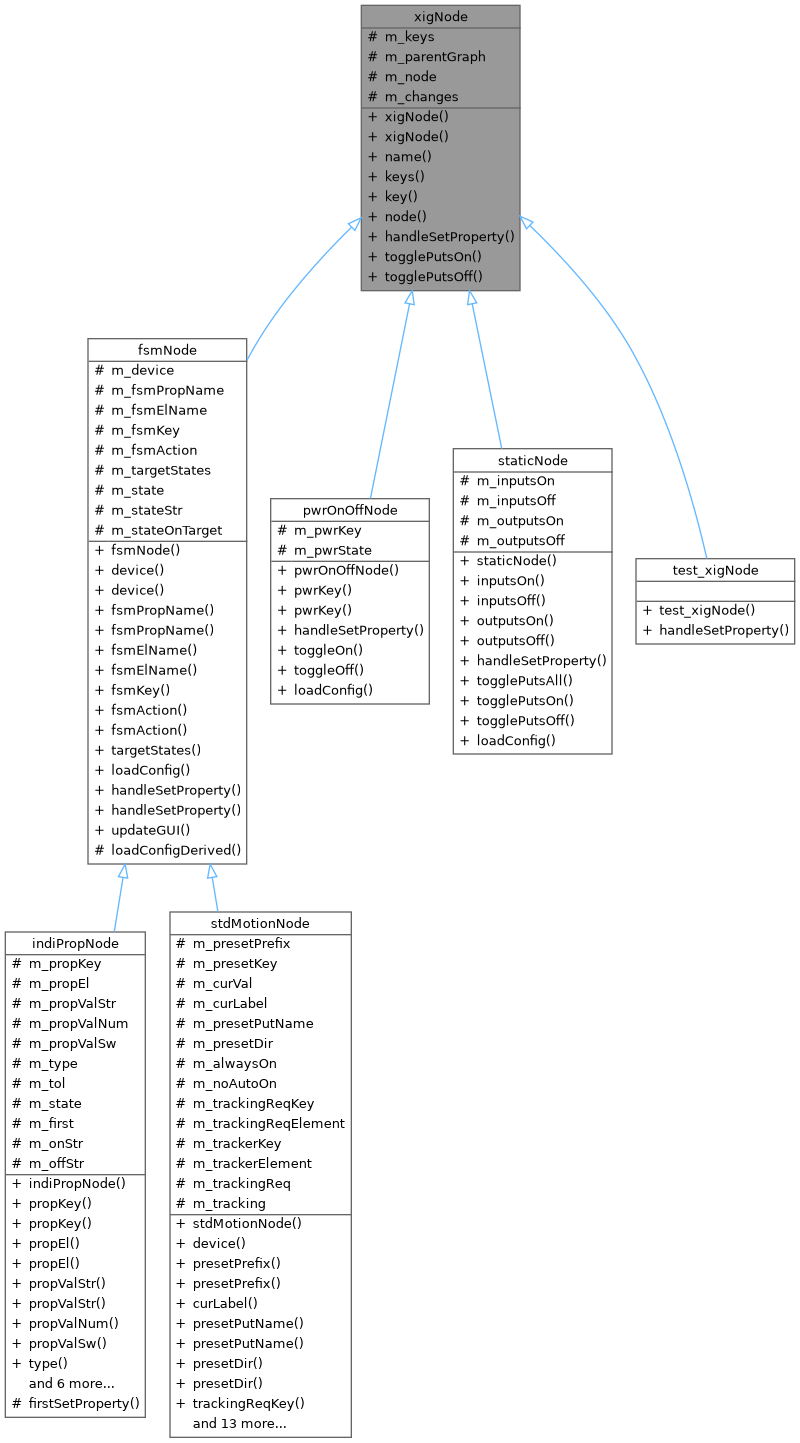

Inheritance diagram for xigNode:

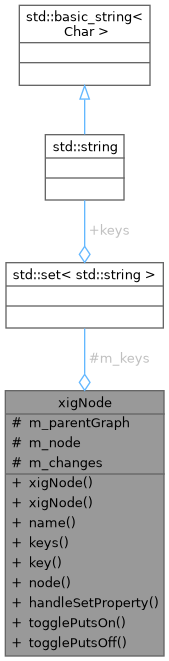

Collaboration diagram for xigNode:

Public Member Functions
	xigNode ()=delete
	xigNode (const std::string &name, ingr::instGraphXML *parentGraph)
	Constructor.
std::string	name ()
	Get the name of this node.
const std::set< std::string > &	keys ()
	Get the set holding the INDI keys for this node.
void	key (const std::string &nkey)
	Add a key to the set.
ingr::instNode *	node ()
	Get the pointer to the underlying node.
virtual int	handleSetProperty (const pcf::IndiProperty &ipRecv)=0
	INDI SetProperty callback.
virtual void	togglePutsOn ()
	Change the state of all inputs and all outputs to on.
virtual void	togglePutsOff ()
	Change the state of all inputs and all outputs to off.

Protected Attributes
std::set< std::string >	m_keys
	The INDI keys (device.property) which this node subscribes to.
ingr::instGraphXML *	m_parentGraph { nullptr }
	The parent instGraph that this node is a part of.
ingr::instNode *	m_node { nullptr }
	The underlying instGraph node.
int	m_changes { 0 }
	Counter that can be incremented when changes are detected. Set to 0 when graph is updated.

Detailed Description

Implementation of basic instGraph node interface for MagAO-X.

This class is pure virtual, derived classes must implement handleSetProperty.

Definition at line 30 of file xigNode.hpp.

Constructor & Destructor Documentation

xigNode() [1/2]

xigNode::xigNode ( )

delete

xigNode() [2/2]

xigNode::xigNode ( const std::string &  name, ingr::instGraphXML *  parentGraph  )

inline

Constructor.

Default c'tor is deleted. Must supply both node name and a parentGraph with a node with the same name in it.

Parameters

[in]	name	the name of the node
[in]	parentGraph	the parent instGraph

Definition at line 94 of file xigNode.hpp.

References m_node, m_parentGraph, name(), and XIGN_EXCEPTION.

Member Function Documentation

handleSetProperty()

virtual int xigNode::handleSetProperty ( const pcf::IndiProperty &  ipRecv )

pure virtual

INDI SetProperty callback.

This is a pure virtual function in xigNode.

Parameters

[in]

ipRecv

the received INDI property to handle

Implemented in fsmNode, indiPropNode, pwrOnOffNode, staticNode, stdMotionNode, and test_xigNode.

key()

void xigNode::key ( const std::string &  nkey )

inline

Add a key to the set.

Definition at line 116 of file xigNode.hpp.

References m_keys.

Referenced by fsmNode::device(), stdMotionNode::device(), stdMotionNode::presetPrefix(), indiPropNode::propKey(), pwrOnOffNode::pwrKey(), SCENARIO(), stdMotionNode::trackerKey(), and stdMotionNode::trackingReqKey().

keys()

const std::set< std::string > & xigNode::keys ( )

inline

Get the set holding the INDI keys for this node.

Returns

a const reference to m_keys

Definition at line 111 of file xigNode.hpp.

References m_keys.

Referenced by SCENARIO().

name()

std::string xigNode::name ( )

inline

Get the name of this node.

Returns

the nodes' name (the value of m_name).

Definition at line 106 of file xigNode.hpp.

References m_node.

Referenced by xigNode(), fsmNode::device(), fsmNode::fsmElName(), fsmNode::fsmPropName(), fsmNode::loadConfig(), indiPropNode::loadConfig(), pwrOnOffNode::loadConfig(), staticNode::loadConfig(), stdMotionNode::loadConfig(), fsmNode::loadConfigDerived(), SCENARIO(), SCENARIO(), SCENARIO(), SCENARIO(), SCENARIO(), TEST_CASE(), TEST_CASE(), stdMotionNode::togglePutsOff(), and stdMotionNode::togglePutsOn().

node()

ingr::instNode * xigNode::node ( )

inline

Get the pointer to the underlying node.

Returns

the node pointer, which can not be nullptr after construction

Definition at line 121 of file xigNode.hpp.

References m_node.

Referenced by SCENARIO(), SCENARIO(), SCENARIO(), SCENARIO(), SCENARIO(), TEST_CASE(), and TEST_CASE().

togglePutsOff()

void xigNode::togglePutsOff ( )

inlinevirtual

Change the state of all inputs and all outputs to off.

Reimplemented in staticNode, and stdMotionNode.

Definition at line 141 of file xigNode.hpp.

References m_node.

Referenced by fsmNode::handleSetProperty(), indiPropNode::toggleOff(), and pwrOnOffNode::toggleOff().

togglePutsOn()

void xigNode::togglePutsOn ( )

inlinevirtual

Change the state of all inputs and all outputs to on.

Reimplemented in staticNode, and stdMotionNode.

Definition at line 126 of file xigNode.hpp.

References m_node.

Referenced by fsmNode::handleSetProperty(), indiPropNode::toggleOn(), pwrOnOffNode::toggleOn(), and stdMotionNode::togglePutsOn().

Member Data Documentation

m_changes

int xigNode::m_changes { 0 }

protected

Counter that can be incremented when changes are detected. Set to 0 when graph is updated.

Definition at line 39 of file xigNode.hpp.

Referenced by fsmNode::handleSetProperty(), indiPropNode::handleSetProperty(), and stdMotionNode::handleSetProperty().

m_keys

std::set<std::string> xigNode::m_keys

protected

The INDI keys (device.property) which this node subscribes to.

Definition at line 33 of file xigNode.hpp.

Referenced by key(), and keys().

m_node

ingr::instNode* xigNode::m_node { nullptr }

protected

The underlying instGraph node.

Definition at line 37 of file xigNode.hpp.

Referenced by indiPropNode::indiPropNode(), pwrOnOffNode::pwrOnOffNode(), xigNode(), fsmNode::handleSetProperty(), indiPropNode::handleSetProperty(), stdMotionNode::handleSetProperty(), fsmNode::loadConfigDerived(), name(), node(), pwrOnOffNode::toggleOff(), pwrOnOffNode::toggleOn(), staticNode::togglePutsAll(), stdMotionNode::togglePutsOff(), togglePutsOff(), stdMotionNode::togglePutsOn(), and togglePutsOn().

m_parentGraph

ingr::instGraphXML* xigNode::m_parentGraph { nullptr }

protected

The parent instGraph that this node is a part of.

Definition at line 35 of file xigNode.hpp.

Referenced by indiPropNode::indiPropNode(), pwrOnOffNode::pwrOnOffNode(), xigNode(), fsmNode::handleSetProperty(), indiPropNode::handleSetProperty(), fsmNode::loadConfig(), indiPropNode::loadConfig(), pwrOnOffNode::loadConfig(), staticNode::loadConfig(), stdMotionNode::loadConfig(), fsmNode::loadConfigDerived(), pwrOnOffNode::toggleOff(), pwrOnOffNode::toggleOn(), stdMotionNode::togglePutsOff(), and stdMotionNode::togglePutsOn().

---

The documentation for this class was generated from the following file:

• apps/xInstGraph/xigNodes/xigNode.hpp
