dm.hpp File Reference

The MagAO-X generic deformable mirror controller. More...

#include <mx/improc/eigenImage.hpp>
#include <mx/improc/milkImage.hpp>
#include <mx/ioutils/fits/fitsFile.hpp>
#include "shmimMonitor.hpp"

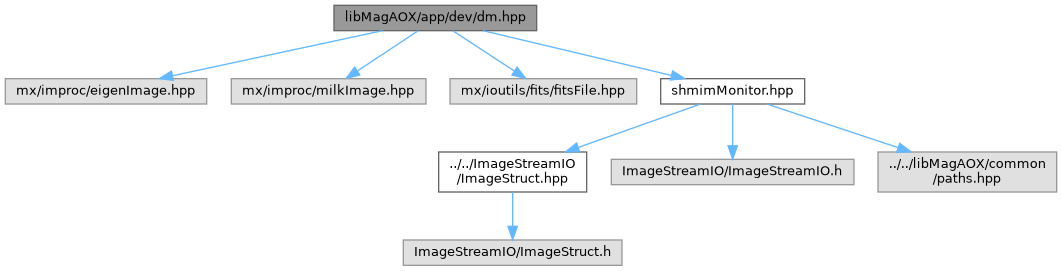

Include dependency graph for dm.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	MagAOX::app::dev::dm< derivedT, realT >

Namespaces
namespace	MagAOX
namespace	MagAOX::app
namespace	MagAOX::app::dev

Macros
#define	DM_SETUP_CONFIG(cfig)
	Call dmT::setupConfig with error checking for dm.
#define	DM_LOAD_CONFIG(cfig)
	Call dmT::loadConfig with error checking for dm.
#define	DM_APP_STARTUP
	Call shmimMonitorT::appStartup with error checking for dm.
#define	DM_APP_LOGIC
	Call dmT::appLogic with error checking for dm.
#define	DM_UPDATE_INDI
	Call dmT::updateINDI with error checking for dm.
#define	DM_APP_SHUTDOWN
	Call dmT::appShutdown with error checking for dm.

Functions
template<typename typeT >
constexpr uint8_t	MagAOX::app::dev::ImageStreamTypeCode ()
template<>
constexpr uint8_t	MagAOX::app::dev::ImageStreamTypeCode< float > ()
template<>
constexpr uint8_t	MagAOX::app::dev::ImageStreamTypeCode< double > ()

Detailed Description

The MagAO-X generic deformable mirror controller.

Author

Jared R. Males (jared.nosp@m.male.nosp@m.s@gma.nosp@m.il.c.nosp@m.om)

Definition in file dm.hpp.

Macro Definition Documentation

DM_APP_LOGIC

#define DM_APP_LOGIC

Value:

    if( dmT::appLogic() < 0 )                                                                                          \
    {                                                                                                                  \
        return log<software_error, -1>( { "Error from dmT::appLogic" } );                                              \
    }

Call dmT::appLogic with error checking for dm.

Definition at line 3423 of file dm.hpp.

DM_APP_SHUTDOWN

#define DM_APP_SHUTDOWN

Value:

    if( dmT::appShutdown() < 0 )                                                                                       \
    {                                                                                                                  \
        return log<software_error, -1>( { "Error from dmT::appShutdown" } );                                           \
    }

Call dmT::appShutdown with error checking for dm.

Definition at line 3437 of file dm.hpp.

DM_APP_STARTUP

#define DM_APP_STARTUP

Value:

    if( dmT::appStartup() < 0 )                                                                                        \
    {                                                                                                                  \
        return log<software_error, -1>( { "Error from dmT::appStartup" } );                                            \
    }

Call shmimMonitorT::appStartup with error checking for dm.

Definition at line 3416 of file dm.hpp.

DM_LOAD_CONFIG

#define DM_LOAD_CONFIG

(

cfig

)

Value:

    if( dmT::loadConfig( cfig ) < 0 )                                                                                  \
    {                                                                                                                  \
        return log<software_error, -1>( { "Error from dmT::loadConfig" } );                                            \
    }

Call dmT::loadConfig with error checking for dm.

This must be inside a function that returns int, e.g. the standard loadConfigImpl.

Parameters

cfig	the application configurator

Definition at line 3409 of file dm.hpp.

DM_SETUP_CONFIG

#define DM_SETUP_CONFIG

(

cfig

)

Value:

    if( dmT::setupConfig( cfig ) < 0 )                                                                                 \
    {                                                                                                                  \
        log<software_error>( { "Error from dmT::setupConfig" } );                                                      \
        m_shutdown = true;                                                                                             \
        return;                                                                                                        \
    }

Call dmT::setupConfig with error checking for dm.

Parameters

cfig	the application configurator

Definition at line 3397 of file dm.hpp.

DM_UPDATE_INDI

#define DM_UPDATE_INDI

Value:

    if( dmT::updateINDI() < 0 )                                                                                        \
    {                                                                                                                  \
        return log<software_error, -1>( { "Error from dmT::updateINDI" } );                                            \
    }

Call dmT::updateINDI with error checking for dm.

Definition at line 3430 of file dm.hpp.
