#include <dm.hpp>

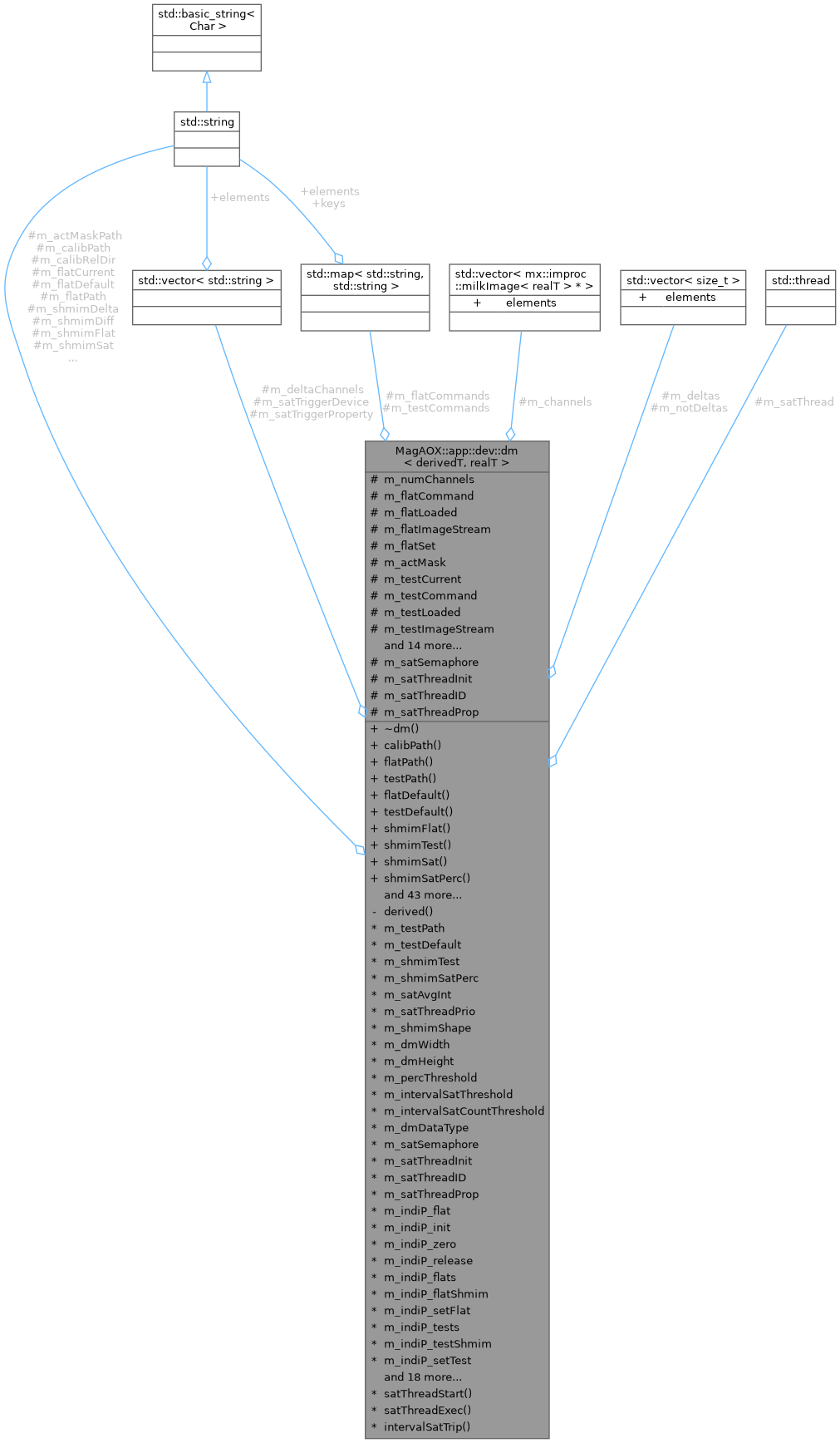

Collaboration diagram for MagAOX::app::dev::dm< derivedT, realT >:

Public Member Functions
	~dm ()
	Destructor.

const std::string &	calibPath () const
	Get the.

const std::string &	flatPath () const
	Get the.

const std::string &	testPath () const
	Get the.

const std::string &	flatDefault () const
	Get the.

const std::string &	testDefault () const
	Get the.

const std::string &	shmimFlat () const
	Get the.

const std::string &	shmimTest () const
	Get the.

const std::string &	shmimSat () const
	Get the.

const std::string &	shmimSatPerc () const
	Get the stream name for saturation percentage.

int	satAvgInt () const
	Get the saturation accumulation interval.

int	satThreadPrio () const
	Get the saturation thread priority.

const std::string &	shmimShape () const
	Get the.

const std::string &	shmimDelta () const
	Get the.

uint32_t	dmWidth () const
	Get the DM Width.

uint32_t	dmHeight () const
	Get the DM Height.

uint8_t	dmDataType () const
	Get the DM data type.

float	percThreshold () const
	Get the saturation percentage threshold.

float	intervalSatThreshold () const
	Get the interval saturation threshold.

int	intervalSatCountThreshold () const
	Get the interval saturation count threshold.

const std::vector< std::string > &	satTriggerDevice () const
	Get the saturation trigger device(s)

const std::vector< std::string > &	satTriggerProperty () const
	Get the saturation trigger property(ies)

const std::string &	calibRelDir () const

int	numChannels () const

const mx::improc::eigenImage< uint8_t > &	instSatMap () const

const mx::improc::eigenImage< uint16_t > &	accumSatMap () const

const mx::improc::eigenImage< float > &	satPercMap () const

const std::vector< std::string > &	deltaChannels () const

const std::vector< size_t > &	notDeltas () const

const mx::improc::eigenImage< float > &	totalFlat () const

int	setupConfig (mx::app::appConfigurator &config)
	Setup the configuration system.

int	loadConfig (mx::app::appConfigurator &config)
	load the configuration system results

int	appStartup ()
	Startup function.

int	appLogic ()
	DM application logic.

int	appShutdown ()
	DM shutdown.

int	onPowerOff ()
	DM Poweroff.

int	whilePowerOff ()
	DM Poweroff Updates.

int	findDMChannels ()
	Find the DM comb channels.

int	allocate (const dev::shmimT &sp)
	Called after shmimMonitor connects to the dmXXdisp stream. Checks for proper size.

int	processImage (void *curr_src, const dev::shmimT &sp)

int	baseInitDM ()
	Calls derived()->initDM()

int	baseReleaseDM ()
	Calls derived()->releaseDM() and then 0s all channels and the sat map.

int	checkFlats ()
	Check the flats directory and update the list of flats if anything changes.

int	loadFlat (const std::string &target)
	Load a flat file.

int	setFlat (bool update=false)
	Send the current flat command to the DM.

int	zeroFlat ()
	Zero the flat command on the DM.

int	checkTests ()
	Check the tests directory and update the list of tests if anything changes.

int	loadTest (const std::string &target)
	Load a test file.

int	setTest ()
	Send the current test command to the DM.

int	zeroTest ()
	Zero the test command on the DM.

int	zeroAll (bool nosem=false)
	Zero all channels.

int	makeDelta ()
	Calculate the delta command from the output shape.

int	clearSat ()
	Clear the saturation maps and zero the shared memory.

Protected Attributes
std::string	m_calibRelDir

int	m_numChannels { 0 }
	The number of dmcomb channels found as part of allocation.

std::vector< mx::improc::milkImage< realT > * >	m_channels

std::map< std::string, std::string >	m_flatCommands
	Map of flat file name to full path.

std::string	m_flatCurrent
	The name of the current flat command.

mx::improc::eigenImage< realT >	m_flatCommand
	Data storage for the flat command.

bool	m_flatLoaded { false }
	Flag indicating whether a flat is loaded in memory.

IMAGE	m_flatImageStream
	The ImageStreamIO shared memory buffer for the flat.

bool	m_flatSet { false }
	Flag indicating whether the flat command has been set.

mx::improc::milkImage< realT >	m_actMask

std::map< std::string, std::string >	m_testCommands
	Map of test file name to full path.

std::string	m_testCurrent

mx::improc::eigenImage< realT >	m_testCommand
	Data storage for the test command.

bool	m_testLoaded { false }
	Flag indicating whether a test command is loaded in memory.

IMAGE	m_testImageStream
	The ImageStreamIO shared memory buffer for the test.

bool	m_testSet { false }
	Flag indicating whether the test command has been set.

mx::improc::eigenImage< uint8_t >	m_instSatMap

mx::improc::eigenImage< uint16_t >	m_accumSatMap

mx::improc::eigenImage< float >	m_satPercMap

IMAGE	m_satImageStream
	The ImageStreamIO shared memory buffer for the sat map.

IMAGE	m_satPercImageStream
	The ImageStreamIO shared memory buffer for the sat percentage map.

int	m_overSatAct { 0 }

int	m_intervalSatExceeds { 0 }

bool	m_intervalSatTrip { 0 }

mx::improc::milkImage< realT >	m_outputShape
	The true output shape after saturation.

std::vector< std::string >	m_deltaChannels
	The names of channels which are treated as delta commands.

std::vector< size_t >	m_deltas
	Indices of the channels which are delta commands.

std::vector< size_t >	m_notDeltas
	Indices of the channels which are not delta commands.

mx::improc::eigenImage< realT >	m_totalFlat
	the total of all non-delta channels

mx::improc::eigenImage< realT >	m_totalDelta
	the total of all delta channels

mx::improc::milkImage< realT >	m_outputDelta
	The true output delta command after saturation.

mx::improc::milkImage< realT >	m_outputDiff
	The difference between command and true delta command after saturation.

Saturation Thread Data
This thread processes the saturation maps
sem_t	m_satSemaphore
	Semaphore used to tell the saturation thread to run.

bool	m_satThreadInit { true }
	Synchronizer for thread startup, to allow priority setting to finish.

pid_t	m_satThreadID { 0 }
	The ID of the saturation thread.

pcf::IndiProperty	m_satThreadProp
	The property to hold the saturation thread details.

std::thread	m_satThread
	A separate thread for the actual saturation processing.

Private Types
typedef mx::verbose::vvv	verboseT

Private Member Functions
derivedT &	derived ()

Configurable Parameters
std::string	m_calibPath
	The path to this DM's calibration files.

std::string	m_flatPath
	The path to this DM's flat files (usually the same as calibPath)

std::string	m_testPath
	The path to this DM's test files (default is calibPath/tests;.

std::string	m_actMaskPath
	The file name of the actuator mask for this DM.

std::string	m_flatDefault

std::string	m_testDefault

std::string	m_shmimFlat
	The name of the shmim stream to write the flat to.

std::string	m_shmimTest
	The name of the shmim stream to write the test to.

std::string	m_shmimSat
	The name of the shmim stream to write the saturation map to.

std::string	m_shmimSatPerc
	The name of the shmim stream to write the saturation percentage map to.

int	m_satAvgInt { 100 }
	The time in milliseconds to accumulate saturation over.

int	m_satThreadPrio { 0 }
	Priority of the saturation thread. Usually ok to be 0.

std::string	m_shmimShape
	The name of the shmim stream to write the desaturated true shape to.

std::string	m_shmimDelta
	The name of the shmim stream to write the desaturated delta command to.

std::string	m_shmimDiff
	The name of the shmim stream to write the difference to.

uint32_t	m_dmWidth { 0 }
	The width of the images in the stream.

uint32_t	m_dmHeight { 0 }
	The height of the images in the stream.

float	m_percThreshold { 0.98 }
	Threshold on percentage of frames an actuator is saturated over an interval.

float	m_intervalSatThreshold { 0.50 }

int	m_intervalSatCountThreshold { 10 }

std::vector< std::string >	m_satTriggerDevice
	Device(s) with a toggle switch to toggle on saturation trigger.

std::vector< std::string >	m_satTriggerProperty

static constexpr uint8_t	m_dmDataType = ImageStreamTypeCode<realT>()
	The ImageStreamIO type code.

INDI
pcf::IndiProperty	m_indiP_flat
	Property used to set and report the current flat.

pcf::IndiProperty	m_indiP_init

pcf::IndiProperty	m_indiP_zero

pcf::IndiProperty	m_indiP_release

pcf::IndiProperty	m_indiP_flats
	INDI Selection switch containing the flat files.

pcf::IndiProperty	m_indiP_flatShmim
	Publish the shmim being used for the flat.

pcf::IndiProperty	m_indiP_setFlat
	INDI toggle switch to set the current flat.

pcf::IndiProperty	m_indiP_tests
	INDI Selection switch containing the test pattern files.

pcf::IndiProperty	m_indiP_testShmim
	Publish the shmim being used for the test command.

pcf::IndiProperty	m_indiP_setTest
	INDI toggle switch to set the current test pattern.

pcf::IndiProperty	m_indiP_zeroAll

int	newCallBack_init (const pcf::IndiProperty &ipRecv)
	The callback called by the static version, to actually process the new request.

int	newCallBack_zero (const pcf::IndiProperty &ipRecv)
	The callback called by the static version, to actually process the new request.

int	newCallBack_release (const pcf::IndiProperty &ipRecv)
	The callback called by the static version, to actually process the new request.

int	newCallBack_flats (const pcf::IndiProperty &ipRecv)
	The callback called by the static version, to actually process the new request.

int	newCallBack_setFlat (const pcf::IndiProperty &ipRecv)
	The callback called by the static version, to actually process the new request.

int	newCallBack_tests (const pcf::IndiProperty &ipRecv)
	The callback called by the static version, to actually process the new request.

int	newCallBack_setTest (const pcf::IndiProperty &ipRecv)
	The callback called by the static version, to actually process the new request.

int	newCallBack_zeroAll (const pcf::IndiProperty &ipRecv)
	The callback for the zeroAll toggle switch, called by the static version.

int	updateINDI ()
	Update the INDI properties for this device controller.

static int	st_newCallBack_init (void *app, const pcf::IndiProperty &ipRecv)
	The static callback function to be registered for initializing the DM.

static int	st_newCallBack_zero (void *app, const pcf::IndiProperty &ipRecv)
	The static callback function to be registered for initializing the DM.

static int	st_newCallBack_release (void *app, const pcf::IndiProperty &ipRecv)
	The static callback function to be registered for initializing the DM.

static int	st_newCallBack_flats (void *app, const pcf::IndiProperty &ipRecv)
	The static callback function to be registered for selecting the flat file.

static int	st_newCallBack_setFlat (void *app, const pcf::IndiProperty &ipRecv)
	The static callback function to be registered for setting the flat.

static int	st_newCallBack_tests (void *app, const pcf::IndiProperty &ipRecv)
	The static callback function to be registered for selecting the test file.

static int	st_newCallBack_setTest (void *app, const pcf::IndiProperty &ipRecv)
	The static callback function to be registered for setting the test shape.

static int	st_newCallBack_zeroAll (void *app, const pcf::IndiProperty &ipRecv)
	The static callback function to be registered for zeroing all channels.

Saturation Thread Functions
This thread processes the saturation maps
static void	satThreadStart (dm *d)
	Thread starter, called by MagAOXApp::threadStart on thread construction. Calls satThreadExec.

void	satThreadExec ()
	Execute saturation processing.

void	intervalSatTrip ()
	Trigger loop openings because of excessive saturation.

Detailed Description

template<class derivedT, typename realT>
class MagAOX::app::dev::dm< derivedT, realT >

MagAO-X generic deformable mirror controller

The derived class derivedT must meet the following requirements:

Must be a MagAOXApp<true>
Must be a dev::shmimMonitor<derivedT>
Must NOT call dev::shmimMonitor<derivedT>::setupConfog and dev::shmimMonitor<derivedT>::loadConfig. These are handled by this class.
Must expose the following interface
int initDM();

int commandDM(void * cmd);

int zeroDM();

int releaseDM();

Each of the above functions should return 0 on success, and -1 on an error.
This class must be declared a friend in the derived class, like so:
friend class dev::dm<derivedT,realT>;

MagAOX::app::dev::dm
Definition dm.hpp:90
Must contain the following typedef:
typedef dev::dm<derivedT, realT> dmT;
Calls to this class's setupConfig, loadConfig, appStartup, appLogic, appShutdown, and udpdateINDI functions must be placed in the derived class's functions of the same name. For convenience the following macros are defined to provide error checking:
DM_SETUP_CONFIG( cfig )

DM_LOAD_CONFIG( cfig )

DM_APP_STARTUP

DM_APP_LOGIC

DM_UPDATE_INDI

DM_APP_SHUTDOWN

DM_SETUP_CONFIG
#define DM_SETUP_CONFIG(cfig)
Call dmT::setupConfig with error checking for dm.
Definition dm.hpp:3428

DM_APP_SHUTDOWN
#define DM_APP_SHUTDOWN
Call dmT::appShutdown with error checking for dm.
Definition dm.hpp:3468

DM_LOAD_CONFIG
#define DM_LOAD_CONFIG(cfig)
Call dmT::loadConfig with error checking for dm.
Definition dm.hpp:3440

DM_APP_STARTUP
#define DM_APP_STARTUP
Call shmimMonitorT::appStartup with error checking for dm.
Definition dm.hpp:3447

DM_APP_LOGIC
#define DM_APP_LOGIC
Call dmT::appLogic with error checking for dm.
Definition dm.hpp:3454

DM_UPDATE_INDI
#define DM_UPDATE_INDI
Call dmT::updateINDI with error checking for dm.
Definition dm.hpp:3461

Definition at line 89 of file dm.hpp.

Member Typedef Documentation

◆ verboseT

template<class derivedT , typename realT >

typedef mx::verbose::vvv MagAOX::app::dev::dm< derivedT, realT >::verboseT

private

Definition at line 92 of file dm.hpp.

Constructor & Destructor Documentation

◆ ~dm()

template<class derivedT , typename realT >

MagAOX::app::dev::dm< derivedT, realT >::~dm ( )

Destructor.

deallocates the m_channels vector

Definition at line 810 of file dm.hpp.

Member Function Documentation

◆ accumSatMap()

template<class derivedT , typename realT >

const mx::improc::eigenImage< uint16_t > & MagAOX::app::dev::dm< derivedT, realT >::accumSatMap ( ) const

Definition at line 954 of file dm.hpp.

◆ allocate()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::allocate ( const dev::shmimT & sp )

Called after shmimMonitor connects to the dmXXdisp stream. Checks for proper size.

Returns: 0 on success; -1 if incorrect size or data type in stream.

Definition at line 1747 of file dm.hpp.

◆ appLogic()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::appLogic ( )

DM application logic.

This should be called in derivedT::appLogic as

dm<derivedT,realT>::appLogic();

MagAOX::app::dev::dm::appLogic

int appLogic()

DM application logic.

Definition dm.hpp:1551

with appropriate error checking.

Returns: 0 on success; -1 on error, which is logged.

Definition at line 1551 of file dm.hpp.

Referenced by MagAOX::app::irisaoCtrl::appLogic().

◆ appShutdown()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::appShutdown ( )

DM shutdown.

This should be called in derivedT::appShutdown as

dm<derivedT,realT>::appShutdown();

MagAOX::app::dev::dm::appShutdown

int appShutdown()

DM shutdown.

Definition dm.hpp:1617

with appropriate error checking.

Returns: 0 on success; -1 on error, which is logged.

Definition at line 1617 of file dm.hpp.

Referenced by MagAOX::app::irisaoCtrl::appShutdown().

◆ appStartup()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::appStartup ( )

Startup function.

This should be called in derivedT::appStartup as

dm<derivedT,realT>::appStartup();

MagAOX::app::dev::dm::appStartup

int appStartup()

Startup function.

Definition dm.hpp:1405

with appropriate error checking.

Returns: 0 on success; -1 on error, which is logged.

Definition at line 1405 of file dm.hpp.

Referenced by MagAOX::app::irisaoCtrl::appStartup().

◆ baseInitDM()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::baseInitDM ( )

Calls derived()->initDM()

Returns: 0 on success; -1 on error from derived()->initDM()

Definition at line 1920 of file dm.hpp.

References MagAOX::app::stateCodes::ERROR, MagAOX::app::stateCodes::HOMING, and MagAOX::app::stateCodes::NOTHOMED.

◆ baseReleaseDM()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::baseReleaseDM ( )

Calls derived()->releaseDM() and then 0s all channels and the sat map.

This is called by the relevant INDI callback

Returns: 0 on success; -1 on error

Definition at line 1943 of file dm.hpp.

References MagAOX::app::stateCodes::ERROR, MagAOX::app::stateCodes::NOTHOMED, and MagAOX::app::stateCodes::POWEROFF.

◆ calibPath()

template<class derivedT , typename realT >

const std::string & MagAOX::app::dev::dm< derivedT, realT >::calibPath ( ) const

Get the.

Returns: the current value of

Definition at line 822 of file dm.hpp.

Referenced by TEST_CASE().

◆ calibRelDir()

template<class derivedT , typename realT >

const std::string & MagAOX::app::dev::dm< derivedT, realT >::calibRelDir ( ) const

Definition at line 936 of file dm.hpp.

◆ checkFlats()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::checkFlats ( )

Check the flats directory and update the list of flats if anything changes.

This is called once per appLogic and whilePowerOff loops.

Returns: 0 on success; -1 on error

Definition at line 1969 of file dm.hpp.

References MagAOX::app::it.

◆ checkTests()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::checkTests ( )

Check the tests directory and update the list of tests if anything changes.

This is called once per appLogic and whilePowerOff loops.

Returns: 0 on success; -1 on error

Definition at line 2402 of file dm.hpp.

References MagAOX::app::it.

◆ clearSat()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::clearSat ( )

Clear the saturation maps and zero the shared memory.

Returns: 0 on success; -1 on error

Definition at line 2857 of file dm.hpp.

References INDI_IDLE.

◆ deltaChannels()

template<class derivedT , typename realT >

const std::vector< std::string > & MagAOX::app::dev::dm< derivedT, realT >::deltaChannels ( ) const

Definition at line 966 of file dm.hpp.

◆ derived()

template<class derivedT , typename realT >

derivedT & MagAOX::app::dev::dm< derivedT, realT >::derived ( )

inlineprivate

Definition at line 803 of file dm.hpp.

◆ dmDataType()

template<class derivedT , typename realT >

uint8_t MagAOX::app::dev::dm< derivedT, realT >::dmDataType ( ) const

Get the DM data type.

Returns: the current value of m_dmDataType

Definition at line 900 of file dm.hpp.

◆ dmHeight()

template<class derivedT , typename realT >

uint32_t MagAOX::app::dev::dm< derivedT, realT >::dmHeight ( ) const

Get the DM Height.

Returns: the current value of m_dmHeight

Definition at line 894 of file dm.hpp.

◆ dmWidth()

template<class derivedT , typename realT >

uint32_t MagAOX::app::dev::dm< derivedT, realT >::dmWidth ( ) const

Get the DM Width.

Returns: the current value of m_dmWidth

Definition at line 888 of file dm.hpp.

◆ findDMChannels()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::findDMChannels ( )

Find the DM comb channels.

Introspectively finds all dmXXdispYY channels, zeroes them, and raises the semapahore on the last to cause dmcomb to update.

Definition at line 1652 of file dm.hpp.

◆ flatDefault()

template<class derivedT , typename realT >

const std::string & MagAOX::app::dev::dm< derivedT, realT >::flatDefault ( ) const

Get the.

Returns: the current value of

Definition at line 840 of file dm.hpp.

◆ flatPath()

template<class derivedT , typename realT >

const std::string & MagAOX::app::dev::dm< derivedT, realT >::flatPath ( ) const

Get the.

Returns: the current value of

Definition at line 828 of file dm.hpp.

◆ instSatMap()

template<class derivedT , typename realT >

const mx::improc::eigenImage< uint8_t > & MagAOX::app::dev::dm< derivedT, realT >::instSatMap ( ) const

Definition at line 948 of file dm.hpp.

◆ intervalSatCountThreshold()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::intervalSatCountThreshold ( ) const

Get the interval saturation count threshold.

Returns: the current value of m_intervalSatCountThreshold

Definition at line 918 of file dm.hpp.

◆ intervalSatThreshold()

template<class derivedT , typename realT >

float MagAOX::app::dev::dm< derivedT, realT >::intervalSatThreshold ( ) const

Get the interval saturation threshold.

Returns: the current value of m_intervalSatThreshold

Definition at line 912 of file dm.hpp.

◆ intervalSatTrip()

template<class derivedT , typename realT >

void MagAOX::app::dev::dm< derivedT, realT >::intervalSatTrip ( )

protected

Trigger loop openings because of excessive saturation.

Definition at line 3123 of file dm.hpp.

◆ loadConfig()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::loadConfig ( mx::app::appConfigurator & config )

load the configuration system results

This should be called in derivedT::loadConfig as

dm<derivedT,realT>::loadConfig(config);

MagAOX::app::dev::dm::loadConfig

int loadConfig(mx::app::appConfigurator &config)

load the configuration system results

Definition dm.hpp:1255

with appropriate error checking.

Parameters

[in] config the derived classes configurator

Definition at line 1255 of file dm.hpp.

Referenced by MagAOX::app::irisaoCtrl::loadConfigImpl(), and TEST_CASE().

◆ loadFlat()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::loadFlat ( const std::string & target )

Load a flat file.

Uses the target argument for lookup in m_flatCommands to find the path and loads the command in the local memory. Calls setFlat if the flat is currently set.

Returns: 0 on success; -1 on error

Parameters

[in] target the name of the flat to load

Definition at line 2118 of file dm.hpp.

References MagAOX::app::target.

◆ loadTest()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::loadTest ( const std::string & target )

Load a test file.

Uses the target argument for lookup in m_testCommands to find the path and loads the command in the local memory. Calls setTest if the test is currently set.

Definition at line 2513 of file dm.hpp.

References MagAOX::app::target.

◆ makeDelta()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::makeDelta ( )

Calculate the delta command from the output shape.

Definition at line 2828 of file dm.hpp.

◆ newCallBack_flats()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::newCallBack_flats ( const pcf::IndiProperty & ipRecv )

The callback called by the static version, to actually process the new request.

Returns: 0 on success.; -1 on error.

Parameters

[in] ipRecv the INDI property sent with the the new property request.

Definition at line 3247 of file dm.hpp.

References MagAOX::app::ipRecv.

◆ newCallBack_init()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::newCallBack_init ( const pcf::IndiProperty & ipRecv )

The callback called by the static version, to actually process the new request.

Returns: 0 on success.; -1 on error.

Parameters

[in] ipRecv the INDI property sent with the the new property request.

Definition at line 3168 of file dm.hpp.

References MagAOX::app::ipRecv.

◆ newCallBack_release()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::newCallBack_release ( const pcf::IndiProperty & ipRecv )

The callback called by the static version, to actually process the new request.

Returns: 0 on success.; -1 on error.

Parameters

[in] ipRecv the INDI property sent with the new property request.

Definition at line 3223 of file dm.hpp.

References MagAOX::app::ipRecv.

◆ newCallBack_setFlat()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::newCallBack_setFlat ( const pcf::IndiProperty & ipRecv )

The callback called by the static version, to actually process the new request.

Returns: 0 on success.; -1 on error.

Parameters

[in] ipRecv the INDI property sent with the the new property request.

Definition at line 3298 of file dm.hpp.

References MagAOX::app::ipRecv.

◆ newCallBack_setTest()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::newCallBack_setTest ( const pcf::IndiProperty & ipRecv )

The callback called by the static version, to actually process the new request.

Returns: 0 on success.; -1 on error.

Parameters

[in] ipRecv the INDI property sent with the the new property request.

Definition at line 3376 of file dm.hpp.

References MagAOX::app::ipRecv.

◆ newCallBack_tests()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::newCallBack_tests ( const pcf::IndiProperty & ipRecv )

The callback called by the static version, to actually process the new request.

Returns: 0 on success.; -1 on error.

Parameters

[in] ipRecv the INDI property sent with the the new property request.

Definition at line 3325 of file dm.hpp.

References MagAOX::app::ipRecv.

◆ newCallBack_zero()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::newCallBack_zero ( const pcf::IndiProperty & ipRecv )

The callback called by the static version, to actually process the new request.

Returns: 0 on success.; -1 on error.

Parameters

[in] ipRecv the INDI property sent with the the new property request.

Definition at line 3199 of file dm.hpp.

References MagAOX::app::ipRecv.

◆ newCallBack_zeroAll()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::newCallBack_zeroAll ( const pcf::IndiProperty & ipRecv )

The callback for the zeroAll toggle switch, called by the static version.

Returns: 0 on success.; -1 on error.

Parameters

[in] ipRecv the INDI property sent with the the new property request.

Definition at line 3403 of file dm.hpp.

References INDI_BUSY, MagAOX::app::ipRecv, and MagAOX::app::indi::updateSwitchIfChanged().

◆ notDeltas()

template<class derivedT , typename realT >

const std::vector< size_t > & MagAOX::app::dev::dm< derivedT, realT >::notDeltas ( ) const

Definition at line 972 of file dm.hpp.

◆ numChannels()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::numChannels ( ) const

Definition at line 942 of file dm.hpp.

◆ onPowerOff()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::onPowerOff ( )

DM Poweroff.

This should be called in derivedT::onPowerOff as

dm<derivedT,realT>::onPowerOff();

MagAOX::app::dev::dm::onPowerOff

int onPowerOff()

DM Poweroff.

Definition dm.hpp:1635

with appropriate error checking.

Returns: 0 on success; -1 on error, which is logged.

Definition at line 1635 of file dm.hpp.

◆ percThreshold()

template<class derivedT , typename realT >

float MagAOX::app::dev::dm< derivedT, realT >::percThreshold ( ) const

Get the saturation percentage threshold.

Returns: the current value of m_percThreshold

Definition at line 906 of file dm.hpp.

◆ processImage()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::processImage	(	void *	curr_src,
		const dev::shmimT &	sp
	)

Called by shmimMonitor when a new DM command is available. This is just a pass-through to derivedT::commandDM(char*).

Definition at line 1845 of file dm.hpp.

◆ satAvgInt()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::satAvgInt ( ) const

Get the saturation accumulation interval.

Returns: the current value of m_satAvgInt

◆ satPercMap()

template<class derivedT , typename realT >

const mx::improc::eigenImage< float > & MagAOX::app::dev::dm< derivedT, realT >::satPercMap ( ) const

Definition at line 960 of file dm.hpp.

◆ satThreadExec()

template<class derivedT , typename realT >

void MagAOX::app::dev::dm< derivedT, realT >::satThreadExec ( )

protected

Execute saturation processing.

Definition at line 2924 of file dm.hpp.

References IMAGESTRUCT_FLOAT, and IMAGESTRUCT_UINT8.

Referenced by MagAOX::app::dev::dm< derivedT, realT >::satThreadStart().

◆ satThreadPrio()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::satThreadPrio ( ) const

Get the saturation thread priority.

Returns: the current value of m_satThreadPrio

◆ satThreadStart()

template<class derivedT , typename realT >

void MagAOX::app::dev::dm< derivedT, realT >::satThreadStart ( dm< derivedT, realT > * d )

staticprotected

Thread starter, called by MagAOXApp::threadStart on thread construction. Calls satThreadExec.

Parameters

[in] d a pointer to a dm instance (normally this)

Definition at line 2918 of file dm.hpp.

References MagAOX::app::dev::dm< derivedT, realT >::satThreadExec().

◆ satTriggerDevice()

template<class derivedT , typename realT >

const std::vector< std::string > & MagAOX::app::dev::dm< derivedT, realT >::satTriggerDevice ( ) const

Get the saturation trigger device(s)

Returns: the current value of m_satTriggerDevice

Definition at line 924 of file dm.hpp.

◆ satTriggerProperty()

template<class derivedT , typename realT >

const std::vector< std::string > & MagAOX::app::dev::dm< derivedT, realT >::satTriggerProperty ( ) const

Get the saturation trigger property(ies)

Returns: the current value of m_satTriggerProperty

Definition at line 930 of file dm.hpp.

◆ setFlat()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::setFlat ( bool update = false )

Send the current flat command to the DM.

Writes the command to the designated shmim.

Returns: 0 on success; -1 on error

Todo:: we are assuming that dmXXcomYY is not a cube. This might be true, but we should add cnt1 handling here anyway. With bounds checks b/c not everyone handles cnt1 properly.

Parameters

[in] update If true, this is an update rather than a new set

Definition at line 2222 of file dm.hpp.

References MagAOX::app::stateCodes::OPERATING, and MagAOX::app::stateCodes::READY.

◆ setTest()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::setTest ( )

Send the current test command to the DM.

Writes the command to the designated shmim.

Returns: 0 on success; -1 on error

Todo:: we are assuming that dmXXcomYY is not a cube. This might be true, but we should add cnt1 handling here anyway. With bounds checks b/c not everyone handles cnt1 properly.

Definition at line 2593 of file dm.hpp.

◆ setupConfig()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::setupConfig ( mx::app::appConfigurator & config )

Setup the configuration system.

This should be called in derivedT::setupConfig as

dm<derivedT,realT>::setupConfig(config);

MagAOX::app::dev::dm::setupConfig

int setupConfig(mx::app::appConfigurator &config)

Setup the configuration system.

Definition dm.hpp:984

with appropriate error checking.

Todo:: shmimMonitor now has configSection so this isn't necessary.

Parameters

[out] config the derived classes configurator

Definition at line 984 of file dm.hpp.

Referenced by MagAOX::app::irisaoCtrl::setupConfig(), and TEST_CASE().

◆ shmimDelta()

template<class derivedT , typename realT >

const std::string & MagAOX::app::dev::dm< derivedT, realT >::shmimDelta ( ) const

Get the.

Returns: the current value of

Definition at line 882 of file dm.hpp.

◆ shmimFlat()

template<class derivedT , typename realT >

const std::string & MagAOX::app::dev::dm< derivedT, realT >::shmimFlat ( ) const

Get the.

Returns: the current value of

Definition at line 852 of file dm.hpp.

◆ shmimSat()

template<class derivedT , typename realT >

const std::string & MagAOX::app::dev::dm< derivedT, realT >::shmimSat ( ) const

Get the.

Returns: the current value of

Definition at line 864 of file dm.hpp.

◆ shmimSatPerc()

template<class derivedT , typename realT >

const std::string & MagAOX::app::dev::dm< derivedT, realT >::shmimSatPerc ( ) const

Get the stream name for saturation percentage.

Returns: the current value of m_shmimSatPerc

Definition at line 870 of file dm.hpp.

◆ shmimShape()

template<class derivedT , typename realT >

const std::string & MagAOX::app::dev::dm< derivedT, realT >::shmimShape ( ) const

Get the.

Returns: the current value of

Definition at line 876 of file dm.hpp.

◆ shmimTest()

template<class derivedT , typename realT >

const std::string & MagAOX::app::dev::dm< derivedT, realT >::shmimTest ( ) const

Get the.

Returns: the current value of

Definition at line 858 of file dm.hpp.

◆ st_newCallBack_flats()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::st_newCallBack_flats	(	void *	app,
		const pcf::IndiProperty &	ipRecv
	)

static

The static callback function to be registered for selecting the flat file.

Returns: 0 on success.; -1 on error.

Parameters

[in]	app	a pointer to this, will be static_cast-ed to derivedT.
[in]	ipRecv	the INDI property sent with the new property request.

Definition at line 3241 of file dm.hpp.

References MagAOX::app::ipRecv.

◆ st_newCallBack_init()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::st_newCallBack_init	(	void *	app,
		const pcf::IndiProperty &	ipRecv
	)

static

The static callback function to be registered for initializing the DM.

Returns: 0 on success.; -1 on error.

Parameters

[in]	app	a pointer to this, will be static_cast-ed to derivedT.
[in]	ipRecv	the INDI property sent with the the new property request.

Definition at line 3162 of file dm.hpp.

References MagAOX::app::ipRecv.

◆ st_newCallBack_release()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::st_newCallBack_release	(	void *	app,
		const pcf::IndiProperty &	ipRecv
	)

static

The static callback function to be registered for initializing the DM.

Returns: 0 on success.; -1 on error.

Parameters

[in]	app	a pointer to this, will be static_cast-ed to derivedT.
[in]	ipRecv	the INDI property sent with the the new property request.

Definition at line 3217 of file dm.hpp.

References MagAOX::app::ipRecv.

◆ st_newCallBack_setFlat()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::st_newCallBack_setFlat	(	void *	app,
		const pcf::IndiProperty &	ipRecv
	)

static

The static callback function to be registered for setting the flat.

Returns: 0 on success.; -1 on error.

Parameters

[in]	app	a pointer to this, will be static_cast-ed to derivedT.
[in]	ipRecv	the INDI property sent with the the new property request.

Definition at line 3292 of file dm.hpp.

References MagAOX::app::ipRecv.

◆ st_newCallBack_setTest()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::st_newCallBack_setTest	(	void *	app,
		const pcf::IndiProperty &	ipRecv
	)

static

The static callback function to be registered for setting the test shape.

Returns: 0 on success.; -1 on error.

Parameters

[in]	app	a pointer to this, will be static_cast-ed to derivedT.
[in]	ipRecv	the INDI property sent with the the new property request.

Definition at line 3370 of file dm.hpp.

References MagAOX::app::ipRecv.

◆ st_newCallBack_tests()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::st_newCallBack_tests	(	void *	app,
		const pcf::IndiProperty &	ipRecv
	)

static

The static callback function to be registered for selecting the test file.

Returns: 0 on success.; -1 on error.

Parameters

[in]	app	a pointer to this, will be static_cast-ed to derivedT.
[in]	ipRecv	the INDI property sent with the the new property request.

Definition at line 3319 of file dm.hpp.

References MagAOX::app::ipRecv.

◆ st_newCallBack_zero()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::st_newCallBack_zero	(	void *	app,
		const pcf::IndiProperty &	ipRecv
	)

static

The static callback function to be registered for initializing the DM.

Returns: 0 on success.; -1 on error.

Parameters

[in]	app	a pointer to this, will be static_cast-ed to derivedT.
[in]	ipRecv	the INDI property sent with the the new property request.

Definition at line 3193 of file dm.hpp.

References MagAOX::app::ipRecv.

◆ st_newCallBack_zeroAll()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::st_newCallBack_zeroAll	(	void *	app,
		const pcf::IndiProperty &	ipRecv
	)

static

The static callback function to be registered for zeroing all channels.

Returns: 0 on success.; -1 on error.

Parameters

[in]	app	a pointer to this, will be static_cast-ed to derivedT.
[in]	ipRecv	the INDI property sent with the the new property request.

Definition at line 3397 of file dm.hpp.

References MagAOX::app::ipRecv.

◆ testDefault()

template<class derivedT , typename realT >

const std::string & MagAOX::app::dev::dm< derivedT, realT >::testDefault ( ) const

Get the.

Returns: the current value of

Definition at line 846 of file dm.hpp.

◆ testPath()

template<class derivedT , typename realT >

const std::string & MagAOX::app::dev::dm< derivedT, realT >::testPath ( ) const

Get the.

Returns: the current value of

Definition at line 834 of file dm.hpp.

◆ totalFlat()

template<class derivedT , typename realT >

const mx::improc::eigenImage< float > & MagAOX::app::dev::dm< derivedT, realT >::totalFlat ( ) const

Definition at line 978 of file dm.hpp.

◆ updateINDI()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::updateINDI ( )

Update the INDI properties for this device controller.

You should call this once per main loop. It is not called automatically.

Returns: 0 on success.; -1 on error.

Definition at line 3151 of file dm.hpp.

◆ whilePowerOff()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::whilePowerOff ( )

DM Poweroff Updates.

This should be called in derivedT::whilePowerOff as

dm<derivedT,realT>::whilePowerOff();

MagAOX::app::dev::dm::whilePowerOff

int whilePowerOff()

DM Poweroff Updates.

Definition dm.hpp:1643

with appropriate error checking.

Returns: 0 on success; -1 on error, which is logged.

Definition at line 1643 of file dm.hpp.

◆ zeroAll()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::zeroAll ( bool nosem = false )

Zero all channels.

Returns: 0 on sucess; <0 on an error

Parameters

[in] nosem [optional] if true then the semaphore is not raised after zeroing all channels

Definition at line 2742 of file dm.hpp.

References INDI_IDLE, MagAOX::app::stateCodes::OPERATING, and MagAOX::app::stateCodes::READY.

◆ zeroFlat()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::zeroFlat ( )

Zero the flat command on the DM.

Writes a 0 array the designated shmim.

Returns: 0 on success; -1 on error

Todo:: we are assuming that dmXXcomYY is not a cube. This might be true, but we should add cnt1 handling here anyway. With bounds checks b/c not everyone handles cnt1 properly.

Definition at line 2326 of file dm.hpp.

References MagAOX::app::stateCodes::OPERATING, and MagAOX::app::stateCodes::READY.

◆ zeroTest()

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::zeroTest ( )

Zero the test command on the DM.

Writes a 0 array the designated shmim.

Returns: 0 on success; -1 on error

Todo:: we are assuming that dmXXcomYY is not a cube. This might be true, but we should add cnt1 handling here anyway. With bounds checks b/c not everyone handles cnt1 properly.

Definition at line 2684 of file dm.hpp.

Member Data Documentation

◆ m_accumSatMap

template<class derivedT , typename realT >

mx::improc::eigenImage<uint16_t> MagAOX::app::dev::dm< derivedT, realT >::m_accumSatMap

protected

The accumulated saturation map, which acccumulates for m_satAvgInt then is publised as a 0/1 image.

Definition at line 173 of file dm.hpp.

◆ m_actMask

template<class derivedT , typename realT >

mx::improc::milkImage<realT> MagAOX::app::dev::dm< derivedT, realT >::m_actMask

protected

Definition at line 159 of file dm.hpp.

◆ m_actMaskPath

template<class derivedT , typename realT >

std::string MagAOX::app::dev::dm< derivedT, realT >::m_actMaskPath

protected

The file name of the actuator mask for this DM.

Definition at line 103 of file dm.hpp.

◆ m_calibPath

template<class derivedT , typename realT >

std::string MagAOX::app::dev::dm< derivedT, realT >::m_calibPath

protected

The path to this DM's calibration files.

Definition at line 99 of file dm.hpp.

◆ m_calibRelDir

template<class derivedT , typename realT >

std::string MagAOX::app::dev::dm< derivedT, realT >::m_calibRelDir

protected

The directory relative to the calibPath. Set this before calling dm<derivedT,realT>::loadConfig().

Definition at line 143 of file dm.hpp.

◆ m_channels

template<class derivedT , typename realT >

std::vector<mx::improc::milkImage<realT> *> MagAOX::app::dev::dm< derivedT, realT >::m_channels

protected

Definition at line 148 of file dm.hpp.

◆ m_deltaChannels

template<class derivedT , typename realT >

std::vector<std::string> MagAOX::app::dev::dm< derivedT, realT >::m_deltaChannels

protected

The names of channels which are treated as delta commands.

Definition at line 188 of file dm.hpp.

◆ m_deltas

template<class derivedT , typename realT >

std::vector<size_t> MagAOX::app::dev::dm< derivedT, realT >::m_deltas

protected

Indices of the channels which are delta commands.

Definition at line 190 of file dm.hpp.

◆ m_dmDataType

template<class derivedT , typename realT >

constexpr uint8_t MagAOX::app::dev::dm< derivedT, realT >::m_dmDataType = ImageStreamTypeCode<realT>()

staticconstexprprotected

The ImageStreamIO type code.

Definition at line 126 of file dm.hpp.

◆ m_dmHeight

template<class derivedT , typename realT >

uint32_t MagAOX::app::dev::dm< derivedT, realT >::m_dmHeight { 0 }

protected

The height of the images in the stream.

Definition at line 124 of file dm.hpp.

◆ m_dmWidth

template<class derivedT , typename realT >

uint32_t MagAOX::app::dev::dm< derivedT, realT >::m_dmWidth { 0 }

protected

The width of the images in the stream.

Definition at line 123 of file dm.hpp.

◆ m_flatCommand

template<class derivedT , typename realT >

mx::improc::eigenImage<realT> MagAOX::app::dev::dm< derivedT, realT >::m_flatCommand

protected

Data storage for the flat command.

Definition at line 153 of file dm.hpp.

◆ m_flatCommands

template<class derivedT , typename realT >

std::map<std::string, std::string> MagAOX::app::dev::dm< derivedT, realT >::m_flatCommands

protected

Map of flat file name to full path.

Definition at line 150 of file dm.hpp.

◆ m_flatCurrent

template<class derivedT , typename realT >

std::string MagAOX::app::dev::dm< derivedT, realT >::m_flatCurrent

protected

The name of the current flat command.

Definition at line 151 of file dm.hpp.

◆ m_flatDefault

template<class derivedT , typename realT >

std::string MagAOX::app::dev::dm< derivedT, realT >::m_flatDefault

protected

The file name of the this DM's default flat command. Path and extension will be ignored and can be omitted.

Definition at line 105 of file dm.hpp.

◆ m_flatImageStream

template<class derivedT , typename realT >

IMAGE MagAOX::app::dev::dm< derivedT, realT >::m_flatImageStream

protected

The ImageStreamIO shared memory buffer for the flat.

Definition at line 156 of file dm.hpp.

◆ m_flatLoaded

template<class derivedT , typename realT >

bool MagAOX::app::dev::dm< derivedT, realT >::m_flatLoaded { false }

protected

Flag indicating whether a flat is loaded in memory.

Definition at line 154 of file dm.hpp.

◆ m_flatPath

template<class derivedT , typename realT >

std::string MagAOX::app::dev::dm< derivedT, realT >::m_flatPath

protected

The path to this DM's flat files (usually the same as calibPath)

Definition at line 100 of file dm.hpp.

◆ m_flatSet

template<class derivedT , typename realT >

bool MagAOX::app::dev::dm< derivedT, realT >::m_flatSet { false }

protected

Flag indicating whether the flat command has been set.

Definition at line 157 of file dm.hpp.

◆ m_indiP_flat

template<class derivedT , typename realT >

pcf::IndiProperty MagAOX::app::dev::dm< derivedT, realT >::m_indiP_flat

protected

Property used to set and report the current flat.

Definition at line 588 of file dm.hpp.

◆ m_indiP_flats

template<class derivedT , typename realT >

pcf::IndiProperty MagAOX::app::dev::dm< derivedT, realT >::m_indiP_flats

protected

INDI Selection switch containing the flat files.

Definition at line 594 of file dm.hpp.

◆ m_indiP_flatShmim

template<class derivedT , typename realT >

pcf::IndiProperty MagAOX::app::dev::dm< derivedT, realT >::m_indiP_flatShmim

protected

Publish the shmim being used for the flat.

Definition at line 595 of file dm.hpp.

◆ m_indiP_init

template<class derivedT , typename realT >

pcf::IndiProperty MagAOX::app::dev::dm< derivedT, realT >::m_indiP_init

protected

Definition at line 590 of file dm.hpp.

◆ m_indiP_release

template<class derivedT , typename realT >

pcf::IndiProperty MagAOX::app::dev::dm< derivedT, realT >::m_indiP_release

protected

Definition at line 592 of file dm.hpp.

◆ m_indiP_setFlat

template<class derivedT , typename realT >

pcf::IndiProperty MagAOX::app::dev::dm< derivedT, realT >::m_indiP_setFlat

protected

INDI toggle switch to set the current flat.

Definition at line 596 of file dm.hpp.

◆ m_indiP_setTest

template<class derivedT , typename realT >

pcf::IndiProperty MagAOX::app::dev::dm< derivedT, realT >::m_indiP_setTest

protected

INDI toggle switch to set the current test pattern.

Definition at line 600 of file dm.hpp.

◆ m_indiP_tests

template<class derivedT , typename realT >

pcf::IndiProperty MagAOX::app::dev::dm< derivedT, realT >::m_indiP_tests

protected

INDI Selection switch containing the test pattern files.

Definition at line 598 of file dm.hpp.

◆ m_indiP_testShmim

template<class derivedT , typename realT >

pcf::IndiProperty MagAOX::app::dev::dm< derivedT, realT >::m_indiP_testShmim

protected

Publish the shmim being used for the test command.

Definition at line 599 of file dm.hpp.

◆ m_indiP_zero

template<class derivedT , typename realT >

pcf::IndiProperty MagAOX::app::dev::dm< derivedT, realT >::m_indiP_zero

protected

Definition at line 591 of file dm.hpp.

◆ m_indiP_zeroAll

template<class derivedT , typename realT >

pcf::IndiProperty MagAOX::app::dev::dm< derivedT, realT >::m_indiP_zeroAll

protected

Definition at line 602 of file dm.hpp.

◆ m_instSatMap

template<class derivedT , typename realT >

mx::improc::eigenImage<uint8_t> MagAOX::app::dev::dm< derivedT, realT >::m_instSatMap

protected

The instantaneous saturation map, 0/1, set by the commandDM() function of the derived class.

Definition at line 170 of file dm.hpp.

◆ m_intervalSatCountThreshold

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::m_intervalSatCountThreshold { 10 }

protected

Threshold on number of consecutive intervals the intervalSatThreshold is exceeded.

Definition at line 133 of file dm.hpp.

◆ m_intervalSatExceeds

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::m_intervalSatExceeds { 0 }

protected

Definition at line 183 of file dm.hpp.

◆ m_intervalSatThreshold

template<class derivedT , typename realT >

float MagAOX::app::dev::dm< derivedT, realT >::m_intervalSatThreshold { 0.50 }

protected

Threshold on percentage of actuators which exceed percThreshold in an interval.

Definition at line 130 of file dm.hpp.

◆ m_intervalSatTrip

template<class derivedT , typename realT >

bool MagAOX::app::dev::dm< derivedT, realT >::m_intervalSatTrip { 0 }

protected

Definition at line 184 of file dm.hpp.

◆ m_notDeltas

template<class derivedT , typename realT >

std::vector<size_t> MagAOX::app::dev::dm< derivedT, realT >::m_notDeltas

protected

Indices of the channels which are not delta commands.

Definition at line 191 of file dm.hpp.

◆ m_numChannels

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::m_numChannels { 0 }

protected

The number of dmcomb channels found as part of allocation.

Definition at line 146 of file dm.hpp.

◆ m_outputDelta

template<class derivedT , typename realT >

mx::improc::milkImage<realT> MagAOX::app::dev::dm< derivedT, realT >::m_outputDelta

protected

The true output delta command after saturation.

Definition at line 196 of file dm.hpp.

◆ m_outputDiff

template<class derivedT , typename realT >

mx::improc::milkImage<realT> MagAOX::app::dev::dm< derivedT, realT >::m_outputDiff

protected

The difference between command and true delta command after saturation.

Definition at line 198 of file dm.hpp.

◆ m_outputShape

template<class derivedT , typename realT >

mx::improc::milkImage<realT> MagAOX::app::dev::dm< derivedT, realT >::m_outputShape

protected

The true output shape after saturation.

Definition at line 186 of file dm.hpp.

◆ m_overSatAct

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::m_overSatAct { 0 }

protected

Definition at line 182 of file dm.hpp.

◆ m_percThreshold

template<class derivedT , typename realT >

float MagAOX::app::dev::dm< derivedT, realT >::m_percThreshold { 0.98 }

protected

Threshold on percentage of frames an actuator is saturated over an interval.

Definition at line 128 of file dm.hpp.

◆ m_satAvgInt

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::m_satAvgInt { 100 }

protected

The time in milliseconds to accumulate saturation over.

Definition at line 115 of file dm.hpp.

◆ m_satImageStream

template<class derivedT , typename realT >

IMAGE MagAOX::app::dev::dm< derivedT, realT >::m_satImageStream

protected

The ImageStreamIO shared memory buffer for the sat map.

Definition at line 179 of file dm.hpp.

◆ m_satPercImageStream

template<class derivedT , typename realT >

IMAGE MagAOX::app::dev::dm< derivedT, realT >::m_satPercImageStream

protected

The ImageStreamIO shared memory buffer for the sat percentage map.

Definition at line 180 of file dm.hpp.

◆ m_satPercMap

template<class derivedT , typename realT >

mx::improc::eigenImage<float> MagAOX::app::dev::dm< derivedT, realT >::m_satPercMap

protected

Map of the percentage of time each actuator was saturated during the avg. interval.

Definition at line 176 of file dm.hpp.

◆ m_satSemaphore

template<class derivedT , typename realT >

sem_t MagAOX::app::dev::dm< derivedT, realT >::m_satSemaphore

protected

Semaphore used to tell the saturation thread to run.

Definition at line 205 of file dm.hpp.

◆ m_satThread

template<class derivedT , typename realT >

std::thread MagAOX::app::dev::dm< derivedT, realT >::m_satThread

protected

A separate thread for the actual saturation processing.

Definition at line 213 of file dm.hpp.

◆ m_satThreadID

template<class derivedT , typename realT >

pid_t MagAOX::app::dev::dm< derivedT, realT >::m_satThreadID { 0 }

protected

The ID of the saturation thread.

Definition at line 209 of file dm.hpp.

◆ m_satThreadInit

template<class derivedT , typename realT >

bool MagAOX::app::dev::dm< derivedT, realT >::m_satThreadInit { true }

protected

Synchronizer for thread startup, to allow priority setting to finish.

Definition at line 207 of file dm.hpp.

◆ m_satThreadPrio

template<class derivedT , typename realT >

int MagAOX::app::dev::dm< derivedT, realT >::m_satThreadPrio { 0 }

protected

Priority of the saturation thread. Usually ok to be 0.

Definition at line 117 of file dm.hpp.

◆ m_satThreadProp

template<class derivedT , typename realT >

pcf::IndiProperty MagAOX::app::dev::dm< derivedT, realT >::m_satThreadProp

protected

The property to hold the saturation thread details.

Definition at line 211 of file dm.hpp.

◆ m_satTriggerDevice

template<class derivedT , typename realT >

std::vector<std::string> MagAOX::app::dev::dm< derivedT, realT >::m_satTriggerDevice

protected

Device(s) with a toggle switch to toggle on saturation trigger.

Definition at line 136 of file dm.hpp.

◆ m_satTriggerProperty

template<class derivedT , typename realT >

std::vector<std::string> MagAOX::app::dev::dm< derivedT, realT >::m_satTriggerProperty

protected

Property with a toggle switch to toggle on saturation trigger, one per entry in satTriggerDevice.

Definition at line 138 of file dm.hpp.

◆ m_shmimDelta

template<class derivedT , typename realT >

std::string MagAOX::app::dev::dm< derivedT, realT >::m_shmimDelta

protected

The name of the shmim stream to write the desaturated delta command to.

Definition at line 120 of file dm.hpp.

◆ m_shmimDiff

template<class derivedT , typename realT >

std::string MagAOX::app::dev::dm< derivedT, realT >::m_shmimDiff

protected

The name of the shmim stream to write the difference to.

Definition at line 121 of file dm.hpp.

◆ m_shmimFlat

template<class derivedT , typename realT >

std::string MagAOX::app::dev::dm< derivedT, realT >::m_shmimFlat

protected

The name of the shmim stream to write the flat to.

Definition at line 110 of file dm.hpp.

◆ m_shmimSat

template<class derivedT , typename realT >

std::string MagAOX::app::dev::dm< derivedT, realT >::m_shmimSat

protected

The name of the shmim stream to write the saturation map to.

Definition at line 112 of file dm.hpp.

◆ m_shmimSatPerc

template<class derivedT , typename realT >

std::string MagAOX::app::dev::dm< derivedT, realT >::m_shmimSatPerc

protected

The name of the shmim stream to write the saturation percentage map to.

Definition at line 113 of file dm.hpp.

◆ m_shmimShape

template<class derivedT , typename realT >

std::string MagAOX::app::dev::dm< derivedT, realT >::m_shmimShape

protected

The name of the shmim stream to write the desaturated true shape to.

Definition at line 119 of file dm.hpp.

◆ m_shmimTest

template<class derivedT , typename realT >

std::string MagAOX::app::dev::dm< derivedT, realT >::m_shmimTest

protected

The name of the shmim stream to write the test to.

Definition at line 111 of file dm.hpp.

◆ m_testCommand

template<class derivedT , typename realT >

mx::improc::eigenImage<realT> MagAOX::app::dev::dm< derivedT, realT >::m_testCommand

protected

Data storage for the test command.

Definition at line 164 of file dm.hpp.

◆ m_testCommands

template<class derivedT , typename realT >

std::map<std::string, std::string> MagAOX::app::dev::dm< derivedT, realT >::m_testCommands

protected

Map of test file name to full path.

Definition at line 161 of file dm.hpp.

◆ m_testCurrent

template<class derivedT , typename realT >

std::string MagAOX::app::dev::dm< derivedT, realT >::m_testCurrent

protected

Definition at line 162 of file dm.hpp.

◆ m_testDefault

template<class derivedT , typename realT >

std::string MagAOX::app::dev::dm< derivedT, realT >::m_testDefault

protected

The file name of the this DM's default test command. Path and extension will be ignored and can be omitted.

Definition at line 107 of file dm.hpp.

◆ m_testImageStream

template<class derivedT , typename realT >

IMAGE MagAOX::app::dev::dm< derivedT, realT >::m_testImageStream

protected

The ImageStreamIO shared memory buffer for the test.

Definition at line 167 of file dm.hpp.

◆ m_testLoaded

template<class derivedT , typename realT >

bool MagAOX::app::dev::dm< derivedT, realT >::m_testLoaded { false }

protected

Flag indicating whether a test command is loaded in memory.

Definition at line 165 of file dm.hpp.

◆ m_testPath

template<class derivedT , typename realT >

std::string MagAOX::app::dev::dm< derivedT, realT >::m_testPath

protected

The path to this DM's test files (default is calibPath/tests;.

Definition at line 101 of file dm.hpp.

◆ m_testSet

template<class derivedT , typename realT >

bool MagAOX::app::dev::dm< derivedT, realT >::m_testSet { false }

protected

Flag indicating whether the test command has been set.

Definition at line 168 of file dm.hpp.

◆ m_totalDelta

template<class derivedT , typename realT >

mx::improc::eigenImage<realT> MagAOX::app::dev::dm< derivedT, realT >::m_totalDelta

protected

the total of all delta channels

Definition at line 194 of file dm.hpp.

◆ m_totalFlat

template<class derivedT , typename realT >

mx::improc::eigenImage<realT> MagAOX::app::dev::dm< derivedT, realT >::m_totalFlat

protected

the total of all non-delta channels

Definition at line 193 of file dm.hpp.

The documentation for this class was generated from the following file:

libMagAOX/app/dev/dm.hpp

Public Member Functions

Protected Attributes

Private Types

Private Member Functions

Configurable Parameters

INDI

Saturation Thread Functions

Detailed Description

Member Typedef Documentation

◆ verboseT

Constructor & Destructor Documentation

◆ ~dm()

Member Function Documentation

◆ accumSatMap()

◆ allocate()

◆ appLogic()

◆ appShutdown()

◆ appStartup()

◆ baseInitDM()

◆ baseReleaseDM()

◆ calibPath()

◆ calibRelDir()

◆ checkFlats()

◆ checkTests()

◆ clearSat()

◆ deltaChannels()

◆ derived()

◆ dmDataType()

◆ dmHeight()

◆ dmWidth()

◆ findDMChannels()

◆ flatDefault()

◆ flatPath()

◆ instSatMap()

◆ intervalSatCountThreshold()

◆ intervalSatThreshold()

◆ intervalSatTrip()

◆ loadConfig()

◆ loadFlat()

◆ loadTest()

◆ makeDelta()

◆ newCallBack_flats()

◆ newCallBack_init()

◆ newCallBack_release()

◆ newCallBack_setFlat()

◆ newCallBack_setTest()

◆ newCallBack_tests()

◆ newCallBack_zero()

◆ newCallBack_zeroAll()

◆ notDeltas()

◆ numChannels()

◆ onPowerOff()

◆ percThreshold()

◆ processImage()

◆ satAvgInt()

◆ satPercMap()

◆ satThreadExec()

◆ satThreadPrio()

◆ satThreadStart()

◆ satTriggerDevice()

◆ satTriggerProperty()

◆ setFlat()

◆ setTest()

◆ setupConfig()

◆ shmimDelta()

◆ shmimFlat()

◆ shmimSat()

◆ shmimSatPerc()

◆ shmimShape()

◆ shmimTest()

◆ st_newCallBack_flats()

◆ st_newCallBack_init()

◆ st_newCallBack_release()

◆ st_newCallBack_setFlat()

◆ st_newCallBack_setTest()

◆ st_newCallBack_tests()

◆ st_newCallBack_zero()

◆ st_newCallBack_zeroAll()

◆ testDefault()

◆ testPath()
