logHeader.hpp File Reference

The flatlogs buffer header format. More...

#include <memory>
#include "logDefs.hpp"
#include "timespecX.hpp"
#include "logPriority.hpp"

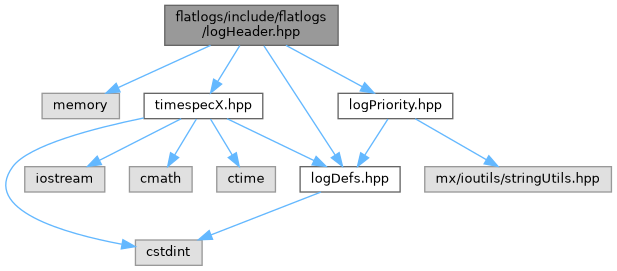

Include dependency graph for logHeader.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	flatlogs::logHeader
	The log entry header. More...
struct	flatlogs::logHeader::internal_logHeader
union	flatlogs::logHeader::internal_logHeader.__unnamed4__

Namespaces
	flatlogs

Typedefs
typedef std::shared_ptr< char >	flatlogs::bufferPtrT
	The log entry buffer smart pointer. More...

Detailed Description

The flatlogs buffer header format.

Author

Jared R. Males (jared.nosp@m.male.nosp@m.s@gma.nosp@m.il.c.nosp@m.om)

History:

• 2017-08-29 created by JRM
• 2018-08-17 moved to flatlogs

Definition in file logHeader.hpp.

---

Class Documentation

flatlogs::logHeader::internal_logHeader

struct flatlogs::logHeader::internal_logHeader

Definition at line 94 of file logHeader.hpp.

Collaboration diagram for flatlogs::logHeader::internal_logHeader:

Class Members
union internal_logHeader	__unnamed__
eventCodeT	m_eventCode
logPrioT	m_logLevel
timespecX	m_timespecX
msgLen0T	msgLen0	The short message length. Always present.

flatlogs::logHeader::internal_logHeader.__unnamed4__

union flatlogs::logHeader::internal_logHeader.__unnamed4__

Definition at line 100 of file logHeader.hpp.

Collaboration diagram for flatlogs::logHeader::internal_logHeader.__unnamed4__:

Class Members
msgLen1T	msgLen1	The intermediate message length. Only present if msgLen0 == max-1 of msgLen0T.
msgLen2T	msgLen2	The long message length. Only present if msgLen1 == max-value of msgLen0T.
