MagAOX::logger::software_log::messageT Struct Reference

The type of the message. More...

#include <software_log.hpp>

Inheritance diagram for MagAOX::logger::software_log::messageT:

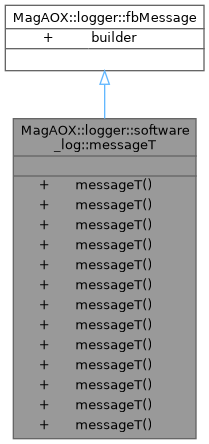

Collaboration diagram for MagAOX::logger::software_log::messageT:

Public Member Functions
	messageT (const char *file, const uint32_t line, const int32_t errnoCode, const int32_t otherCode, const char *explanation)
	C'tor with full specification. More...
	messageT (const char *file, const uint32_t line, const int32_t errnoCode, const int32_t otherCode, const std::string &explanation)
	C'tor with full specification, overloaded for a std::string in explanation. More...
	messageT (const char *file, const uint32_t line, const int32_t errnoCode)
	C'tor for errno only – code explanation can be looked up later. More...
	messageT (const char *file, const uint32_t line, const int32_t errnoCode, const char *explanation)
	C'tor for errno with additional explanation. More...
	messageT (const char *file, const uint32_t line, const int32_t errnoCode, const std::string &explanation)
	C'tor for errno with additional explanation, std::string overload. More...
	messageT (const char *file, const uint32_t line, const std::string &explanation)
	C'tor with no codes, just the explanation. More...
	messageT (const char *file, const uint32_t line)
	C'tor for a trace log, only the file and line. More...

Public Attributes
flatbuffers::FlatBufferBuilder	builder

Detailed Description

The type of the message.

Definition at line 35 of file software_log.hpp.

Constructor & Destructor Documentation

messageT() [1/7]

MagAOX::logger::software_log::messageT::messageT ( const char *  file, const uint32_t  line, const int32_t  errnoCode, const int32_t  otherCode, const char *  explanation  )

inline

C'tor with full specification.

Parameters

[in]	file	The file of the error, should always be \_ \_FILE\_\_
[in]	line	The line number of the error, should always be \_ \_LINE\_\_
[in]	errnoCode	The errno code at the time of the log entry. Only errno should be passed here, so strerror can be used later.
[in]	otherCode	Some other error code, such as a return value or library code.
[in]	explanation	explanatory text about the software event

Definition at line 38 of file software_log.hpp.

messageT() [2/7]

MagAOX::logger::software_log::messageT::messageT ( const char *  file, const uint32_t  line, const int32_t  errnoCode, const int32_t  otherCode, const std::string &  explanation  )

inline

C'tor with full specification, overloaded for a std::string in explanation.

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

[in]	file	The file of the error, should always be \_ \_FILE\_\_
[in]	line	The line number of the error, should always be \_ \_LINE\_\_
[in]	errnoCode	The errno code at the time of the log entry. Only errno should be passed here, so strerror can be used later.
[in]	otherCode	Some other error code, such as a return value or library code.
[in]	explanation	explanatory text about the software event

Definition at line 55 of file software_log.hpp.

messageT() [3/7]

MagAOX::logger::software_log::messageT::messageT ( const char *  file, const uint32_t  line, const int32_t  errnoCode  )

inline

C'tor for errno only – code explanation can be looked up later.

Parameters

[in]	file	The file of the error, should always be \_ \_FILE\_\_
[in]	line	The line number of the error, should always be \_ \_LINE\_\_
[in]	errnoCode	The errno code at the time of the log entry. Only errno should be passed here, so strerror can be used later.

Definition at line 70 of file software_log.hpp.

messageT() [4/7]

MagAOX::logger::software_log::messageT::messageT ( const char *  file, const uint32_t  line, const int32_t  errnoCode, const char *  explanation  )

inline

C'tor for errno with additional explanation.

Parameters

[in]	file	The file of the error, should always be \_ \_FILE\_\_
[in]	line	The line number of the error, should always be \_ \_LINE\_\_
[in]	errnoCode	The errno code at the time of the log entry. Only errno should be passed here, so strerror can be used later.
[in]	explanation	explanatory text about the software event

Definition at line 82 of file software_log.hpp.

messageT() [5/7]

MagAOX::logger::software_log::messageT::messageT ( const char *  file, const uint32_t  line, const int32_t  errnoCode, const std::string &  explanation  )

inline

C'tor for errno with additional explanation, std::string overload.

Parameters

[in]	file	The file of the error, should always be \_ \_FILE\_\_
[in]	line	The line number of the error, should always be \_ \_LINE\_\_
[in]	errnoCode	The errno code at the time of the log entry. Only errno should be passed here, so strerror can be used later.
[in]	explanation	explanatory text about the software event

Definition at line 96 of file software_log.hpp.

messageT() [6/7]

MagAOX::logger::software_log::messageT::messageT ( const char *  file, const uint32_t  line, const std::string &  explanation  )

inline

C'tor with no codes, just the explanation.

Parameters

[in]	file	The file of the error, should always be \_ \_FILE\_\_
[in]	line	The line number of the error, should always be \_ \_LINE\_\_
[in]	explanation	explanatory text about the software event

Definition at line 110 of file software_log.hpp.

messageT() [7/7]

MagAOX::logger::software_log::messageT::messageT ( const char *  file, const uint32_t  line  )

inline

C'tor for a trace log, only the file and line.

Parameters

[in]	file	The file of the error, should always be \_ \_FILE\_\_
[in]	line	The line number of the error, should always be \_ \_LINE\_\_

Definition at line 123 of file software_log.hpp.

Member Data Documentation

builder

flatbuffers::FlatBufferBuilder MagAOX::logger::fbMessage::builder

inherited

Definition at line 30 of file flatbuffer_log.hpp.

Referenced by MagAOX::logger::telem_dmspeck::messageT::messageT(), messageT(), MagAOX::logger::string_log::messageT::messageT(), MagAOX::logger::telem_fgtimings::messageT::messageT(), MagAOX::logger::telem_telpos::messageT::messageT(), MagAOX::logger::telem_telvane::messageT::messageT(), MagAOX::logger::telem_telenv::messageT::messageT(), MagAOX::logger::telem_chrony_stats::messageT::messageT(), MagAOX::logger::ocam_temps::messageT::messageT(), MagAOX::logger::telem_cooler::messageT::messageT(), MagAOX::logger::telem_position::messageT::messageT(), MagAOX::logger::telem_zaber::messageT::messageT(), MagAOX::logger::telem_rhusb::messageT::messageT(), MagAOX::logger::telem_telsee::messageT::messageT(), MagAOX::logger::telem_teldata::messageT::messageT(), MagAOX::logger::telem_stage::messageT::messageT(), MagAOX::logger::telem_telcat::messageT::messageT(), MagAOX::logger::outlet_channel_state::messageT::messageT(), MagAOX::logger::telem_observer::messageT::messageT(), MagAOX::logger::observer::messageT::messageT(), MagAOX::logger::telem_chrony_status::messageT::messageT(), MagAOX::logger::telem_stdcam::messageT::messageT(), MagAOX::logger::config_log::messageT::messageT(), MagAOX::logger::pico_channel::messageT::messageT(), MagAOX::logger::git_state::messageT::messageT(), MagAOX::logger::telem_blockgains::messageT::messageT(), MagAOX::logger::telem_temps::messageT::messageT(), MagAOX::logger::telem_saving::messageT::messageT(), MagAOX::logger::telem_fxngen::messageT::messageT(), MagAOX::logger::telem_pokecenter::messageT::messageT(), MagAOX::logger::ttmmod_params::messageT::messageT(), MagAOX::logger::telem_loopgain::messageT::messageT(), MagAOX::logger::telem_usage::messageT::messageT(), MagAOX::logger::state_change::messageT::messageT(), MagAOX::logger::saving_state_change::messageT::messageT(), MagAOX::logger::telem_dmmodes::messageT::messageT(), MagAOX::logger::telem_coreloads::messageT::messageT(), MagAOX::logger::telem_coretemps::messageT::messageT(), MagAOX::logger::telem_pico::messageT::messageT(), MagAOX::logger::telem_drivetemps::messageT::messageT(), and MagAOX::logger::outlet_state::messageT::messageT().

---

The documentation for this struct was generated from the following file:

• libMagAOX/logger/types/software_log.hpp
