Measurement of coolant freezing point

We have and an Extech R41 model refractometer in the MagAO-X “Cooling system parts, tools, and hardware” box in the cleanroom. It is in a black semi-hardshell case about the size of an eyeglasses case.

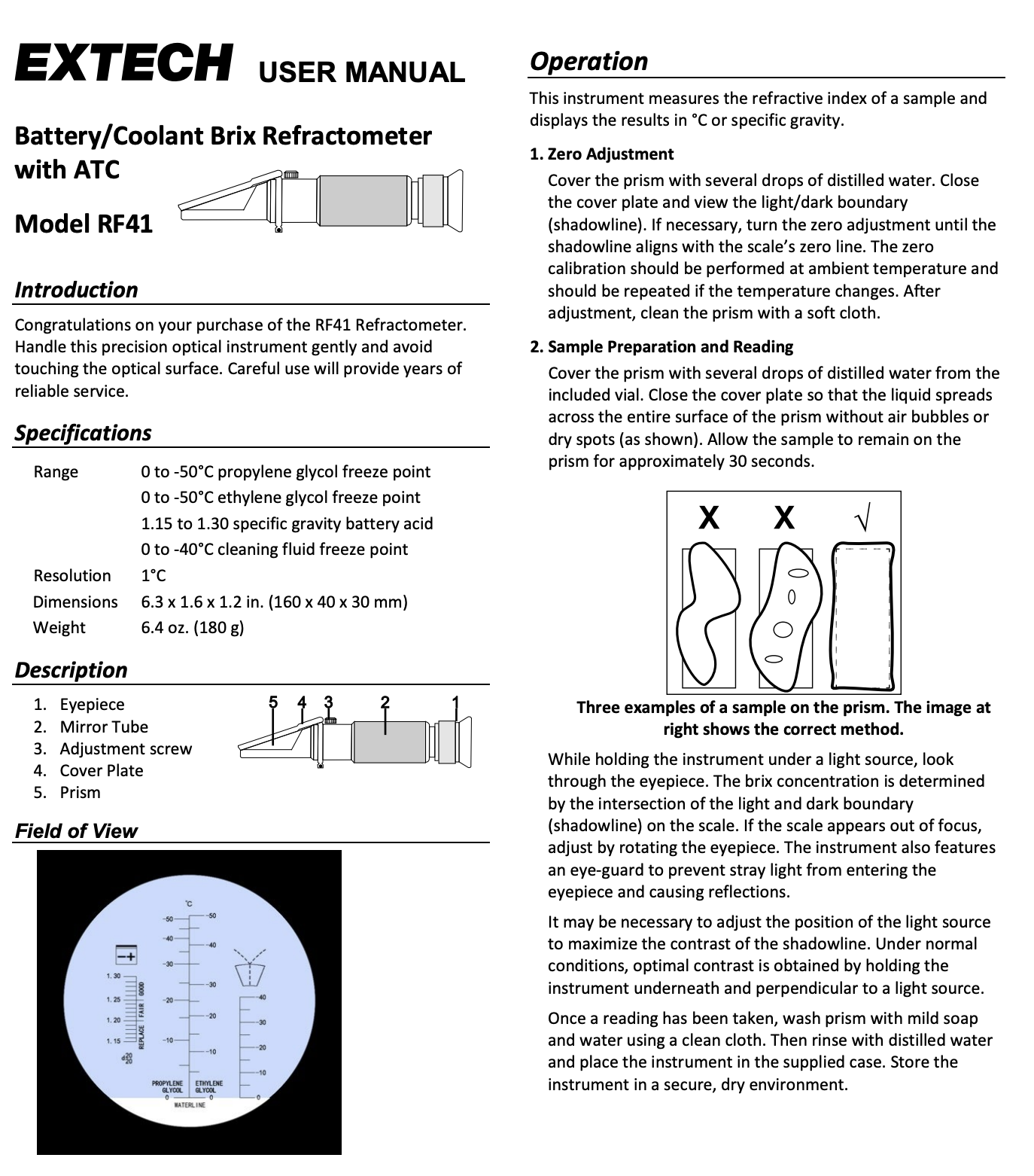

Usage

$../../_images/ExtechR41_refractometer_UserManual.png$

Latest measurements

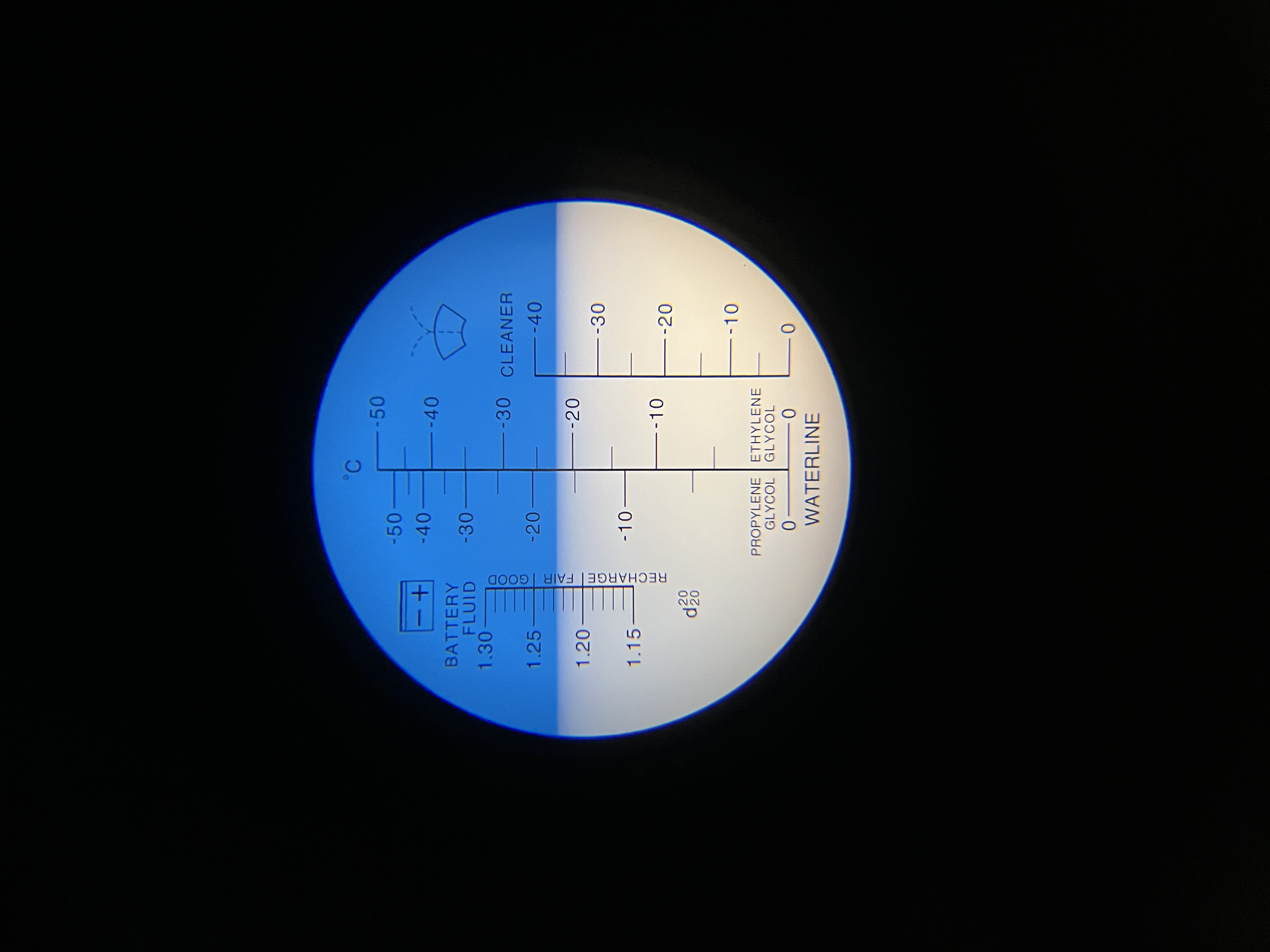

On 2026-03-21 we measured the MagAO-X instrument glycol concentration using the refractometer and found a freezing point of about -22 Celsius.

$../../_images/ethylene_glycol_refractometer_20260321.jpeg$
