A base class to coordinate poking a deformable mirror's actuators and synchronizedreads of a camera image. More...

#include <dmPokeWFS.hpp>

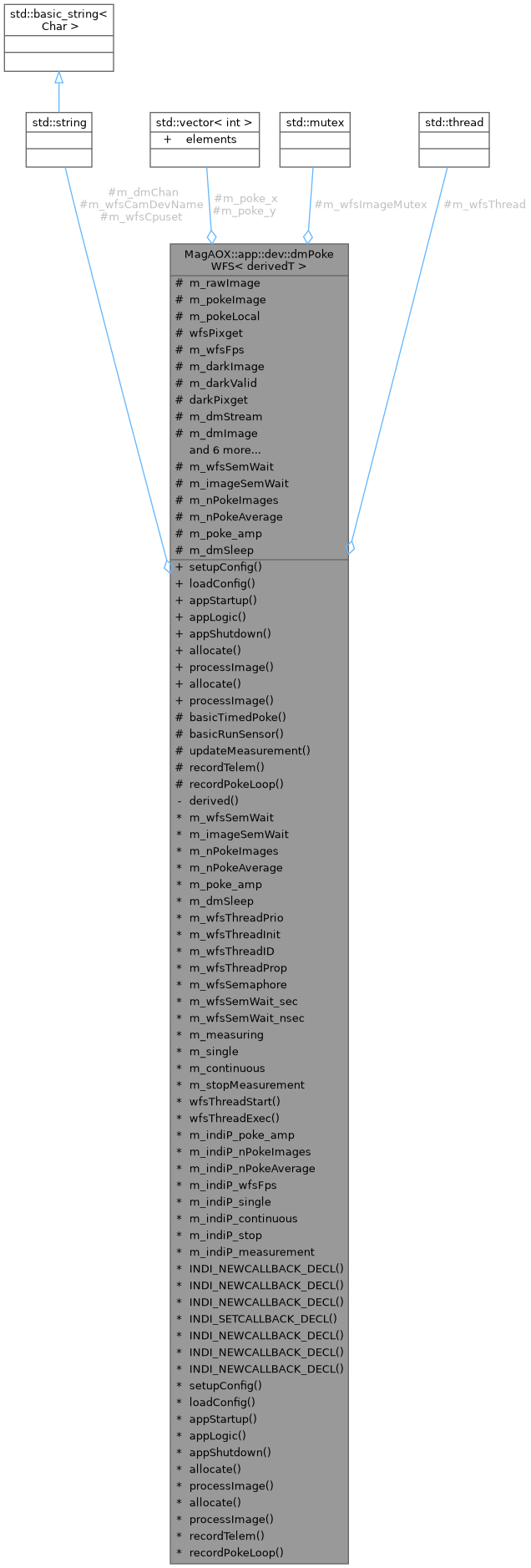

Collaboration diagram for MagAOX::app::dev::dmPokeWFS< derivedT >:

Classes
struct	darkShmimT

struct	wfsShmimT

Public Member Functions
MagAOXApp Interface
int	setupConfig (mx::app::appConfigurator &config)
	Setup the configuration system. More...

int	loadConfig (mx::app::appConfigurator &config)
	load the configuration system results More...

int	appStartup ()
	Startup function. More...

int	appLogic ()
	dmPokeWFS application logic More...

int	appShutdown ()
	dmPokeWFS shutdown More...

shmimMonitor Interface
int	allocate (const wfsShmimT &)

int	processImage (void *curr_src, const wfsShmimT &)

darkShmimMonitor Interface
int	allocate (const darkShmimT &)

int	processImage (void *curr_src, const darkShmimT &)

Protected Member Functions
int	basicTimedPoke (float pokeSign)
	Apply a single DM poke pattern and record the results. More...

int	basicRunSensor ()
	Run the basic +/- poke sensor steps. More...

int	updateMeasurement (float deltaX, float deltaY)

Telemeter Interface
int	recordTelem (const telem_pokeloop *)

int	recordPokeLoop (bool force=false)

Protected Attributes
std::mutex	m_wfsImageMutex

mx::improc::milkImage< float >	m_rawImage

mx::improc::milkImage< float >	m_pokeImage

mx::improc::eigenImage< float >	m_pokeLocal

float(*	wfsPixget )(void *, size_t)

float	m_wfsFps {-1}
	Pointer to a function to extract the image data as float. More...

mx::improc::eigenImage< float >	m_darkImage
	The dark image. More...

bool	m_darkValid {false}
	Flag indicating if dark is valid based on its size. More...

float(*	darkPixget )(void *, size_t)

mx::improc::milkImage< float >	m_dmStream
	Pointer to a function to extract the dark image data as float. More...

mx::improc::eigenImage< float >	m_dmImage

float	m_deltaX {0}

float	m_deltaY {0}

uint64_t	m_counter {0}

sem_t	m_imageSemaphore
	Semaphore used to signal that an image is ready. More...

unsigned	m_imageSemWait_sec {1}
	The timeout for the image semaphore, seconds component. More...

unsigned	m_imageSemWait_nsec {0}
	The timeout for the image semaphore, nanoseconds component. More...

Configurable Parameters
std::string	m_wfsCamDevName
	INDI device name of the WFS camera. Default is wfscam.shmimName. More...

double	m_wfsSemWait {1.5}
	The time in sec to wait on the WFS semaphore. Default 0.5 sec. More...

double	m_imageSemWait {0.5}
	The time in sec to wait on the image semaphore. Default 0.5 sec. More...

unsigned	m_nPokeImages {5}
	The number of images to average for the poke images. Default is 5. More...

unsigned	m_nPokeAverage {10}
	The number of poke sequences to average. Default is 10. More...

std::string	m_dmChan

std::vector< int >	m_poke_x

std::vector< int >	m_poke_y

float	m_poke_amp {0.0}

float	m_dmSleep {10000}
	The time to sleep for the DM command to be applied, in microseconds. Default is 10000. More...

Private Member Functions
derivedT &	derived ()

WFS Thread
This thread coordinates the WFS process
int	m_wfsThreadPrio {1}
	Priority of the WFS thread, should normally be > 00. More...

std::string	m_wfsCpuset
	The cpuset for the framegrabber thread. Ignored if empty (the default). More...

std::thread	m_wfsThread
	A separate thread for the actual WFSing. More...

bool	m_wfsThreadInit {true}
	Synchronizer to ensure wfs thread initializes before doing dangerous things. More...

pid_t	m_wfsThreadID {0}
	WFS thread PID. More...

pcf::IndiProperty	m_wfsThreadProp
	The property to hold the WFS thread details. More...

sem_t	m_wfsSemaphore
	Semaphore used to signal the WFS thread to start WFSing. More...

unsigned	m_wfsSemWait_sec {1}
	The timeout for the WFS semaphore, seconds component. More...

unsigned	m_wfsSemWait_nsec {0}
	The timeoutfor the WFS semaphore, nanoseconds component. More...

int	m_measuring {0}
	Status of measuring: 0 no, 1 single in progress, 2 continuous in progress. More...

bool	m_single {false}
	True a single measurement is in progress. More...

bool	m_continuous {false}
	True if continuous measurements are in progress. More...

bool	m_stopMeasurement {false}
	Used to request that the measurement in progress stop. More...

static void	wfsThreadStart (dmPokeWFS *s)
	Thread starter, called by wfsThreadStart on thread construction. Calls wfsThreadExec. More...

void	wfsThreadExec ()
	Execute the frame grabber main loop. More...

INDI Interface
pcf::IndiProperty	m_indiP_poke_amp

pcf::IndiProperty	m_indiP_nPokeImages

pcf::IndiProperty	m_indiP_nPokeAverage

pcf::IndiProperty	m_indiP_wfsFps
	Property to get the FPS from the WFS camera. More...

pcf::IndiProperty	m_indiP_single
	Switch to start a single measurement. More...

pcf::IndiProperty	m_indiP_continuous
	Switch to start continuous measurement. More...

pcf::IndiProperty	m_indiP_stop
	Switch to request that measurement stop. More...

pcf::IndiProperty	m_indiP_measurement
	Property to report the delta measurement, including the loop counter. More...

	INDI_NEWCALLBACK_DECL (derivedT, m_indiP_poke_amp)

	INDI_NEWCALLBACK_DECL (derivedT, m_indiP_nPokeImages)

	INDI_NEWCALLBACK_DECL (derivedT, m_indiP_nPokeAverage)

	INDI_SETCALLBACK_DECL (derivedT, m_indiP_wfsFps)

	INDI_NEWCALLBACK_DECL (derivedT, m_indiP_single)

	INDI_NEWCALLBACK_DECL (derivedT, m_indiP_continuous)

	INDI_NEWCALLBACK_DECL (derivedT, m_indiP_stop)

Detailed Description

template<class derivedT>
class MagAOX::app::dev::dmPokeWFS< derivedT >

A base class to coordinate poking a deformable mirror's actuators and synchronizedreads of a camera image.

CRTP class derivedT has the following requirements:

Must be derived from MagAOXApp<true>
Must be derived from dev::shmimMonitor<DERIVEDNAME, dev::dmPokeWFS<DERIVEDNAME>wfsShmimT> (replace DERIVEDNAME with derivedT class name)
Must be derived from dev::shmimMonitor<DERIVEDNAME, dev::dmPokeWFS<DERIVEDNAME>::darkShmimT> (replace DERIVEDNAME with derivedT class name)
Must contain the following friend declarations (replace DERIVEDNAME with derivedT class name):
friend class dev::shmimMonitor<DERIVEDNAME, dev::dmPokeWFS<DERIVEDNAME>::wfsShmimT>;

friend class dev::shmimMonitor<DERIVEDNAME, dev::dmPokeWFS<DERIVEDNAME>::darkShmimT>;

friend class dev::dmPokeWFS<DERIVEDNAME>

wfsShmimT
Definition: dmPokeCenter.hpp:34
Must contain the following typedefs (replace DERIVEDNAME with derivedT class name):
typedef dev::shmimMonitor<DERIVEDNAME, dev::dmPokeWFS<DERIVEDNAME>::wfsShmimT> shmimMonitorT;

typedef dev::shmimMonitor<DERIVEDNAME, dev::dmPokeWFS<DERIVEDNAME>::darkShmimT> darkShmimMonitorT;

typedef dev::dmPokeWFS<DERIVEDNAME> dmPokeWFST;
Must provide the following interfaces:
shmimMonitorT & shmimMonitor()

{

return *static_cast<shmimMonitorT *>(this);

}

darkShmimMonitorT & darkShmimMonitor()

{

return *static_cast<darkShmimMonitorT *>(this);

}
If derivedT has additional shmimMonitor parents, you will need to include these lines in the class declaration:
using dmPokeWFST::allocate;

using dmPokeWFST::processImage;
Must provide the following interface:
// Run the sensor steps

// Coordinates the actions of poking and collecting images.

// Upon completion this calls runSensor. If \p firstRun == true, one time

// actions such as taking a dark can be executed.

//

// returns 0 on success

// returns < 0 on an error

int runSensor(bool firstRun ///< [in] flag indicating this is the first call. triggers taking a dark if true.

);
Must provide the following interface:
// Analyze the poke image

// This analyzes the resulting poke images.

//

// returns 0 on success

// returns < 0 on an error

int analyzeSensor();

At the conclusion of analyzeSensor the measured signal (e.g. deltaX and deltaY) should be updated and set in m_indiP_measurement. The function updateMeasurement() can be used for this. However, the updating of the loop counter and the subsequent INDI property update is handled automatically after that.
Must be a telemeter with the following interface:
- Must be derived from dev::telemeter<DERIVEDNAME> (replace DERIVEDNAME with derivedT class name) and meet the requirements of dev::telemeter
- In the function derivedT::checkRecordTimes() required by dev::telemeter, the telem_pokeloop type must be checked. The minimum derivedT::checkRecordTimes() is:
  int checkRecordTimes()

  {

  return telemeterT::checkRecordTimes(telem_pokeloop());

  }
Must call this base class's setupConfig(), loadConfig(), appStartup(), appStartup(), and appShutdown() in the appropriate functions. For convenience the following macros are defined to provide error checking:
DMPOKEWFS_SETUP_CONFIG( cfig )

DMPOKEWFS_LOAD_CONFIG( cfig )

DMPOKEWFS_APP_STARTUP

DMPOKEWFS_APP_LOGIC

DMPOKEWFS_APP_SHUTDOWN

DMPOKEWFS_APP_SHUTDOWN
#define DMPOKEWFS_APP_SHUTDOWN
Call dmPokeWFS::appShutdown with error checking.
Definition: dmPokeWFS.hpp:1238

DMPOKEWFS_APP_STARTUP
#define DMPOKEWFS_APP_STARTUP
Call dmPokeWFS::appStartup with error checking.
Definition: dmPokeWFS.hpp:1224

DMPOKEWFS_SETUP_CONFIG
#define DMPOKEWFS_SETUP_CONFIG(cfig)
Call dmPokeWFS::setupConfig with error checking.
Definition: dmPokeWFS.hpp:1205

DMPOKEWFS_LOAD_CONFIG
#define DMPOKEWFS_LOAD_CONFIG(cfig)
Call dmPokeWFS::loadConfig with error checking.
Definition: dmPokeWFS.hpp:1217

DMPOKEWFS_APP_LOGIC
#define DMPOKEWFS_APP_LOGIC
Call dmPokeWFS::appLogic with error checking.
Definition: dmPokeWFS.hpp:1231

Definition at line 136 of file dmPokeWFS.hpp.

Member Function Documentation

◆ allocate() [1/2]

template<class derivedT >

int MagAOX::app::dev::dmPokeWFS< derivedT >::allocate ( const darkShmimT & dummy )

Parameters

[in] dummy tag to differentiate shmimMonitor parents.

Definition at line 744 of file dmPokeWFS.hpp.

◆ allocate() [2/2]

template<class derivedT >

int MagAOX::app::dev::dmPokeWFS< derivedT >::allocate ( const wfsShmimT & dummy )

Parameters

[in] dummy tag to differentiate shmimMonitor parents.

Definition at line 662 of file dmPokeWFS.hpp.

◆ appLogic()

template<class derivedT >

int MagAOX::app::dev::dmPokeWFS< derivedT >::appLogic

dmPokeWFS application logic

This should be called in derivedT::appLogic as

dmPokeWFS<derivedT,realT>::appLogic();

MagAOX::app::dev::dmPokeWFS::appLogic

int appLogic()

dmPokeWFS application logic

Definition: dmPokeWFS.hpp:571

with appropriate error checking.

Returns: 0 on success; -1 on error, which is logged.

Definition at line 571 of file dmPokeWFS.hpp.

◆ appShutdown()

template<class derivedT >

int MagAOX::app::dev::dmPokeWFS< derivedT >::appShutdown

dmPokeWFS shutdown

This should be called in derivedT::appShutdown as

dmPokeWFS<derivedT,realT>::appShutdown();

MagAOX::app::dev::dmPokeWFS::appShutdown

int appShutdown()

dmPokeWFS shutdown

Definition: dmPokeWFS.hpp:634

with appropriate error checking.

Returns: 0 on success; -1 on error, which is logged.

Definition at line 634 of file dmPokeWFS.hpp.

◆ appStartup()

template<class derivedT >

int MagAOX::app::dev::dmPokeWFS< derivedT >::appStartup

Startup function.

This should be called in derivedT::appStartup as

dmPokeWFS<derivedT,realT>::appStartup();

MagAOX::app::dev::dmPokeWFS::appStartup

int appStartup()

Startup function.

Definition: dmPokeWFS.hpp:515

with appropriate error checking.

Returns: 0 on success; -1 on error, which is logged.

Definition at line 515 of file dmPokeWFS.hpp.

◆ basicRunSensor()

template<class derivedT >

int MagAOX::app::dev::dmPokeWFS< derivedT >::basicRunSensor

protected

Run the basic +/- poke sensor steps.

Coordinates the actions of poking and collecting images.

This can be called from the derived class runSensor.

Returns: +1 if exit is due to shutdown or stop request; 0 if no error; -1 if an error occurs

Definition at line 944 of file dmPokeWFS.hpp.

◆ basicTimedPoke()

template<class derivedT >

int MagAOX::app::dev::dmPokeWFS< derivedT >::basicTimedPoke ( float pokeSign )

protected

Apply a single DM poke pattern and record the results.

This accumulates m_nPokeImages*m_nPokeAverage images in m_pokeLocal, so m_pokeLocal should be zeroed before the first call to this (e.g. for a +1 poke), but not zeroed before the second call (e.g. for the -1 poke). You also need to 0 the DM after finishing a poke pair. See basicRunSensor() for how to use.

Returns: +1 if exit is due to shutdown or stop request; 0 if no error; -1 if an error occurs

Parameters

[in] pokeSign the sign, and possibly a scaling, to apply to m_pokeAmplitude

Definition at line 885 of file dmPokeWFS.hpp.

◆ derived()

template<class derivedT >

derivedT& MagAOX::app::dev::dmPokeWFS< derivedT >::derived ( )

inlineprivate

Definition at line 426 of file dmPokeWFS.hpp.

◆ INDI_NEWCALLBACK_DECL() [1/6]

template<class derivedT >

MagAOX::app::dev::dmPokeWFS< derivedT >::INDI_NEWCALLBACK_DECL	(	derivedT	,
		m_indiP_continuous
	)

protected

◆ INDI_NEWCALLBACK_DECL() [2/6]

template<class derivedT >

MagAOX::app::dev::dmPokeWFS< derivedT >::INDI_NEWCALLBACK_DECL	(	derivedT	,
		m_indiP_nPokeAverage
	)

protected

◆ INDI_NEWCALLBACK_DECL() [3/6]

template<class derivedT >

MagAOX::app::dev::dmPokeWFS< derivedT >::INDI_NEWCALLBACK_DECL	(	derivedT	,
		m_indiP_nPokeImages
	)

protected

◆ INDI_NEWCALLBACK_DECL() [4/6]

template<class derivedT >

MagAOX::app::dev::dmPokeWFS< derivedT >::INDI_NEWCALLBACK_DECL	(	derivedT	,
		m_indiP_poke_amp
	)

protected

◆ INDI_NEWCALLBACK_DECL() [5/6]

template<class derivedT >

MagAOX::app::dev::dmPokeWFS< derivedT >::INDI_NEWCALLBACK_DECL	(	derivedT	,
		m_indiP_single
	)

protected

◆ INDI_NEWCALLBACK_DECL() [6/6]

template<class derivedT >

MagAOX::app::dev::dmPokeWFS< derivedT >::INDI_NEWCALLBACK_DECL	(	derivedT	,
		m_indiP_stop
	)

protected

◆ INDI_SETCALLBACK_DECL()

template<class derivedT >

MagAOX::app::dev::dmPokeWFS< derivedT >::INDI_SETCALLBACK_DECL	(	derivedT	,
		m_indiP_wfsFps
	)

protected

◆ loadConfig()

template<class derivedT >

int MagAOX::app::dev::dmPokeWFS< derivedT >::loadConfig ( mx::app::appConfigurator & config )

load the configuration system results

This should be called in derivedT::loadConfig as

dmPokeWFS<derivedT,realT>::loadConfig(config);

MagAOX::app::dev::dmPokeWFS::loadConfig

int loadConfig(mx::app::appConfigurator &config)

load the configuration system results

Definition: dmPokeWFS.hpp:466

with appropriate error checking.

Parameters

[in] config an application configuration from which to load values

Definition at line 466 of file dmPokeWFS.hpp.

◆ processImage() [1/2]

template<class derivedT >

int MagAOX::app::dev::dmPokeWFS< derivedT >::processImage	(	void *	curr_src,
		const darkShmimT &	dummy
	)

Parameters

[in]	curr_src	pointer to the start of the current frame
[in]	dummy	tag to differentiate shmimMonitor parents.

Definition at line 770 of file dmPokeWFS.hpp.

◆ processImage() [2/2]

template<class derivedT >

int MagAOX::app::dev::dmPokeWFS< derivedT >::processImage	(	void *	curr_src,
		const wfsShmimT &	dummy
	)

Parameters

[in]	curr_src	pointer to the start of the current frame
[in]	dummy	tag to differentiate shmimMonitor parents.

Definition at line 704 of file dmPokeWFS.hpp.

◆ recordPokeLoop()

template<class derivedT >

int MagAOX::app::dev::dmPokeWFS< derivedT >::recordPokeLoop ( bool force = false )

protected

Definition at line 1180 of file dmPokeWFS.hpp.

◆ recordTelem()

template<class derivedT >

int MagAOX::app::dev::dmPokeWFS< derivedT >::recordTelem ( const telem_pokeloop * )

protected

Definition at line 1174 of file dmPokeWFS.hpp.

◆ setupConfig()

template<class derivedT >

int MagAOX::app::dev::dmPokeWFS< derivedT >::setupConfig ( mx::app::appConfigurator & config )

Setup the configuration system.

This should be called in derivedT::setupConfig as

dmPokeWFS<derivedT,realT>::setupConfig(config);

MagAOX::app::dev::dmPokeWFS::setupConfig

int setupConfig(mx::app::appConfigurator &config)

Setup the configuration system.

Definition: dmPokeWFS.hpp:434

with appropriate error checking.

Parameters

[in] config an application configuration to load values to

Definition at line 434 of file dmPokeWFS.hpp.

◆ updateMeasurement()

template<class derivedT >

int MagAOX::app::dev::dmPokeWFS< derivedT >::updateMeasurement	(	float	deltaX,
		float	deltaY
	)

protected

Definition at line 1015 of file dmPokeWFS.hpp.

◆ wfsThreadExec()

template<class derivedT >

void MagAOX::app::dev::dmPokeWFS< derivedT >::wfsThreadExec

protected

Execute the frame grabber main loop.

Definition at line 797 of file dmPokeWFS.hpp.

Referenced by MagAOX::app::dev::dmPokeWFS< derivedT >::wfsThreadStart().

◆ wfsThreadStart()

template<class derivedT >

void MagAOX::app::dev::dmPokeWFS< derivedT >::wfsThreadStart ( dmPokeWFS< derivedT > * s )

staticprotected

Thread starter, called by wfsThreadStart on thread construction. Calls wfsThreadExec.

Parameters

[in] s a pointer to an streamWriter instance (normally this)

Definition at line 791 of file dmPokeWFS.hpp.

Member Data Documentation

◆ darkPixget

template<class derivedT >

float(* MagAOX::app::dev::dmPokeWFS< derivedT >::darkPixget) (void *, size_t)

inlineprotected

Definition at line 209 of file dmPokeWFS.hpp.

◆ m_continuous

template<class derivedT >

bool MagAOX::app::dev::dmPokeWFS< derivedT >::m_continuous {false}

protected

True if continuous measurements are in progress.

Definition at line 343 of file dmPokeWFS.hpp.

◆ m_counter

template<class derivedT >

uint64_t MagAOX::app::dev::dmPokeWFS< derivedT >::m_counter {0}

protected

Definition at line 217 of file dmPokeWFS.hpp.

◆ m_darkImage

template<class derivedT >

mx::improc::eigenImage<float> MagAOX::app::dev::dmPokeWFS< derivedT >::m_darkImage

protected

The dark image.

Definition at line 205 of file dmPokeWFS.hpp.

◆ m_darkValid

template<class derivedT >

bool MagAOX::app::dev::dmPokeWFS< derivedT >::m_darkValid {false}

protected

Flag indicating if dark is valid based on its size.

Definition at line 207 of file dmPokeWFS.hpp.

◆ m_deltaX

template<class derivedT >

float MagAOX::app::dev::dmPokeWFS< derivedT >::m_deltaX {0}

protected

Definition at line 215 of file dmPokeWFS.hpp.

◆ m_deltaY

template<class derivedT >

float MagAOX::app::dev::dmPokeWFS< derivedT >::m_deltaY {0}

protected

Definition at line 216 of file dmPokeWFS.hpp.

◆ m_dmChan

template<class derivedT >

std::string MagAOX::app::dev::dmPokeWFS< derivedT >::m_dmChan

protected

Definition at line 183 of file dmPokeWFS.hpp.

◆ m_dmImage

template<class derivedT >

mx::improc::eigenImage<float> MagAOX::app::dev::dmPokeWFS< derivedT >::m_dmImage

protected

Definition at line 213 of file dmPokeWFS.hpp.

◆ m_dmSleep

template<class derivedT >

float MagAOX::app::dev::dmPokeWFS< derivedT >::m_dmSleep {10000}

protected

The time to sleep for the DM command to be applied, in microseconds. Default is 10000.

Definition at line 190 of file dmPokeWFS.hpp.

◆ m_dmStream

template<class derivedT >

mx::improc::milkImage<float> MagAOX::app::dev::dmPokeWFS< derivedT >::m_dmStream

protected

Pointer to a function to extract the dark image data as float.

Definition at line 211 of file dmPokeWFS.hpp.

◆ m_imageSemaphore

template<class derivedT >

sem_t MagAOX::app::dev::dmPokeWFS< derivedT >::m_imageSemaphore

protected

Semaphore used to signal that an image is ready.

Definition at line 349 of file dmPokeWFS.hpp.

◆ m_imageSemWait

template<class derivedT >

double MagAOX::app::dev::dmPokeWFS< derivedT >::m_imageSemWait {0.5}

protected

The time in sec to wait on the image semaphore. Default 0.5 sec.

Definition at line 177 of file dmPokeWFS.hpp.

◆ m_imageSemWait_nsec

template<class derivedT >

unsigned MagAOX::app::dev::dmPokeWFS< derivedT >::m_imageSemWait_nsec {0}

protected

The timeout for the image semaphore, nanoseconds component.

Definition at line 353 of file dmPokeWFS.hpp.

◆ m_imageSemWait_sec

template<class derivedT >

unsigned MagAOX::app::dev::dmPokeWFS< derivedT >::m_imageSemWait_sec {1}

protected

The timeout for the image semaphore, seconds component.

Definition at line 351 of file dmPokeWFS.hpp.

◆ m_indiP_continuous

template<class derivedT >

pcf::IndiProperty MagAOX::app::dev::dmPokeWFS< derivedT >::m_indiP_continuous

protected

Switch to start continuous measurement.

Definition at line 404 of file dmPokeWFS.hpp.

◆ m_indiP_measurement

template<class derivedT >

pcf::IndiProperty MagAOX::app::dev::dmPokeWFS< derivedT >::m_indiP_measurement

protected

Property to report the delta measurement, including the loop counter.

Definition at line 410 of file dmPokeWFS.hpp.

◆ m_indiP_nPokeAverage

template<class derivedT >

pcf::IndiProperty MagAOX::app::dev::dmPokeWFS< derivedT >::m_indiP_nPokeAverage

protected

Definition at line 395 of file dmPokeWFS.hpp.

◆ m_indiP_nPokeImages

template<class derivedT >

pcf::IndiProperty MagAOX::app::dev::dmPokeWFS< derivedT >::m_indiP_nPokeImages

protected

Definition at line 392 of file dmPokeWFS.hpp.

◆ m_indiP_poke_amp

template<class derivedT >

pcf::IndiProperty MagAOX::app::dev::dmPokeWFS< derivedT >::m_indiP_poke_amp

protected

Definition at line 389 of file dmPokeWFS.hpp.

◆ m_indiP_single

template<class derivedT >

pcf::IndiProperty MagAOX::app::dev::dmPokeWFS< derivedT >::m_indiP_single

protected

Switch to start a single measurement.

Definition at line 401 of file dmPokeWFS.hpp.

◆ m_indiP_stop

template<class derivedT >

pcf::IndiProperty MagAOX::app::dev::dmPokeWFS< derivedT >::m_indiP_stop

protected

Switch to request that measurement stop.

Definition at line 407 of file dmPokeWFS.hpp.

◆ m_indiP_wfsFps

template<class derivedT >

pcf::IndiProperty MagAOX::app::dev::dmPokeWFS< derivedT >::m_indiP_wfsFps

protected

Property to get the FPS from the WFS camera.

Definition at line 398 of file dmPokeWFS.hpp.

◆ m_measuring

template<class derivedT >

int MagAOX::app::dev::dmPokeWFS< derivedT >::m_measuring {0}

protected

Status of measuring: 0 no, 1 single in progress, 2 continuous in progress.

Definition at line 339 of file dmPokeWFS.hpp.

◆ m_nPokeAverage

template<class derivedT >

unsigned MagAOX::app::dev::dmPokeWFS< derivedT >::m_nPokeAverage {10}

protected

The number of poke sequences to average. Default is 10.

Definition at line 181 of file dmPokeWFS.hpp.

◆ m_nPokeImages

template<class derivedT >

unsigned MagAOX::app::dev::dmPokeWFS< derivedT >::m_nPokeImages {5}

protected

The number of images to average for the poke images. Default is 5.

Definition at line 179 of file dmPokeWFS.hpp.

◆ m_poke_amp

template<class derivedT >

float MagAOX::app::dev::dmPokeWFS< derivedT >::m_poke_amp {0.0}

protected

Definition at line 188 of file dmPokeWFS.hpp.

◆ m_poke_x

template<class derivedT >

std::vector<int> MagAOX::app::dev::dmPokeWFS< derivedT >::m_poke_x

protected

Definition at line 185 of file dmPokeWFS.hpp.

◆ m_poke_y

template<class derivedT >

std::vector<int> MagAOX::app::dev::dmPokeWFS< derivedT >::m_poke_y

protected

Definition at line 186 of file dmPokeWFS.hpp.

◆ m_pokeImage

template<class derivedT >

mx::improc::milkImage<float> MagAOX::app::dev::dmPokeWFS< derivedT >::m_pokeImage

protected

Definition at line 198 of file dmPokeWFS.hpp.

◆ m_pokeLocal

template<class derivedT >

mx::improc::eigenImage<float> MagAOX::app::dev::dmPokeWFS< derivedT >::m_pokeLocal

protected

Definition at line 199 of file dmPokeWFS.hpp.

◆ m_rawImage

template<class derivedT >

mx::improc::milkImage<float> MagAOX::app::dev::dmPokeWFS< derivedT >::m_rawImage

protected

Definition at line 196 of file dmPokeWFS.hpp.

◆ m_single

template<class derivedT >

bool MagAOX::app::dev::dmPokeWFS< derivedT >::m_single {false}

protected

True a single measurement is in progress.

Definition at line 341 of file dmPokeWFS.hpp.

◆ m_stopMeasurement

template<class derivedT >

bool MagAOX::app::dev::dmPokeWFS< derivedT >::m_stopMeasurement {false}

protected

Used to request that the measurement in progress stop.

Definition at line 345 of file dmPokeWFS.hpp.

◆ m_wfsCamDevName

template<class derivedT >

std::string MagAOX::app::dev::dmPokeWFS< derivedT >::m_wfsCamDevName

protected

INDI device name of the WFS camera. Default is wfscam.shmimName.

Definition at line 173 of file dmPokeWFS.hpp.

◆ m_wfsCpuset

template<class derivedT >

std::string MagAOX::app::dev::dmPokeWFS< derivedT >::m_wfsCpuset

protected

The cpuset for the framegrabber thread. Ignored if empty (the default).

Definition at line 317 of file dmPokeWFS.hpp.

◆ m_wfsFps

template<class derivedT >

float MagAOX::app::dev::dmPokeWFS< derivedT >::m_wfsFps {-1}

protected

Pointer to a function to extract the image data as float.

The WFS camera FPS

Definition at line 203 of file dmPokeWFS.hpp.

◆ m_wfsImageMutex

template<class derivedT >

std::mutex MagAOX::app::dev::dmPokeWFS< derivedT >::m_wfsImageMutex

protected

Definition at line 194 of file dmPokeWFS.hpp.

◆ m_wfsSemaphore

template<class derivedT >

sem_t MagAOX::app::dev::dmPokeWFS< derivedT >::m_wfsSemaphore

protected

Semaphore used to signal the WFS thread to start WFSing.

Definition at line 333 of file dmPokeWFS.hpp.

◆ m_wfsSemWait

template<class derivedT >

double MagAOX::app::dev::dmPokeWFS< derivedT >::m_wfsSemWait {1.5}

protected

The time in sec to wait on the WFS semaphore. Default 0.5 sec.

Definition at line 175 of file dmPokeWFS.hpp.

◆ m_wfsSemWait_nsec

template<class derivedT >

unsigned MagAOX::app::dev::dmPokeWFS< derivedT >::m_wfsSemWait_nsec {0}

protected

The timeoutfor the WFS semaphore, nanoseconds component.

Definition at line 337 of file dmPokeWFS.hpp.

◆ m_wfsSemWait_sec

template<class derivedT >

unsigned MagAOX::app::dev::dmPokeWFS< derivedT >::m_wfsSemWait_sec {1}

protected

The timeout for the WFS semaphore, seconds component.

Definition at line 335 of file dmPokeWFS.hpp.

◆ m_wfsThread

template<class derivedT >

std::thread MagAOX::app::dev::dmPokeWFS< derivedT >::m_wfsThread

protected

A separate thread for the actual WFSing.

Definition at line 319 of file dmPokeWFS.hpp.

◆ m_wfsThreadID

template<class derivedT >

pid_t MagAOX::app::dev::dmPokeWFS< derivedT >::m_wfsThreadID {0}

protected

WFS thread PID.

Definition at line 323 of file dmPokeWFS.hpp.

◆ m_wfsThreadInit

template<class derivedT >

bool MagAOX::app::dev::dmPokeWFS< derivedT >::m_wfsThreadInit {true}

protected

Synchronizer to ensure wfs thread initializes before doing dangerous things.

Definition at line 321 of file dmPokeWFS.hpp.

◆ m_wfsThreadPrio

template<class derivedT >

int MagAOX::app::dev::dmPokeWFS< derivedT >::m_wfsThreadPrio {1}

protected

Priority of the WFS thread, should normally be > 00.

Definition at line 315 of file dmPokeWFS.hpp.

◆ m_wfsThreadProp

template<class derivedT >

pcf::IndiProperty MagAOX::app::dev::dmPokeWFS< derivedT >::m_wfsThreadProp

protected

The property to hold the WFS thread details.

Definition at line 325 of file dmPokeWFS.hpp.

◆ wfsPixget

template<class derivedT >

float(* MagAOX::app::dev::dmPokeWFS< derivedT >::wfsPixget) (void *, size_t)

inlineprotected

Definition at line 201 of file dmPokeWFS.hpp.

The documentation for this class was generated from the following file:

libMagAOX/app/dev/dmPokeWFS.hpp

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

WFS Thread

INDI Interface

Detailed Description

template<class derivedT> class MagAOX::app::dev::dmPokeWFS< derivedT >

Member Function Documentation

◆ allocate() [1/2]

◆ allocate() [2/2]

◆ appLogic()

◆ appShutdown()

◆ appStartup()

◆ basicRunSensor()

◆ basicTimedPoke()

◆ derived()

◆ INDI_NEWCALLBACK_DECL() [1/6]

◆ INDI_NEWCALLBACK_DECL() [2/6]

◆ INDI_NEWCALLBACK_DECL() [3/6]

◆ INDI_NEWCALLBACK_DECL() [4/6]

◆ INDI_NEWCALLBACK_DECL() [5/6]

◆ INDI_NEWCALLBACK_DECL() [6/6]

◆ INDI_SETCALLBACK_DECL()

◆ loadConfig()

◆ processImage() [1/2]

◆ processImage() [2/2]

◆ recordPokeLoop()

◆ recordTelem()

◆ setupConfig()

◆ updateMeasurement()

◆ wfsThreadExec()

◆ wfsThreadStart()

Member Data Documentation

◆ darkPixget

◆ m_continuous

◆ m_counter

◆ m_darkImage

◆ m_darkValid

◆ m_deltaX

◆ m_deltaY

◆ m_dmChan

◆ m_dmImage

◆ m_dmSleep

◆ m_dmStream

◆ m_imageSemaphore

◆ m_imageSemWait

◆ m_imageSemWait_nsec

◆ m_imageSemWait_sec

◆ m_indiP_continuous

◆ m_indiP_measurement

◆ m_indiP_nPokeAverage

◆ m_indiP_nPokeImages

◆ m_indiP_poke_amp

◆ m_indiP_single

◆ m_indiP_stop

◆ m_indiP_wfsFps

◆ m_measuring

◆ m_nPokeAverage

◆ m_nPokeImages

◆ m_poke_amp

◆ m_poke_x

◆ m_poke_y

◆ m_pokeImage

◆ m_pokeLocal

◆ m_rawImage

◆ m_single

◆ m_stopMeasurement

◆ m_wfsCamDevName

◆ m_wfsCpuset

◆ m_wfsFps

◆ m_wfsImageMutex

◆ m_wfsSemaphore

◆ m_wfsSemWait

◆ m_wfsSemWait_nsec

◆ m_wfsSemWait_sec

◆ m_wfsThread

◆ m_wfsThreadID

◆ m_wfsThreadInit

template<class derivedT>
class MagAOX::app::dev::dmPokeWFS< derivedT >
