MagAOX::app::dev::edtCamera< derivedT > Class Template Reference
libMagAOX: the MagAO-X software library » The Base MagAOX Application » Device Modules for MagAOX Applications

MagAO-X EDT framegrabber interface. More...

#include <edtCamera.hpp>

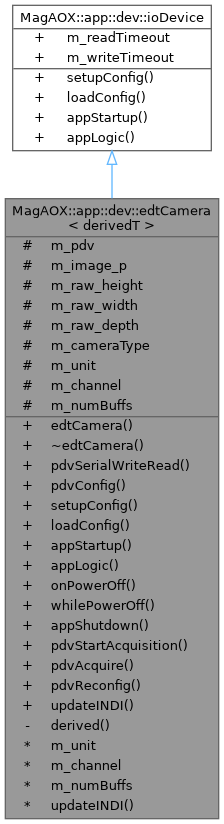

Inheritance diagram for MagAOX::app::dev::edtCamera< derivedT >:
Inheritance graph

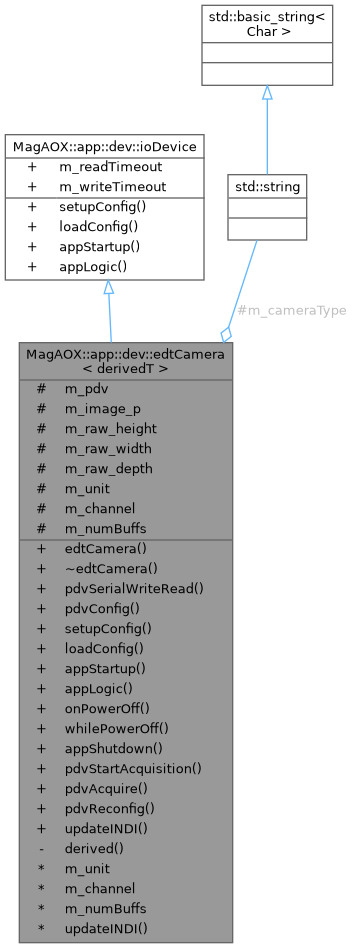

Collaboration diagram for MagAOX::app::dev::edtCamera< derivedT >:
Collaboration graph

Public Member Functions

 edtCamera ()
 C'tor, sets up stdCamera.

 ~edtCamera () noexcept
 Destructor, destroys the PdvDev structure.

int pdvSerialWriteRead (std::string &response, const std::string &command, bool logErrors=true)
 Send a serial command over cameralink and retrieve the response.

int pdvConfig (std::string &cfgname)
 Configure the EDT framegrabber.

void setupConfig (mx::app::appConfigurator &config)
 Setup the configuration system.

void loadConfig (mx::app::appConfigurator &config)
 load the configuration system results

int appStartup ()
 Startup function.

int appLogic ()
 Application logic.

int onPowerOff ()
 Actions on power off.

int whilePowerOff ()
 Actions while powered off.

int appShutdown ()
 Application the shutdown.

int pdvStartAcquisition ()

int pdvAcquire (timespec &currImageTimestamp)

int pdvReconfig ()

INDI
int updateINDI ()
 The static callback function to be registered for the channel properties.


Public Attributes

unsigned m_readTimeout {1000}
 The read timeout [msec].

unsigned m_writeTimeout {1000}
 The write timeout [msec].


Protected Attributes

PdvDev * m_pdv { nullptr }
 The EDT PDV device handle.

u_char * m_image_p { nullptr }
 The image data grabbed.

int m_raw_height { 0 }
 The height of the frame, according to the framegrabber.

int m_raw_width { 0 }
 The width of the frame, according to the framegrabber.

int m_raw_depth { 0 }
 The bit-depth of the frame, according to the framegrabber.

std::string m_cameraType
 The camera type according to the framegrabber.

Configurable Parameters
int m_unit { 0 }
 EDT PDV board unit number.

int m_channel { 0 }
 EDT PDV board channel number.

int m_numBuffs { 4 }
 EDT PDV DMA buffer size, indicating number of images.


Private Member Functions

derivedT & derived ()


Detailed Description

template<class derivedT>
class MagAOX::app::dev::edtCamera< derivedT >

MagAO-X EDT framegrabber interface.

Implements an interface to the EDT PDV SDK

The derived class derivedT must be a MagAOXApp<true>, and must declare this class a friend like so:

friend class dev::dssShutter<derivedT>;
MagAOX::app::dev::dssShutter
MagAO-X Uniblitz DSS Shutter interface.
Definition dssShutter.hpp:37

A static configuration variable must be defined in derivedT as

static constexpr bool c_edtCamera_relativeConfigPath = true; //or: false

which determines whether or not the EDT config path is relative to the MagAO-X config path (true) or absolute (false).

In addition, derivedT should be dev::frameGrabber or equivalent, with an m_reconfig member, and calls to this class's pdvStartAcquisition, pdvAcquire, and pdvReconfig in the relevant dev::frameGrabber implementation functions.

Calls to this class's setupConfig, loadConfig, appStartup, appLogic, appShutdown onPowerOff, and whilePowerOff, must be placed in the derived class's functions of the same name.

Definition at line 54 of file edtCamera.hpp.

Constructor & Destructor Documentation

◆ edtCamera()

template<class derivedT >
MagAOX::app::dev::edtCamera< derivedT >::edtCamera ( )

C'tor, sets up stdCamera.

Definition at line 240 of file edtCamera.hpp.

◆ ~edtCamera()

template<class derivedT >
MagAOX::app::dev::edtCamera< derivedT >::~edtCamera ( )
noexcept

Destructor, destroys the PdvDev structure.

Definition at line 245 of file edtCamera.hpp.

References pdv_close().

Member Function Documentation

◆ appLogic()

template<class derivedT >
int MagAOX::app::dev::edtCamera< derivedT >::appLogic ( )

Application logic.

Checks the edtCamera thread

This should be called from the derived's appLogic() as in

edtCamera<derivedT>::appLogic();
MagAOX::app::dev::edtCamera::appLogic
int appLogic()
Application logic.
Definition edtCamera.hpp:517

with appropriate error checking.

Returns
0 on success
-1 on error, which is logged.

Definition at line 517 of file edtCamera.hpp.

◆ appShutdown()

template<class derivedT >
int MagAOX::app::dev::edtCamera< derivedT >::appShutdown ( )

Application the shutdown.

Shuts down the edtCamera thread

edtCamera<derivedT>::appShutdown();
MagAOX::app::dev::edtCamera::appShutdown
int appShutdown()
Application the shutdown.
Definition edtCamera.hpp:535

with appropriate error checking.

Returns
0 on success
-1 on error, which is logged.

Definition at line 535 of file edtCamera.hpp.

Referenced by MagAOX::app::cred2Ctrl::appShutdown(), and MagAOX::app::ocam2KCtrl::appShutdown().

◆ appStartup()

template<class derivedT >
int MagAOX::app::dev::edtCamera< derivedT >::appStartup ( )

Startup function.

This should be called in derivedT::appStartup as

edtCamera<derivedT>::appStartup();
MagAOX::app::dev::edtCamera::appStartup
int appStartup()
Startup function.
Definition edtCamera.hpp:505

with appropriate error checking.

Returns
0 on success
-1 on error, which is logged.

Definition at line 505 of file edtCamera.hpp.

◆ derived()

template<class derivedT >
derivedT & MagAOX::app::dev::edtCamera< derivedT >::derived ( )
inlineprivate

Definition at line 233 of file edtCamera.hpp.

◆ loadConfig()

template<class derivedT >
void MagAOX::app::dev::edtCamera< derivedT >::loadConfig ( mx::app::appConfigurator &  config)

load the configuration system results

This should be called in derivedT::loadConfig as

edtCamera<derivedT>::loadConfig(config);
MagAOX::app::dev::edtCamera::loadConfig
void loadConfig(mx::app::appConfigurator &config)
load the configuration system results
Definition edtCamera.hpp:493

with appropriate error checking.

Parameters
[in]configthe derived classes configurator

Definition at line 493 of file edtCamera.hpp.

References MagAOX::app::dev::ioDevice::loadConfig().

Referenced by MagAOX::app::andorCtrl::loadConfig(), MagAOX::app::ocam2KCtrl::loadConfig(), and MagAOX::app::cred2Ctrl::loadConfigImpl().

◆ onPowerOff()

template<class derivedT >
int MagAOX::app::dev::edtCamera< derivedT >::onPowerOff ( )

Actions on power off.

This should be called from the derived's onPowerOff() as in

edtCamera<derivedT>::onPowerOff();
MagAOX::app::dev::edtCamera::onPowerOff
int onPowerOff()
Actions on power off.
Definition edtCamera.hpp:523

with appropriate error checking.

Returns
0 on success
-1 on error, which is logged.

Definition at line 523 of file edtCamera.hpp.

◆ pdvAcquire()

template<class derivedT >
int MagAOX::app::dev::edtCamera< derivedT >::pdvAcquire ( timespec &  currImageTimestamp)

Definition at line 549 of file edtCamera.hpp.

References pdv_start_image(), and pdv_wait_last_image_timed().

◆ pdvConfig()

template<class derivedT >
int MagAOX::app::dev::edtCamera< derivedT >::pdvConfig ( std::string &  cfgname)

Configure the EDT framegrabber.

Parameters
[in]cfgnameThe configuration name for the mode to set

Definition at line 344 of file edtCamera.hpp.

References edt_close(), EDT_INTERFACE, edt_open_channel(), edt_perror(), flatlogs::logPrio::LOG_ERROR, flatlogs::logPrio::LOG_INFO, pdv_alloc_dependent(), pdv_close(), pdv_flush_fifo(), pdv_get_cameratype(), pdv_get_depth(), pdv_get_height(), pdv_get_width(), pdv_initcam(), pdv_multibuf(), pdv_open_channel(), pdv_readcfg(), and pdv_serial_read_enable().

◆ pdvReconfig()

template<class derivedT >
int MagAOX::app::dev::edtCamera< derivedT >::pdvReconfig ( )

Definition at line 564 of file edtCamera.hpp.

References flatlogs::logPrio::LOG_ERROR.

◆ pdvSerialWriteRead()

template<class derivedT >
int MagAOX::app::dev::edtCamera< derivedT >::pdvSerialWriteRead ( std::string &  response,
const std::string &  command,
bool  logErrors = true
)

Send a serial command over cameralink and retrieve the response.

Parameters
[out]responsethe response to the command from the device
[in]commandthe command to send to the device
[in]logErrorslog serial transport failures when true

Definition at line 256 of file edtCamera.hpp.

References MAGAOX_PDV_SERBUFSIZE, pdv_get_waitchar(), pdv_serial_command(), pdv_serial_read(), and pdv_serial_wait().

◆ pdvStartAcquisition()

template<class derivedT >
int MagAOX::app::dev::edtCamera< derivedT >::pdvStartAcquisition ( )

Definition at line 541 of file edtCamera.hpp.

References pdv_start_images().

◆ setupConfig()

template<class derivedT >
void MagAOX::app::dev::edtCamera< derivedT >::setupConfig ( mx::app::appConfigurator &  config)

Setup the configuration system.

This should be called in derivedT::setupConfig as

edtCamera<derivedT>::setupConfig(config);
MagAOX::app::dev::edtCamera::setupConfig
void setupConfig(mx::app::appConfigurator &config)
Setup the configuration system.
Definition edtCamera.hpp:459

with appropriate error checking.

Parameters
[out]configthe derived classes configurator

Definition at line 459 of file edtCamera.hpp.

References MagAOX::app::dev::ioDevice::setupConfig().

Referenced by MagAOX::app::andorCtrl::setupConfig(), MagAOX::app::cred2Ctrl::setupConfig(), and MagAOX::app::ocam2KCtrl::setupConfig().

◆ updateINDI()

template<class derivedT >
int MagAOX::app::dev::edtCamera< derivedT >::updateINDI ( )

The static callback function to be registered for the channel properties.

Returns
0 on success.
-1 on error. The callback called by the static version, to actually process the new request.
0 on success.
-1 on error. Update the INDI properties for this device controller You should call this once per main loop. It is not called automatically.
0 on success.
-1 on error.

Definition at line 582 of file edtCamera.hpp.

◆ whilePowerOff()

template<class derivedT >
int MagAOX::app::dev::edtCamera< derivedT >::whilePowerOff ( )

Actions while powered off.

This should be called from the derived's whilePowerOff() as in

edtCamera<derivedT>::whilePowerOff();
MagAOX::app::dev::edtCamera::whilePowerOff
int whilePowerOff()
Actions while powered off.
Definition edtCamera.hpp:529

with appropriate error checking.

Returns
0 on success
-1 on error, which is logged.

Definition at line 529 of file edtCamera.hpp.

Member Data Documentation

◆ m_cameraType

template<class derivedT >
std::string MagAOX::app::dev::edtCamera< derivedT >::m_cameraType
protected

The camera type according to the framegrabber.

Definition at line 84 of file edtCamera.hpp.

◆ m_channel

template<class derivedT >
int MagAOX::app::dev::edtCamera< derivedT >::m_channel { 0 }
protected

EDT PDV board channel number.

Definition at line 64 of file edtCamera.hpp.

◆ m_image_p

template<class derivedT >
u_char* MagAOX::app::dev::edtCamera< derivedT >::m_image_p { nullptr }
protected

The image data grabbed.

Definition at line 75 of file edtCamera.hpp.

◆ m_numBuffs

template<class derivedT >
int MagAOX::app::dev::edtCamera< derivedT >::m_numBuffs { 4 }
protected

EDT PDV DMA buffer size, indicating number of images.

Definition at line 65 of file edtCamera.hpp.

◆ m_pdv

template<class derivedT >
PdvDev* MagAOX::app::dev::edtCamera< derivedT >::m_pdv { nullptr }
protected

The EDT PDV device handle.

Definition at line 73 of file edtCamera.hpp.

◆ m_raw_depth

template<class derivedT >
int MagAOX::app::dev::edtCamera< derivedT >::m_raw_depth { 0 }
protected

The bit-depth of the frame, according to the framegrabber.

Definition at line 83 of file edtCamera.hpp.

◆ m_raw_height

template<class derivedT >
int MagAOX::app::dev::edtCamera< derivedT >::m_raw_height { 0 }
protected

The height of the frame, according to the framegrabber.

Definition at line 81 of file edtCamera.hpp.

◆ m_raw_width

template<class derivedT >
int MagAOX::app::dev::edtCamera< derivedT >::m_raw_width { 0 }
protected

The width of the frame, according to the framegrabber.

Definition at line 82 of file edtCamera.hpp.

◆ m_readTimeout

unsigned MagAOX::app::dev::ioDevice::m_readTimeout {1000}
inherited

The read timeout [msec].

Definition at line 28 of file ioDevice.hpp.

Referenced by MagAOX::app::rhusbMon::rhusbMon(), MagAOX::app::tcsInterface::acquireFromGuider(), MagAOX::app::picoMotorCtrl::appLogic(), MagAOX::app::trippLitePDU::devPostLogin(), MagAOX::app::trippLitePDU::devStatus(), MagAOX::app::pi335Ctrl::finishInit(), MagAOX::app::pi335Ctrl::getCom(), MagAOX::app::smc100ccCtrl::getCtrlState(), MagAOX::app::smc100ccCtrl::getLastError(), MagAOX::app::tcsInterface::getMagTelStatus(), MagAOX::app::flipperCtrl::getPos(), MagAOX::app::smc100ccCtrl::getPosition(), MagAOX::app::pi335Ctrl::initDM(), MagAOX::app::dev::ioDevice::loadConfig(), MagAOX::app::rhusbMon::readProbe(), MagAOX::app::tcsInterface::sendFoffload(), MagAOX::app::tcsInterface::sendPyrNudge(), MagAOX::app::tcsInterface::sendTToffload(), MagAOX::app::pi335Ctrl::testConnection(), MagAOX::app::smc100ccCtrl::testConnection(), MagAOX::app::trippLitePDU::turnOutletOff(), and MagAOX::app::trippLitePDU::turnOutletOn().

◆ m_unit

template<class derivedT >
int MagAOX::app::dev::edtCamera< derivedT >::m_unit { 0 }
protected

EDT PDV board unit number.

Definition at line 63 of file edtCamera.hpp.

◆ m_writeTimeout

unsigned MagAOX::app::dev::ioDevice::m_writeTimeout {1000}
inherited

The write timeout [msec].

Definition at line 29 of file ioDevice.hpp.

Referenced by MagAOX::app::rhusbMon::rhusbMon(), MagAOX::app::picoMotorCtrl::appLogic(), MagAOX::app::smc100ccCtrl::appLogic(), MagAOX::app::picoMotorCtrl::channelThreadExec(), MagAOX::app::trippLitePDU::devPostLogin(), MagAOX::app::trippLitePDU::devStatus(), MagAOX::app::pi335Ctrl::finishInit(), MagAOX::app::pi335Ctrl::getCom(), MagAOX::app::smc100ccCtrl::getCtrlState(), MagAOX::app::smc100ccCtrl::getLastError(), MagAOX::app::flipperCtrl::getPos(), MagAOX::app::smc100ccCtrl::getPosition(), MagAOX::app::pi335Ctrl::home_1(), MagAOX::app::pi335Ctrl::home_2(), MagAOX::app::pi335Ctrl::home_3(), MagAOX::app::pi335Ctrl::initDM(), MagAOX::app::dev::ioDevice::loadConfig(), MagAOX::app::pi335Ctrl::move_1(), MagAOX::app::pi335Ctrl::move_2(), MagAOX::app::pi335Ctrl::move_3(), MagAOX::app::smc100ccCtrl::moveTo(), MagAOX::app::flipperCtrl::moveTo(), MagAOX::app::rhusbMon::readProbe(), MagAOX::app::pi335Ctrl::releaseDM(), MagAOX::app::smc100ccCtrl::startHoming(), MagAOX::app::smc100ccCtrl::stop(), MagAOX::app::pi335Ctrl::testConnection(), MagAOX::app::smc100ccCtrl::testConnection(), MagAOX::app::trippLitePDU::turnOutletOff(), and MagAOX::app::trippLitePDU::turnOutletOn().

The documentation for this class was generated from the following file:
