Running MagAO-X from macOS

Obtaining a copy of the MagAO-X software and virtual machine

The MagAO-X setup scripts in https://github.com/joseph-long/magao-x-setup/ are used to generate a virtual machine image on a regular schedule. Get the latest built image from the repository’s “Actions” tab.

  1. Go to the list of successful build-vm runs

  2. Click on the most recent build (i.e. the first one in the list)

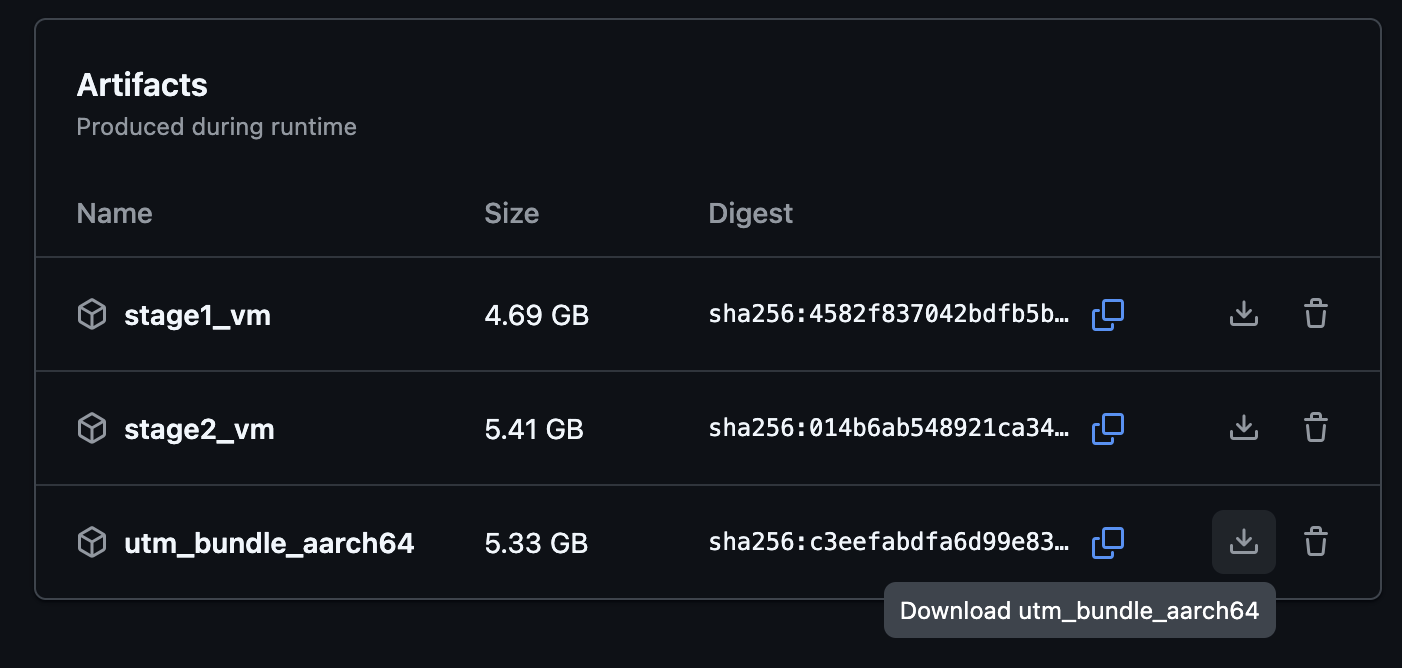

  3. Scroll down to the “Artifacts”

  4. Choose the utm_bundle_aarch64 artifact

    ../../_images/build_artifacts.png

  5. When the download completes, extract the archive, giving you MagAO-X.utm, xvm_key, and xvm_key.pub

Starting the virtual machine

On macOS, the virtual machine is packaged as a UTM bundle. Install UTM from its website (free) or the Mac App Store ($).

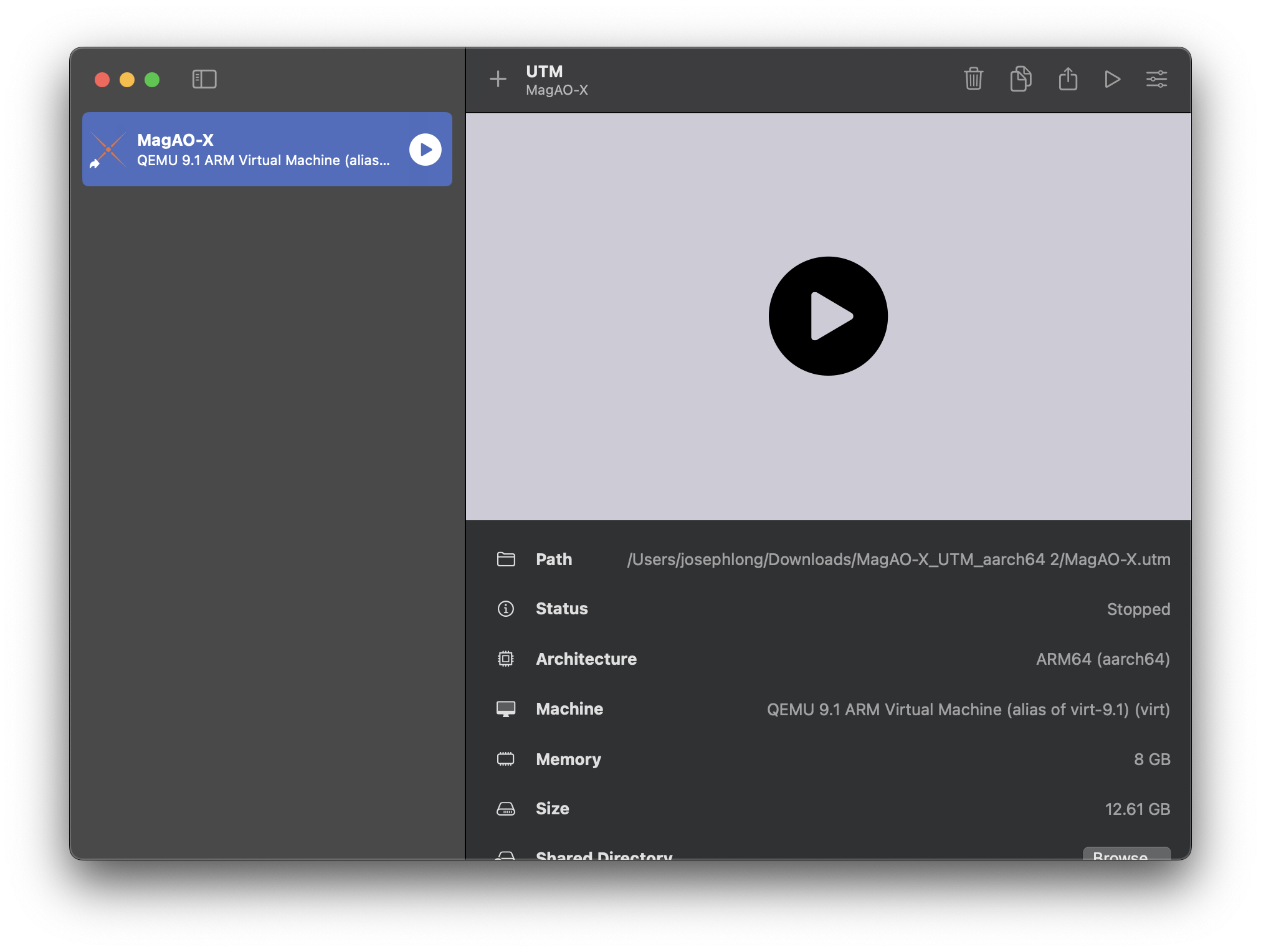

Move the MagAO-X VM bundle you downloaded out of your downloads folder and into a more permanent home. Double click it to open in UTM, and use the “play” button to start the virtual machine.

../../_images/utm_picker.png

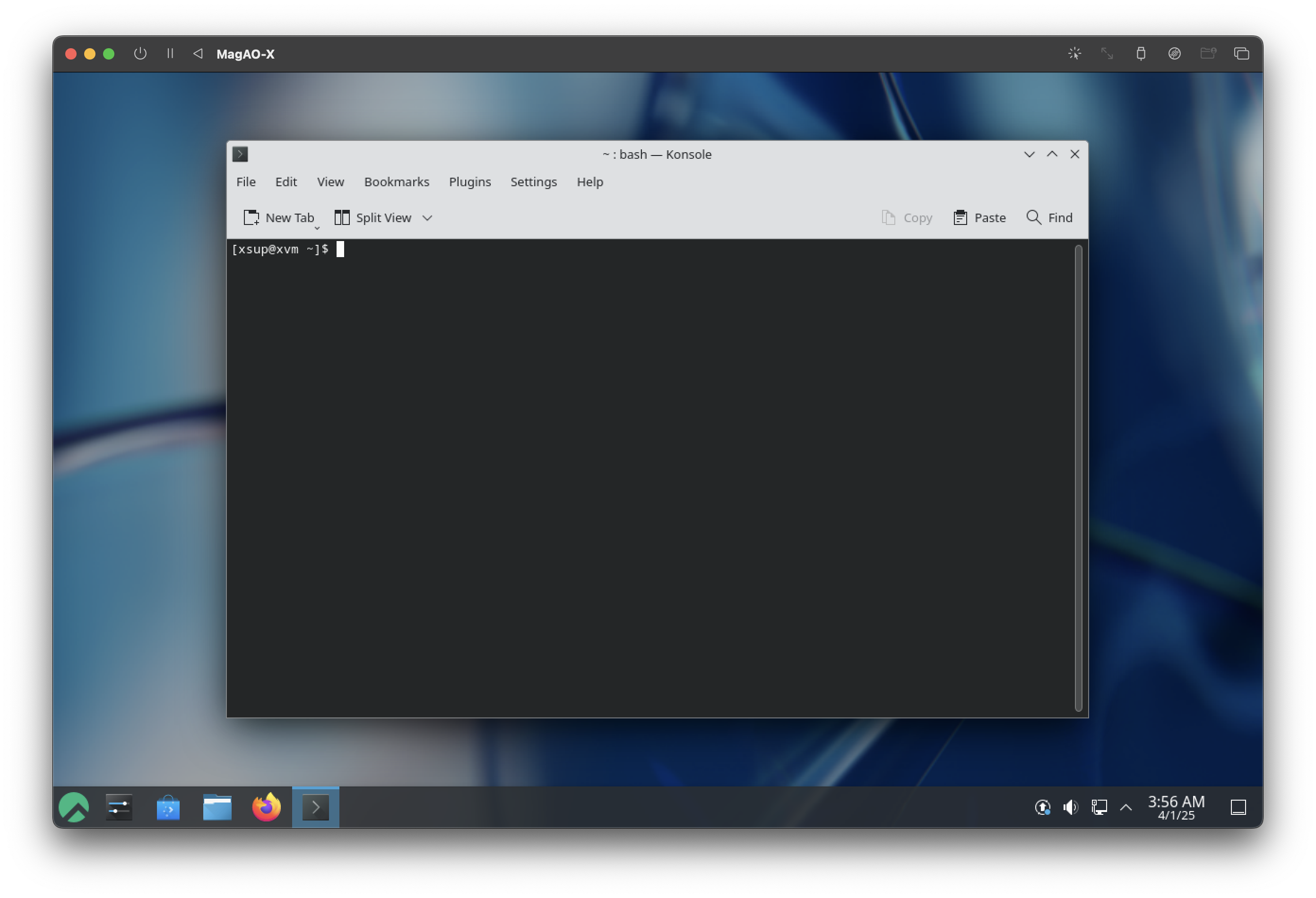

Once the machine is booted, you will have a Linux (KDE) desktop set up akin to a MagAO-X control computer.

../../_images/utm_booted.png

Using the “pause” button in the toolbar will suspend the VM.

Install an SSH key

Connections to MagAO-X are secured with SSH keys. To connect from a virtual machine, you must have a key pair that is present within the virtual machine and installed on MagAO-X. How you do this is up to you, but one option is to copy the key pair you’re using on your host computer (if it’s already installed on MagAO-X).

You will need the IP address of the virtual machine. Use the system settings, or run this command within the VM:

$ ip route
default via 192.168.64.1 dev enp0s1 proto dhcp src 192.168.64.45 metric 100
192.168.64.0/24 dev enp0s1 proto kernel scope link src 192.168.64.45 metric 100

In the above example 192.168.64.45 is the IP address on which the guest is visible to the host. Using this address (or whatever it happens to be for your setup), copy your SSH key into place. From outside the VM, go to the directory containing the VM bundle and a file called xvm_key. Using this default key, connect to the VM:

$ ssh -i ./xvm_key xsup@REPLACE_WITH_IP_ADDRESS

You may be prompted to accept/authorize the VM’s SSH key with yes.

% ssh -i ./xvm_key xsup@192.168.64.45
The authenticity of host '192.168.64.45 (192.168.64.45)' can't be established.
ED25519 key fingerprint is SHA256:gSJgdHAWSK1GWQL/1GYswPg3to4Od3B/R1+yeSULYDs.
This key is not known by any other names.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '192.168.64.45' (ED25519) to the list of known hosts.
xsup@192.168.64.45's password:
[xsup@xvm ~]$

Note

If you get a message like this:

% ssh -i ./xvm_key xsup@192.168.64.45
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@    WARNING: REMOTE HOST IDENTIFICATION HAS CHANGED!     @
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
IT IS POSSIBLE THAT SOMEONE IS DOING SOMETHING NASTY!
Someone could be eavesdropping on you right now (man-in-the-middle attack)!
It is also possible that a host key has just been changed.
The fingerprint for the ED25519 key sent by the remote host is
SHA256:gSJgdHAWSK1GWQL/1GYswPg3to4Od3B/R1+yeSULYDs.
Please contact your system administrator.
Add correct host key in /Users/user/.ssh/known_hosts to get rid of this message.
Offending RSA key in /Users/user/.ssh/known_hosts:161
Host key for 192.168.64.45 has changed and you have requested strict checking.
Host key verification failed.

You need to open ~/.ssh/known_hosts and remove the offending key on the given line (here, line 161). Then, try the above steps again.

Using exit, return to your host shell prompt:

[xsup@xvm ~]$ exit
$

Now you can copy your key into place. Let’s assume you have an Ed25519 key saved in ~/.ssh/id_ed25519. From the host machine:

$ scp -i ./xvm_key ~/.ssh/id_ed25519 xsup@REPLACE_WITH_IP_ADDRESS:.ssh/
id_ed25519                                   100%  411   531.6KB/s   00:00

$ scp -i ./xvm_key ~/.ssh/id_ed25519.pub xsup@REPLACE_WITH_IP_ADDRESS:.ssh/
id_ed25519.pub                               100%  100   129.2KB/s   00:00

Configure your SSH username

The default contents of ~/.ssh/config inside the VM are:

Host aoc exao1
   HostName exao1.magao-x.org
Host rtc exao2
   HostName rtc
ProxyJump aoc
   Host icc exao3
HostName icc
   ProxyJump aoc
Host *
   User YOURMAGAOXUSERNAME

Edit this file in your favorite editor. As you might guess, YOURMAGAOXUSERNAME must be replaced with your MagAO-X username (the one used to log in to exao1/2/3).

Next, within the VM, test that you can connect to exao1/AOC:

[xsup@xvm ~]$ ssh aoc
[YOURMAGAOXUSERNAME@exao1]$ exit

Connect tunnels

The proclist for a workstation lives in /opt/MagAOX/config/proclist_workstation.txt. It only has some SSH tunnels to start, which you can start with xctrl startup within the VM.

You can inspect the status of the tunnels by doing xctrl status, which should show something like this:

workstation_aoc_indi: running (pid: 1234)
workstation_aoc_milkzmq: running (pid: 1235)

To test that INDI is actually connecting, getINDI from the command line will print all the (many) MagAO-X properties.

Connect viewer

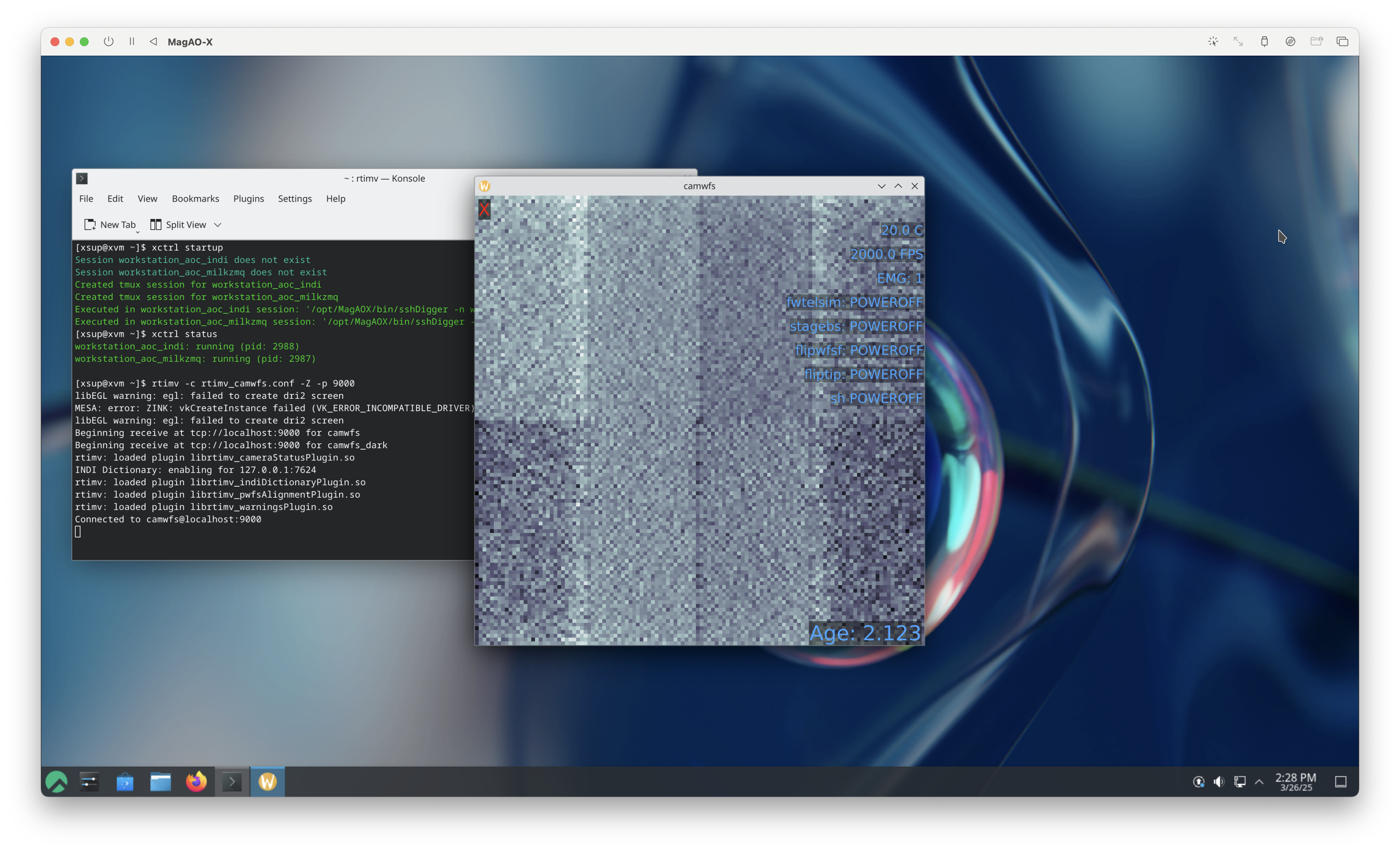

To open camsci1, for example, open a terminal and type rtimv -c rtimv_camsci1.conf -Z -p 9000.

../../_images/rtimv_in_vm.png

The rtimv command looks just like it does on the instrument, except for the -Z -p 9000 options. These options have rtimv connect directly to the MilkZMQ relay, rather than requiring a local MilkZMQ client.

Note

The “Age:” overlay in rtimv is unreliable when running remotely due to network congestion and clock synchronization issues. In other words, if images are always 3 seconds old, there is no technical issue with the viewer. You may have to wait that long to see your actions reflected, though.

Warning

Every viewer open on anyone’s remote workstation is receiving a high-bandwidth stream from the cameras. If the network connection gets saturated, you can get distorted or corrupted images. This doesn’t indicate a hardware problem, and will go away if the network connection gets less congested.

You may be able to help by closing viewers you aren’t currently using.

Freeing GUIs from the virtual desktop

Since macOS and Linux both support X11, you can use the Linux GUIs from the virtual machine as if they were on your Mac. You will need XQuartz installed.

Above, you identified the host IP address for your VM. Using that, connect via ssh using the -Y option for “trusted X11 forwarding”. Remember to specify the xvm key:

$ ssh -Y -i ./xvm_key xsup@REPLACE_WITH_IP_ADDRESS

At the resulting prompt, you can start a viewer with, e.g.:

[xsup@xvm ~]$ rtimv -Z -p 9000 -c rtimv_camwfs.conf &

And a camera GUI, e.g.:

[xsup@xvm ~]$ cameraGUI camwfs &

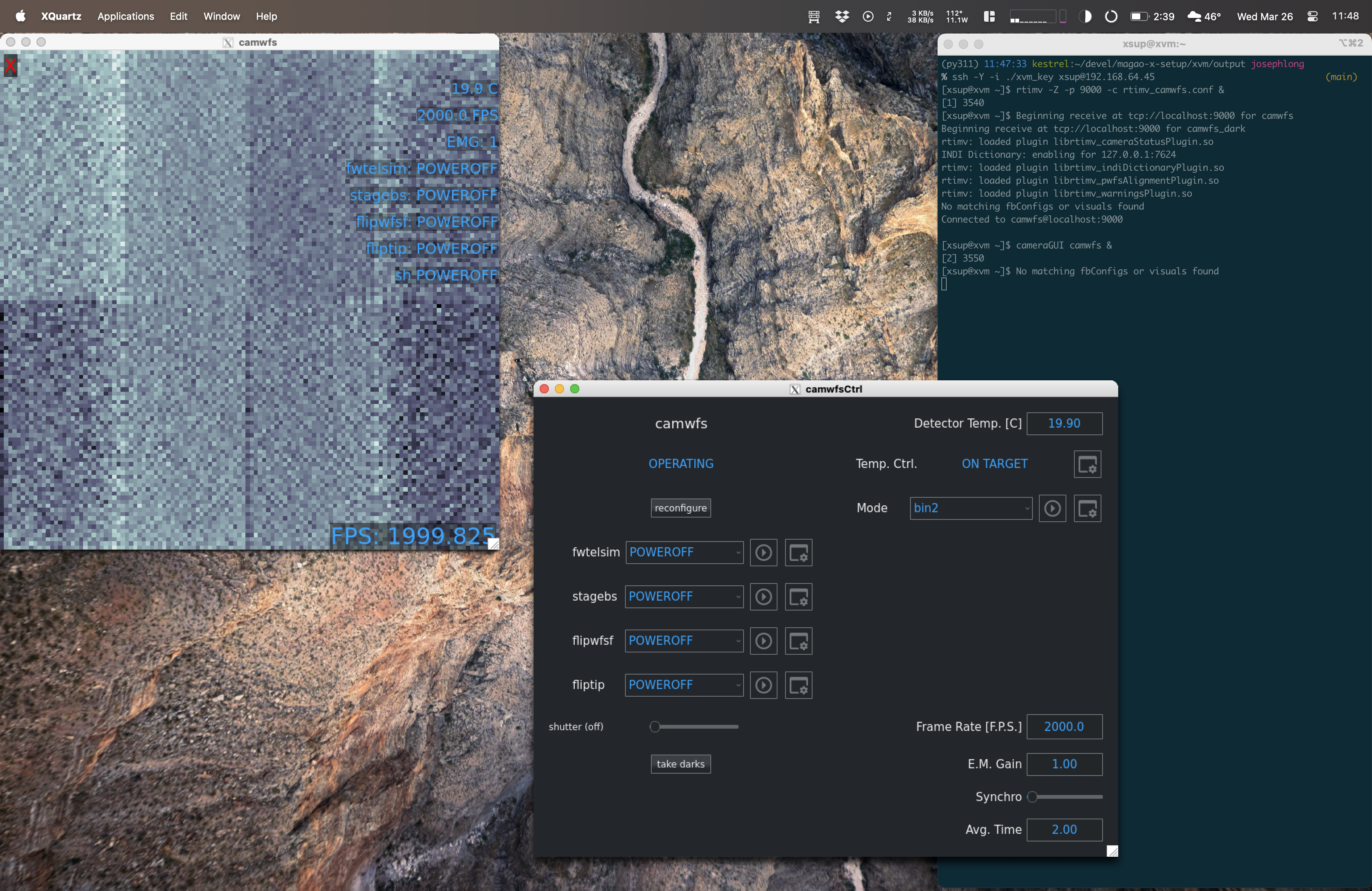

Now the MagAO-X GUI windows can behave like normal macOS windows (except that they all belong to the XQuartz application).

../../_images/rtimv_mac_x11.png

Updating the virtual machine

You will need to keep the virtual machine up-to-date. In general, this means updating the /opt/MagAOX/config repository and /opt/MagAOX/source/MagAOX codebase. If you know what needs to be updated, you can save time by updating those parts specifically.

If you don’t know what needs to be updated, you have two options:

  1. You can discard your existing VM and any data saved on it, or

  2. you can re-run provisioning.

If you choose Option 1, just delete the virtual machine and follow the above instructions again.

If you choose Option 2, connect to your virtual machine and open a terminal.

  1. Update the setup scripts on the virtual machine:

    cd /opt/MagAOX/source/magao-x-setup/
git pull

  2. Repeat provisioning:

    bash provision.sh

This will repeat the installation steps with updated versions of the various MagAO-X software packages. (In-place upgrades aren’t always trivial, so there may be more manual steps to perform.)
