Cameras

GUIs display images and control the cameras which produce them.

rtimv

Images can be displayed with rtimv. To get a fully featured rtimv session start it with the command

$ rtimv -c rtimv_camtip.conf

where rtimv_camtip.conf is a configuration file in the directory /opt/MagAOX/config for the camera camtip. The resultant rtimv window will look like:

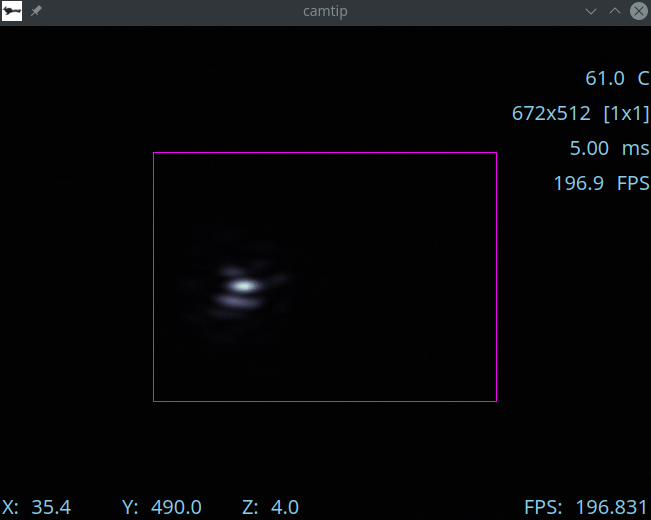

The text at the upper right shows information about the camera. The information presented depends on the camera and its capabilities. The text at lower left shows the x/y coordinate of the mouse, and z means the value of the pixel under the mouse (after dark subtraction if enabled in rtimv). At lower right the FPS gage shows the measured frame-rate of the camera (it is not the rate at which rames are updating on your monitor).

In rtimv you can get help at any time by pressing the h key while in the window.

For the full description of all of the features of rtimv see the its User Guide.

ROIs

Regions of Interest (ROIs) can be set for many of the cameras used in MagAO-X. The roiGUI can be opened from the cameraGUI control panel for the camera, or can be started with the command

$ roiGUI camtip

where camtip can be changed to the name of the camera device desired.

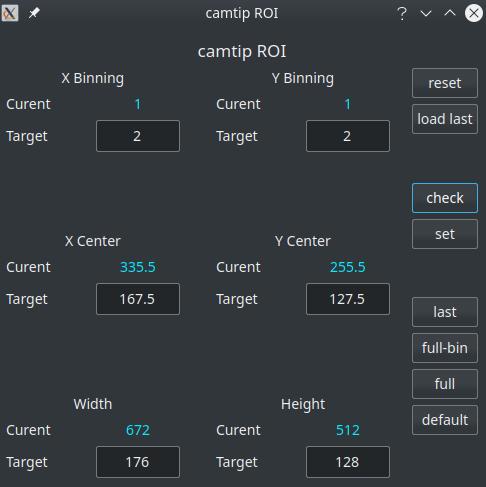

The text entry blocks allow you to change the target parameters of the ROI. When a target value is changed, the purple ROI box in rtimv (see above) will update automatically to show you which region of the camera is selected. Note that you have to hit enter, or tab or click to another box, for the new value to load.

The “Relative to current ROI” check-box below the X and Y Center fields changes the coordinate system of the center targets. If checked, then the center coordinates are entered in the Target fields relative to the current ROI. This means they match the rtimv display coordinates. If it is not checked, then the coordinates are relative to the full frame of the camera. Note that the Current fields are always w.r.t. the full frame. The binning, width, and height are not affected by the check box.

roiGUI Buttons

The button functions are:

  1. reset: resets the target values to the current values. This does not change the camera settings.

  2. load last: loads the last (previous) ROI into the target values, but does set them on the camera. This does not change the camera settings.

  3. check: requests that the camera software validate the target, and updates the values to the closest match allowable. This does not change the camera settings.

  4. set: requests that the camera change to the target ROI. This changes the camera settings.

  5. last: sets the last/previous ROI on the camera. This changes the camera settings.

  6. full-bin: sets the camera to the full size ROI preserving the current binning. This changes the camera settings.

  7. full: sets the camera to the full ROI in the smallest binning (usually 1x1). This changes the camera settings.

  8. default: sets the camera to the configured default ROI. This changes the camera settings.

Changing ROI in rtimv

rtimv allows you to change the ROI by interacting with the maroon box. It is movable and stretchable. If it is not visible, press shift+r (a.k.a. R) to make it appear. You can then adjust its position and size. Once it is in the position you want press alt+r to apply it. This first checks your input with the camera, and if the camera requires a change the box will update but the ROI will not move. Press alt+r again to apply the updated position. If the camera accepts the original it will apply the first time. In either case an informational message is displayed by rtimv.
